Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

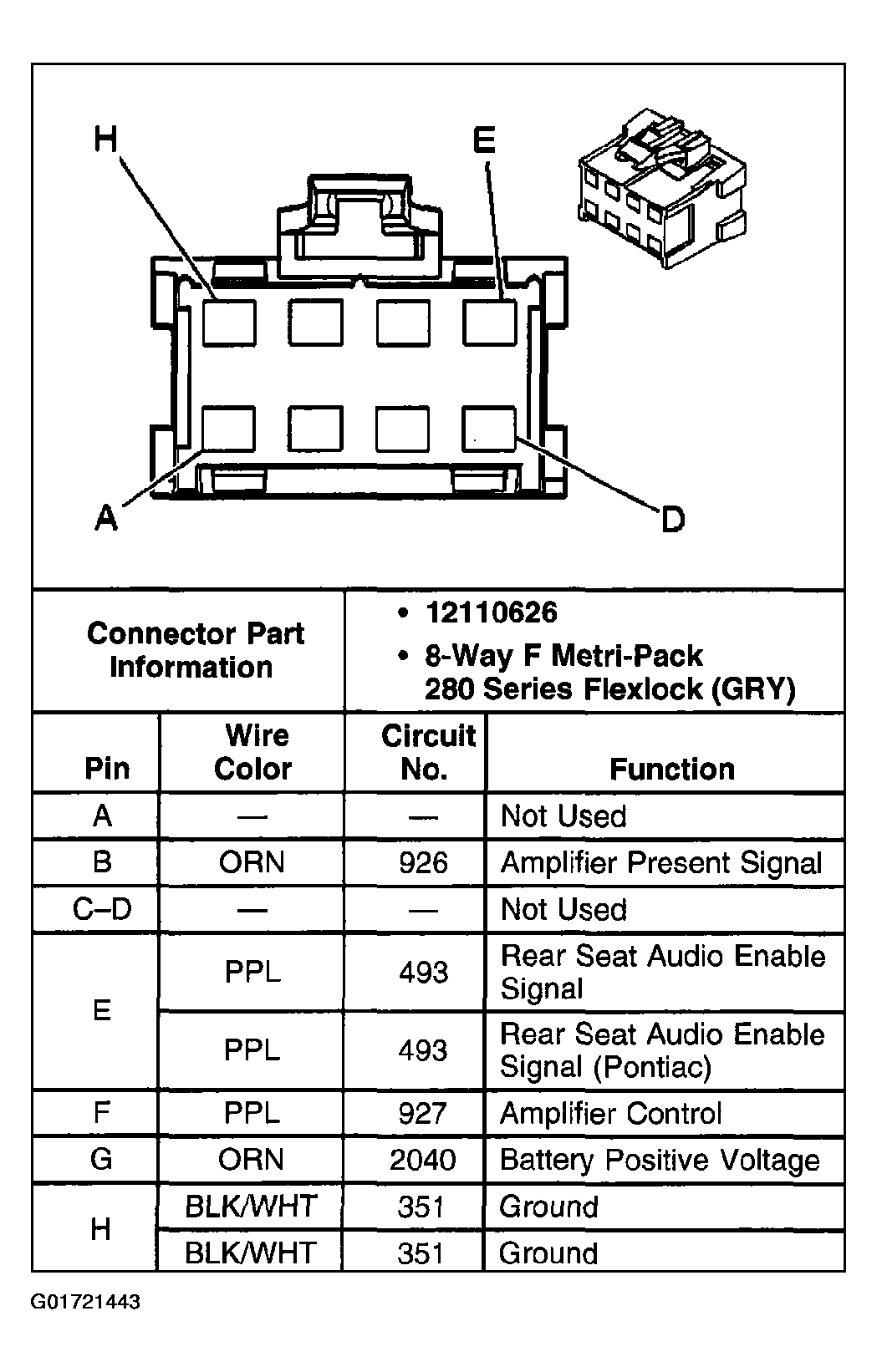

Fig 1: Audio Amplifier Connector End Views - C1 (UQ3)

G01721443

Courtesy of GENERAL MOTORS CORP.

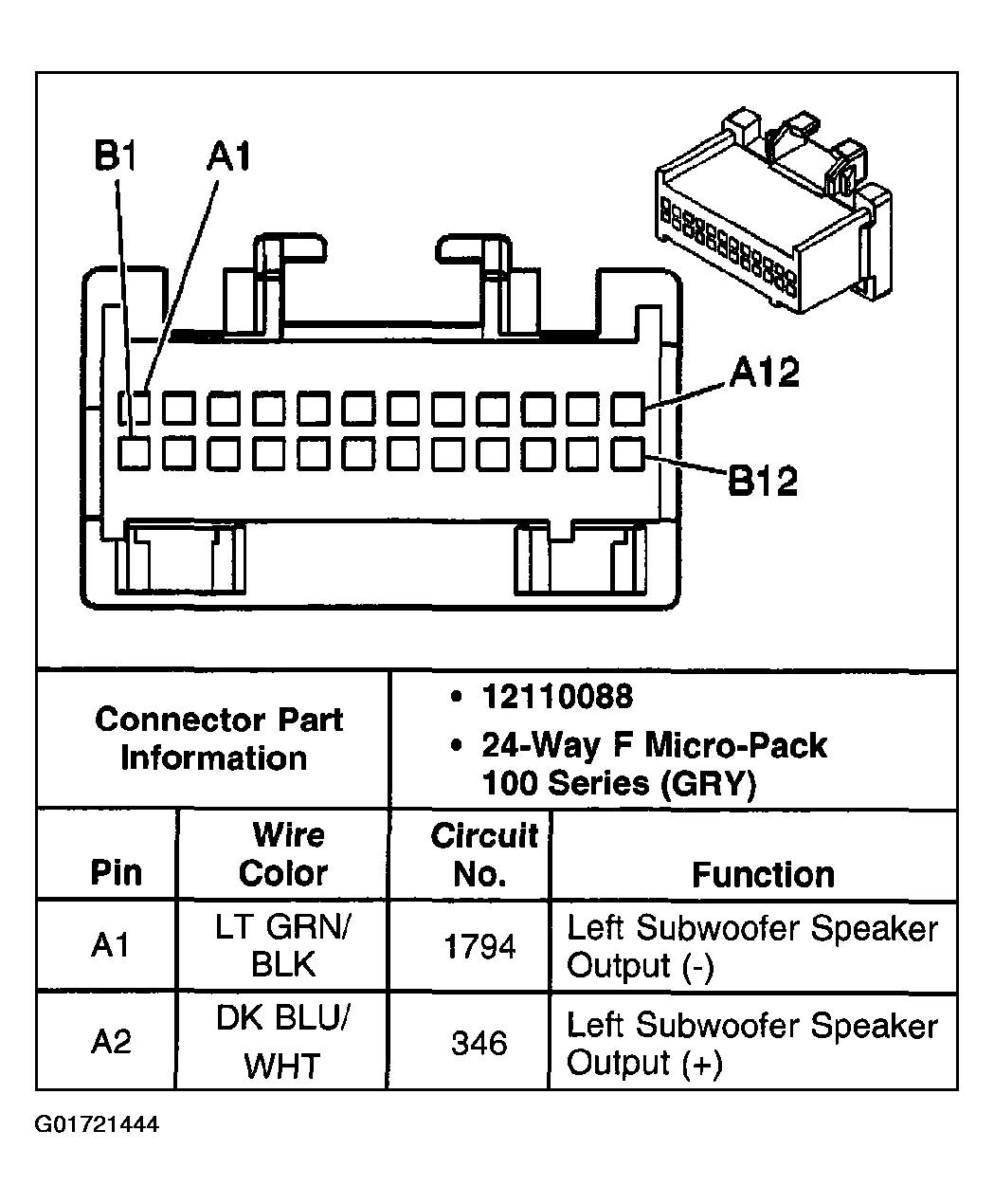

Fig 2: Audio Amplifier Connector End Views (1 Of 4) - C2 (UQ3)

G01721444

Courtesy of GENERAL MOTORS CORP.

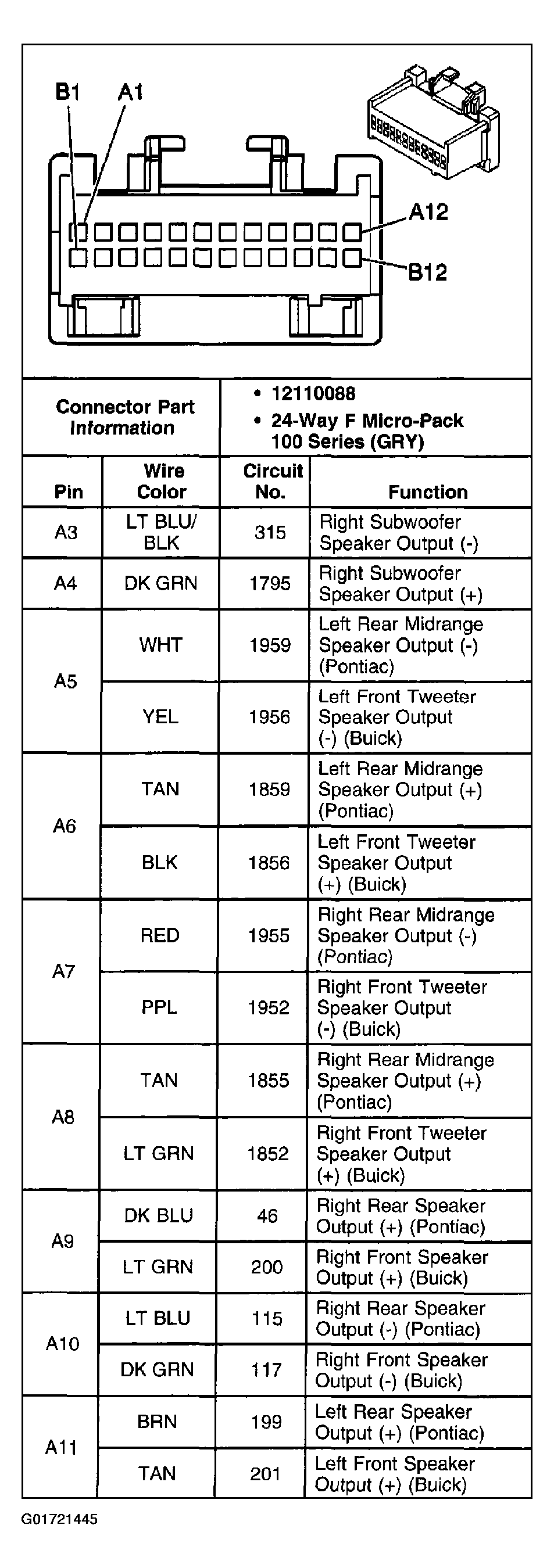

Fig 3: Audio Amplifier Connector End Views (2 Of 4) - C2 (UQ3)

G01721445

Courtesy of GENERAL MOTORS CORP.

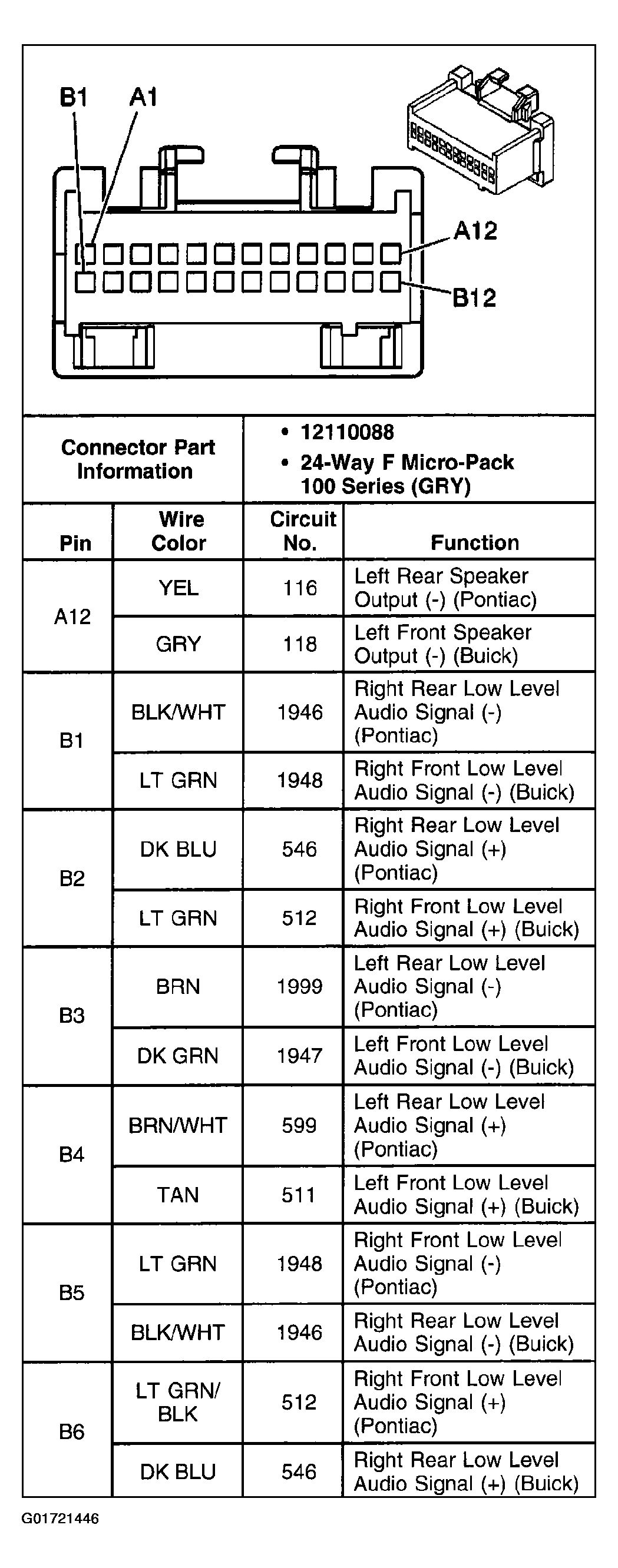

Fig 4: Audio Amplifier Connector End Views (3 Of 4) - C2 (UQ3)

G01721446

Courtesy of GENERAL MOTORS CORP.

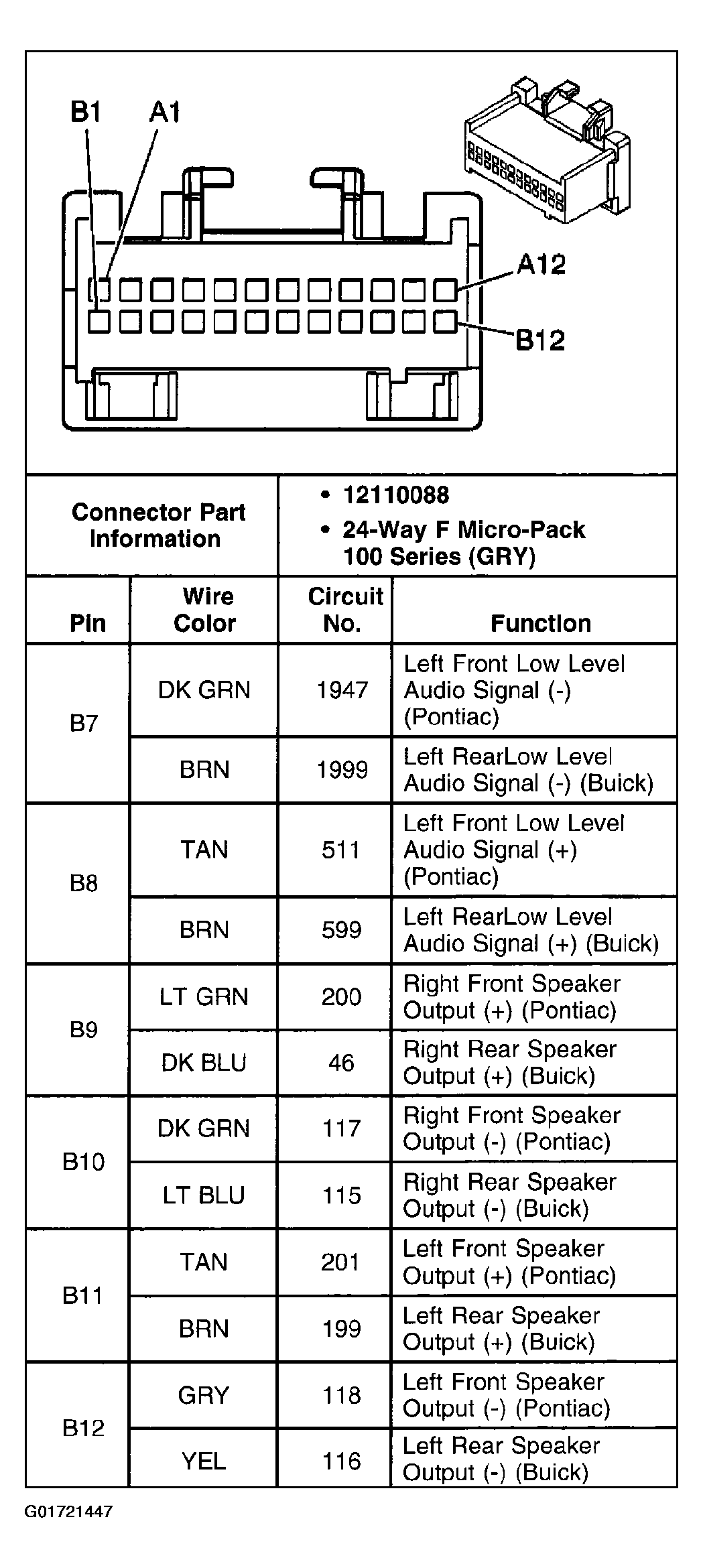

Fig 5: Audio Amplifier Connector End Views (4 Of 4) - C2 (UQ3)

G01721447

Courtesy of GENERAL MOTORS CORP.

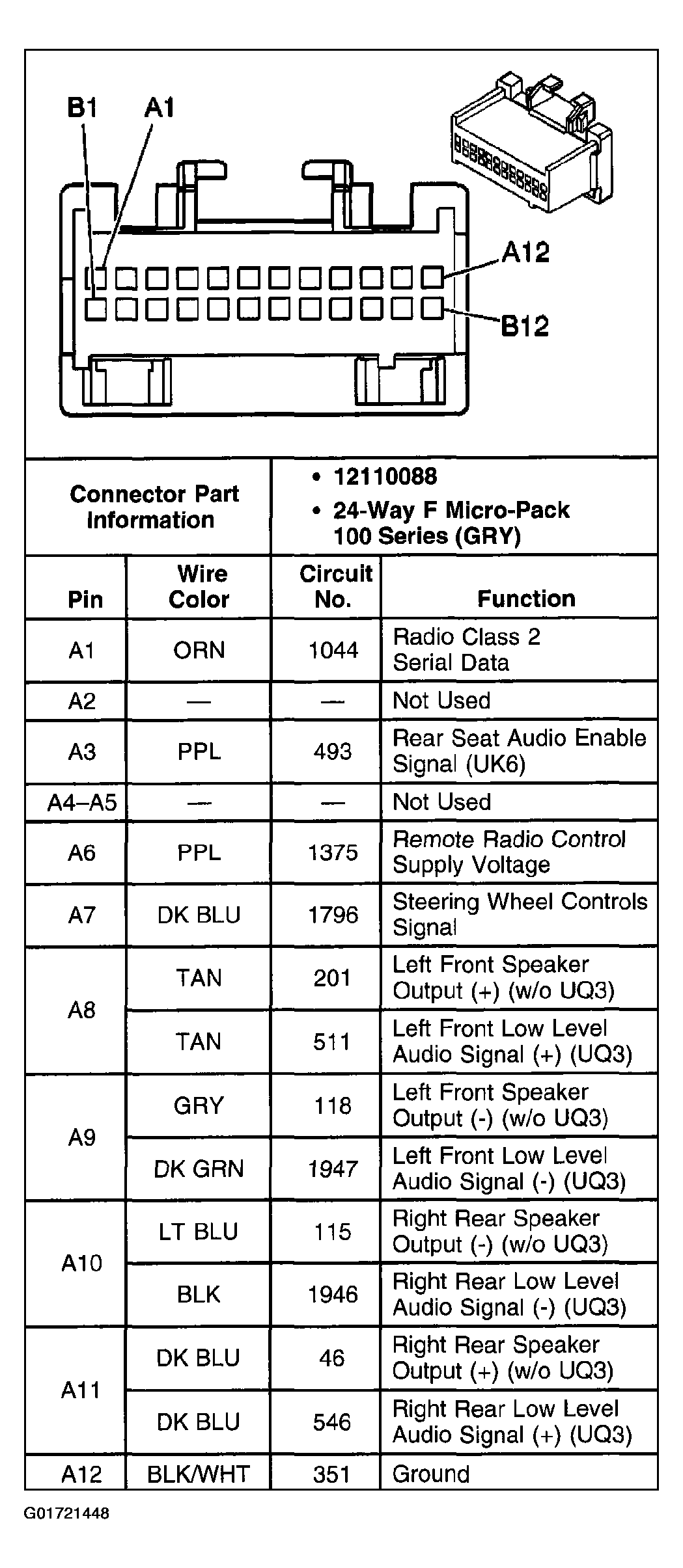

Fig 6: Radio (1 Of 2) - C1

G01721448

Courtesy of GENERAL MOTORS CORP.

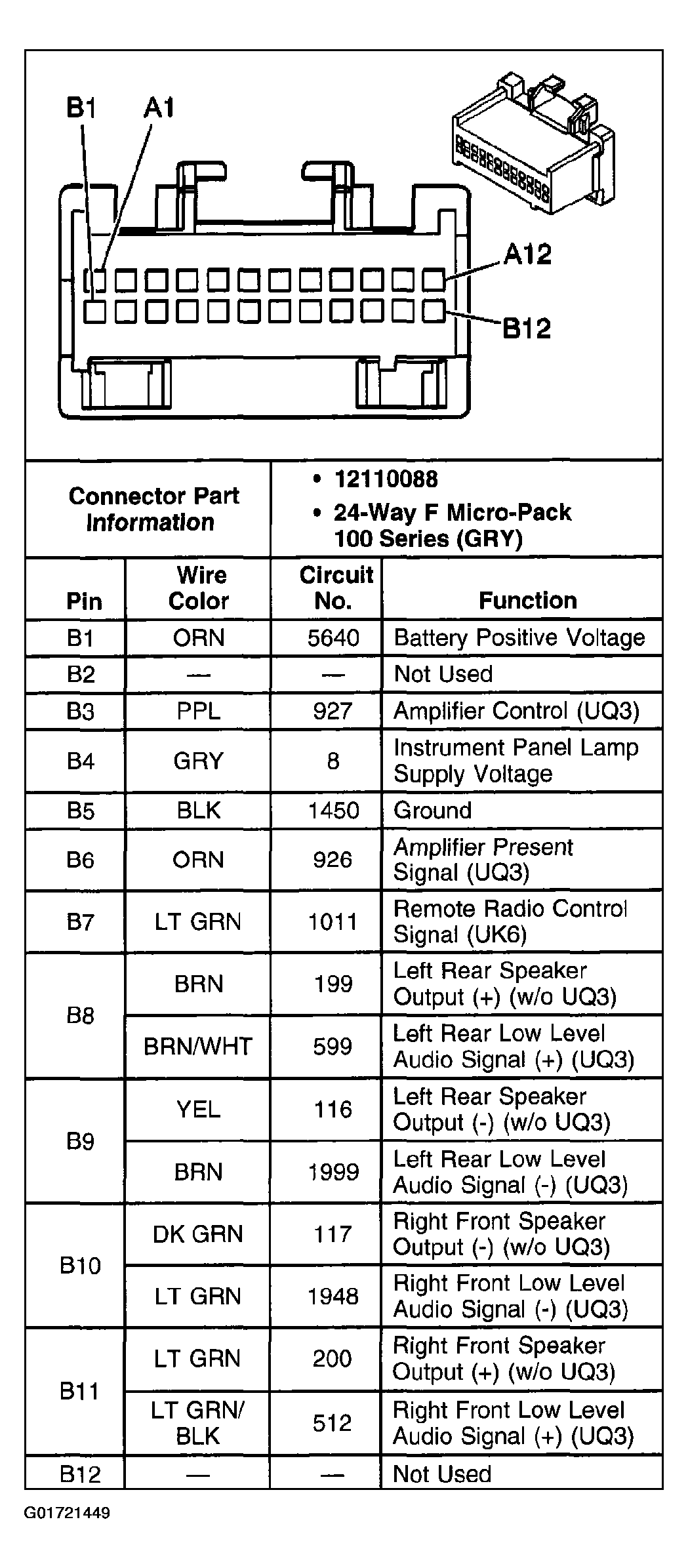

Fig 7: Radio (2 Of 2) - C1

G01721449

Courtesy of GENERAL MOTORS CORP.

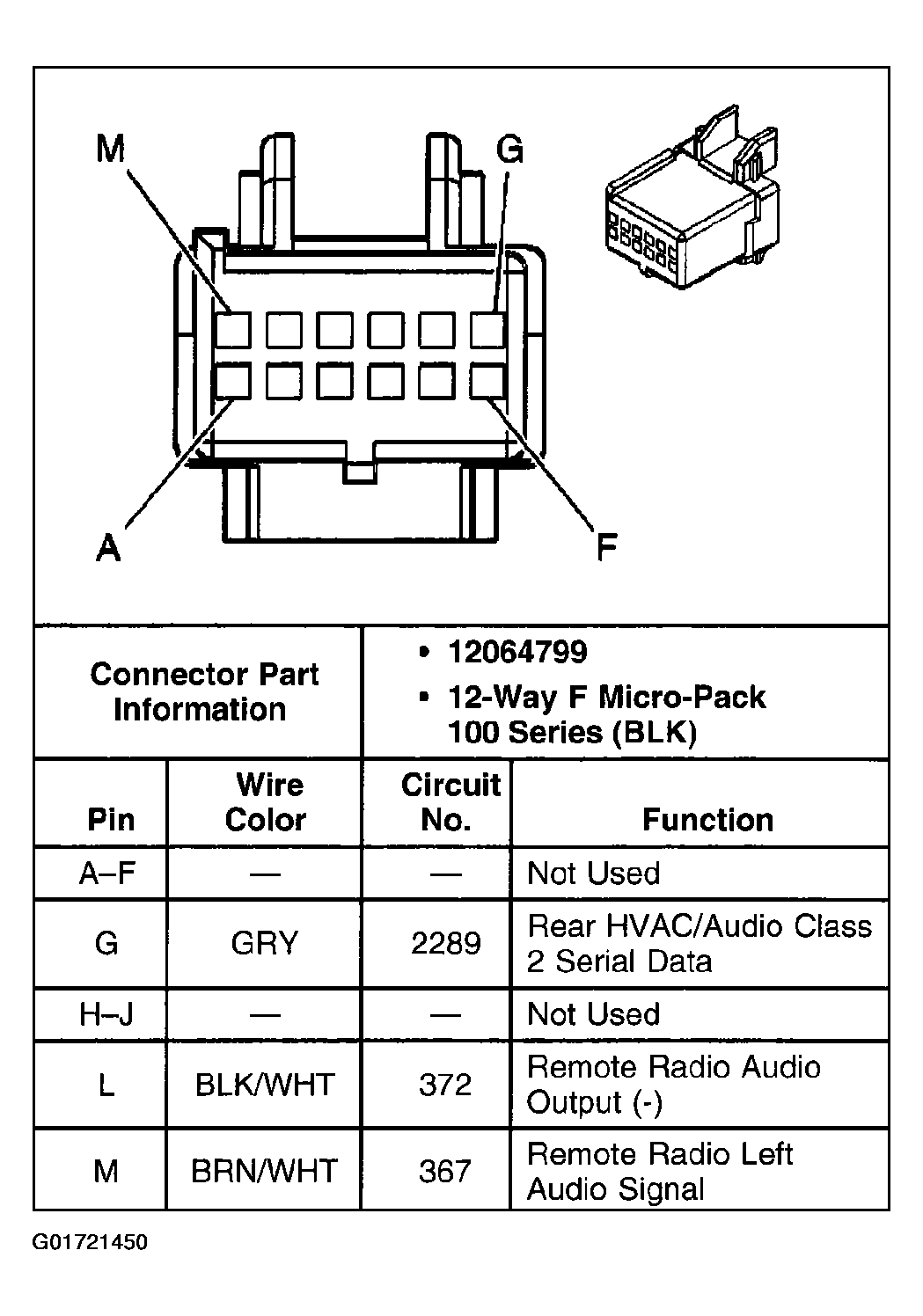

Fig 8: Radio - C2 (UE1)

G01721450

Courtesy of GENERAL MOTORS CORP.

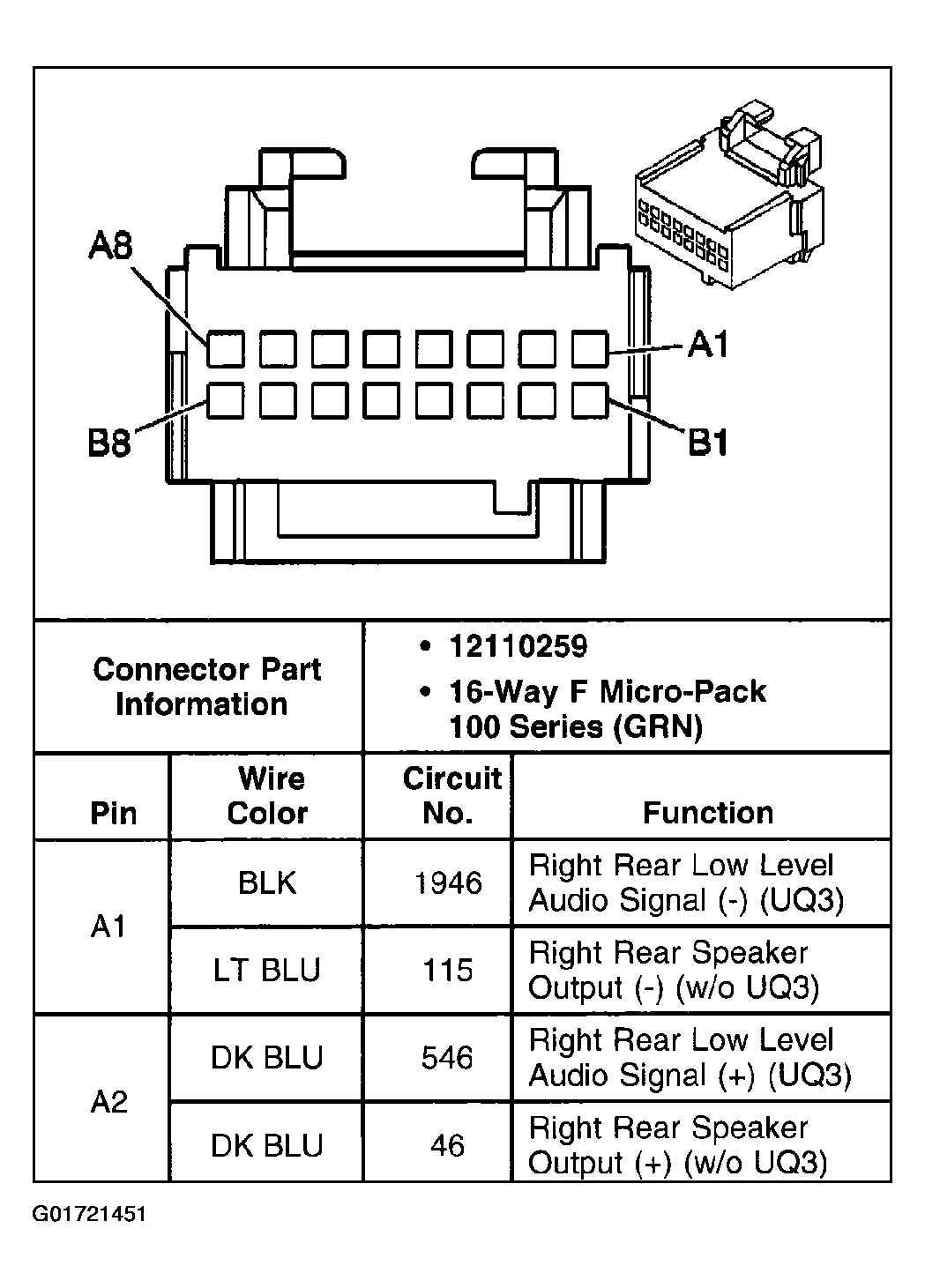

Fig 9: Rear Seat Audio (RSA) Control (UK6) (1 Of 2)

G01721451

Courtesy of GENERAL MOTORS CORP.

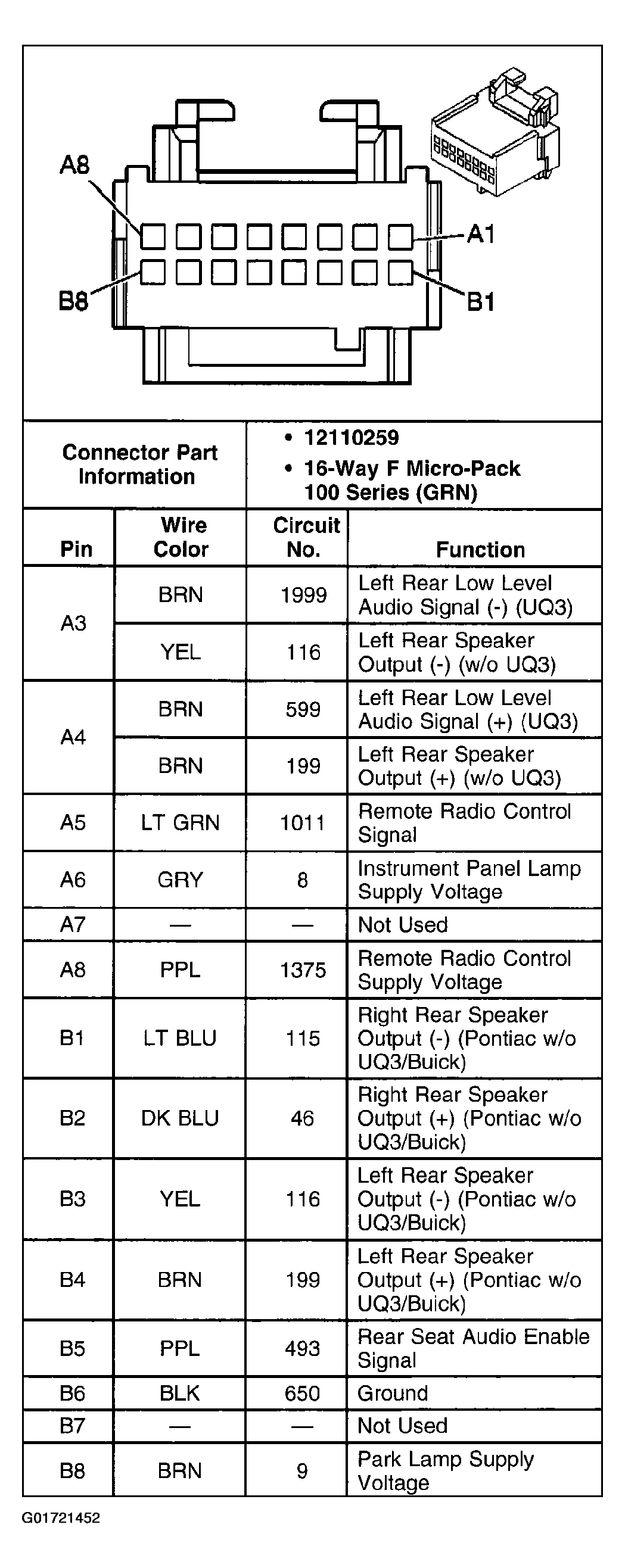

Fig 10: Rear Seat Audio (RSA) Control (UK6) (2 Of 2)

G01721452

Courtesy of GENERAL MOTORS CORP.

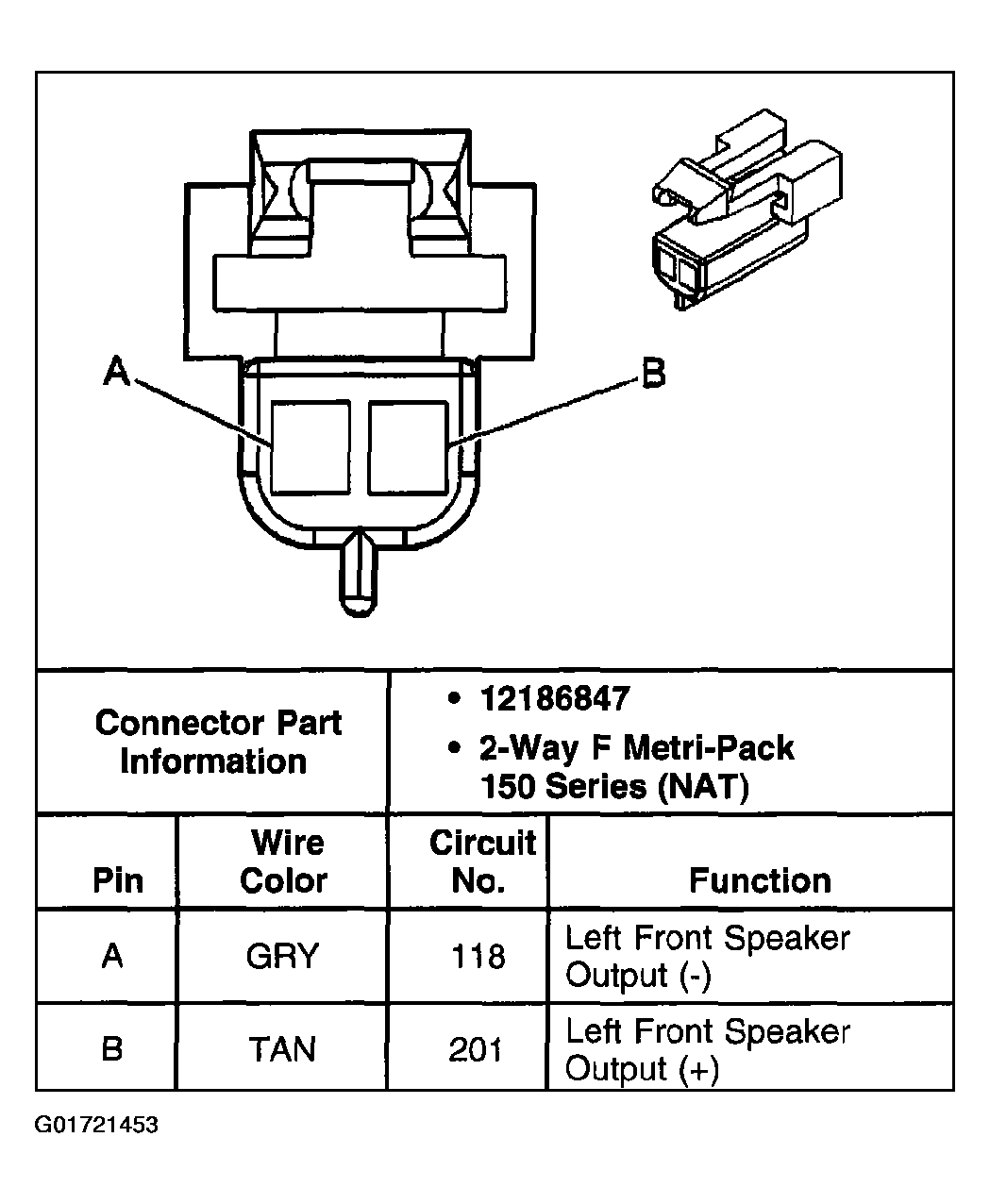

Fig 11: Speaker - LF Door

G01721453

Courtesy of GENERAL MOTORS CORP.

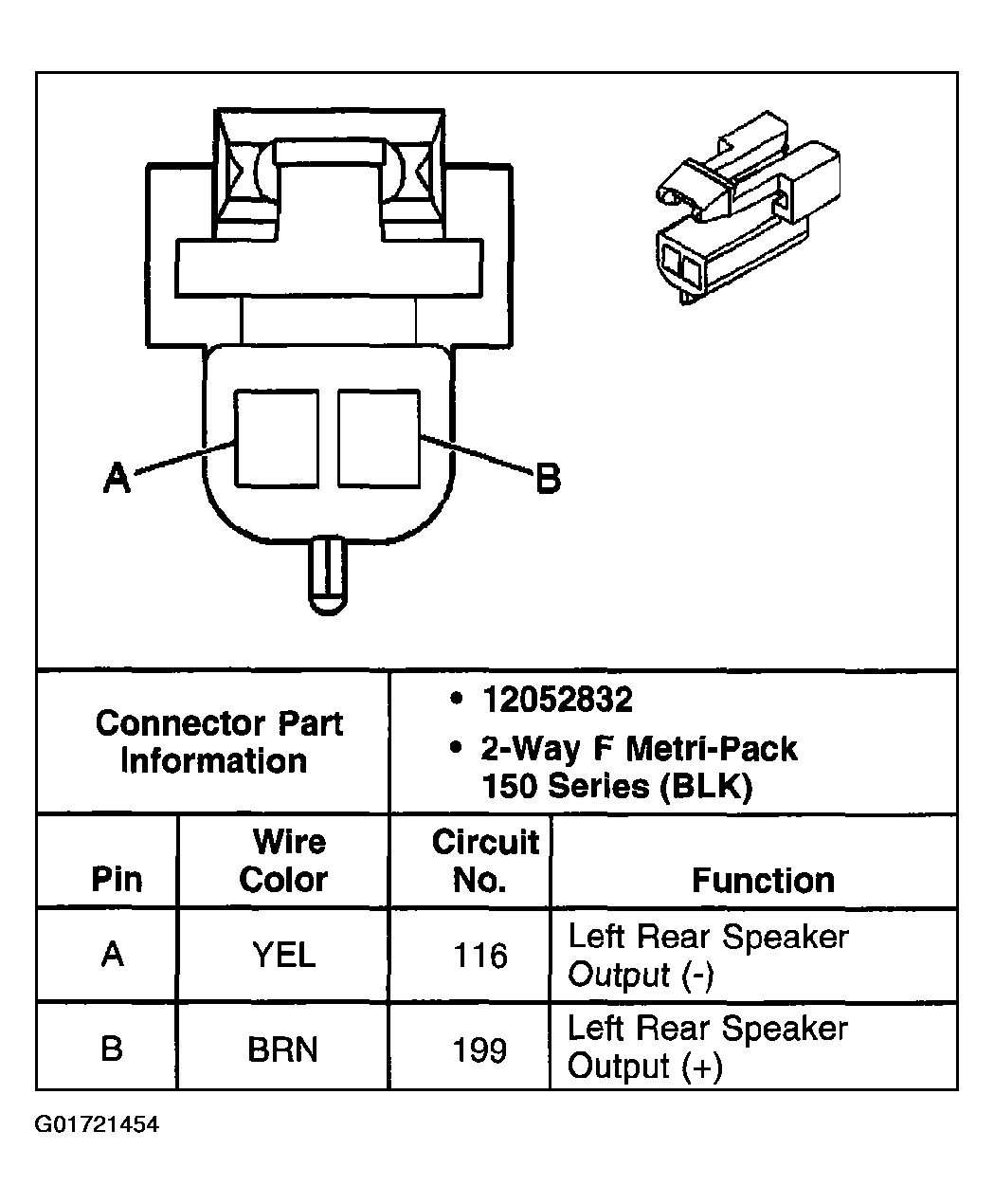

Fig 12: Speaker - LR Door

G01721454

Courtesy of GENERAL MOTORS CORP.

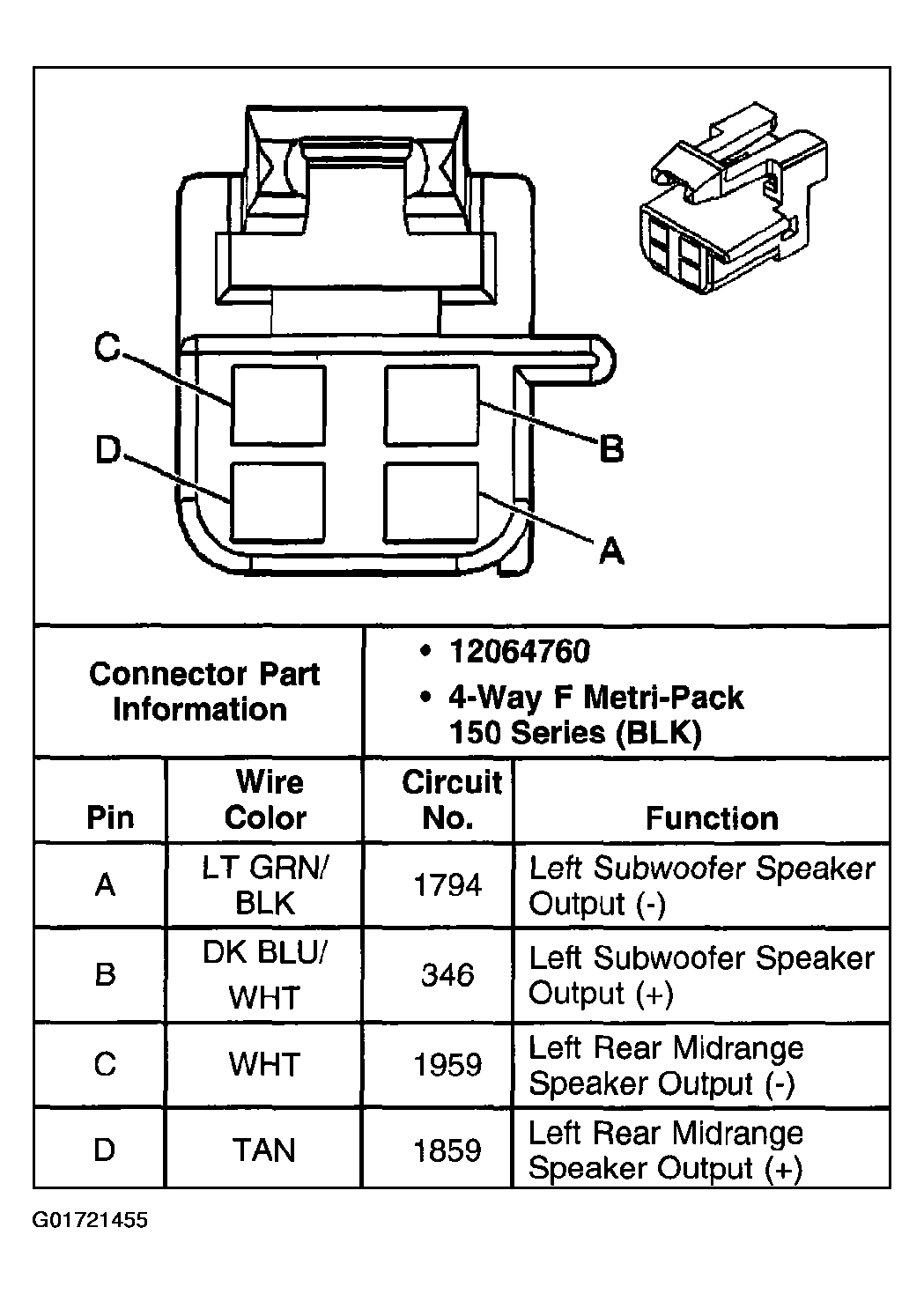

Fig 13: Speaker - LR Subwoofer (Pontiac) (UQ3)

G01721455

Courtesy of GENERAL MOTORS CORP.

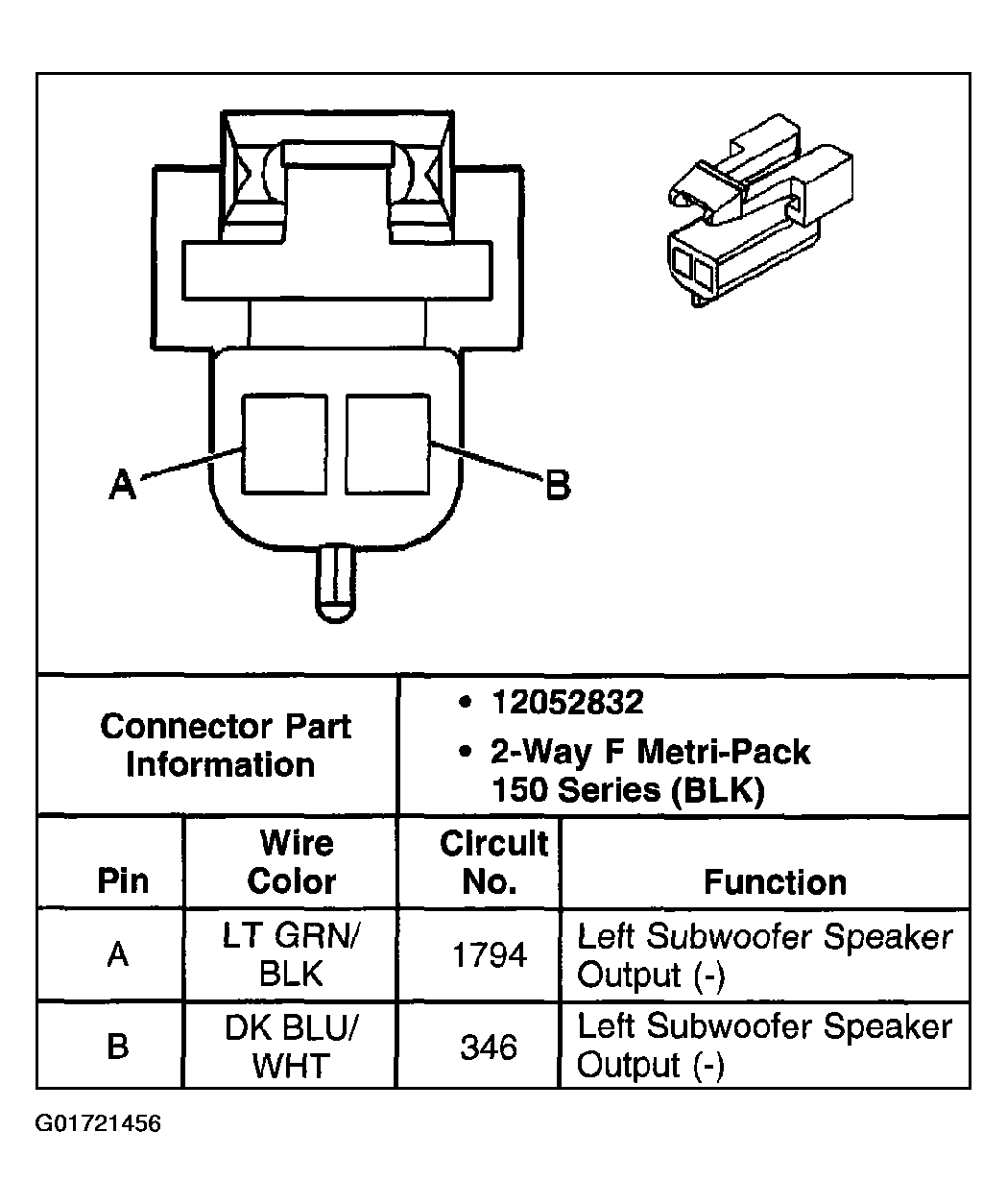

Fig 14: Speaker - LR Subwoofer (Buick) (UQ3)

G01721456

Courtesy of GENERAL MOTORS CORP.

Fig 15: Speaker - RF Door

G01721457

Courtesy of GENERAL MOTORS CORP.

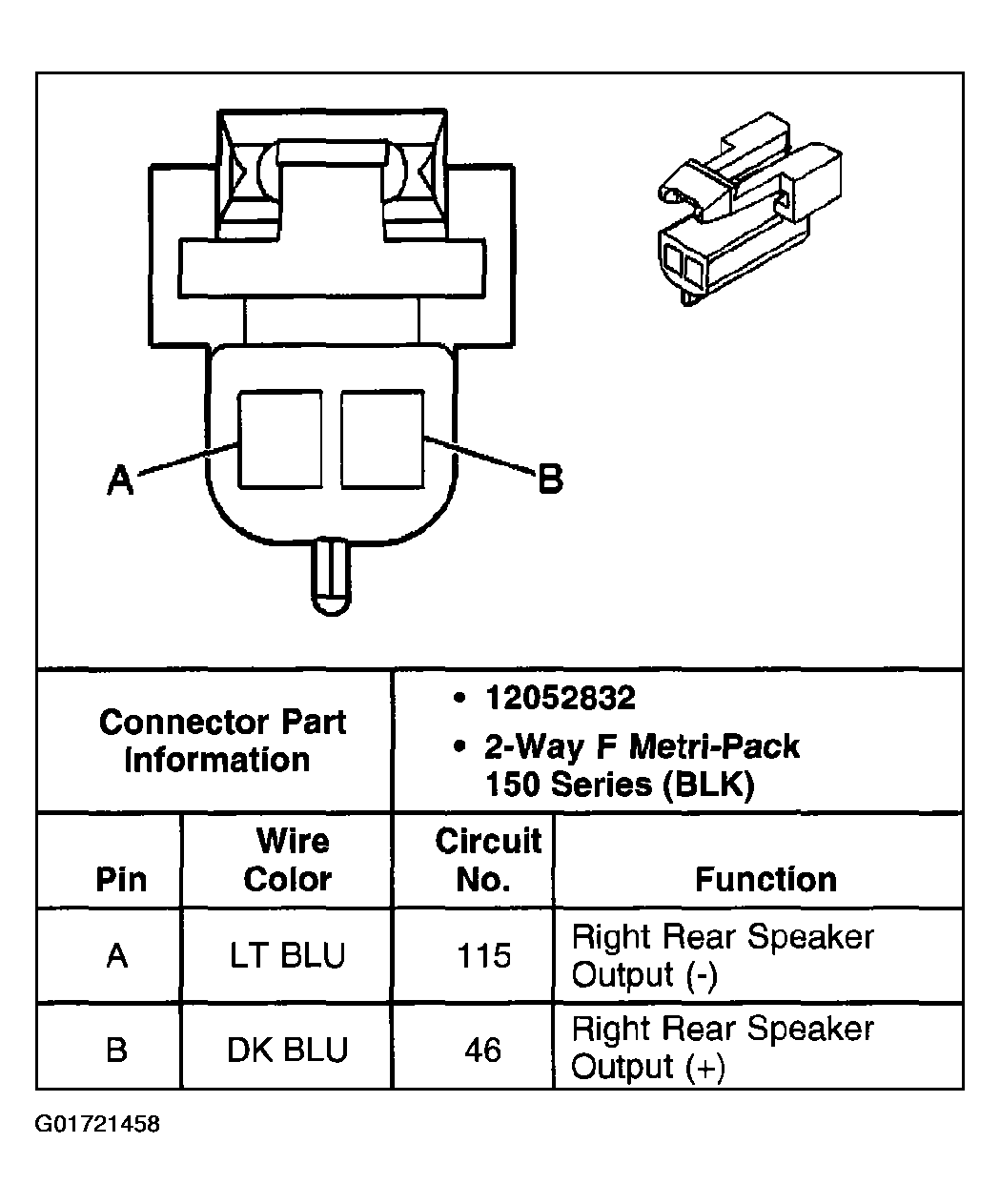

Fig 16: Speaker - RR Door

G01721458

Courtesy of GENERAL MOTORS CORP.

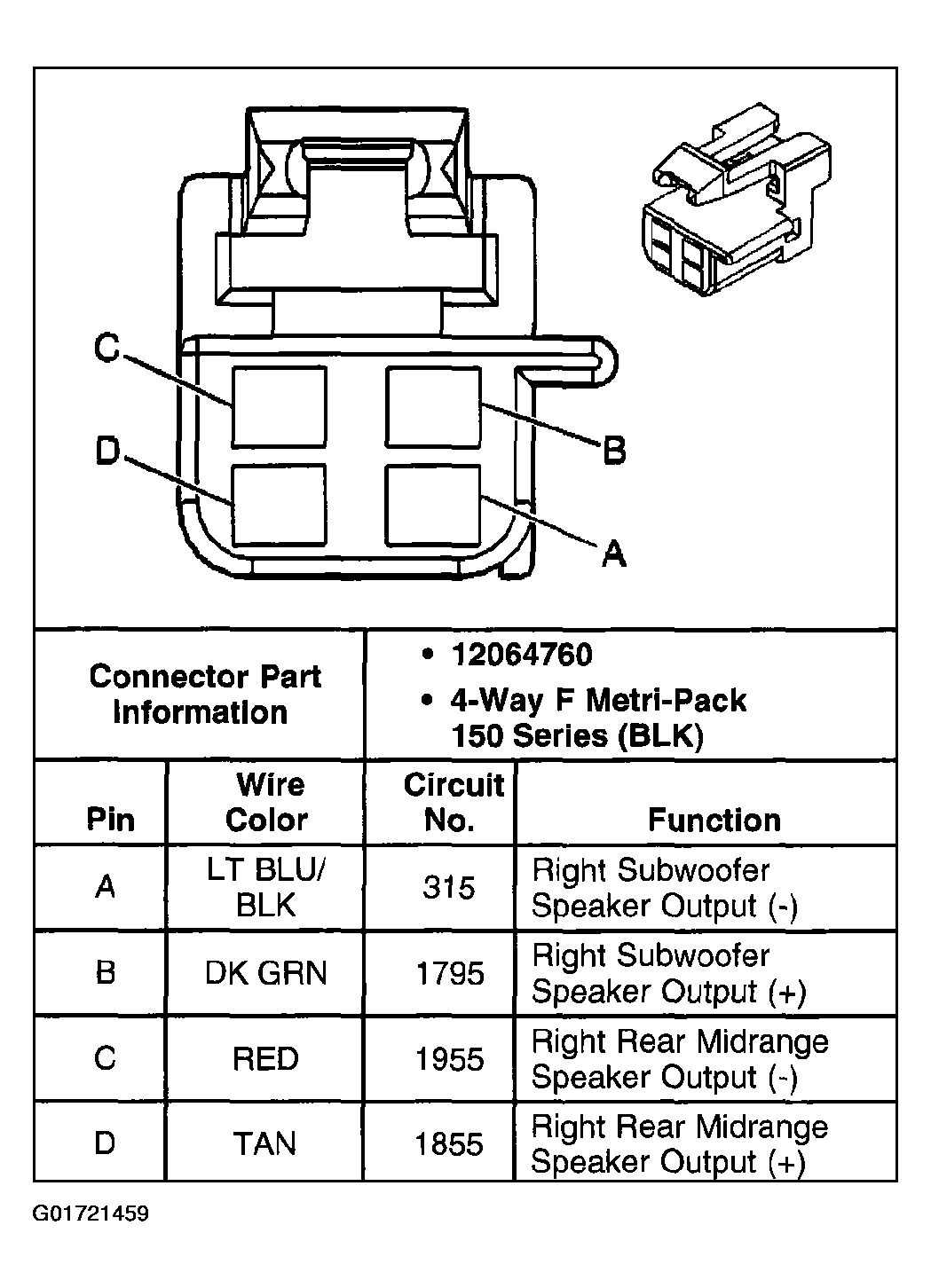

Fig 17: Speaker - RR Subwoofer (Pontiac) (UQ3)

G01721459

Courtesy of GENERAL MOTORS CORP.

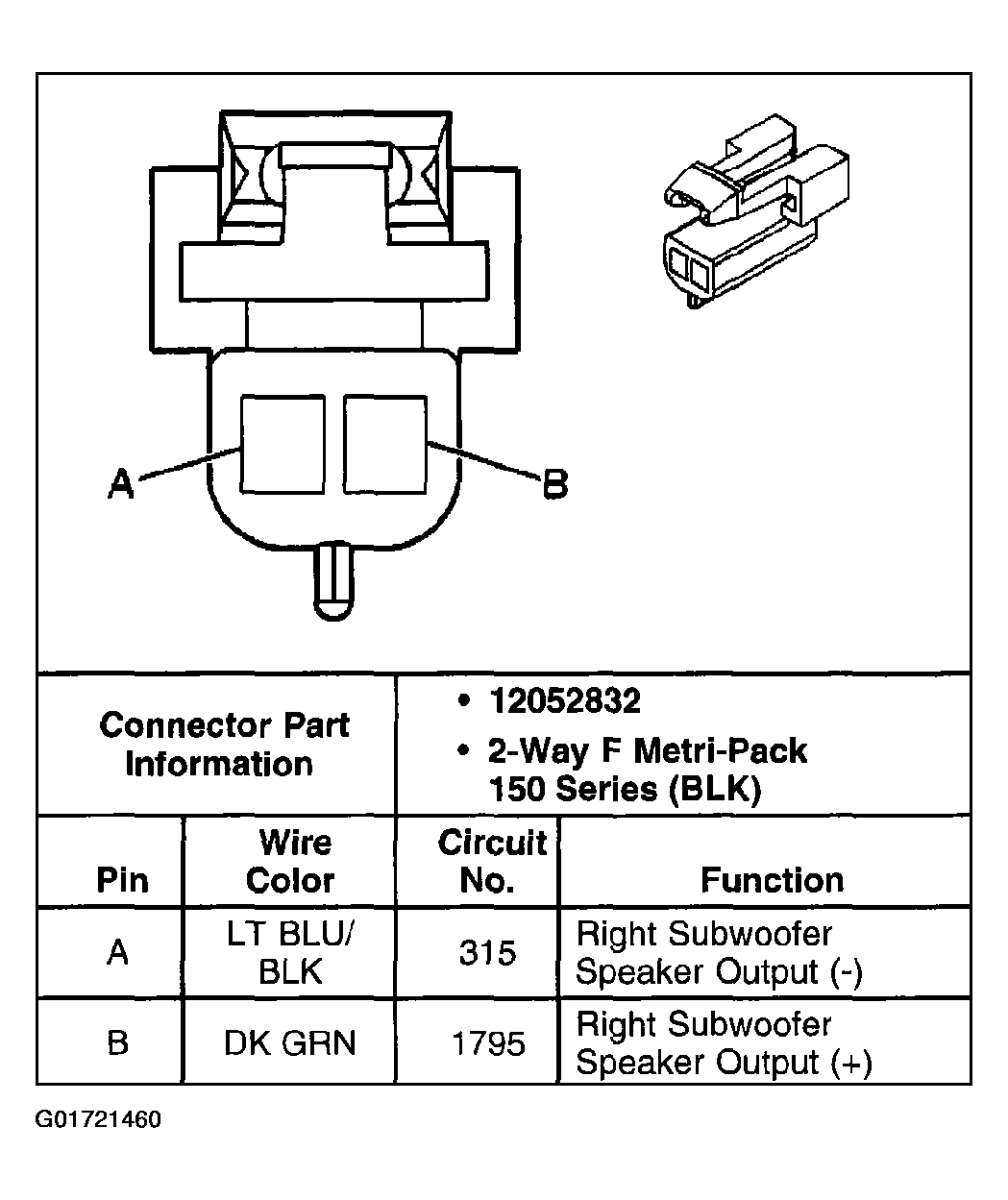

Fig 18: Speaker - RR Subwoofer (Buick) (UQ3)

G01721460

Courtesy of GENERAL MOTORS CORP.

Fig 19: Steering Wheel Controls - Left

G01721461

Courtesy of GENERAL MOTORS CORP.

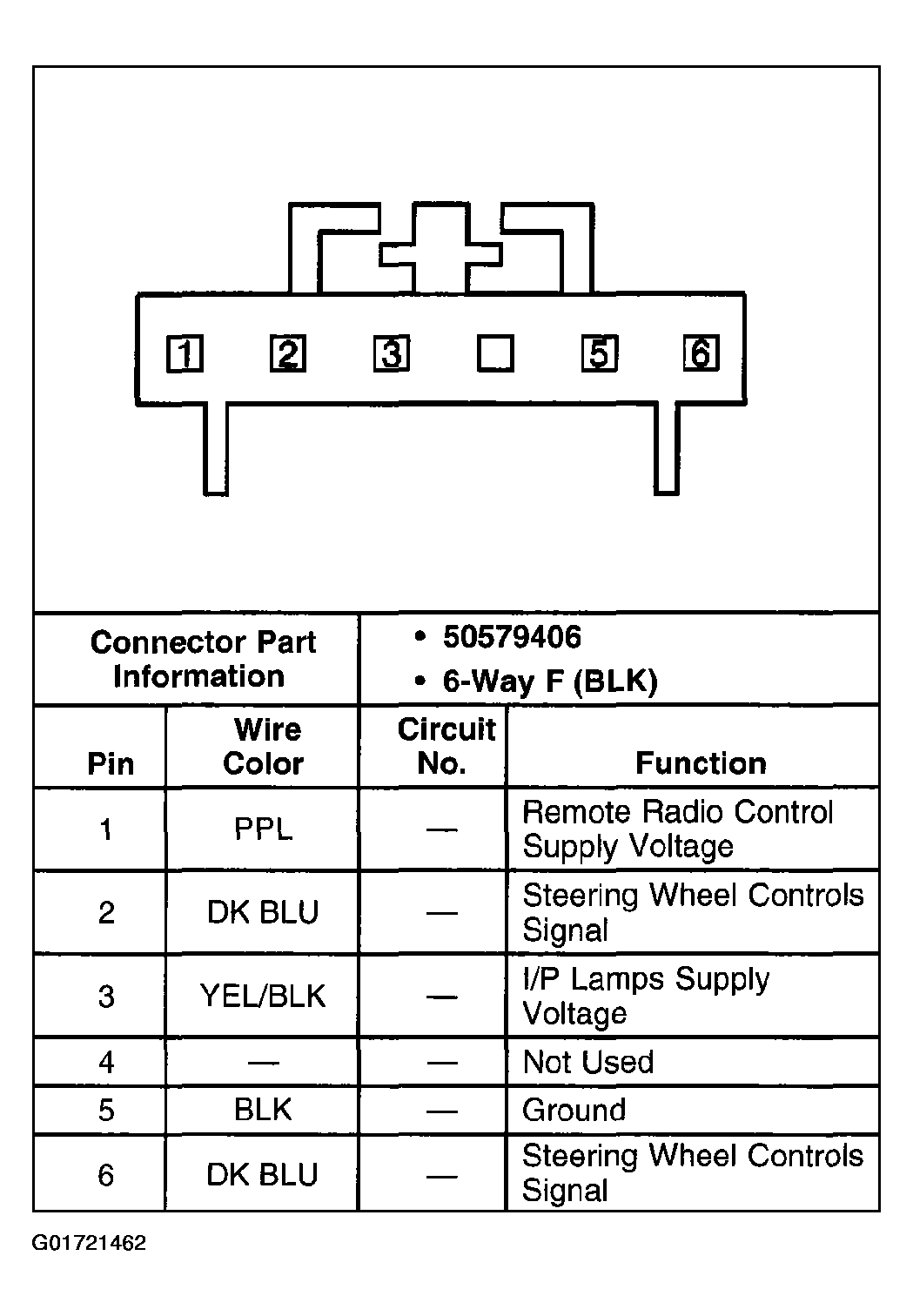

Fig 20: Steering Wheel Controls - Right

G01721462

Courtesy of GENERAL MOTORS CORP.

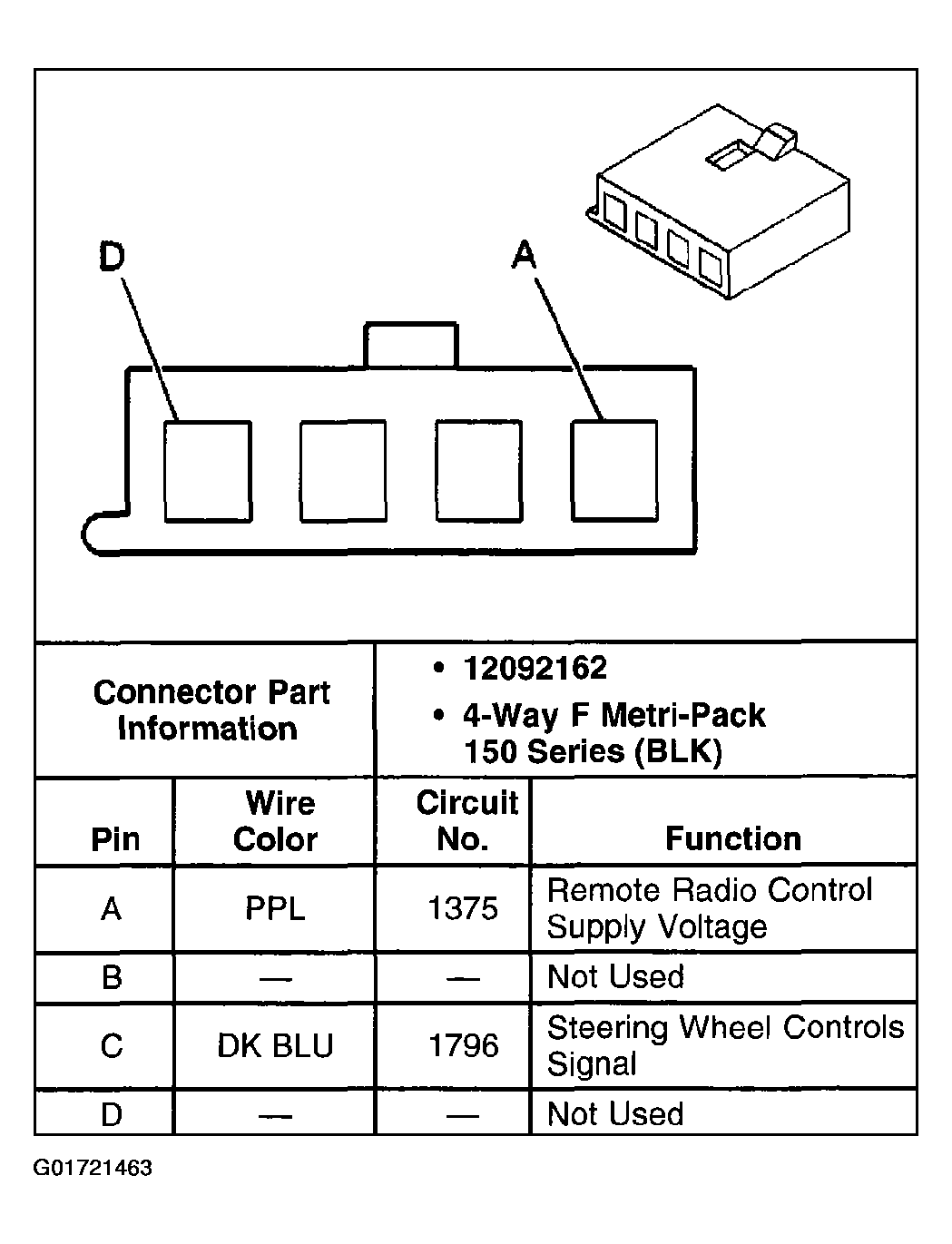

Fig 21: Tailgate Audio Controls (Pontiac)

G01721463

Courtesy of GENERAL MOTORS CORP.

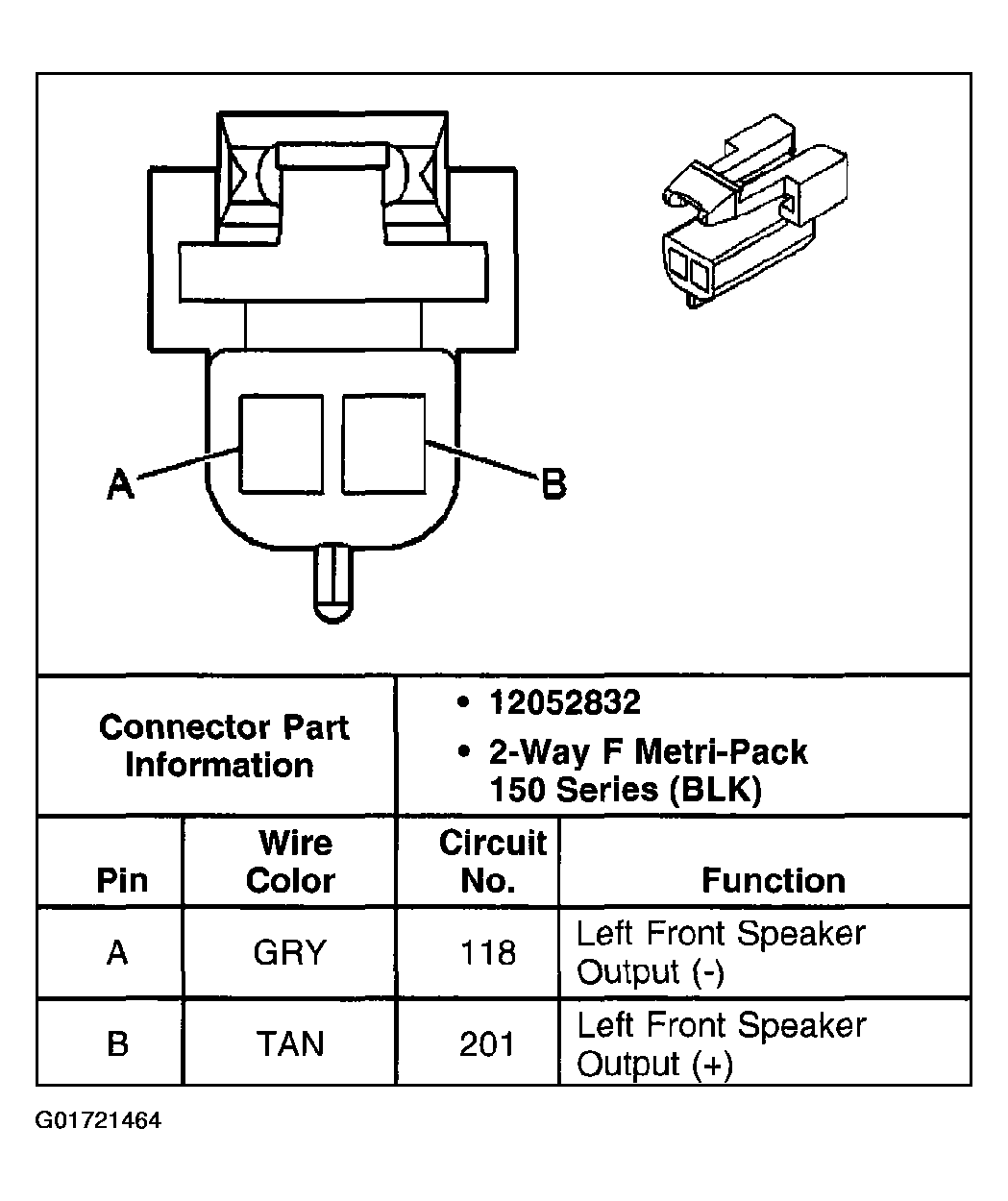

Fig 22: Tweeter - LF Door

G01721464

Courtesy of GENERAL MOTORS CORP.

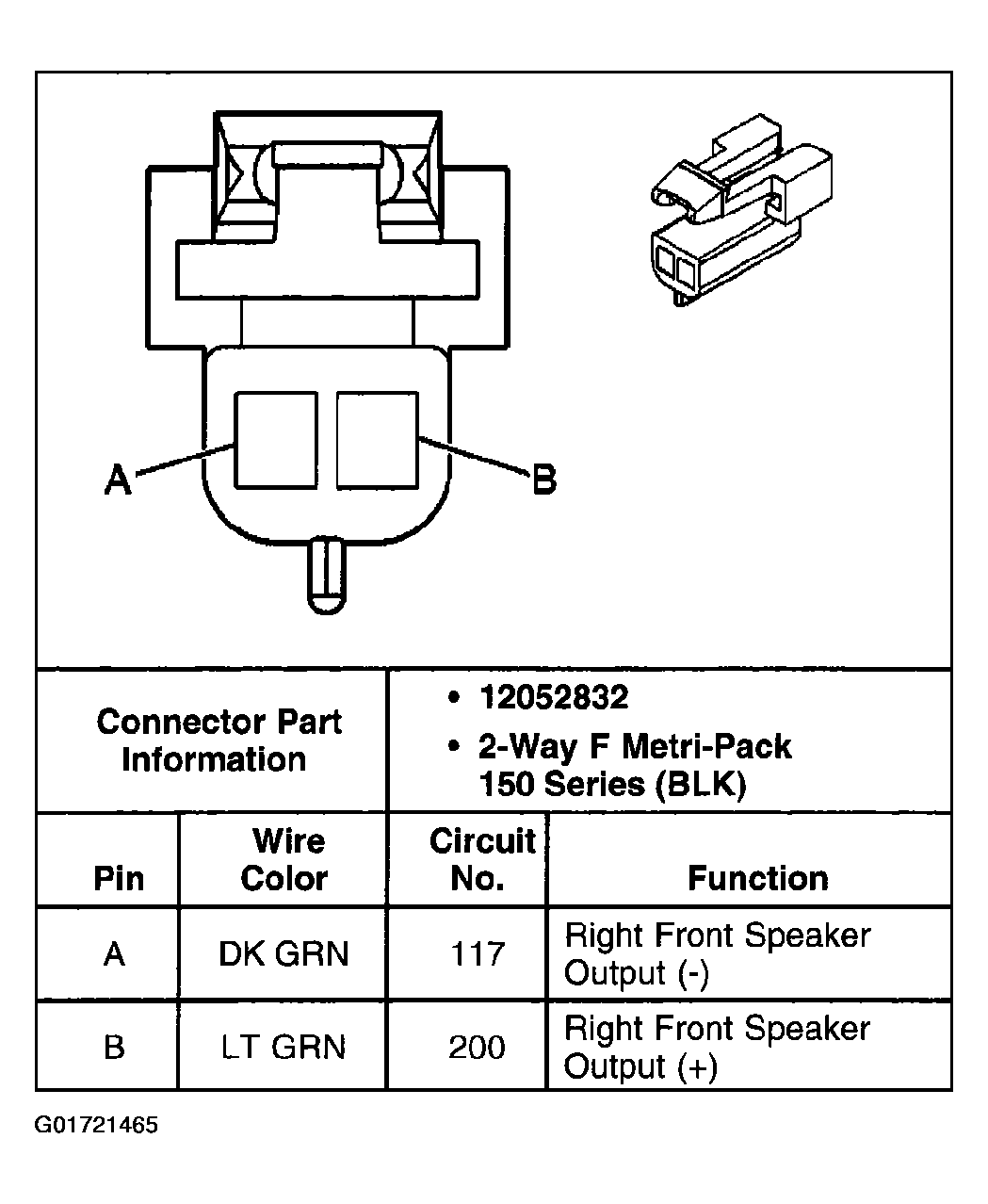

Fig 23: Tweeter - RF Door

G01721465

Courtesy of GENERAL MOTORS CORP.
