Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the amplifier.
  2. Align the pins on the amplifier to the slots on the bracket.
  3. Slide the amplifier forward until the lock tab is seated.
  4. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

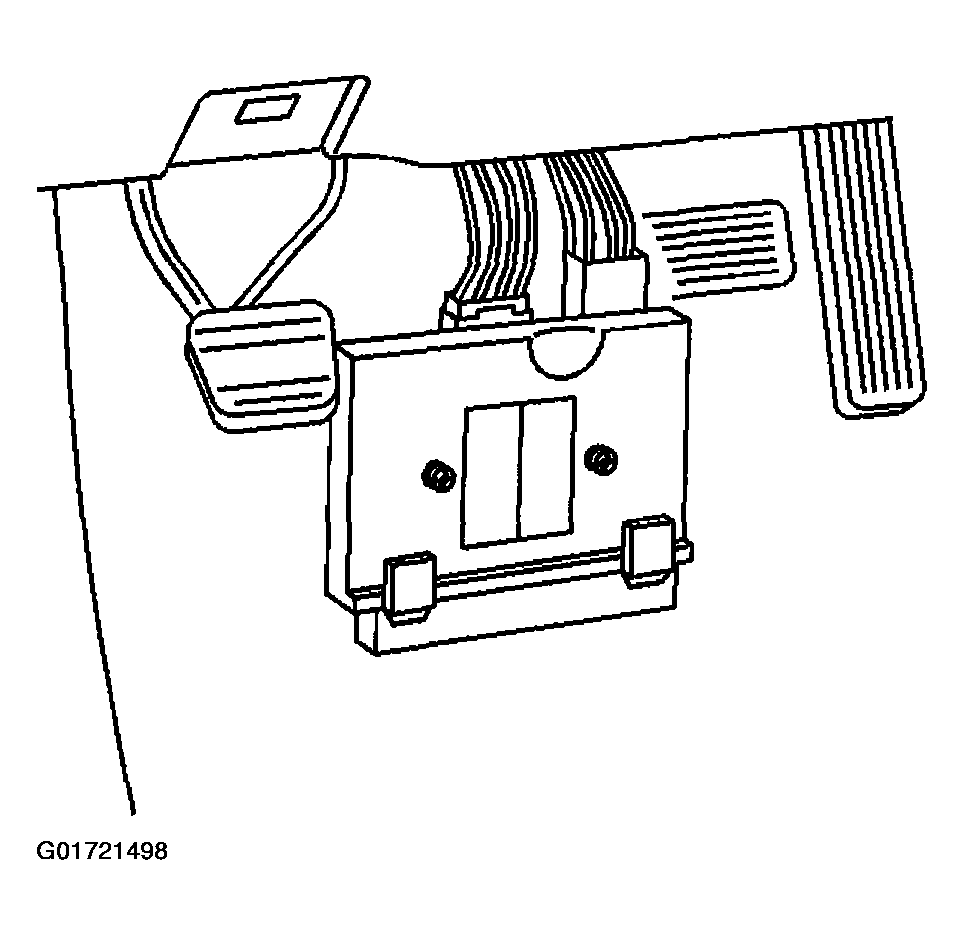

    Fig 1: View Of Amplifier Electrical Connectors
    G01721498Courtesy of GENERAL MOTORS CORP.
