Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

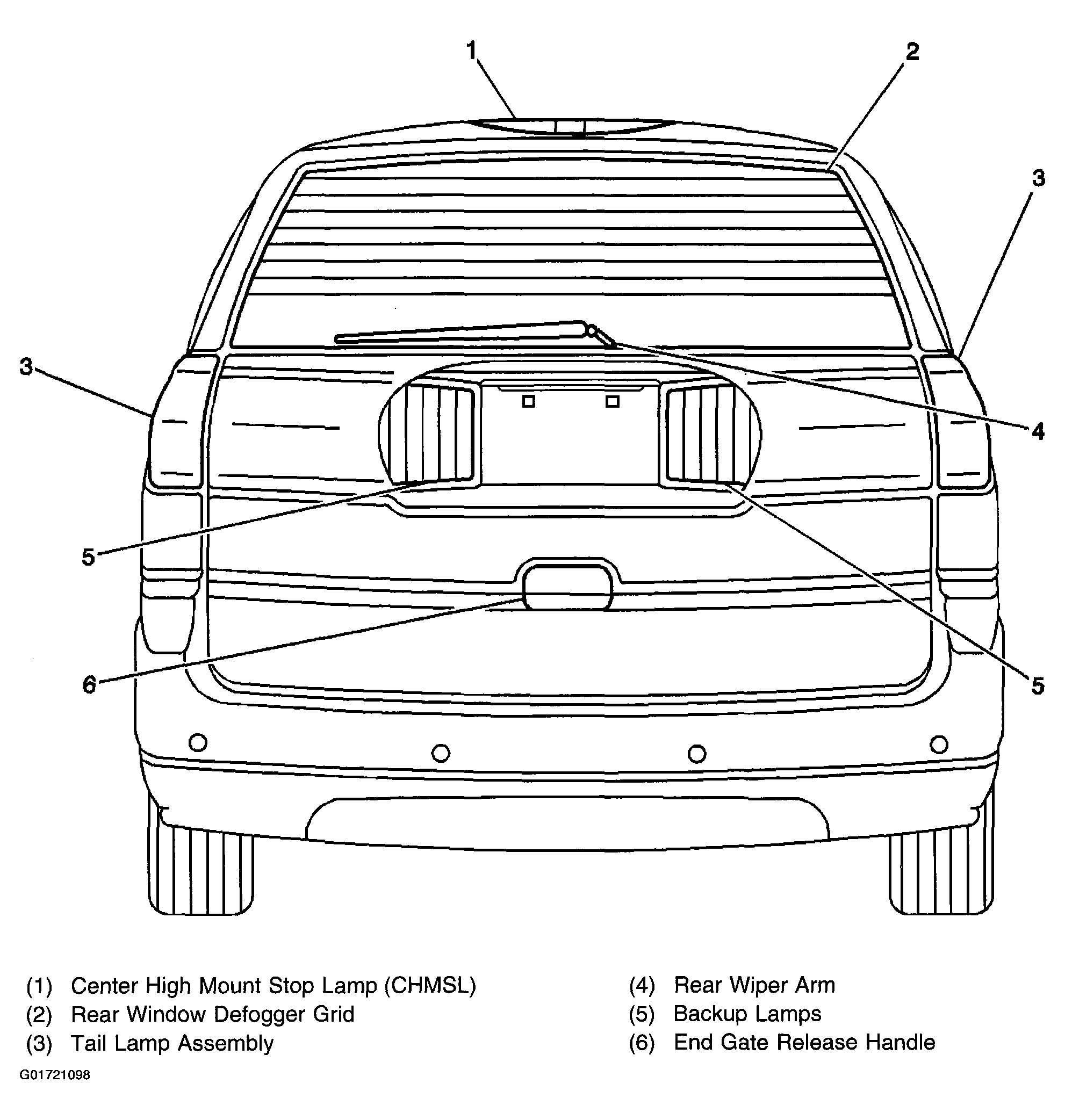

Fig 1: Rear Of Vehicle - Pontiac Component Views

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Of Vehicle - Buick Component Views

Courtesy of GENERAL MOTORS CORP.

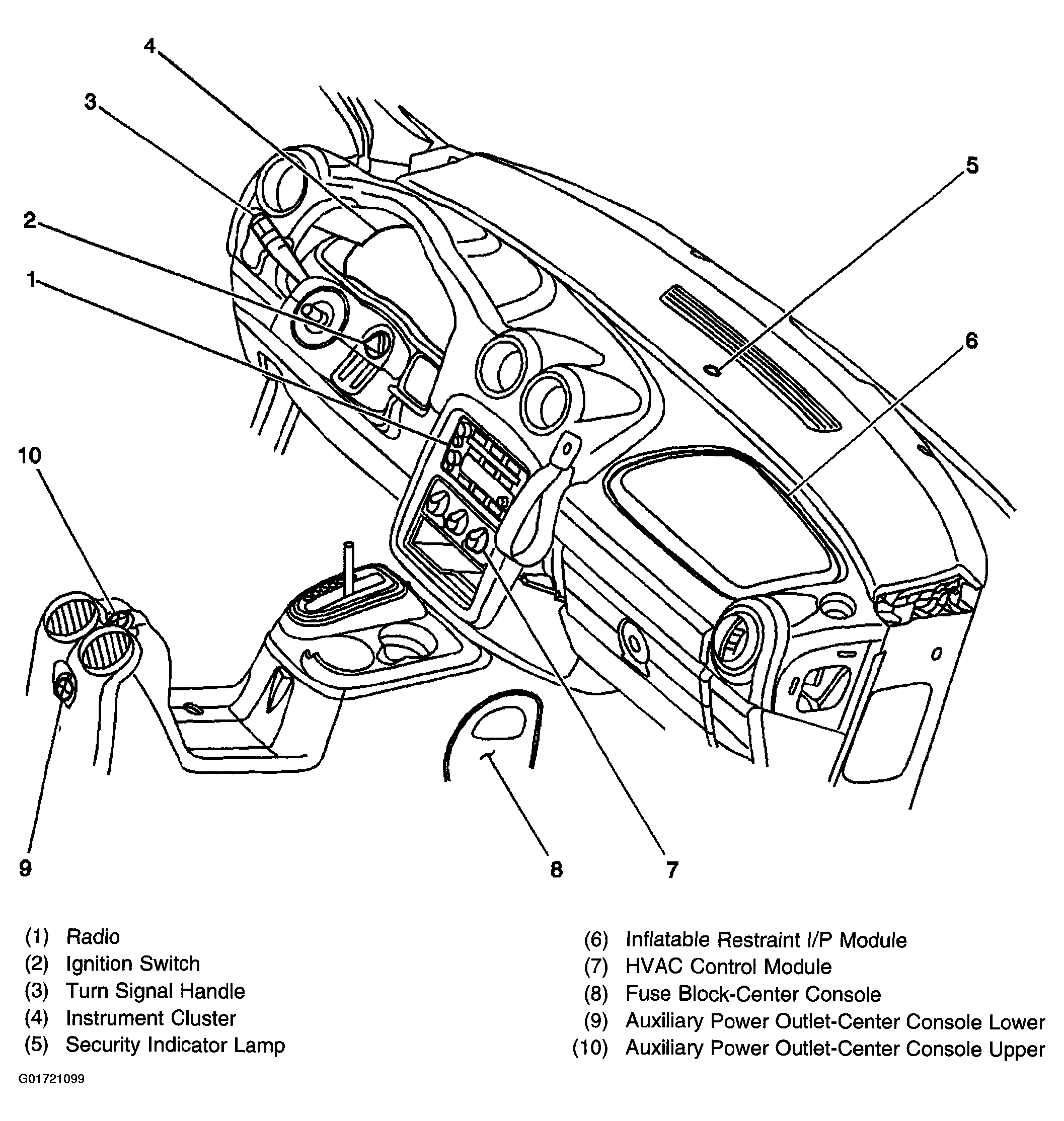

Fig 3: Instrument Panel & Center Console - Pontiac Component Views

Courtesy of GENERAL MOTORS CORP.

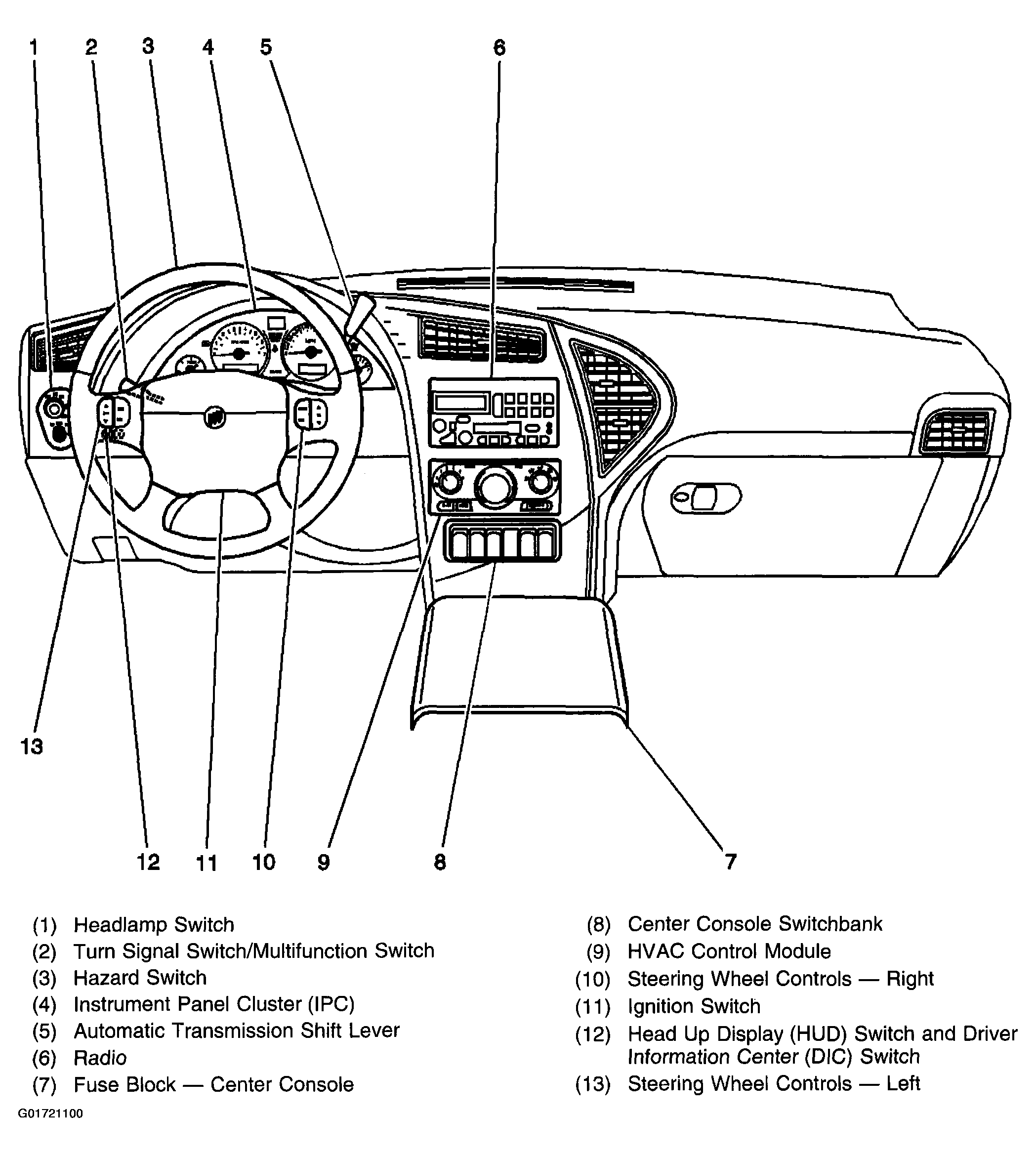

Fig 4: Instrument Panel - Buick Component Views

Courtesy of GENERAL MOTORS CORP.
