Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

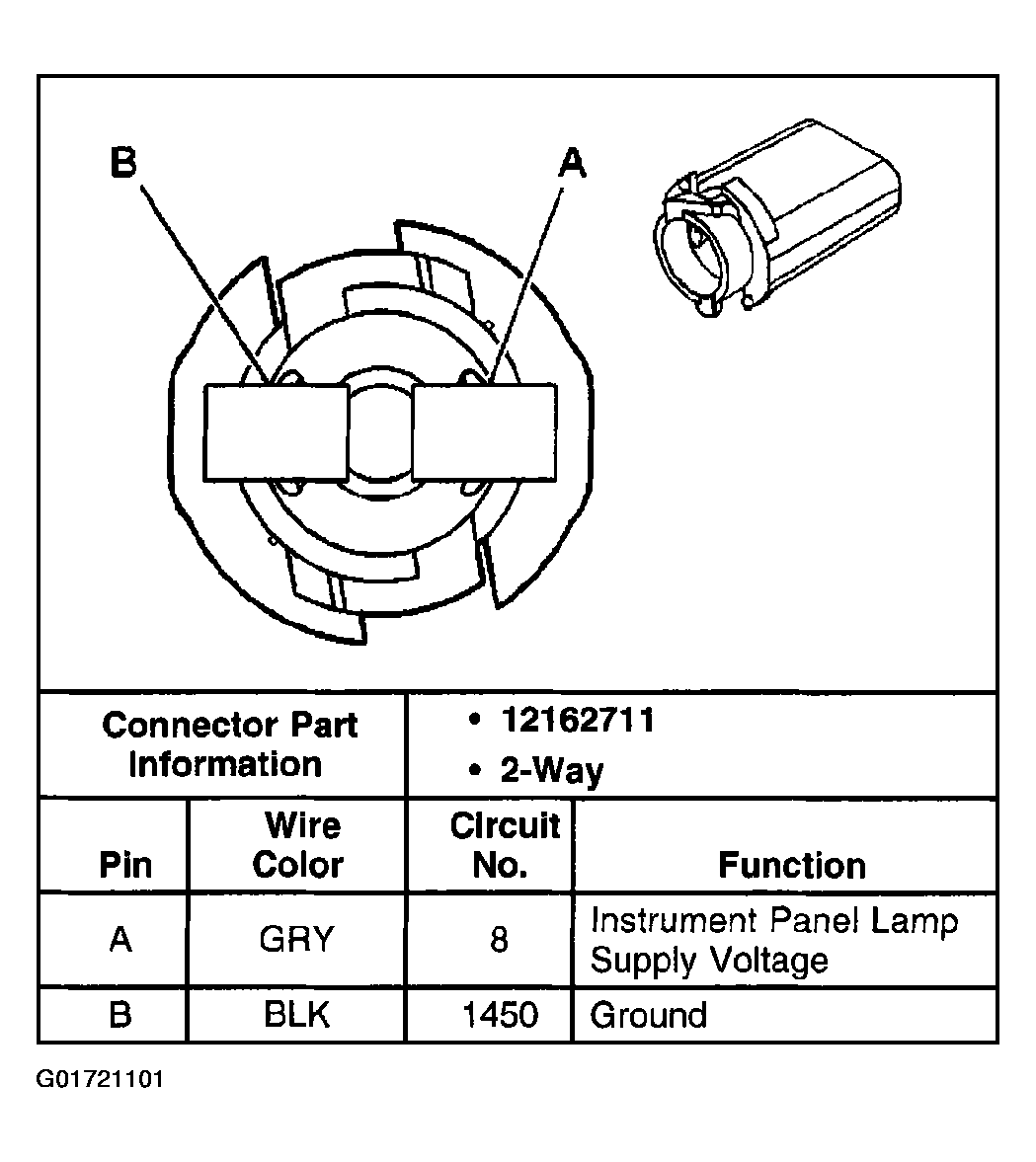

Fig 1: A/T Shift Lever Position Indicator Lamp (Pontiac) Connector End Views
G01721101Courtesy of GENERAL MOTORS CORP.

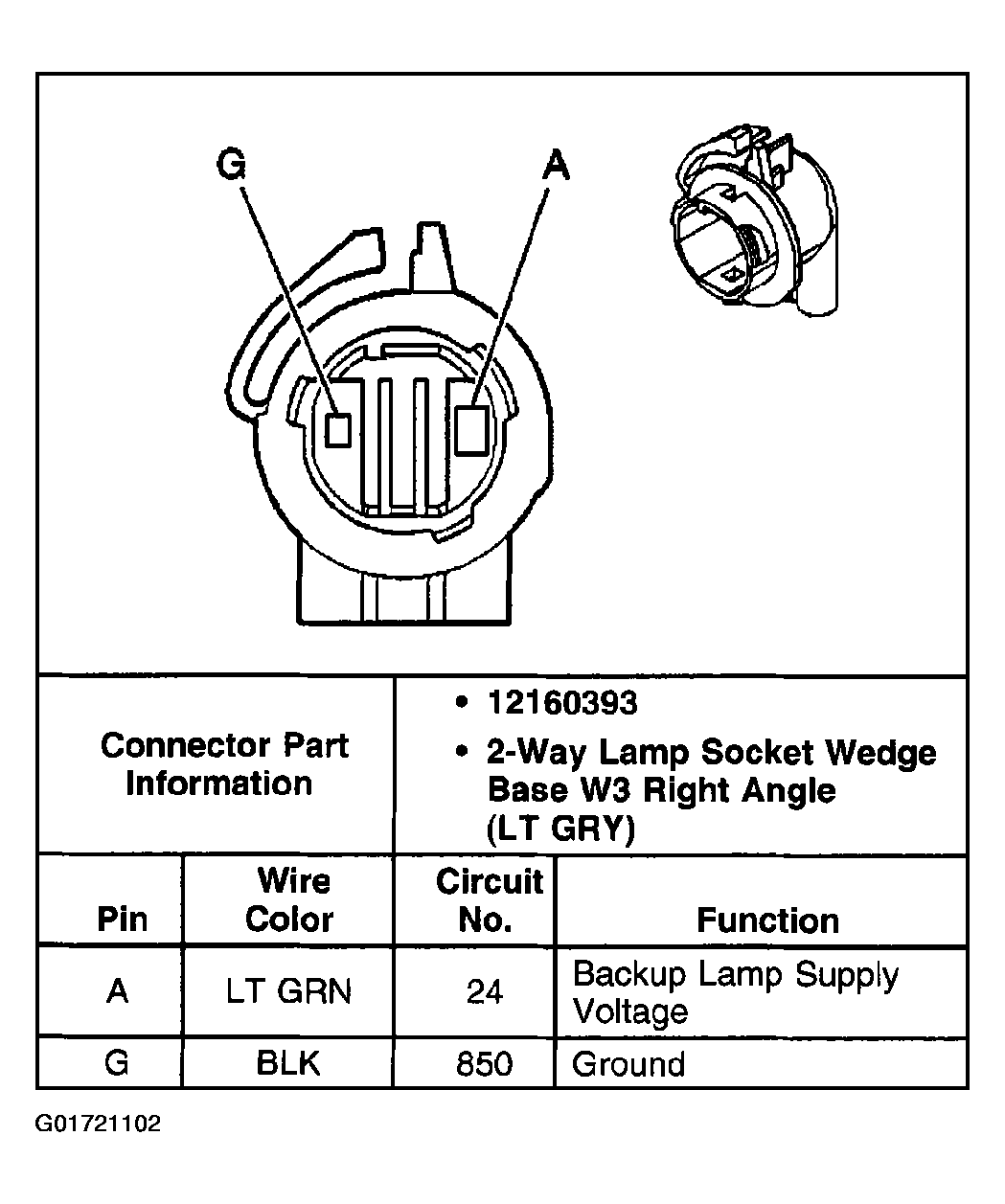

Fig 2: Backup Lamp - Left (Pontiac) Connector End Views
G01721102Courtesy of GENERAL MOTORS CORP.

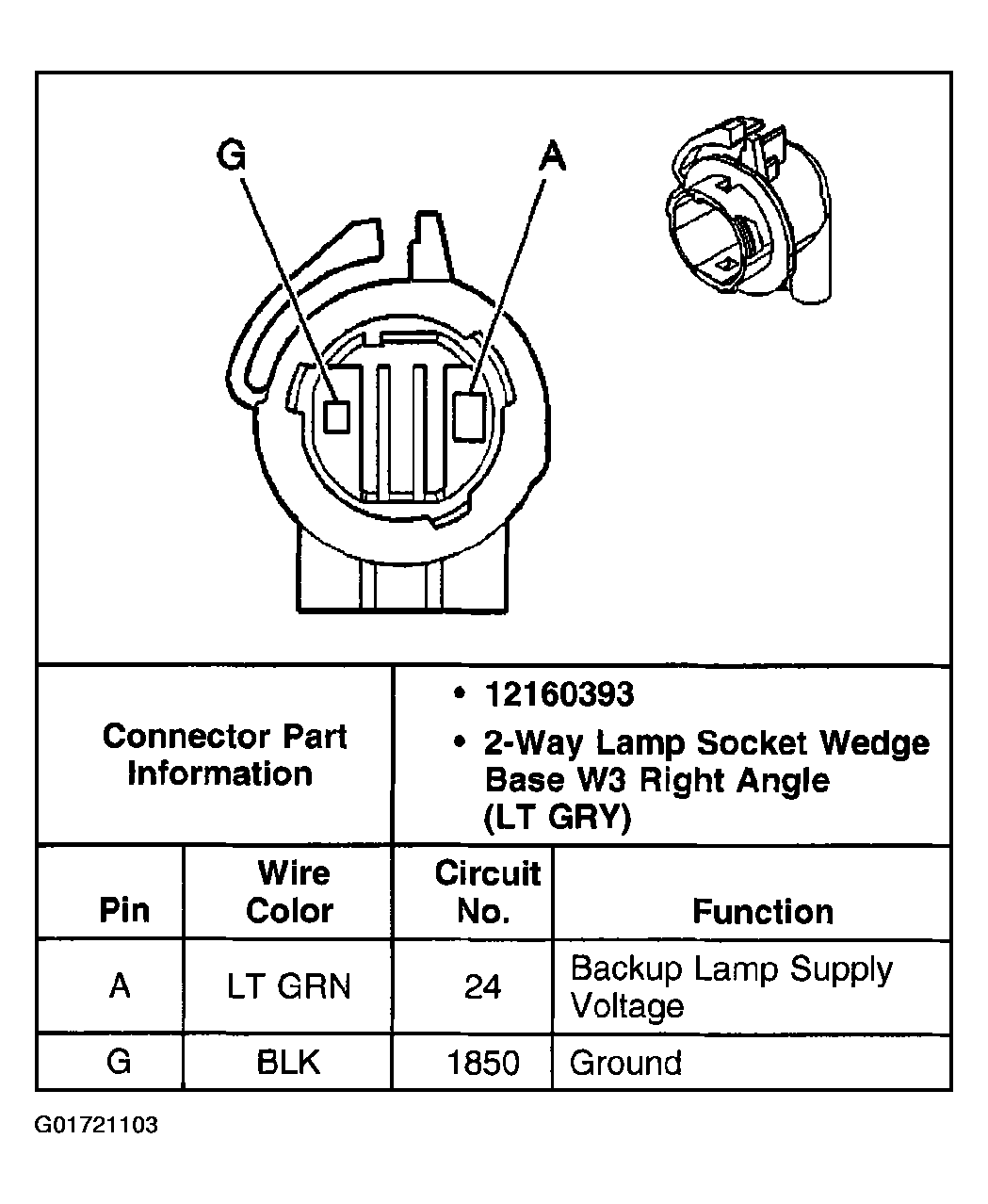

Fig 3: Backup Lamp - Right (Pontiac) Connector End Views
G01721103Courtesy of GENERAL MOTORS CORP.

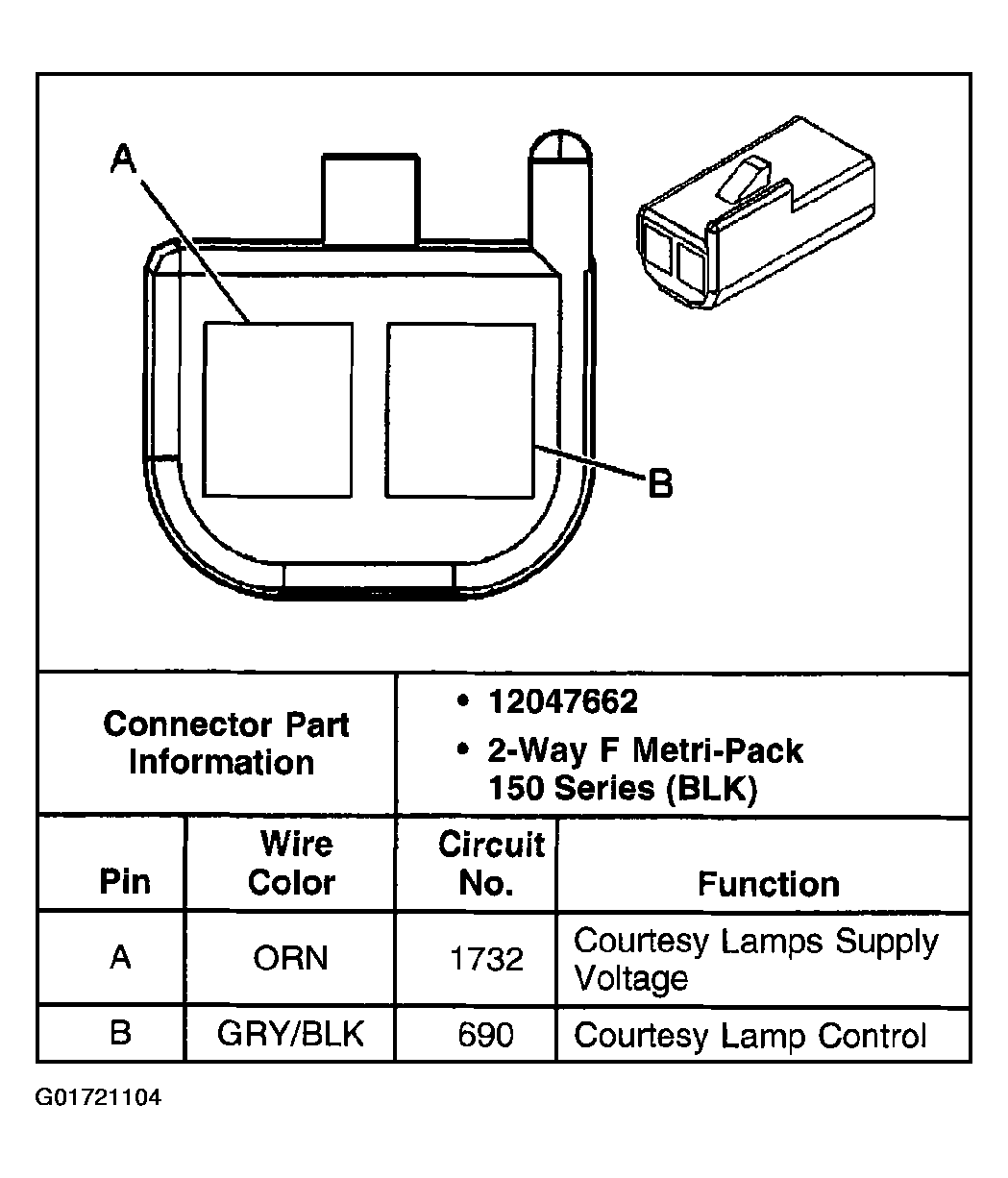

Fig 4: Cargo Lamp (Pontiac) Connector End Views
G01721104Courtesy of GENERAL MOTORS CORP.

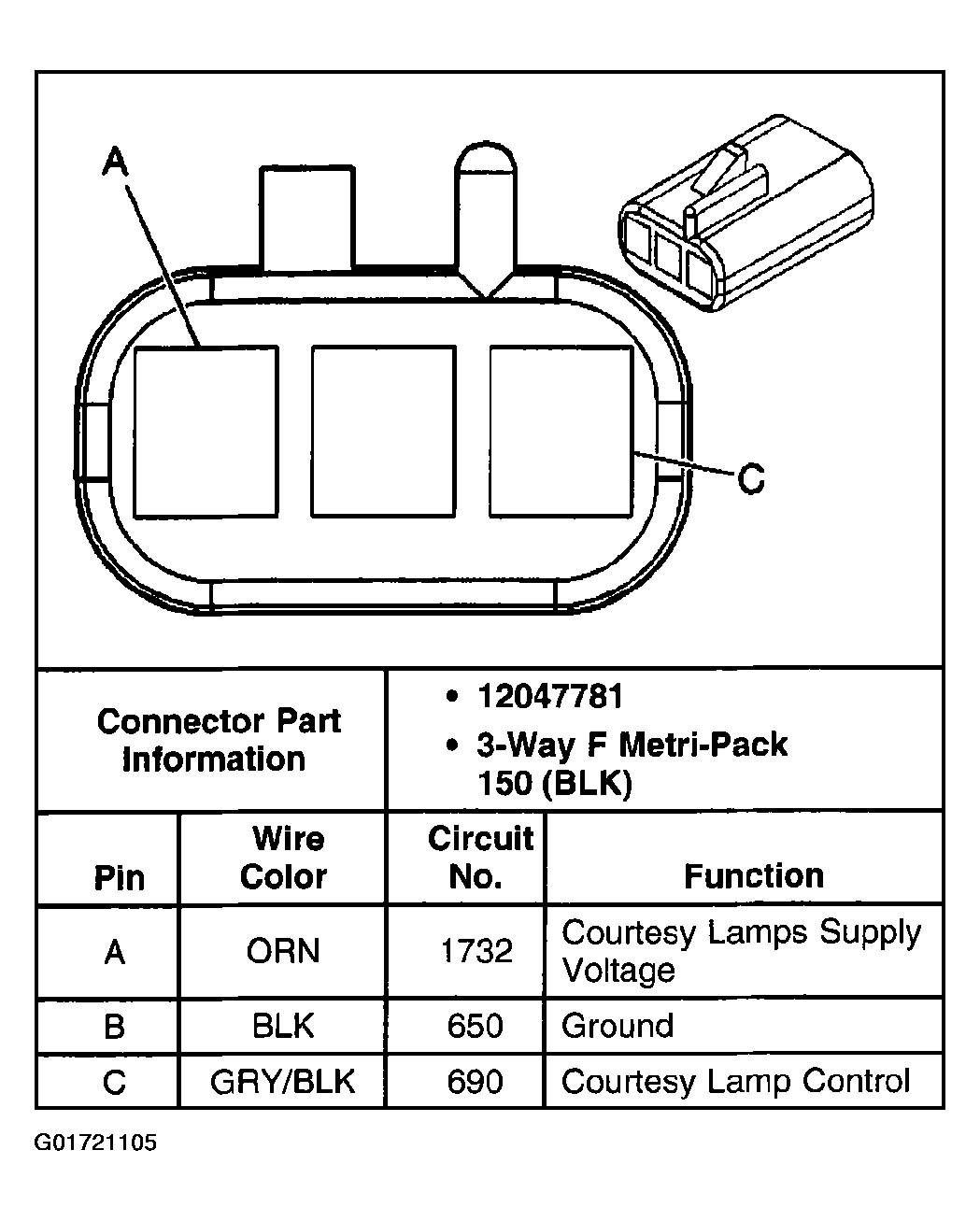

Fig 5: Cargo Lamp (Buick) Connector End Views
G01721105Courtesy of GENERAL MOTORS CORP.

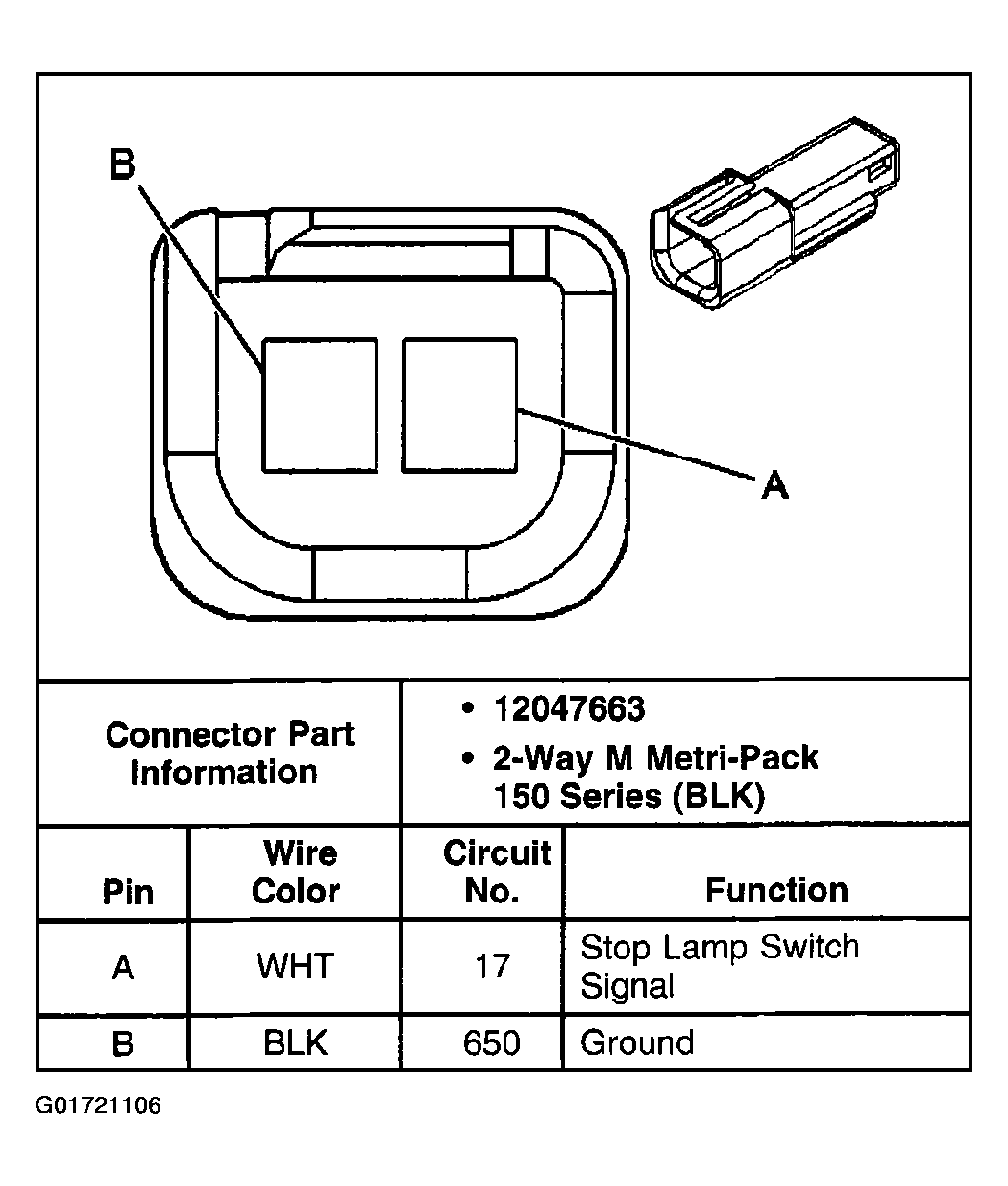

Fig 6: Center High Mounted Stop Lamp (CHMSL) Connector End Views
G01721106Courtesy of GENERAL MOTORS CORP.

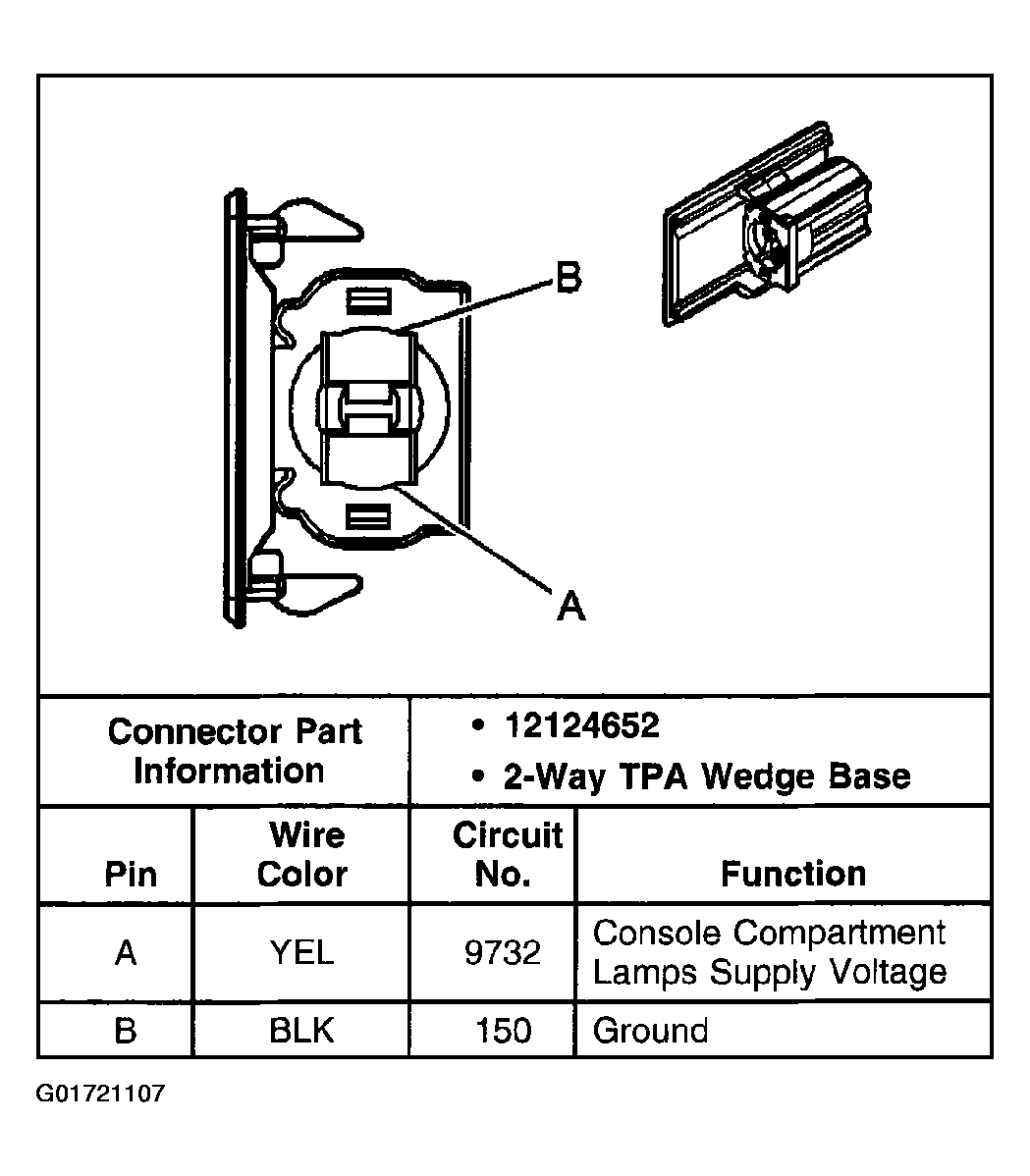

Fig 7: Console Compartment Lamp (Buick) Connector End Views
G01721107Courtesy of GENERAL MOTORS CORP.

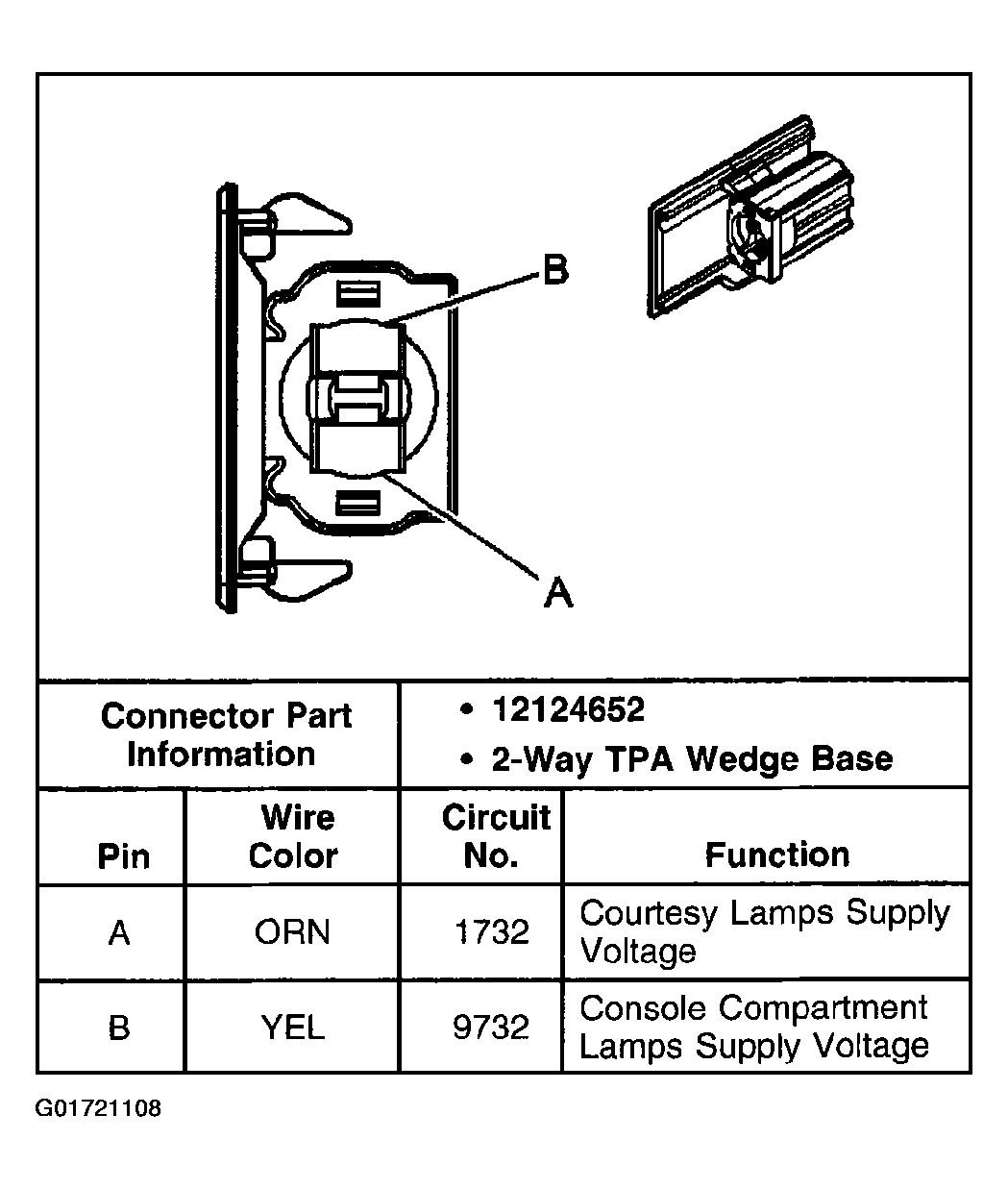

Fig 8: Console Compartment Lamp Switch (Buick) Connector End Views
G01721108Courtesy of GENERAL MOTORS CORP.

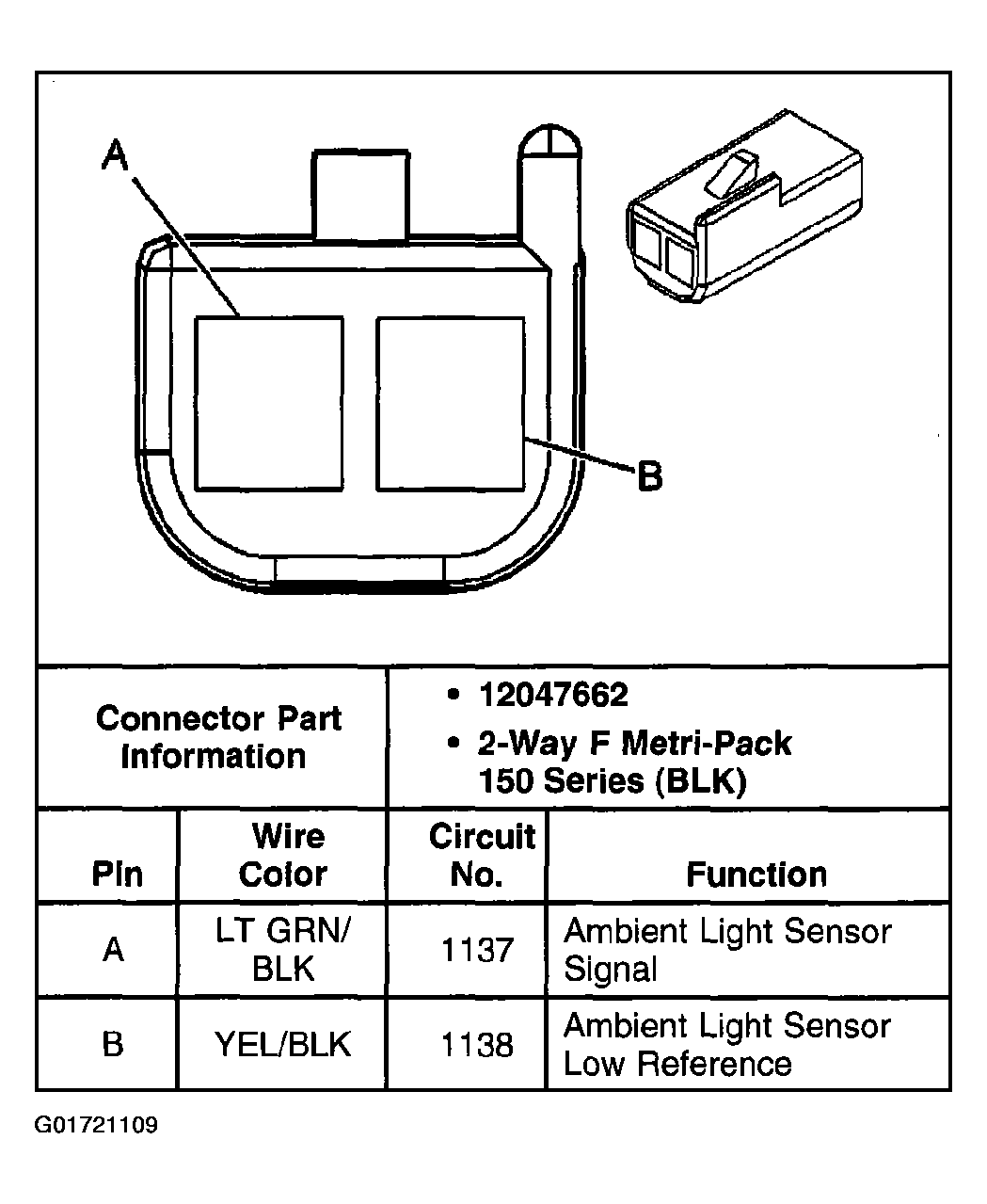

Fig 9: Daytime Running Lamps (DRL) Ambient Light Sensor Connector End Views
G01721109Courtesy of GENERAL MOTORS CORP.
Fig 10: Fog Lamp - Left Connector End Views
G01721110Courtesy of GENERAL MOTORS CORP.

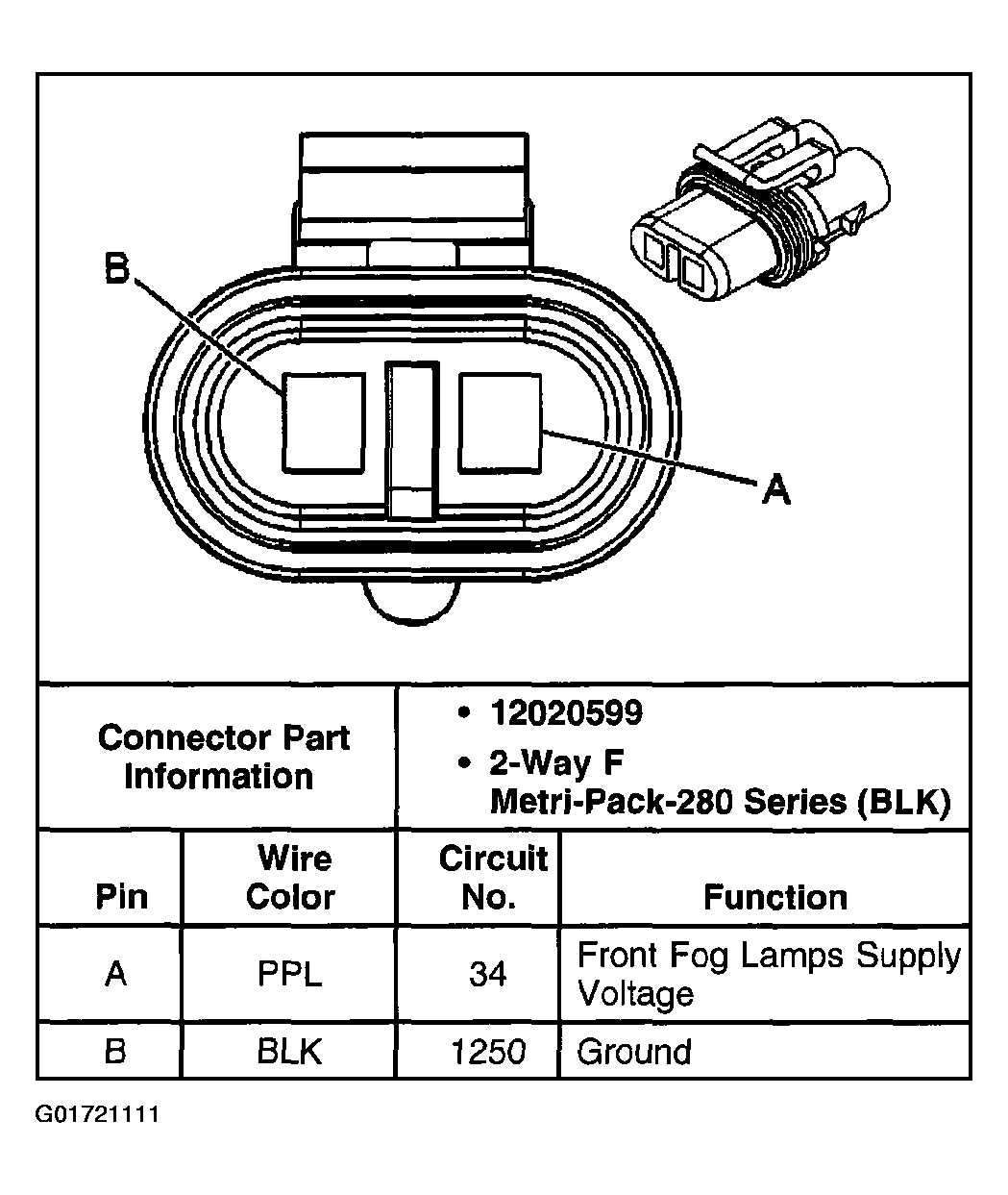

Fig 11: Fog Lamp - Right Connector End Views
G01721111Courtesy of GENERAL MOTORS CORP.

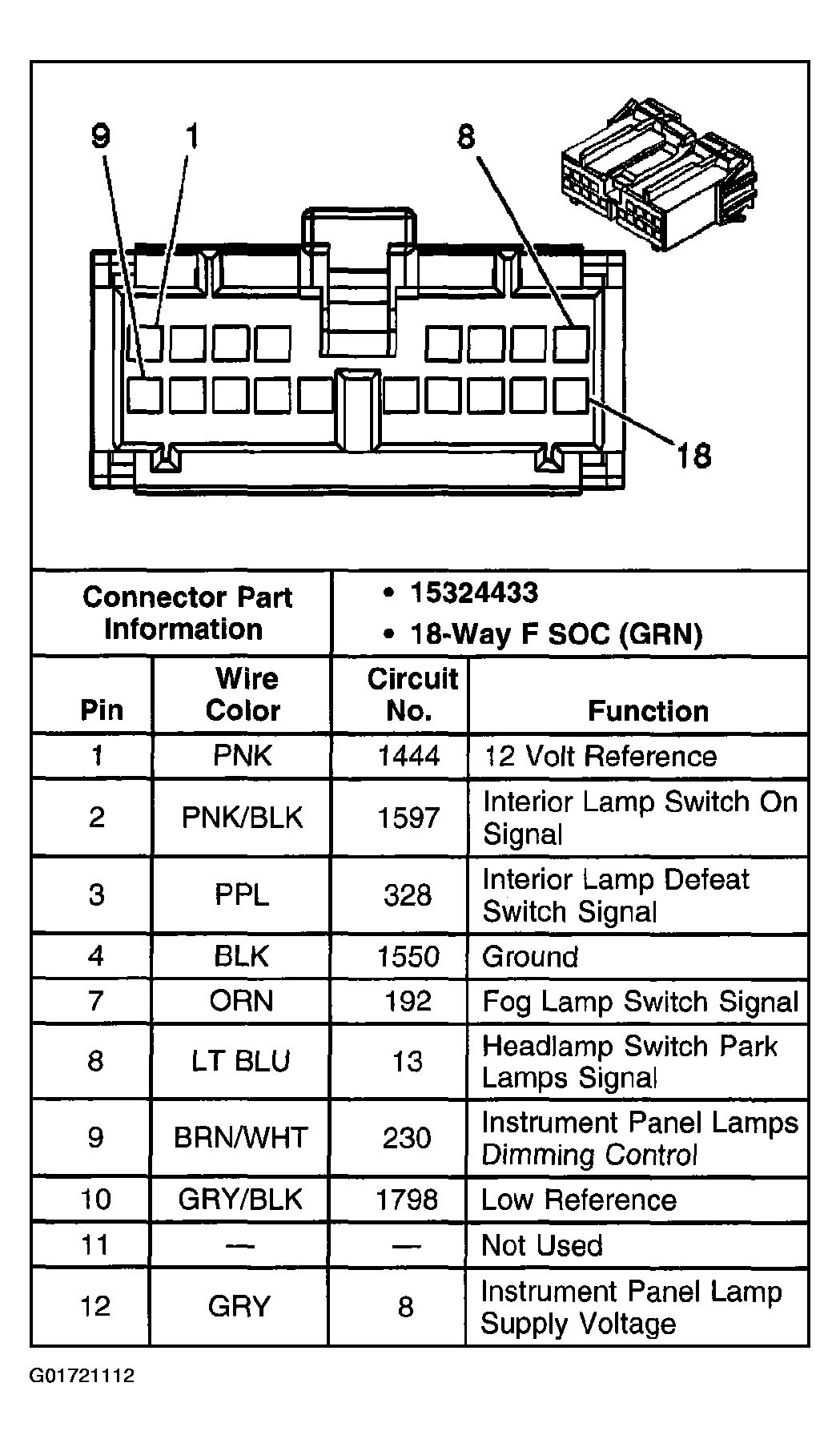

Fig 12: Headlamp Switch Connector End Views (1 Of 2)
G01721112Courtesy of GENERAL MOTORS CORP.

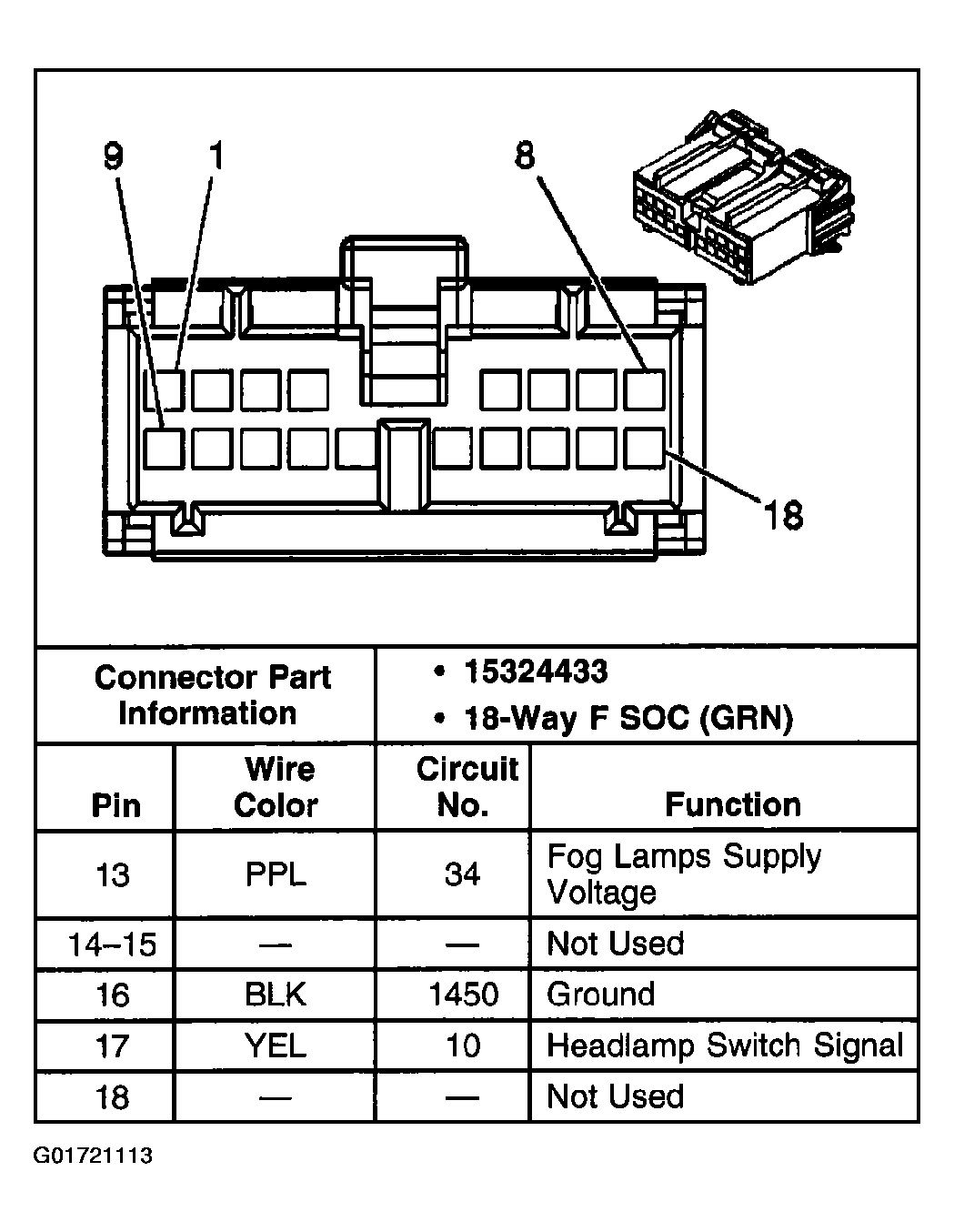

Fig 13: Headlamp Switch Connector End Views (2 Of 2)
G01721113Courtesy of GENERAL MOTORS CORP.

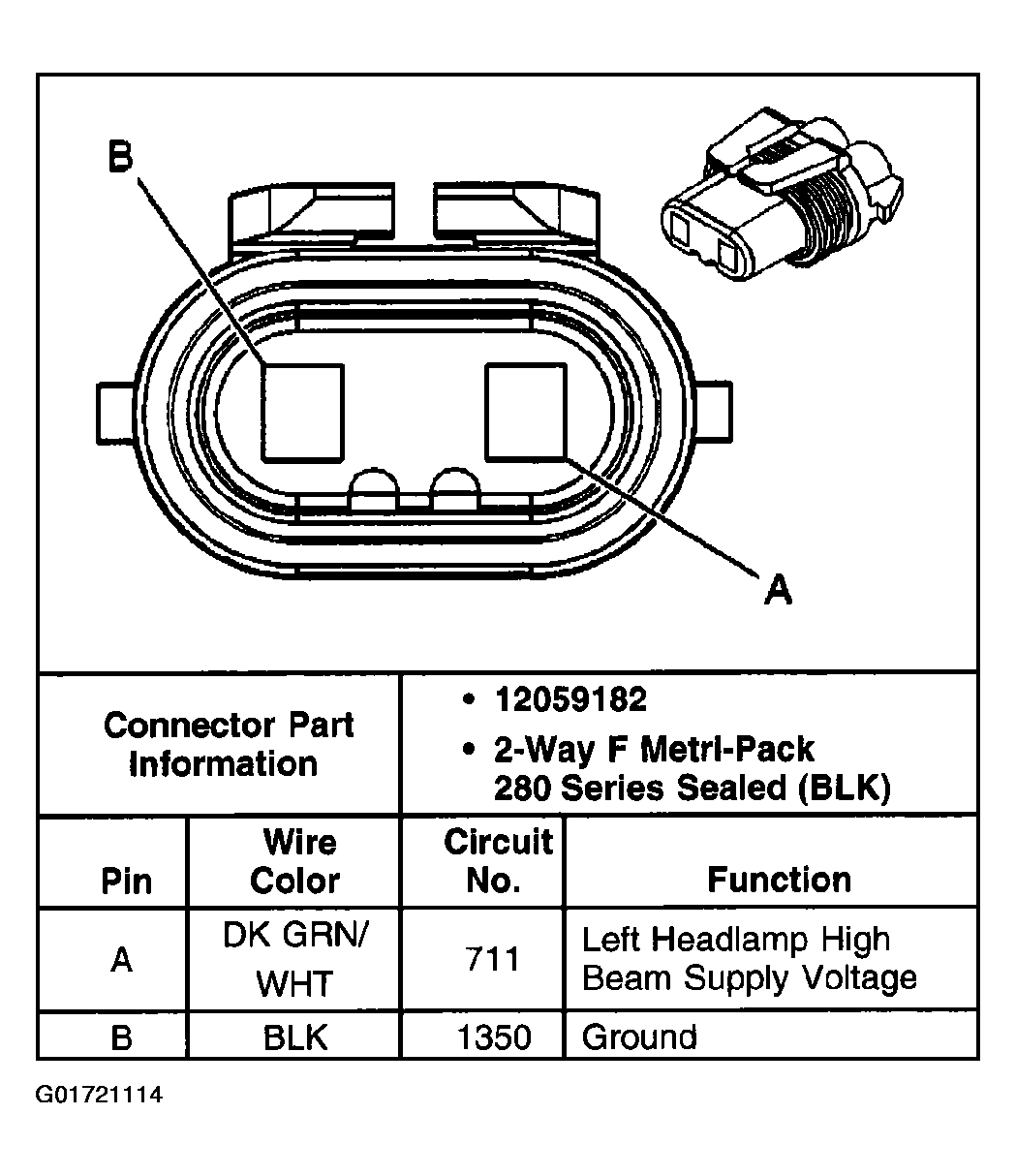

Fig 14: Headlamp - High Beam - Left Connector End Views
G01721114Courtesy of GENERAL MOTORS CORP.

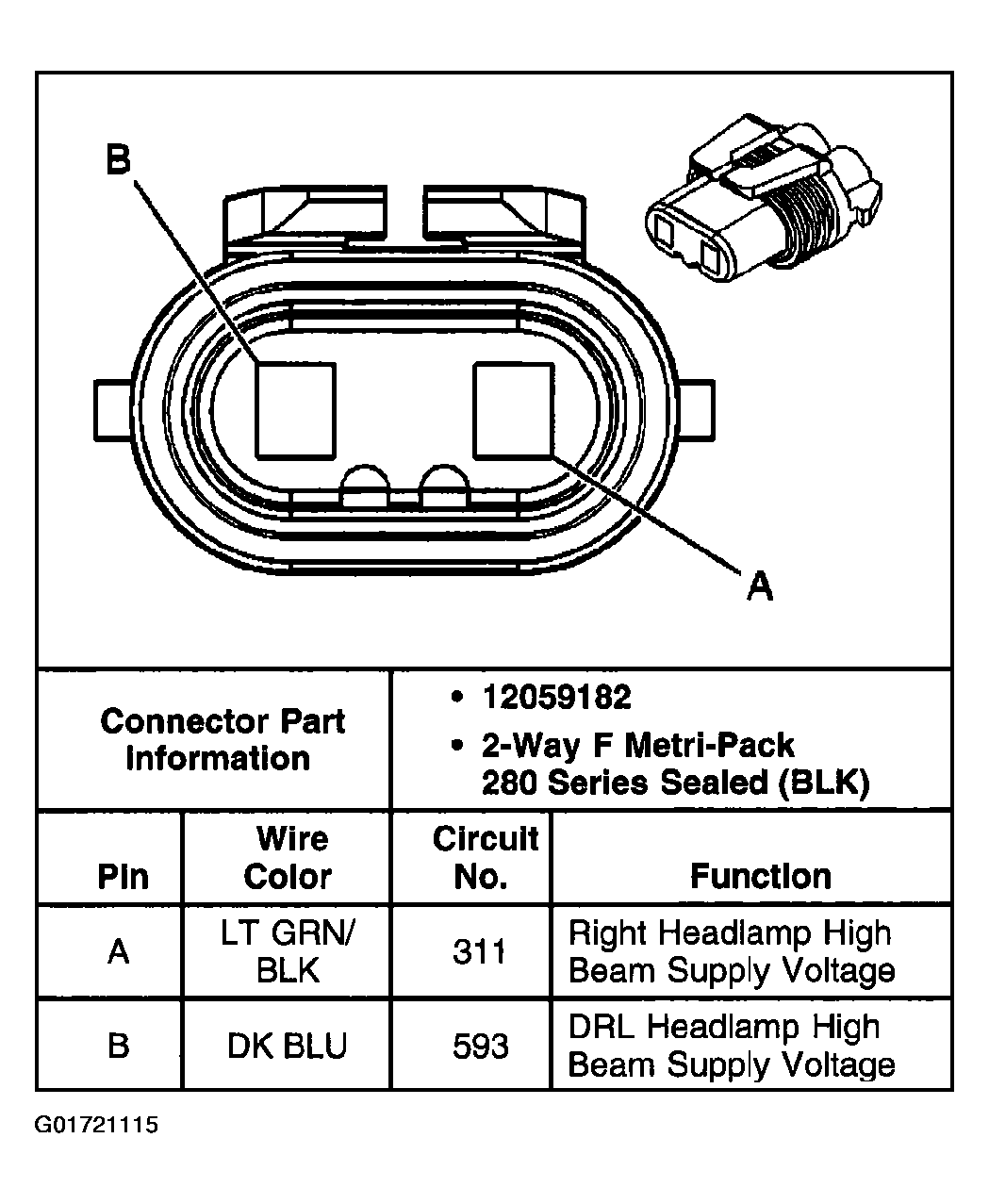

Fig 15: Headlamp- High Beam - Right Connector End Views
G01721115Courtesy of GENERAL MOTORS CORP.

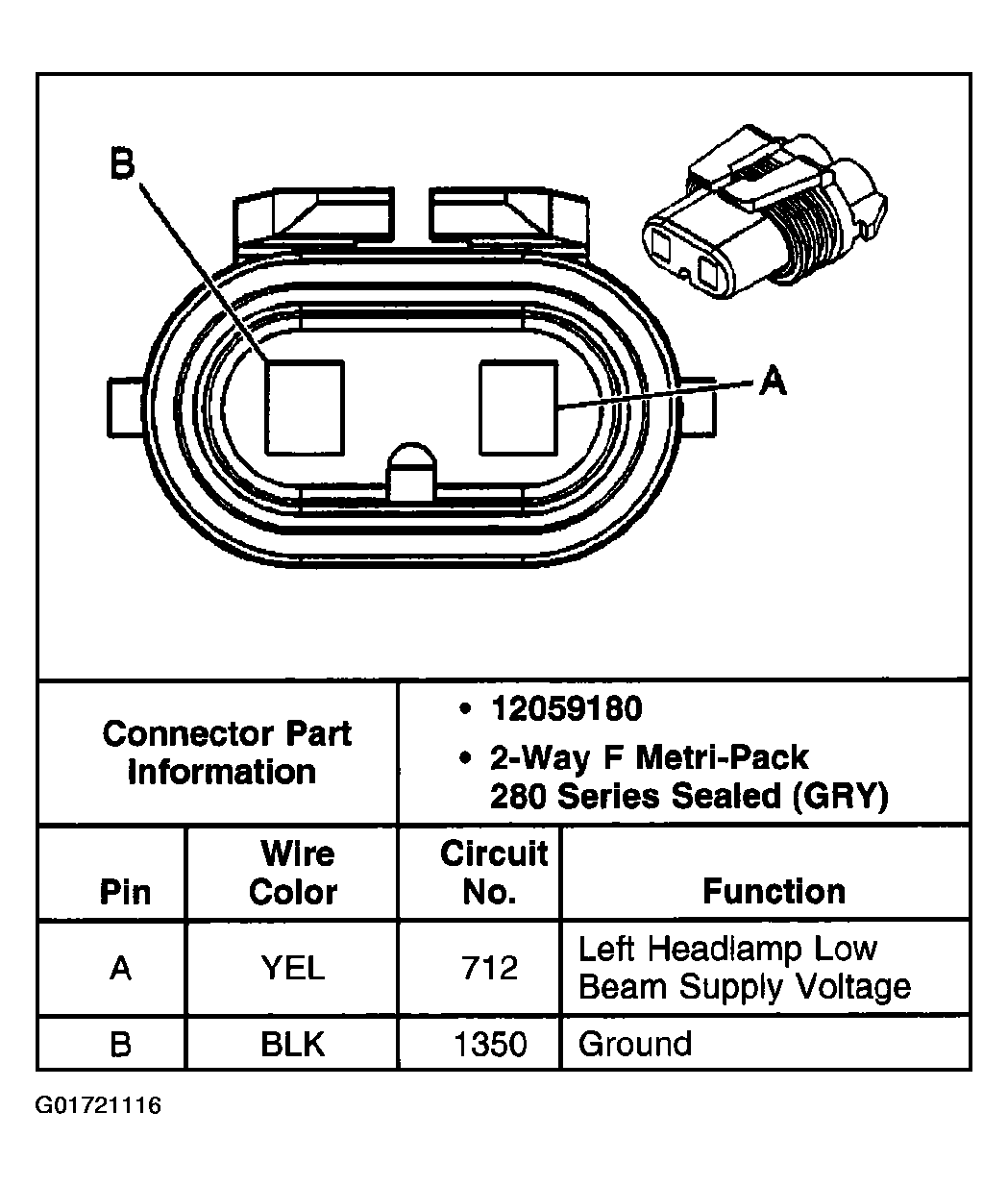

Fig 16: Headlamp - Low Beam - Left Connector End Views
G01721116Courtesy of GENERAL MOTORS CORP.

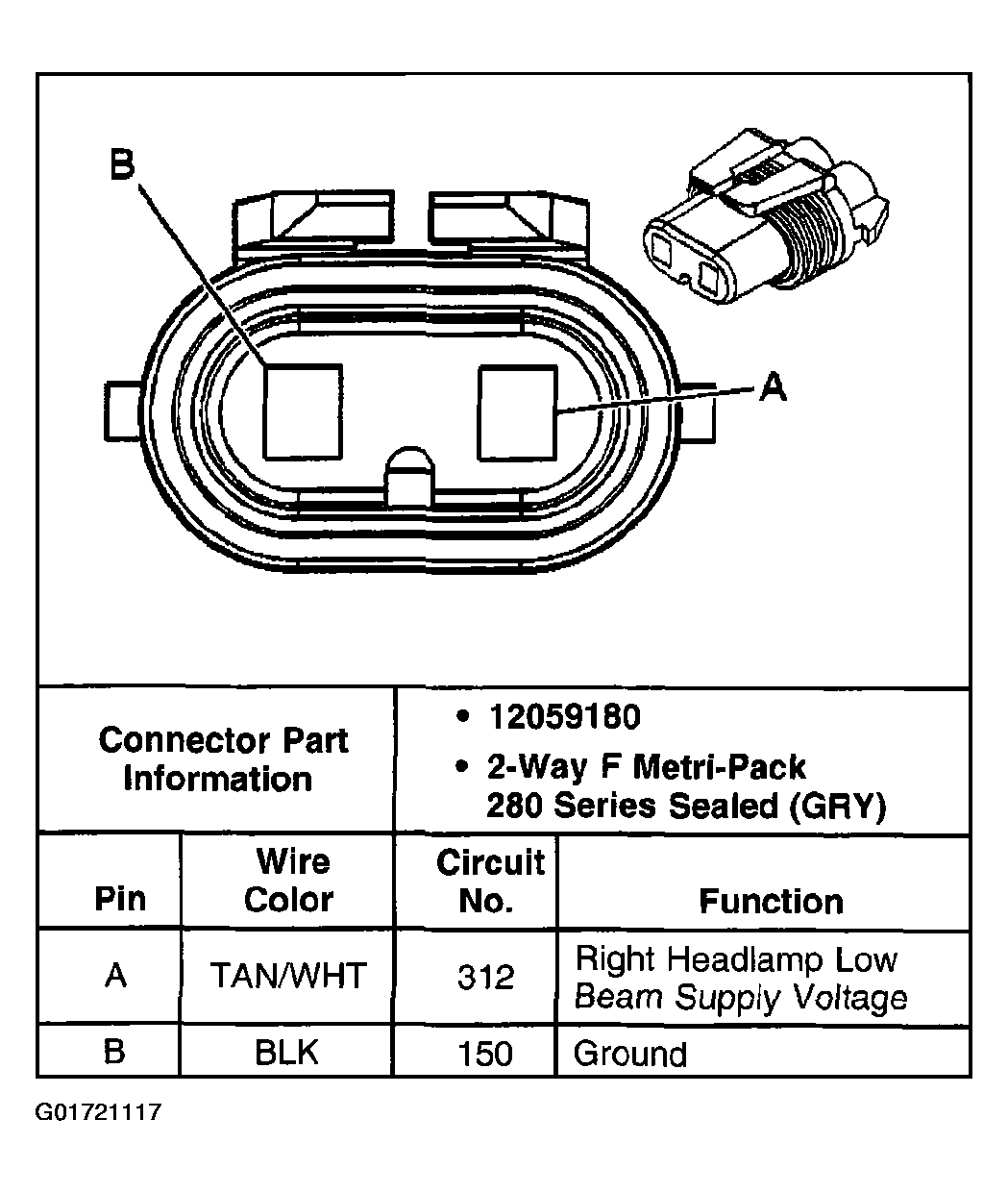

Fig 17: Headlamp - Low Beam - Right Connector End Views
G01721117Courtesy of GENERAL MOTORS CORP.

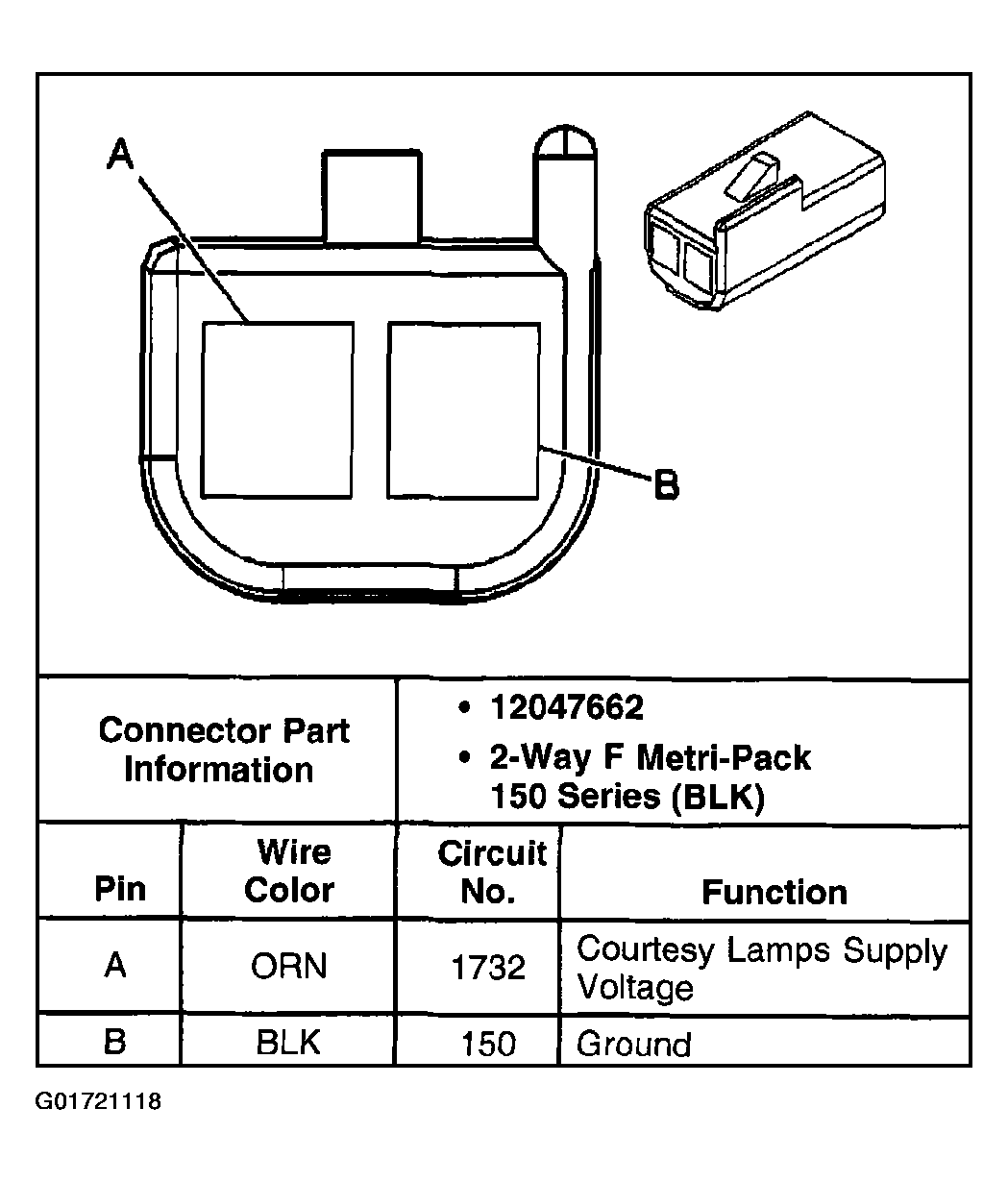

Fig 18: I/P Compartment Lamp Connector End Views
G01721118Courtesy of GENERAL MOTORS CORP.

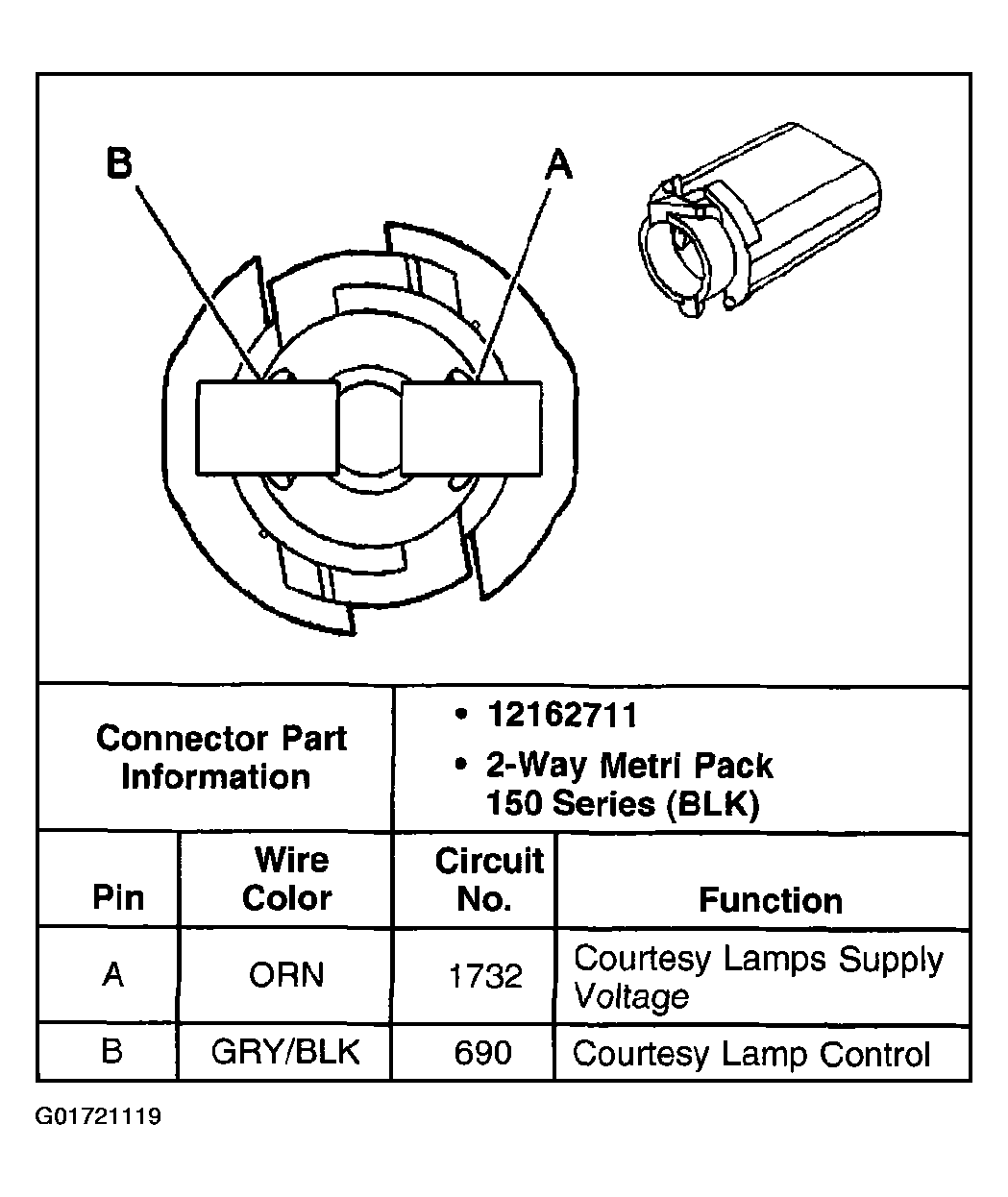

Fig 19: I/P Courtesy Lamp - Left Connector End Views
G01721119Courtesy of GENERAL MOTORS CORP.
Fig 20: I/P Courtesy Lamp - Right Connector End Views
G01721120Courtesy of GENERAL MOTORS CORP.

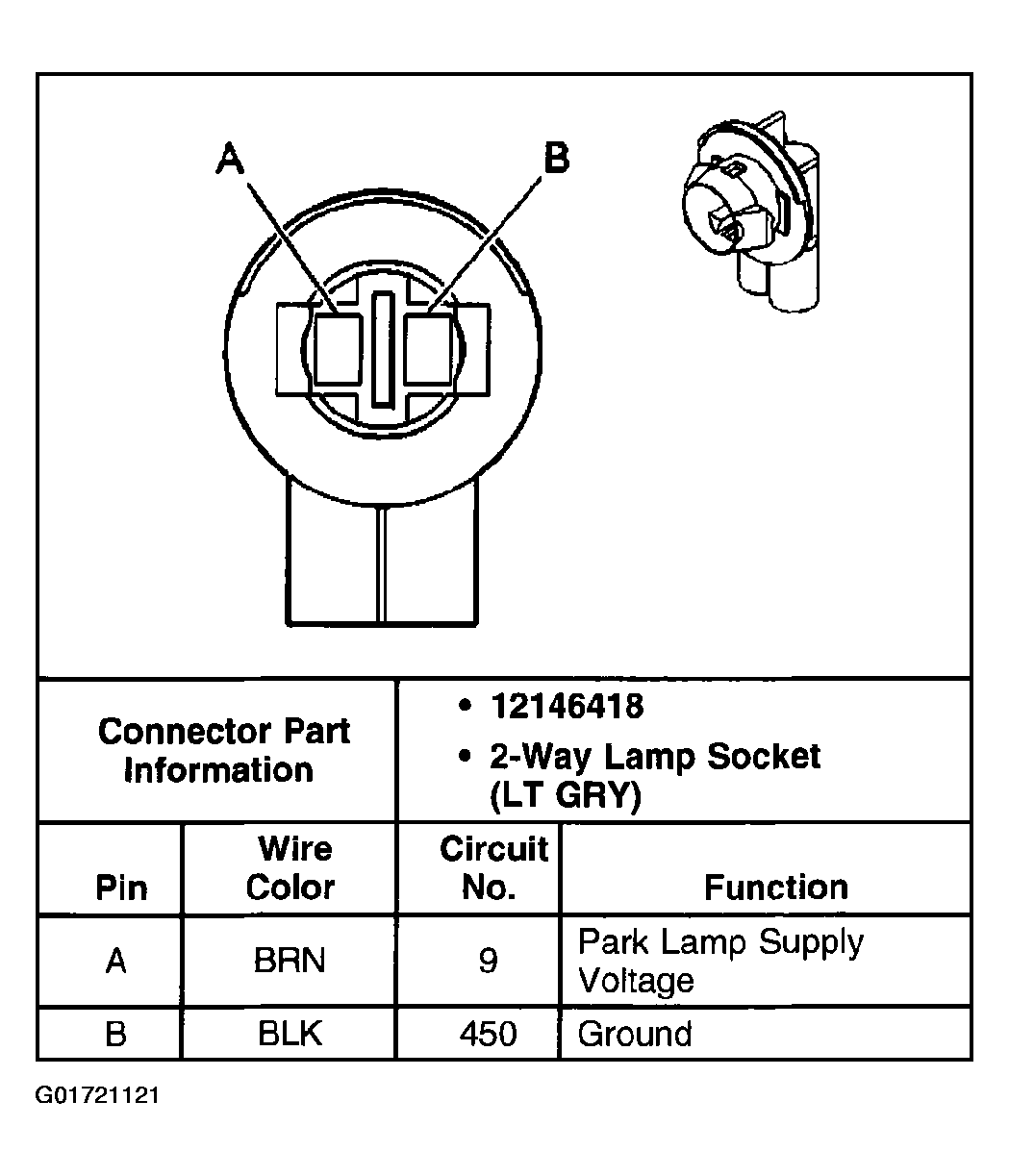

Fig 21: License Plate Lamp Connector End Views
G01721121Courtesy of GENERAL MOTORS CORP.

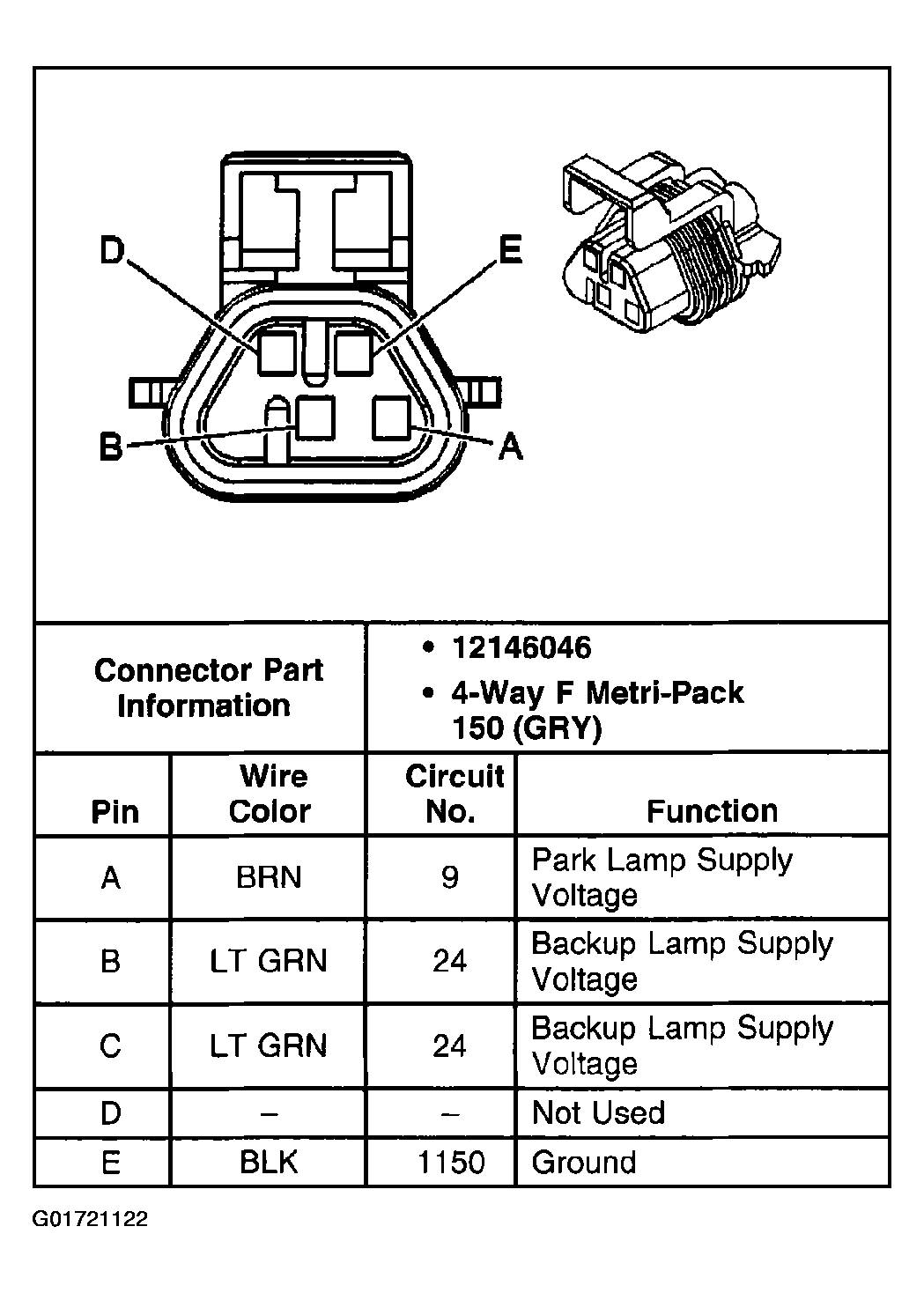

Fig 22: Liftgate Lamp Assembly (Buick) Connector End Views
G01721122Courtesy of GENERAL MOTORS CORP.
Fig 23: Marker Lamp - LF (Buick) Connector End Views
G01721123Courtesy of GENERAL MOTORS CORP.
Fig 24: Marker Lamp - RF (Buick) Connector End Views
G01721124Courtesy of GENERAL MOTORS CORP.

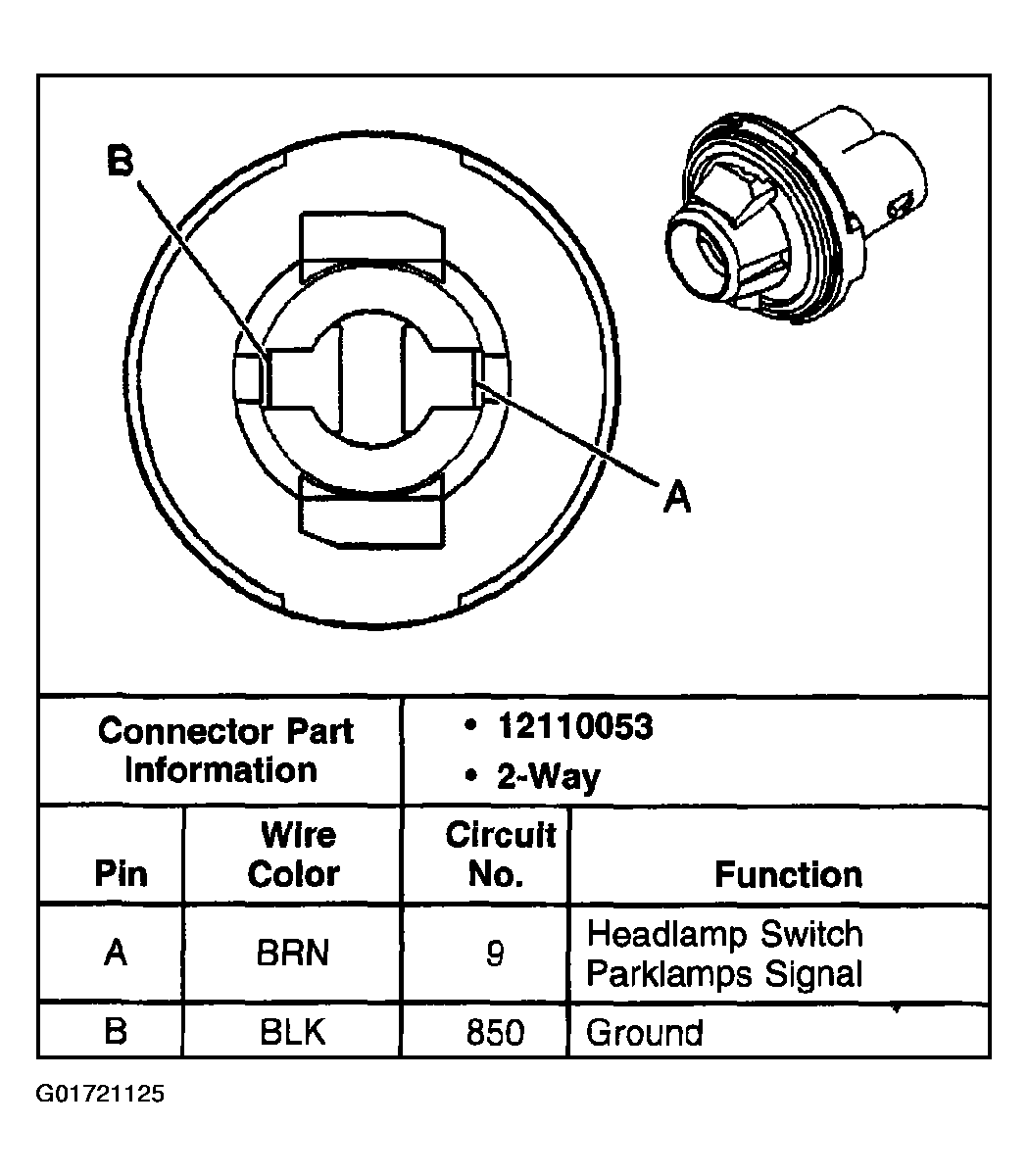

Fig 25: Marker Lamp - LR (Buick) Connector End Views
G01721125Courtesy of GENERAL MOTORS CORP.

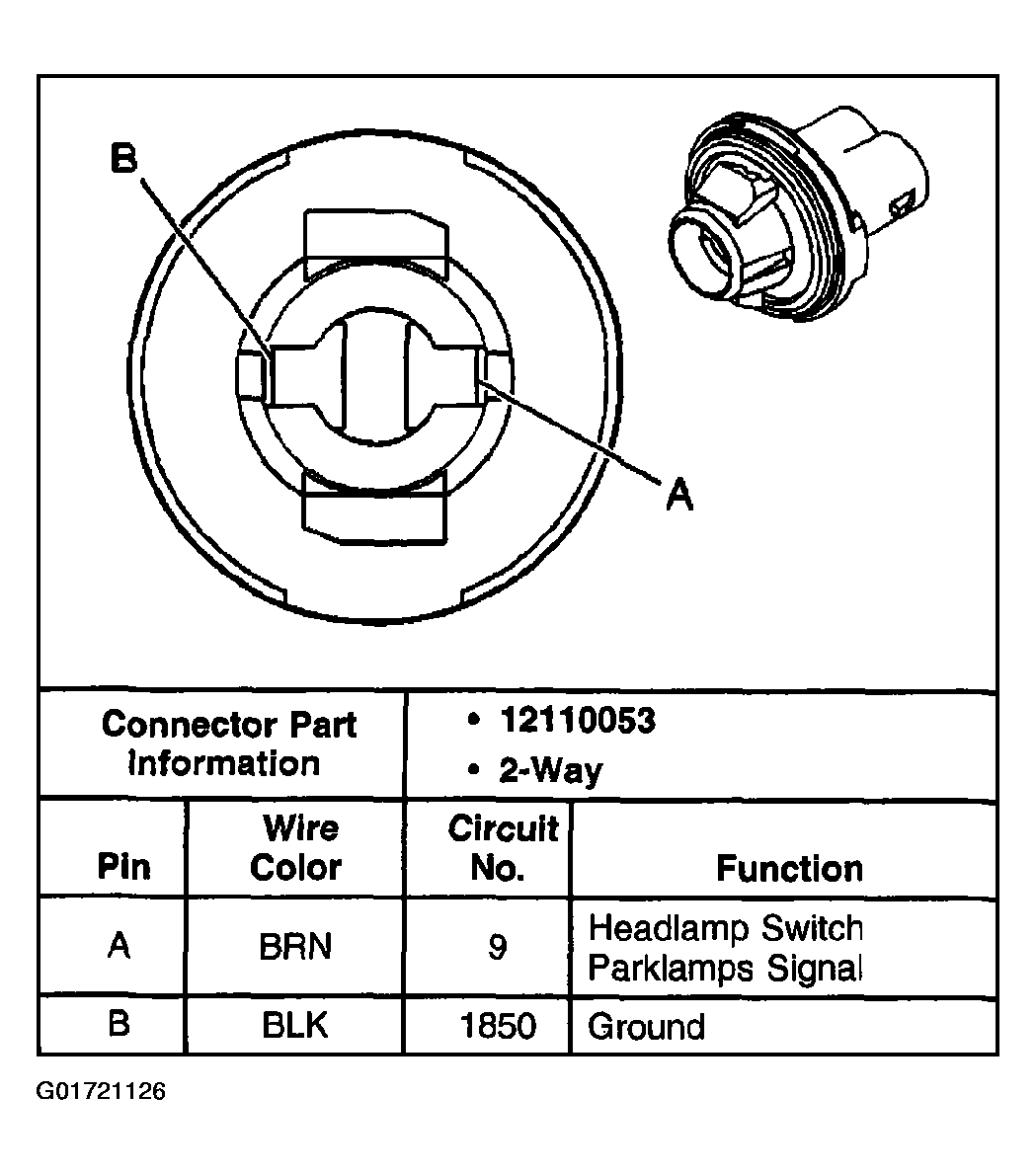

Fig 26: Marker Lamp - RR (Buick) Connector End Views
G01721126Courtesy of GENERAL MOTORS CORP.
Fig 27: Park/Stop/Turn Signal Lamp - LR Connector End Views
G01721127Courtesy of GENERAL MOTORS CORP.

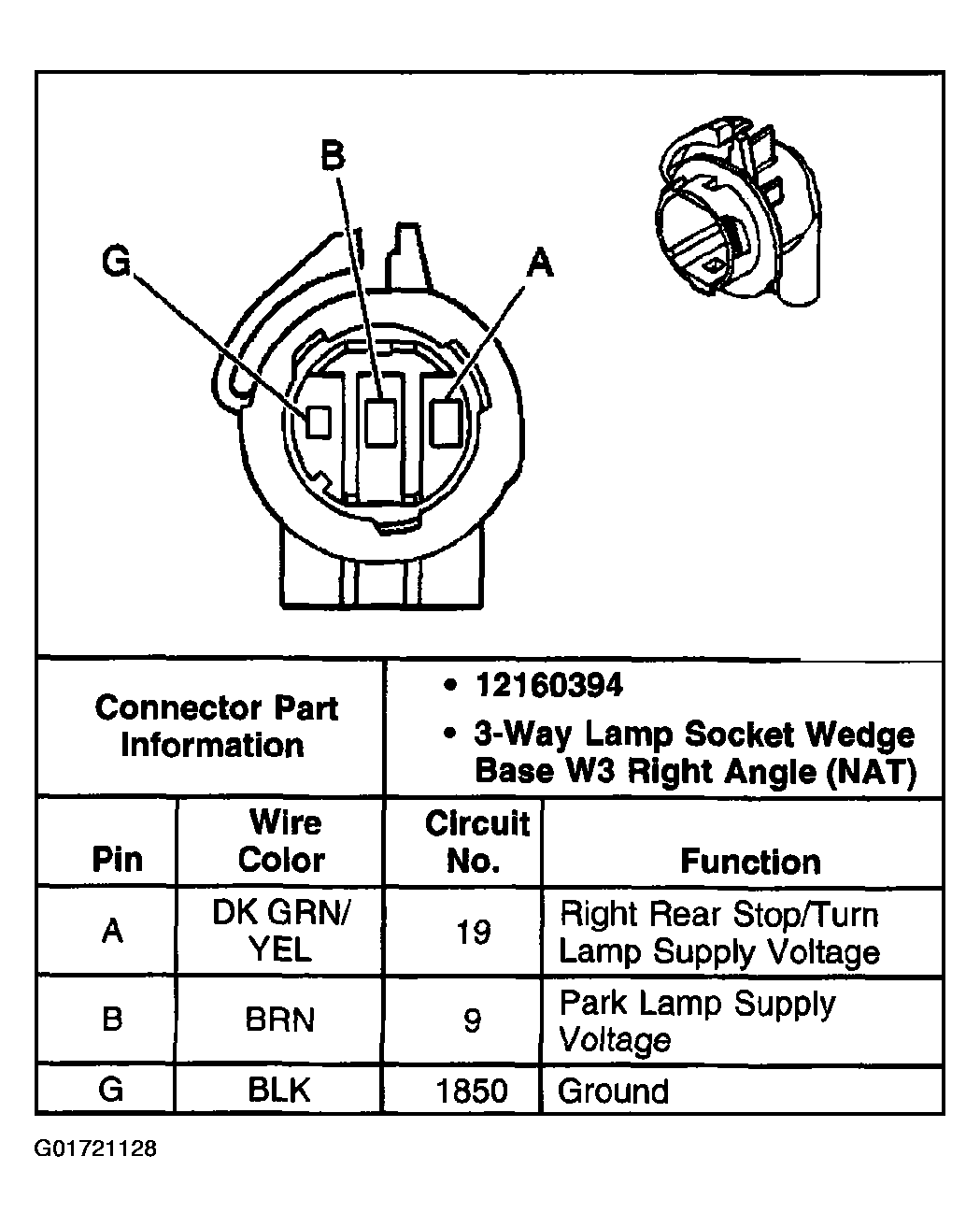

Fig 28: Park/Stop/Turn Signal Lamp - RR Connector End Views
G01721128Courtesy of GENERAL MOTORS CORP.

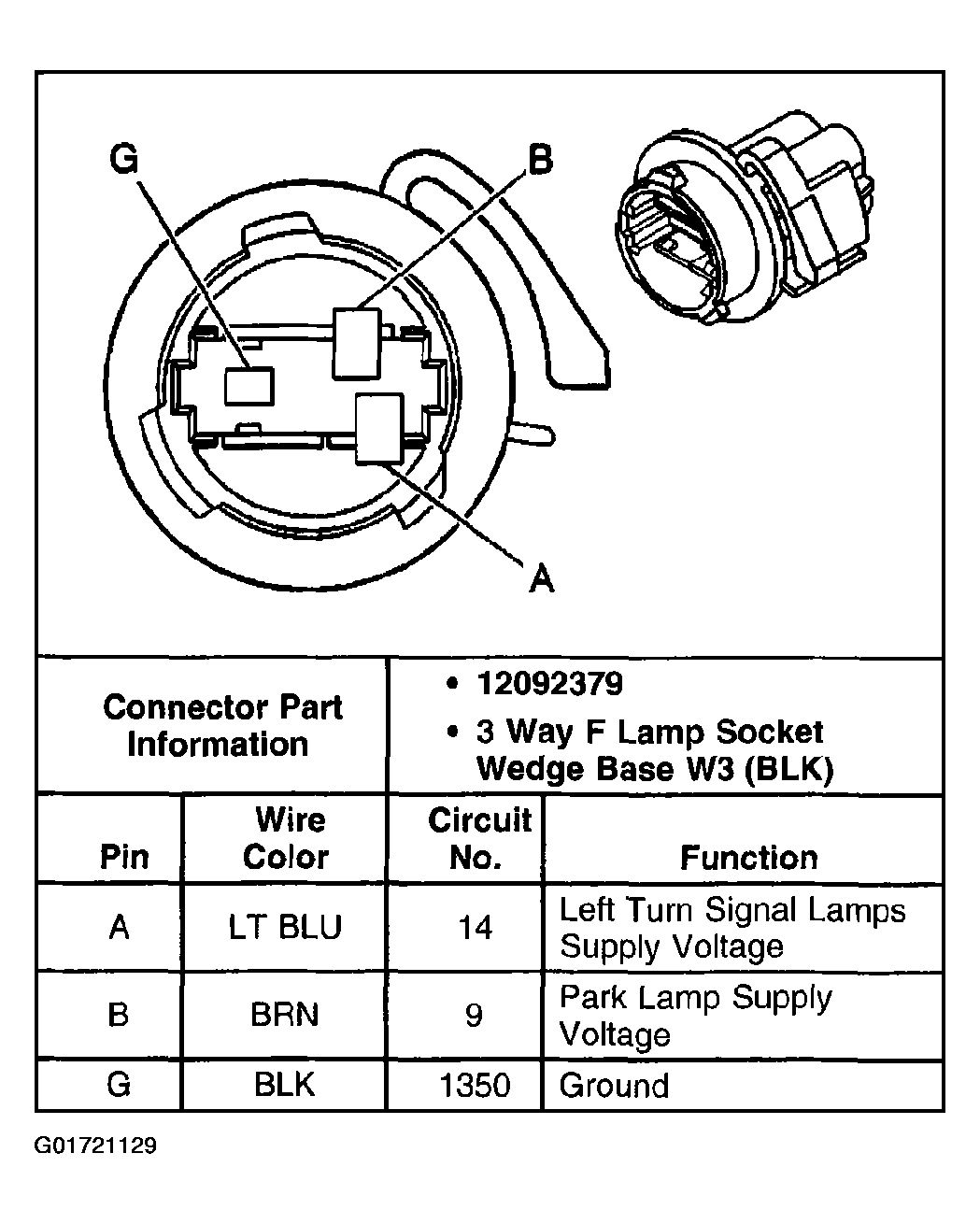

Fig 29: Park/Turn Signal Lamp - LF Connector End Views
G01721129Courtesy of GENERAL MOTORS CORP.

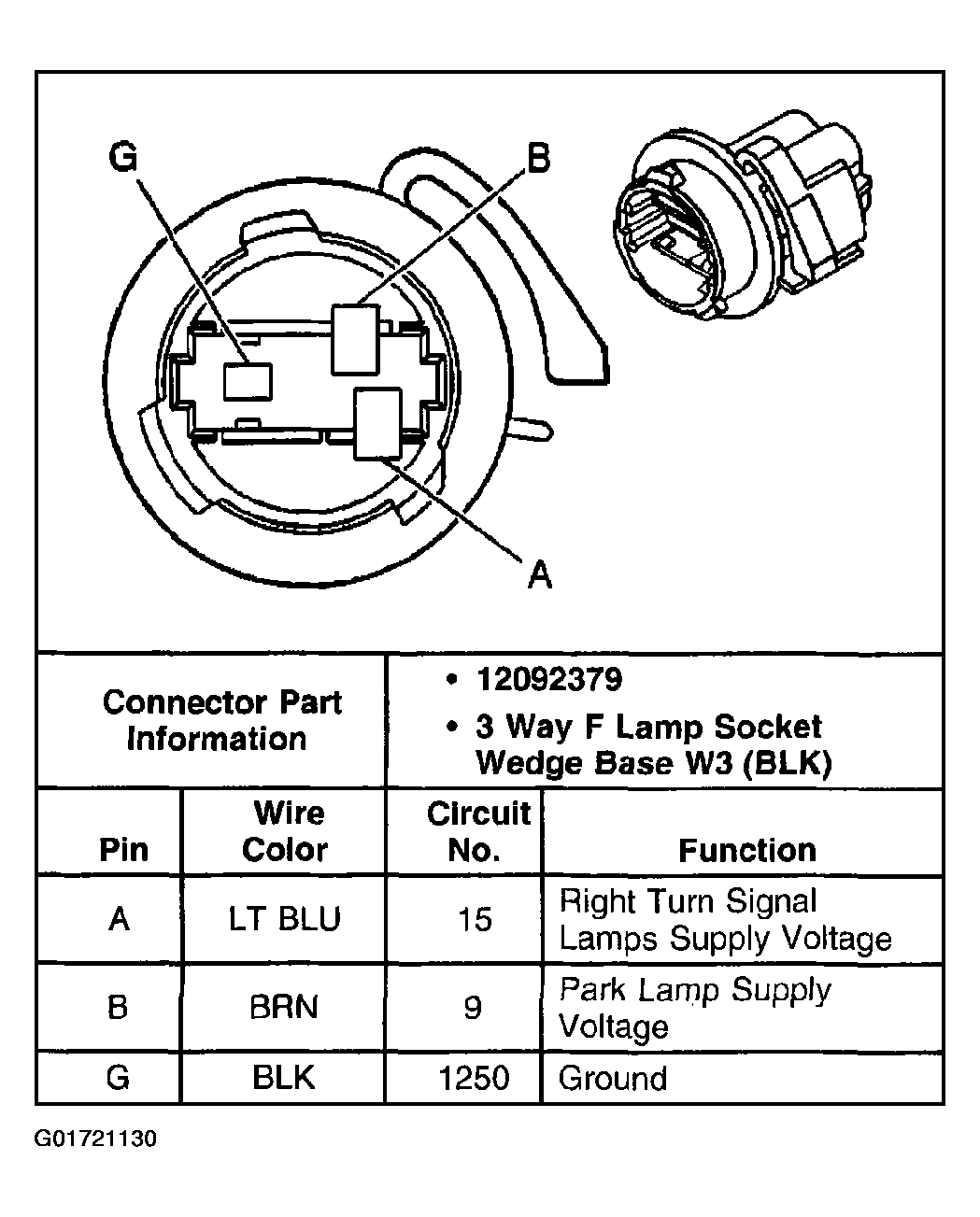

Fig 30: Park/Turn Signal Lamp - RF Connector End Views
G01721130Courtesy of GENERAL MOTORS CORP.
Fig 31: Roof Rail Reading Lamp - Left (C79) Connector End Views
G01721131Courtesy of GENERAL MOTORS CORP.

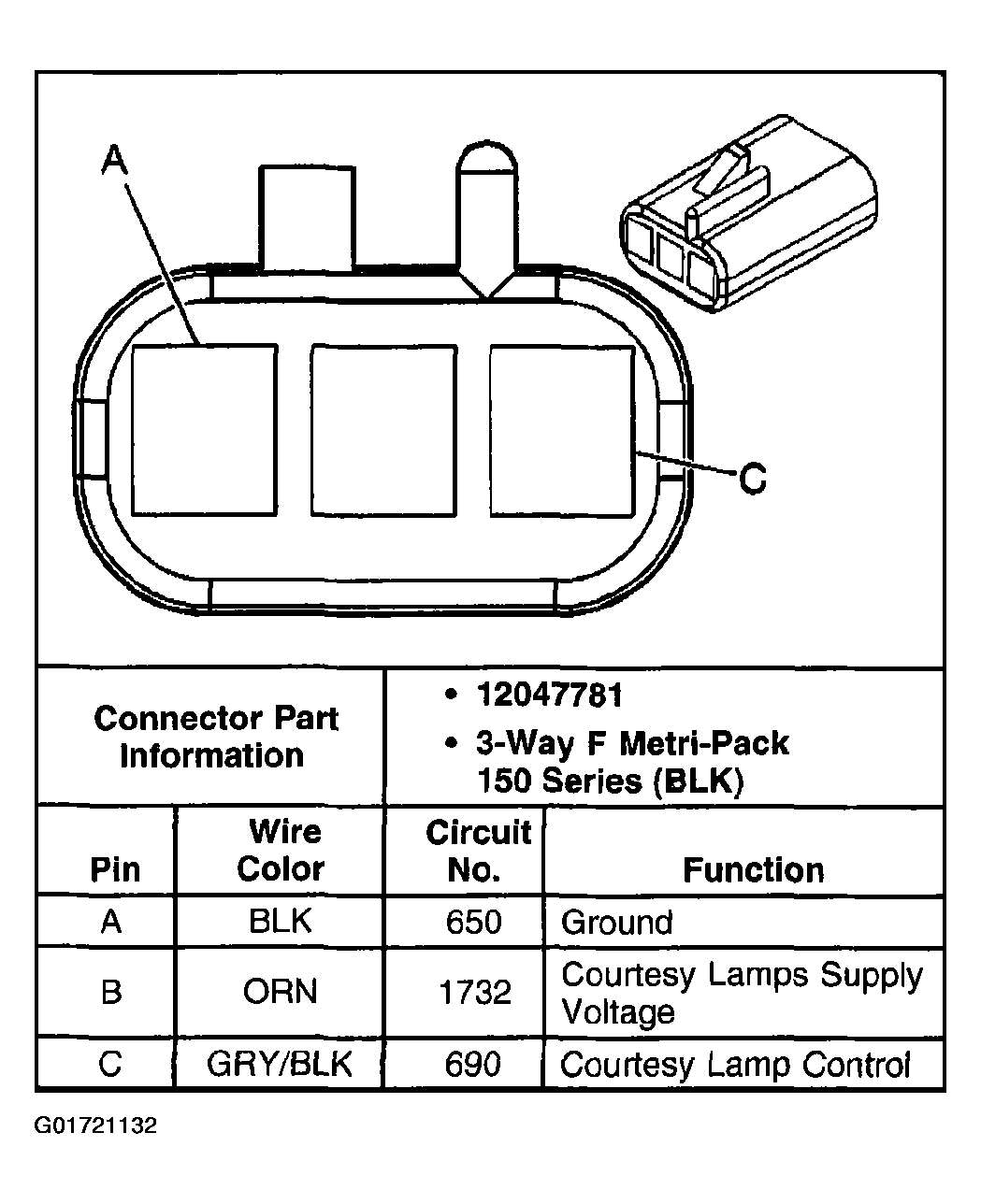

Fig 32: Roof Rail Reading Lamp - Right (C79) Connector End Views
G01721132Courtesy of GENERAL MOTORS CORP.
Fig 33: Stoplamp Switch - C1 Connector End Views
G01721133Courtesy of GENERAL MOTORS CORP.

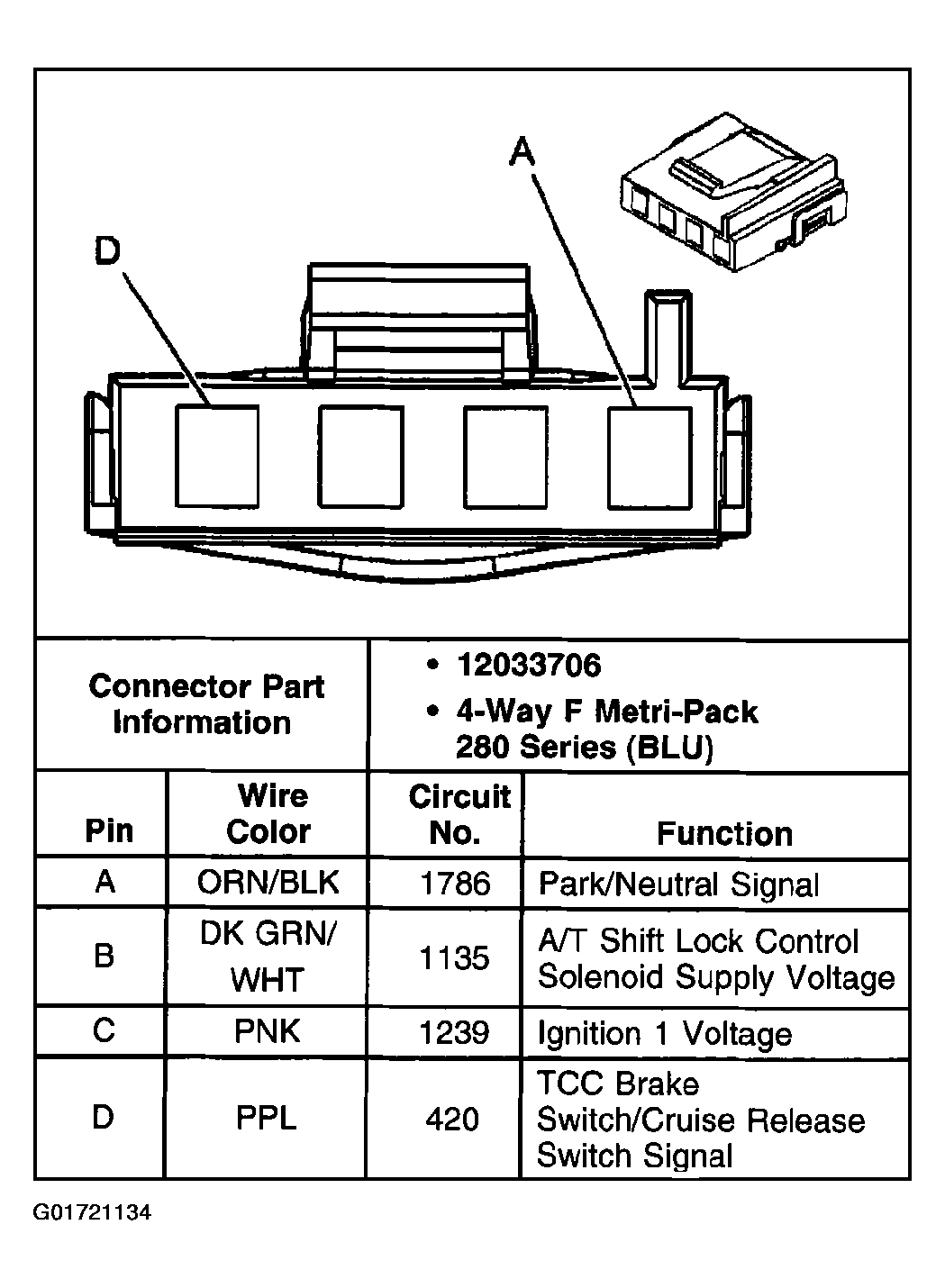

Fig 34: Stoplamp Switch - C2 Connector End Views
G01721134Courtesy of GENERAL MOTORS CORP.

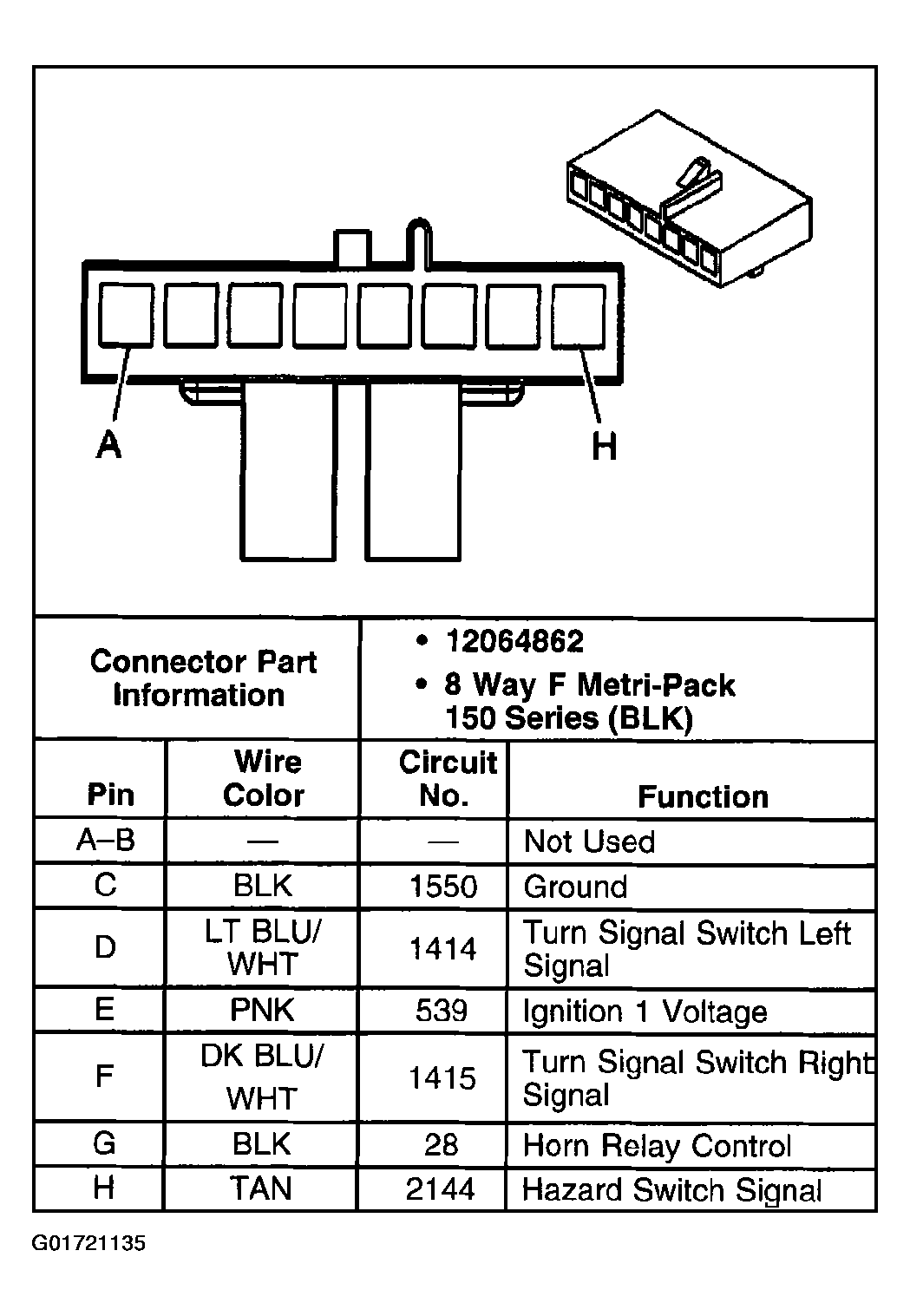

Fig 35: Turn Signal/Multifunction Switch - C1 Connector End Views
G01721135Courtesy of GENERAL MOTORS CORP.

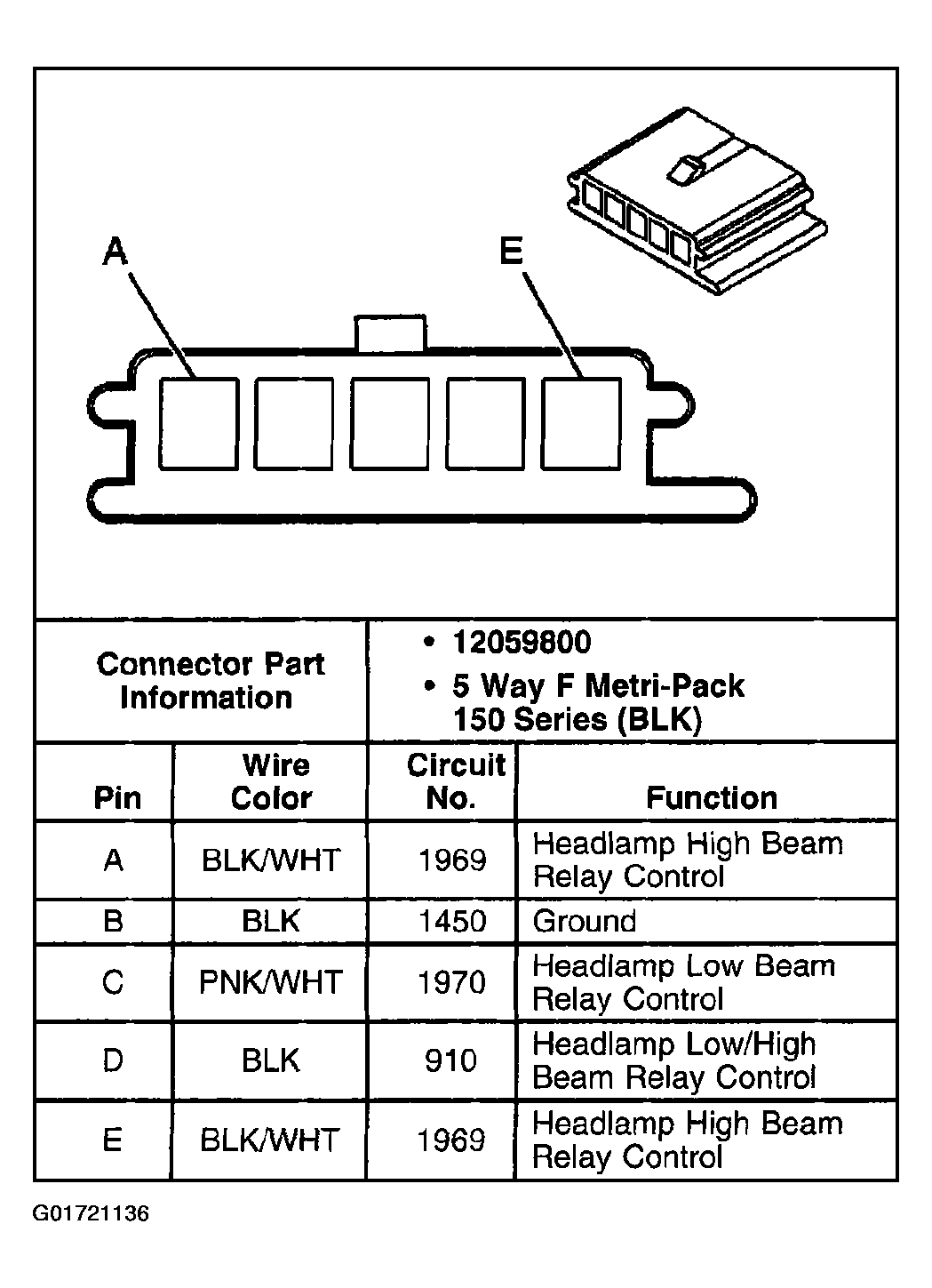

Fig 36: Turn Signal/Multifunction Switch - C2 Connector End Views
G01721136Courtesy of GENERAL MOTORS CORP.

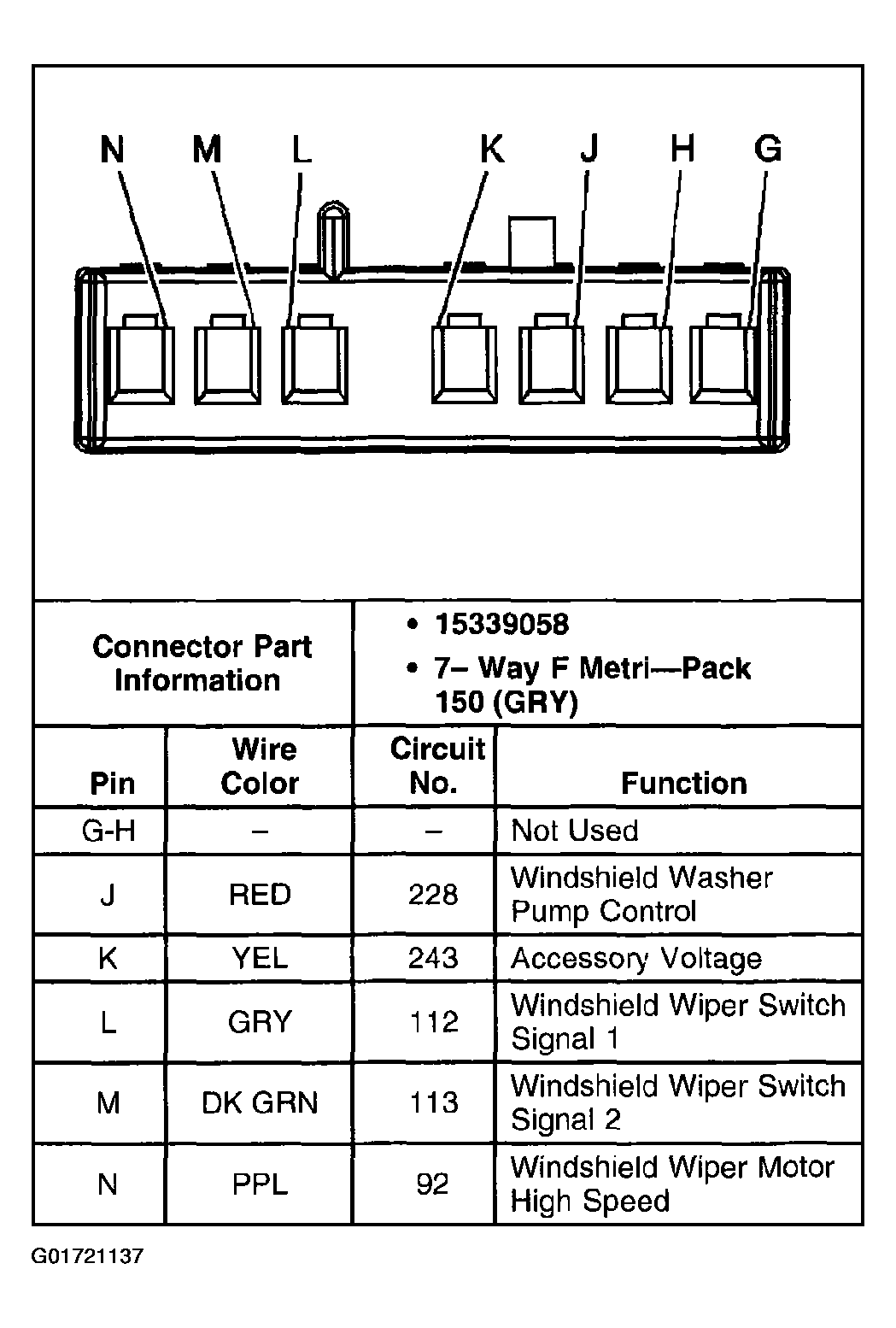

Fig 37: Turn Signal/Multifunction Switch C3 Connector End Views
G01721137Courtesy of GENERAL MOTORS CORP.

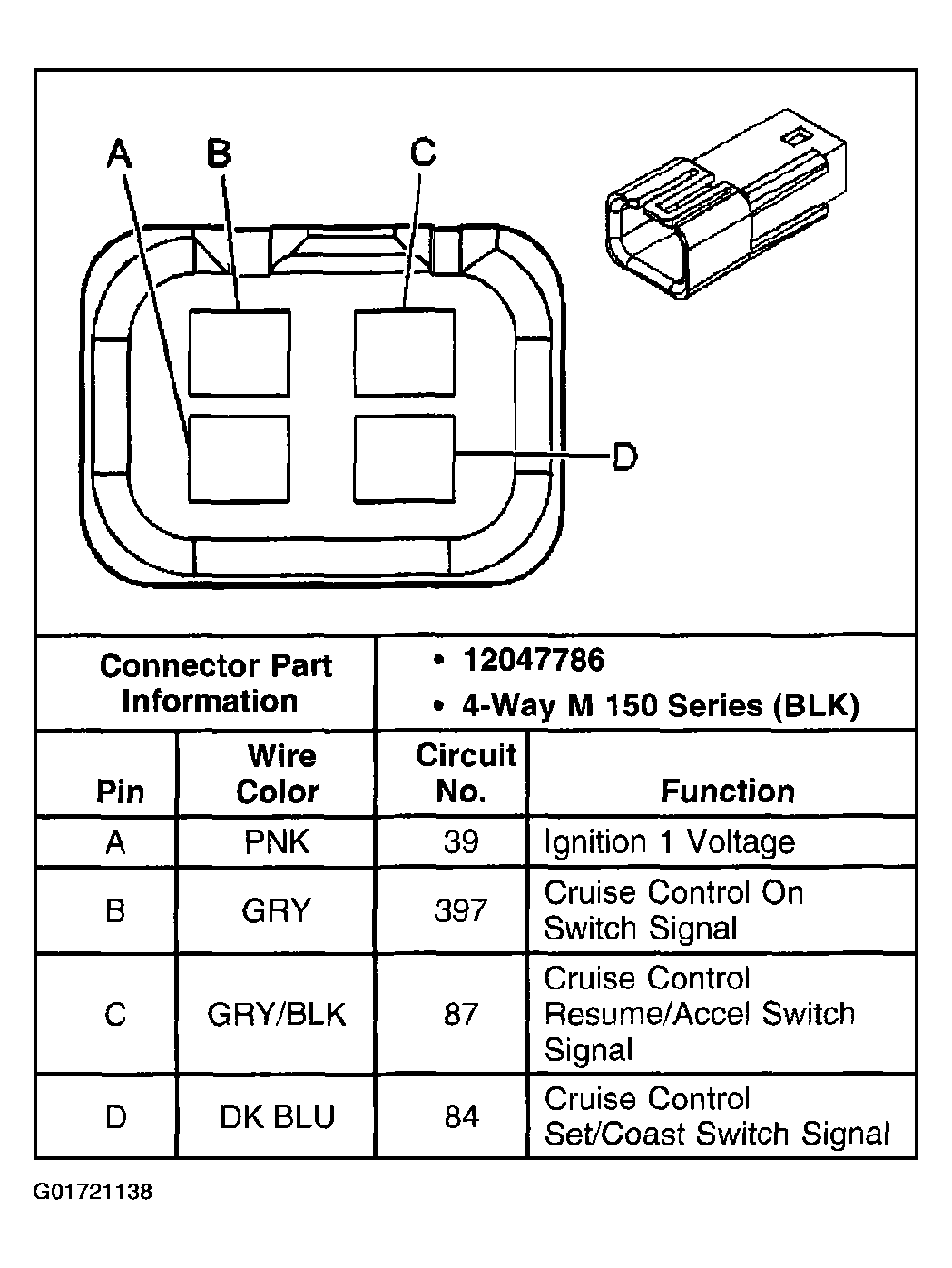

Fig 38: Turn Signal/Multifunction Switch C4 (K34) Connector End Views
G01721138Courtesy of GENERAL MOTORS CORP.

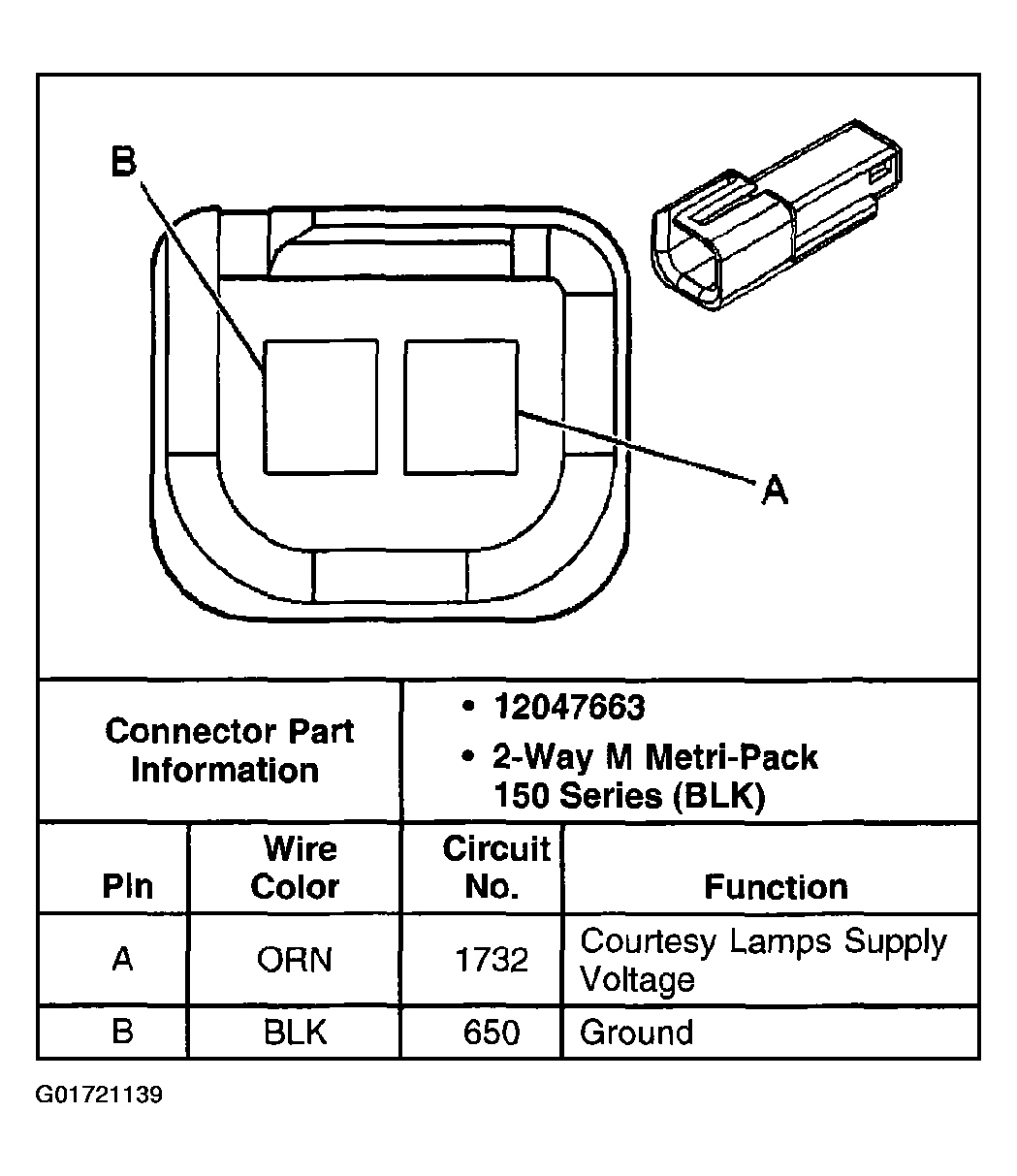

Fig 39: Vanity Mirror - Left (C79) Connector End Views
G01721139Courtesy of GENERAL MOTORS CORP.

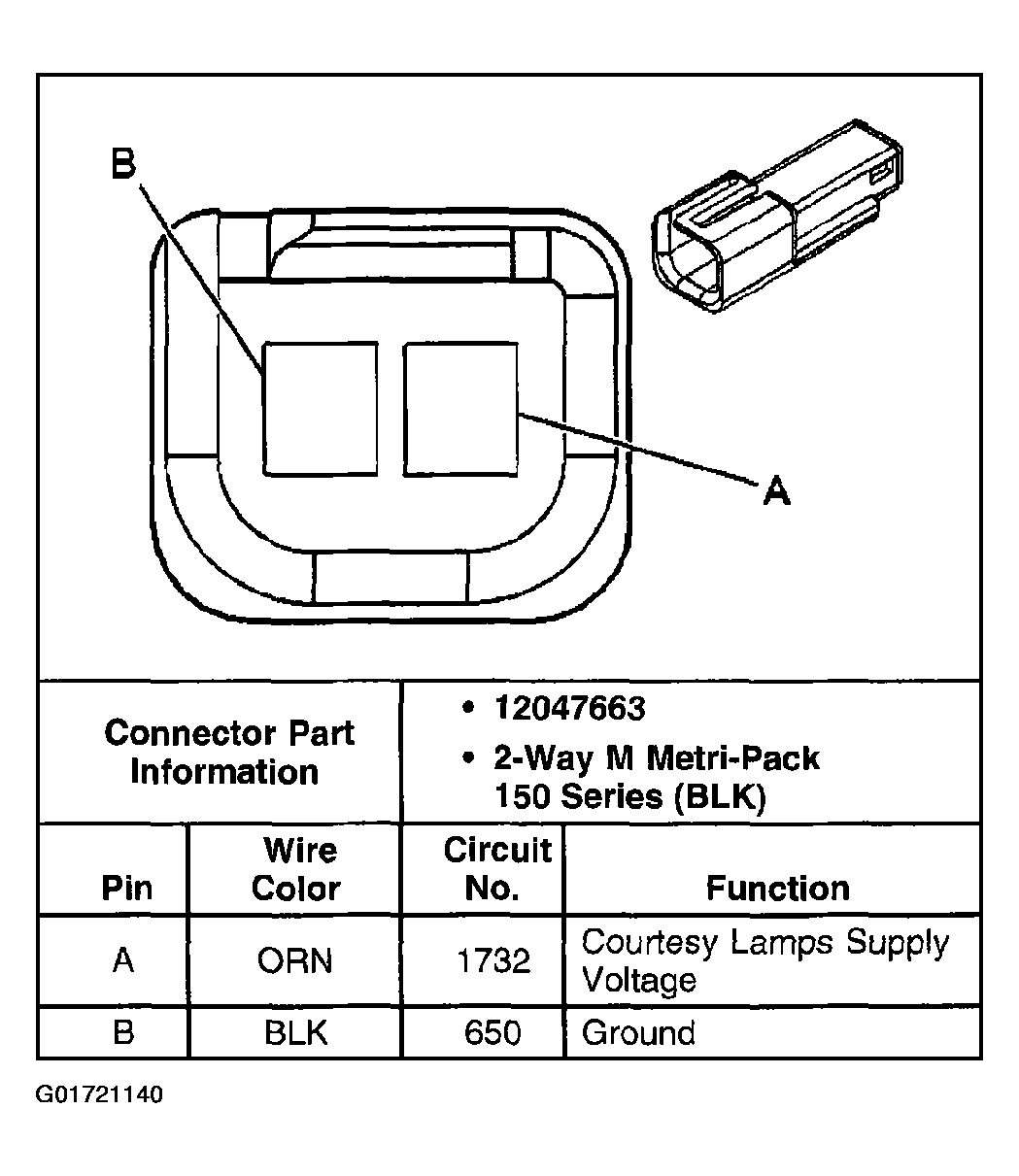

Fig 40: Vanity Mirror - Right (C79) Connector End Views
G01721140Courtesy of GENERAL MOTORS CORP.
