Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT .
  2. Disconnect the electrical connector.
  3. Remove the seat heater switch retaining screws.
  4. Remove the switch from the vehicle.

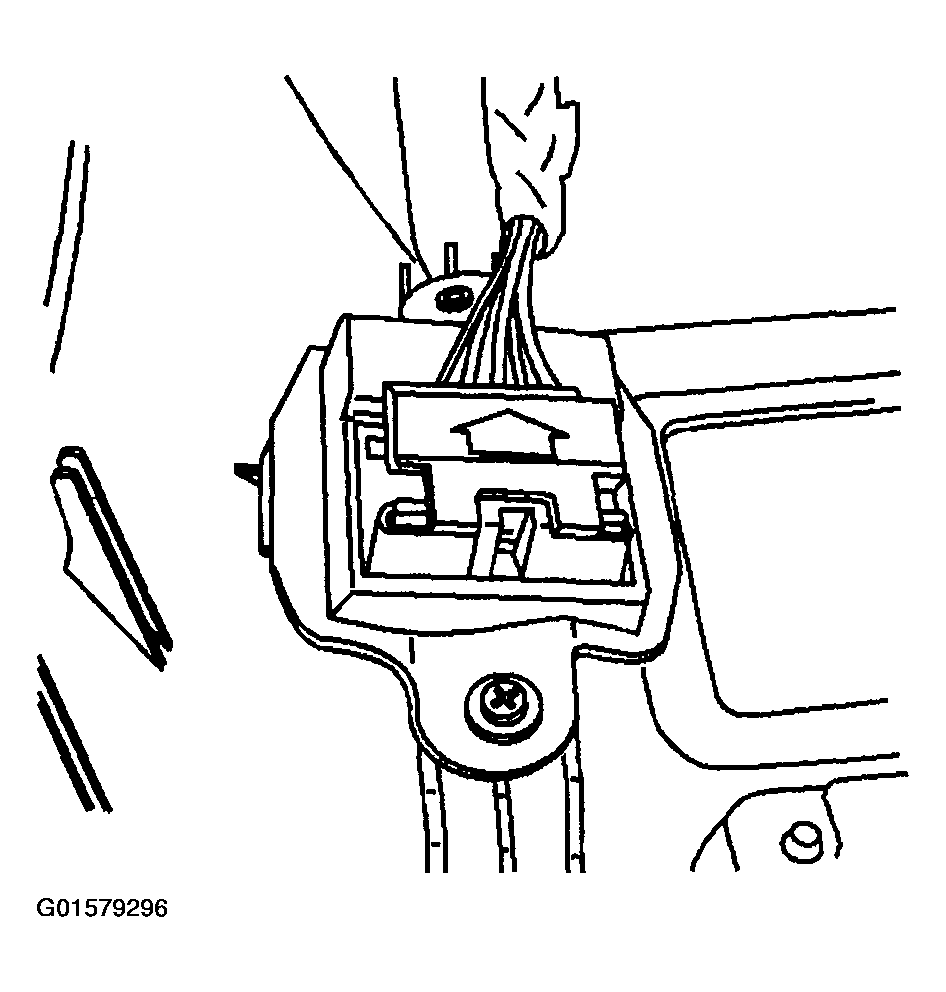

    Fig 1: Rear Heated Seat Switch
    G01579296Courtesy of GENERAL MOTORS CORP.
