Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Working from side to side, carefully install the seat back cover over the foam pad.
  2. Remove the cardboard from between the seat back cover and the foam pad.
  3. Engage the hook, and the loop strips that retain the seat back cover (2).
  4. Engage the J-clips that retain the seat back cover.
  5. Install the head restraints (1) to the seat back. Refer to Head Restraint Replacement   .
  6. Install the armrest to the seat back, if removed. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  7. Install the seat back folding cover, if removed.
  8. Install the rear seat to the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .

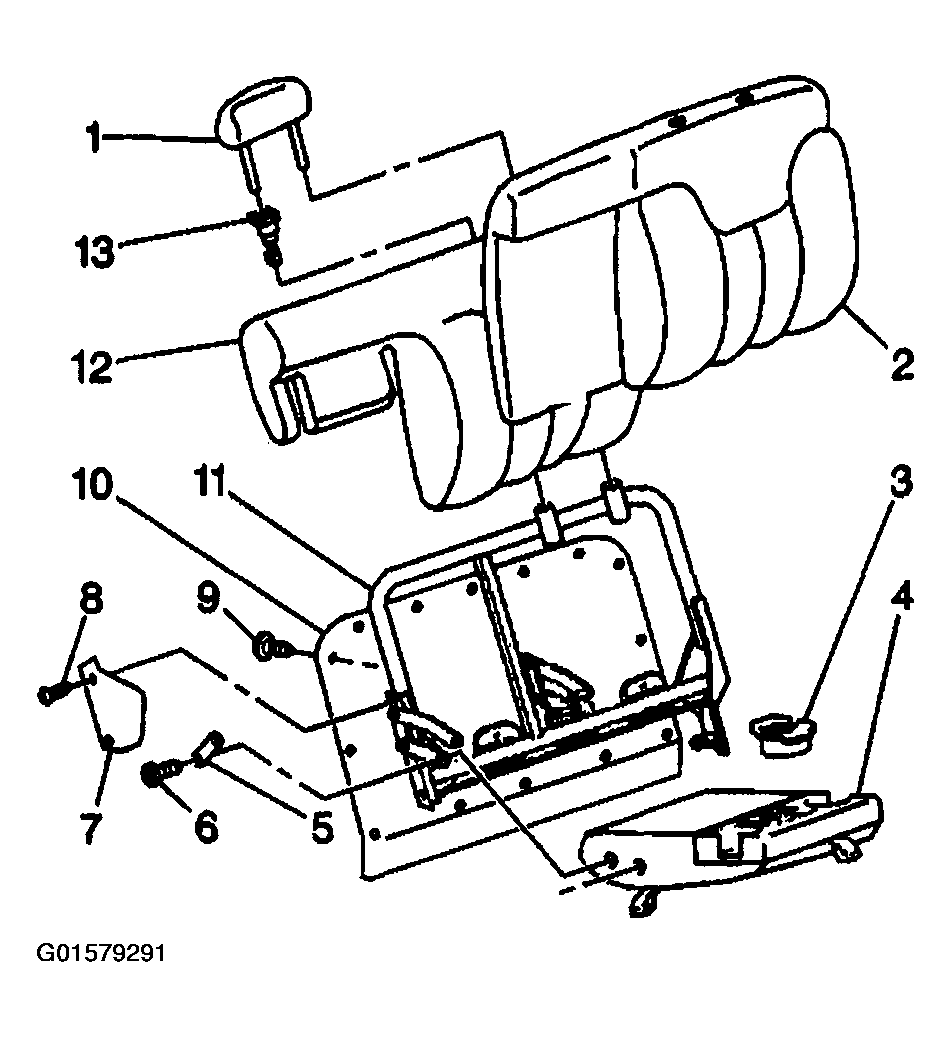

    Fig 1: Rear Seat Back Cover & Pad
    G01579291Courtesy of GENERAL MOTORS CORP.
