Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat into the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat retaining bolts.

    Tighten

    Tighten the bolts to 55 N.m (41 lb ft).

  3. Connect the electrical connectors, if equipped.
  4. Install the jack assembly, if removed.
  5. Install the covers to the seat bolts.
  6. Install the seat back recliner handle screw, if removed.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  7. Install the front and the rear leg trim covers.

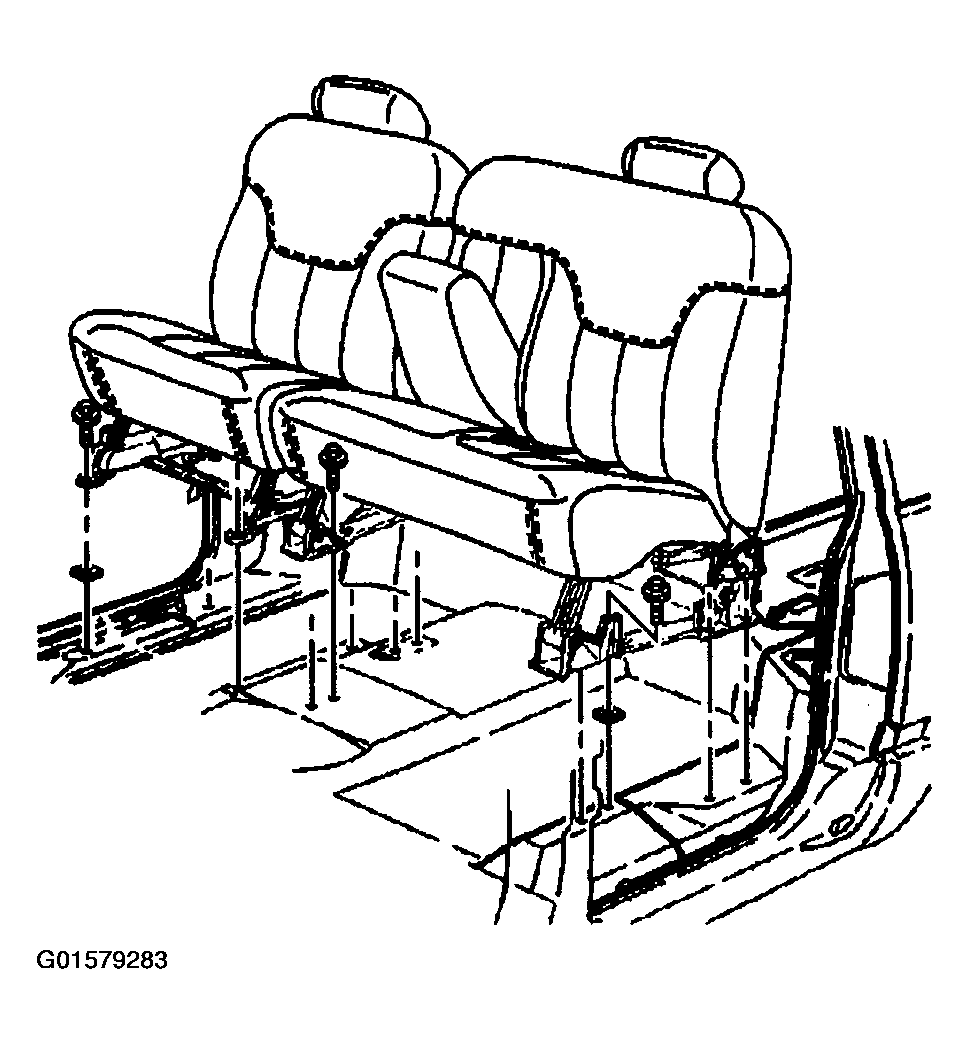

    Fig 1: Rear Seat (60/40 Split)
    G01579283Courtesy of GENERAL MOTORS CORP.
