Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Place the seat back clips on the retaining hooks.
Install the rear storage compartment bracket, If removed. Refer to TOOL STORAGE COMPARTMENT BRACKET REPLACEMENT (PRO) .
NOTE: Refer to FASTENER NOTICE .
Install the seat retaining bolts (1).
Tighten

Tighten the seat retaining bolts to 55 N.m (41 lb ft).
Fold the seat down.
Pull the seat belt buckles through the seat cushion and seat back.

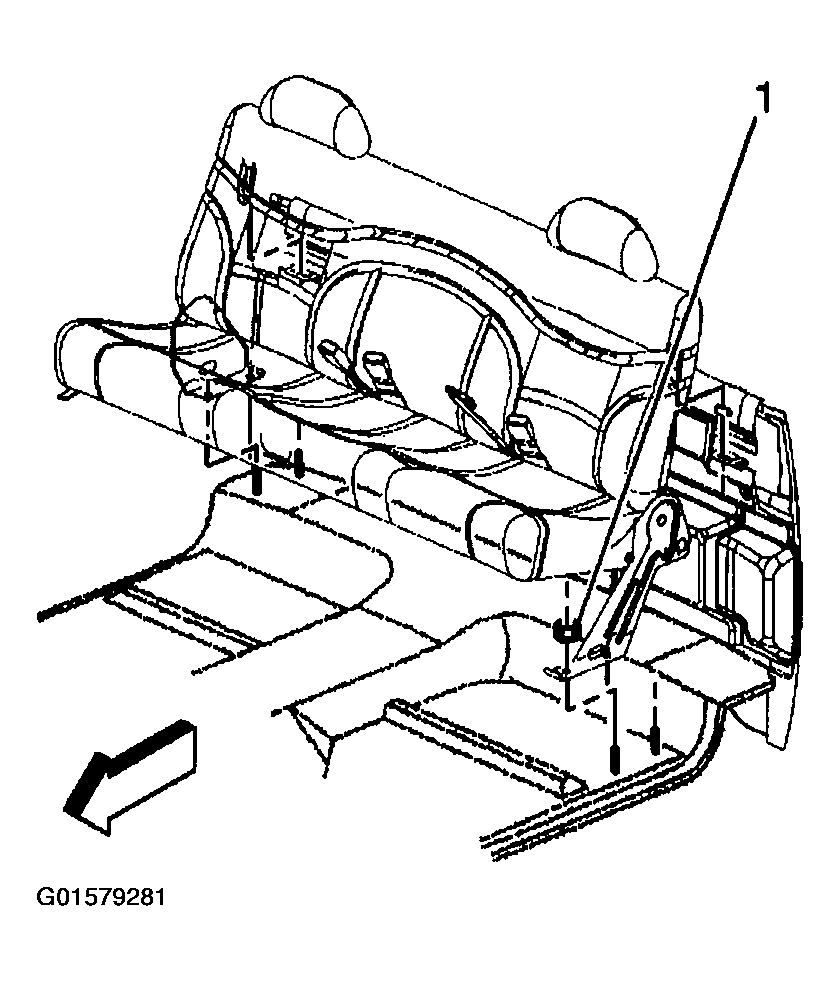

Fig 1: Installing Seat Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
