Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the power seat switch to bezel screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).

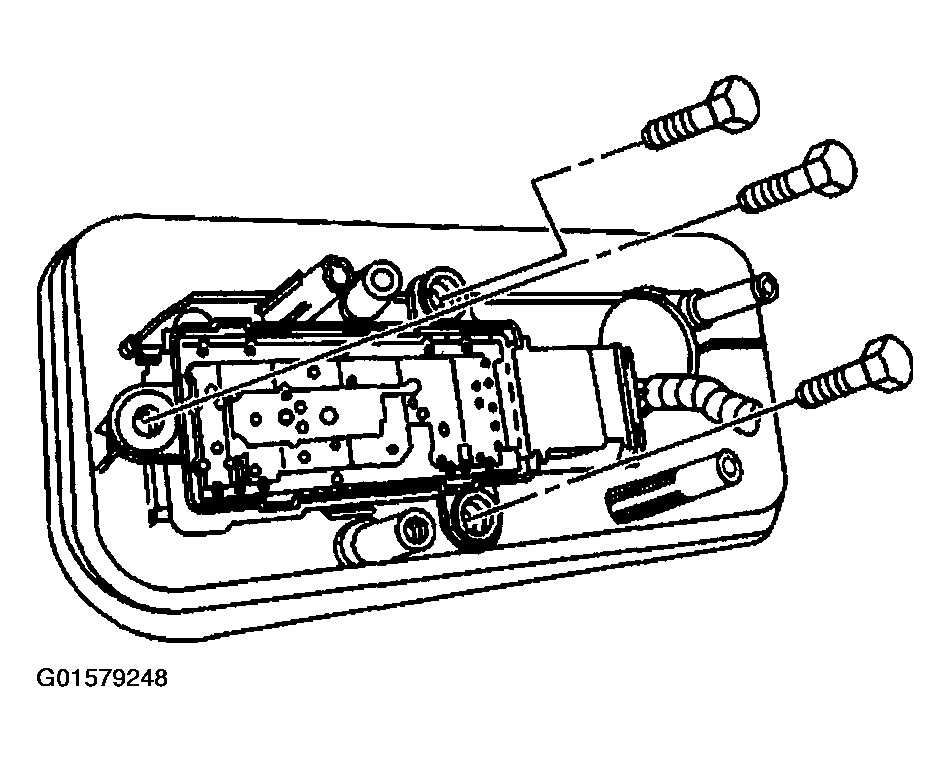

Fig 1: Installing Power Seat Switch Bezel Screws
Courtesy of GENERAL MOTORS CORP.
Install the power seat switch bezel to the seat. Refer to Seat Switch Bezel Replacement .

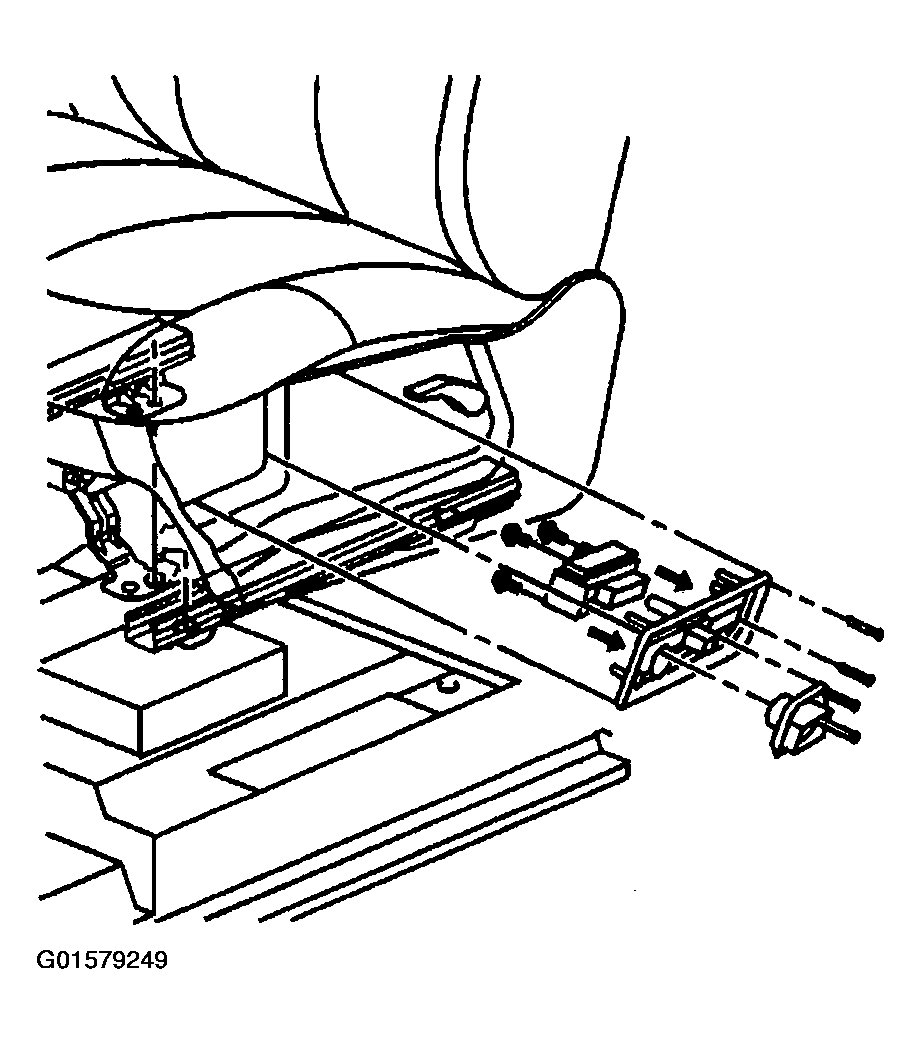

Fig 2: Installing Power Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.
