Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

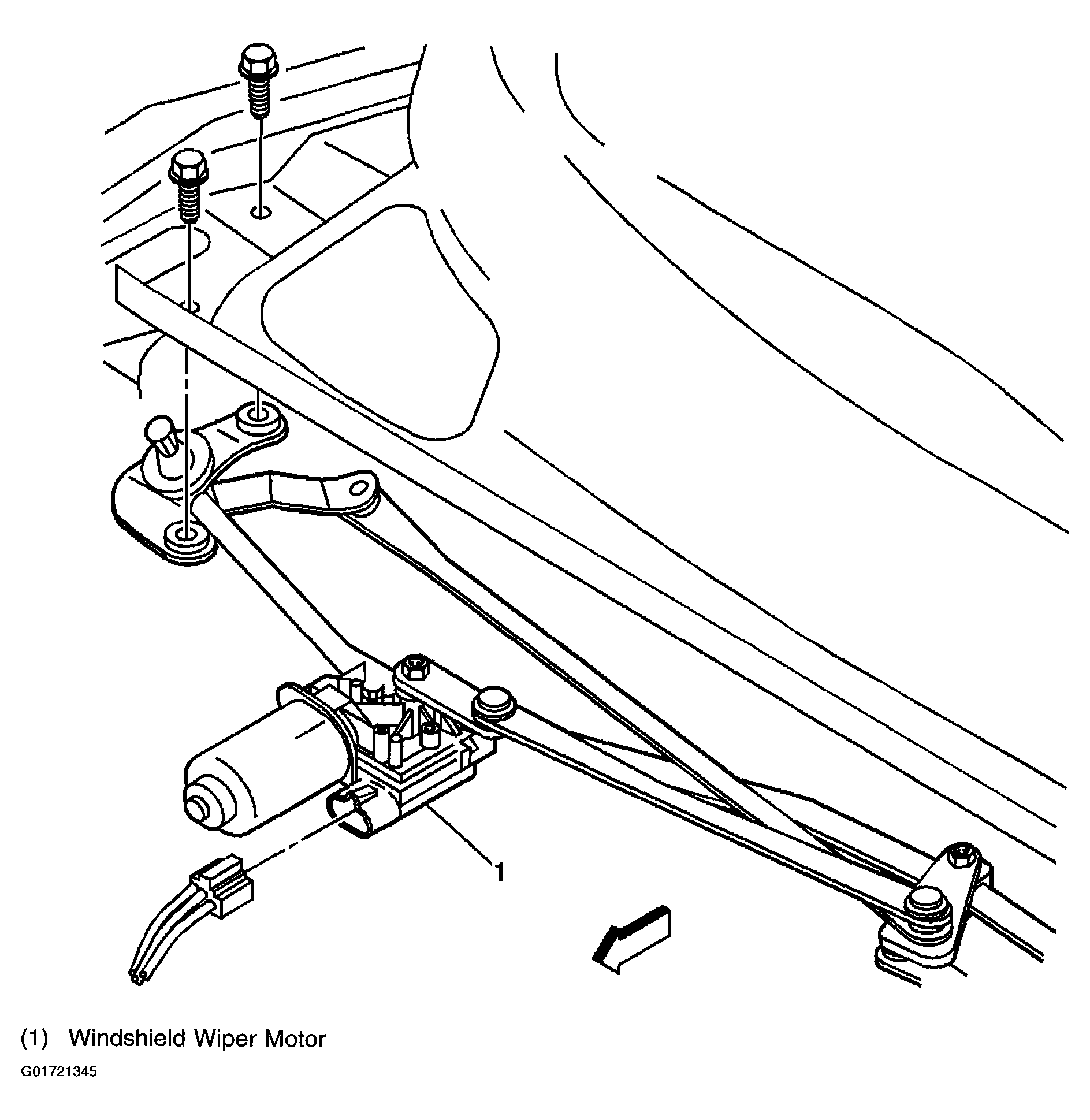

Fig 1: Windshield Wiper Motor Component Views

Courtesy of GENERAL MOTORS CORP.

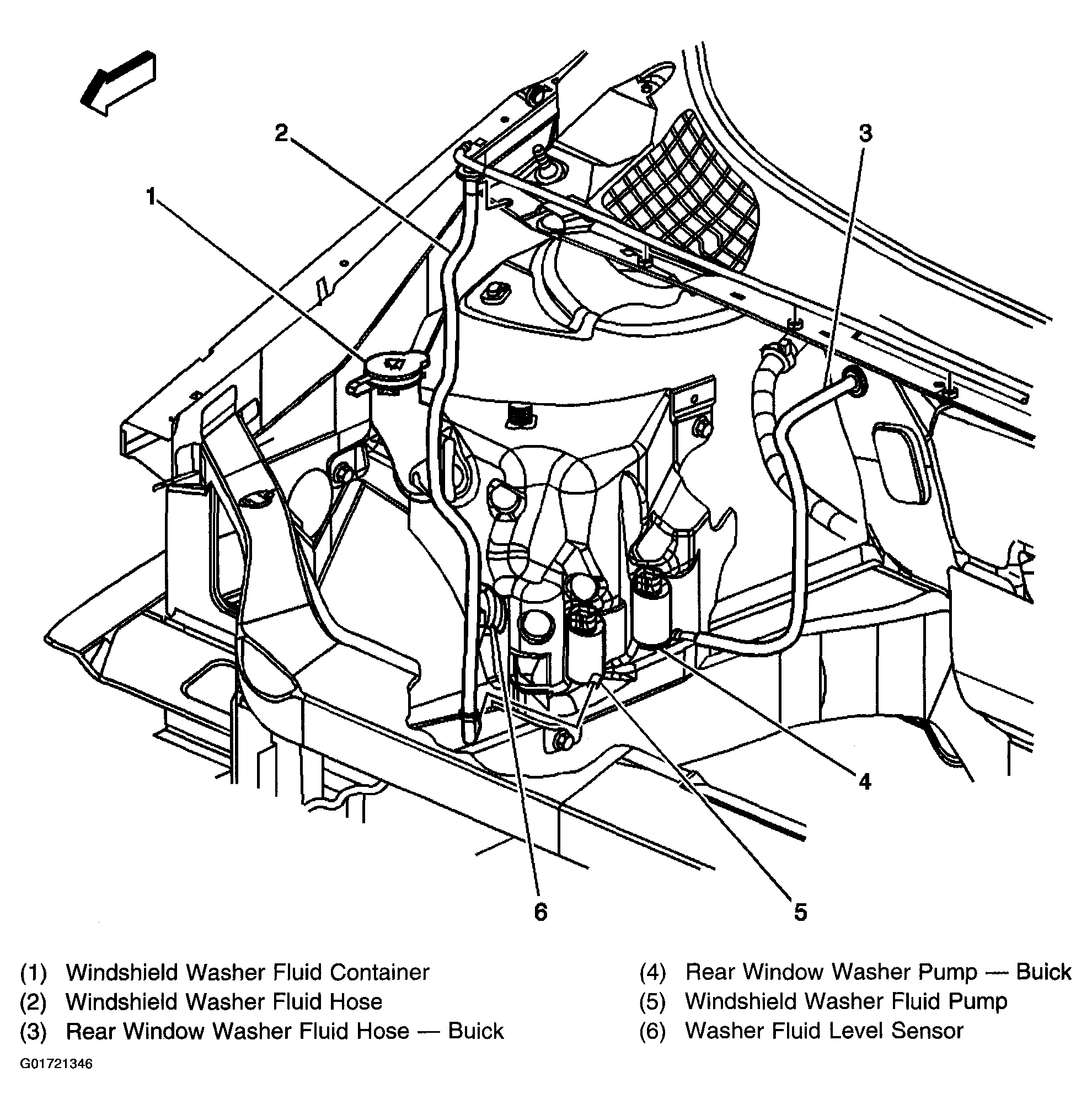

Fig 2: Windshield Washer Fluid Pump Component Views

Courtesy of GENERAL MOTORS CORP.

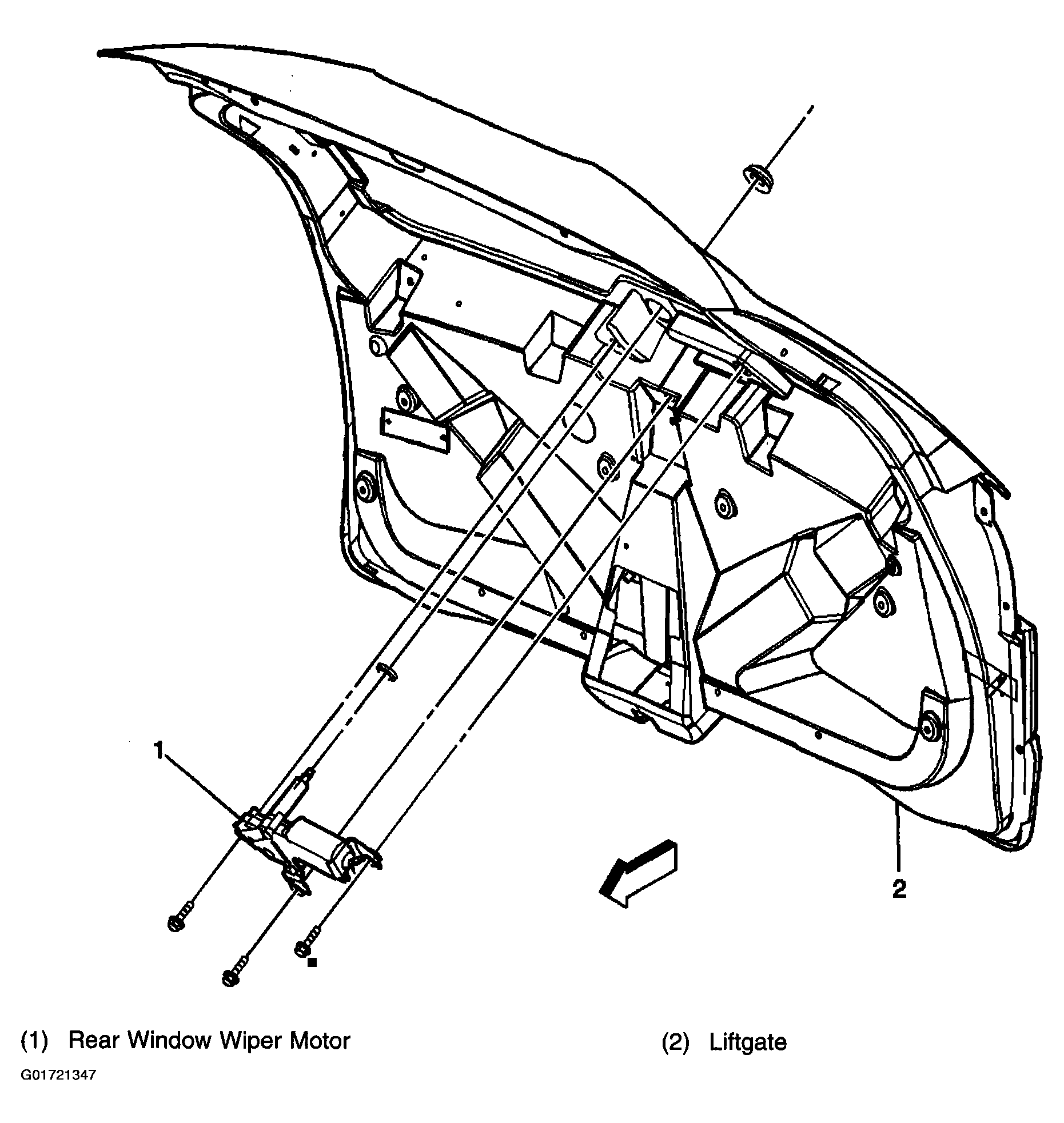

Fig 3: Rear Window Wiper Motor Component Views - Buick

Courtesy of GENERAL MOTORS CORP.
