Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Remove the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK .
  4. Remove the cruise control module. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  5. Disconnect the wiper motor cover electrical connector.
  6. Remove the wiper system drive module bolts.
  7. Remove the wiper system drive module from the engine compartment.

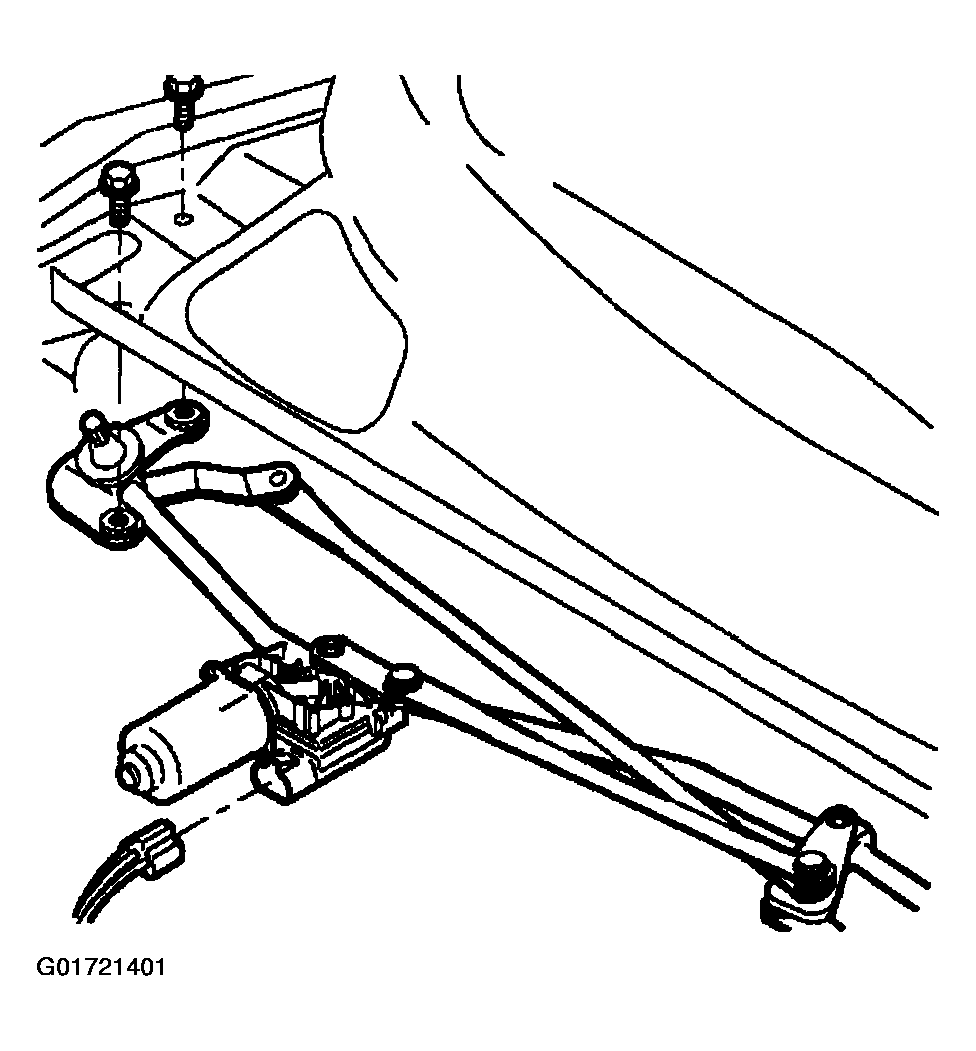

    Fig 1: Disconnecting Wiper Motor Electrical Connector And Removing Wiper System Drive Module Bolts
    G01721401Courtesy of GENERAL MOTORS CORP.
