Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

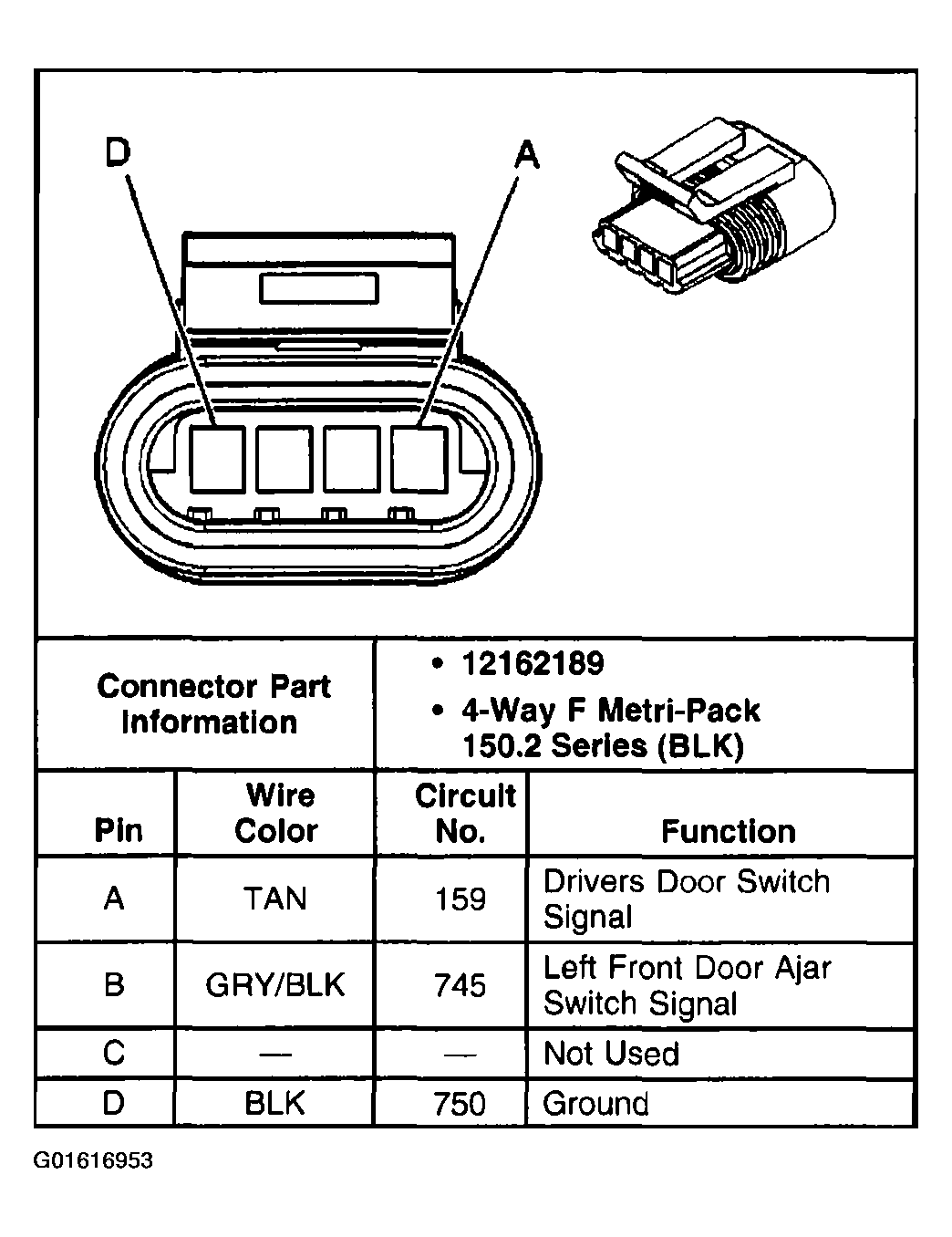

Fig 1: Door Lock - Driver, C1

G01616953

Courtesy of GENERAL MOTORS CORP.

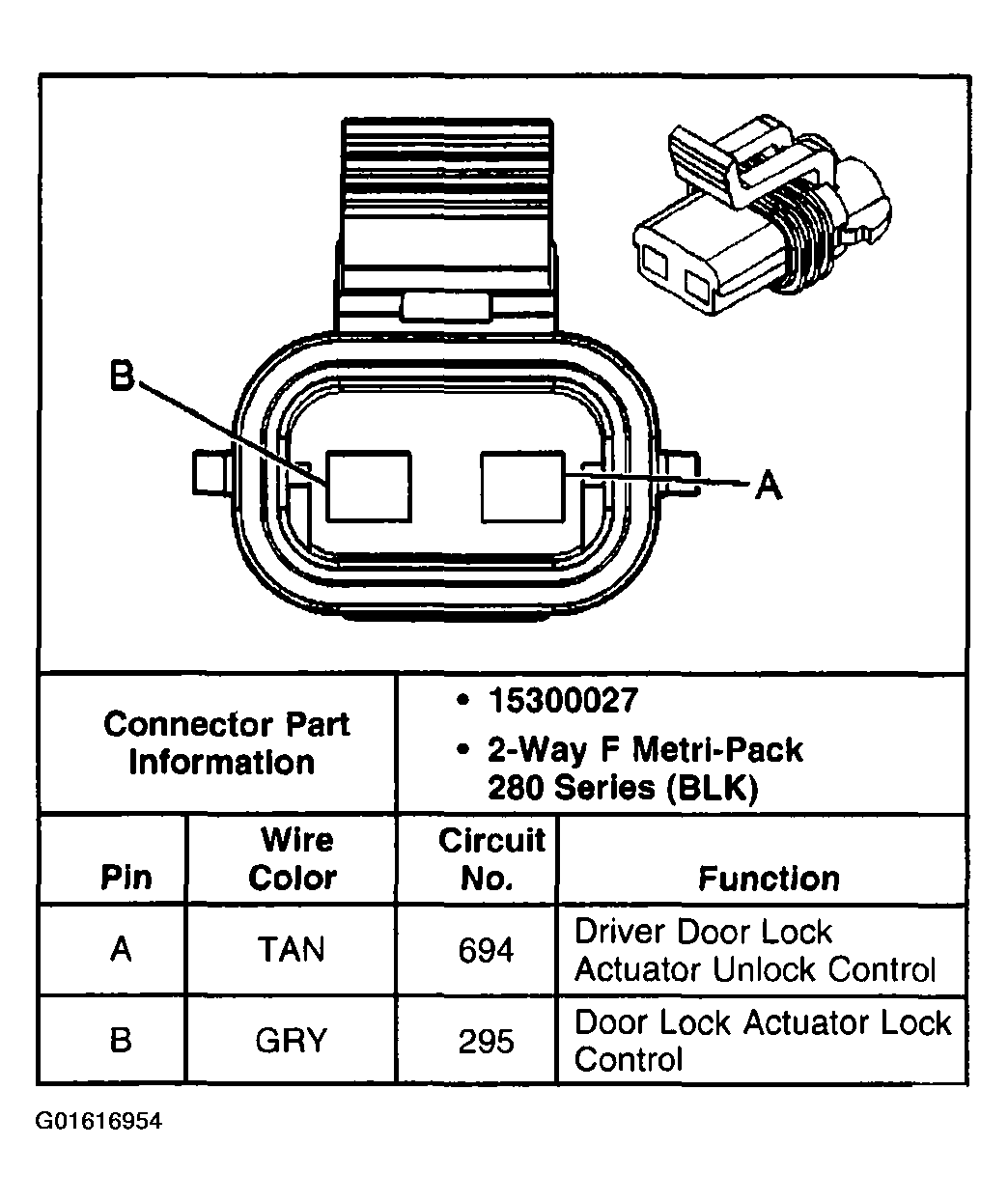

Fig 2: Door Lock - Driver, C2

G01616954

Courtesy of GENERAL MOTORS CORP.

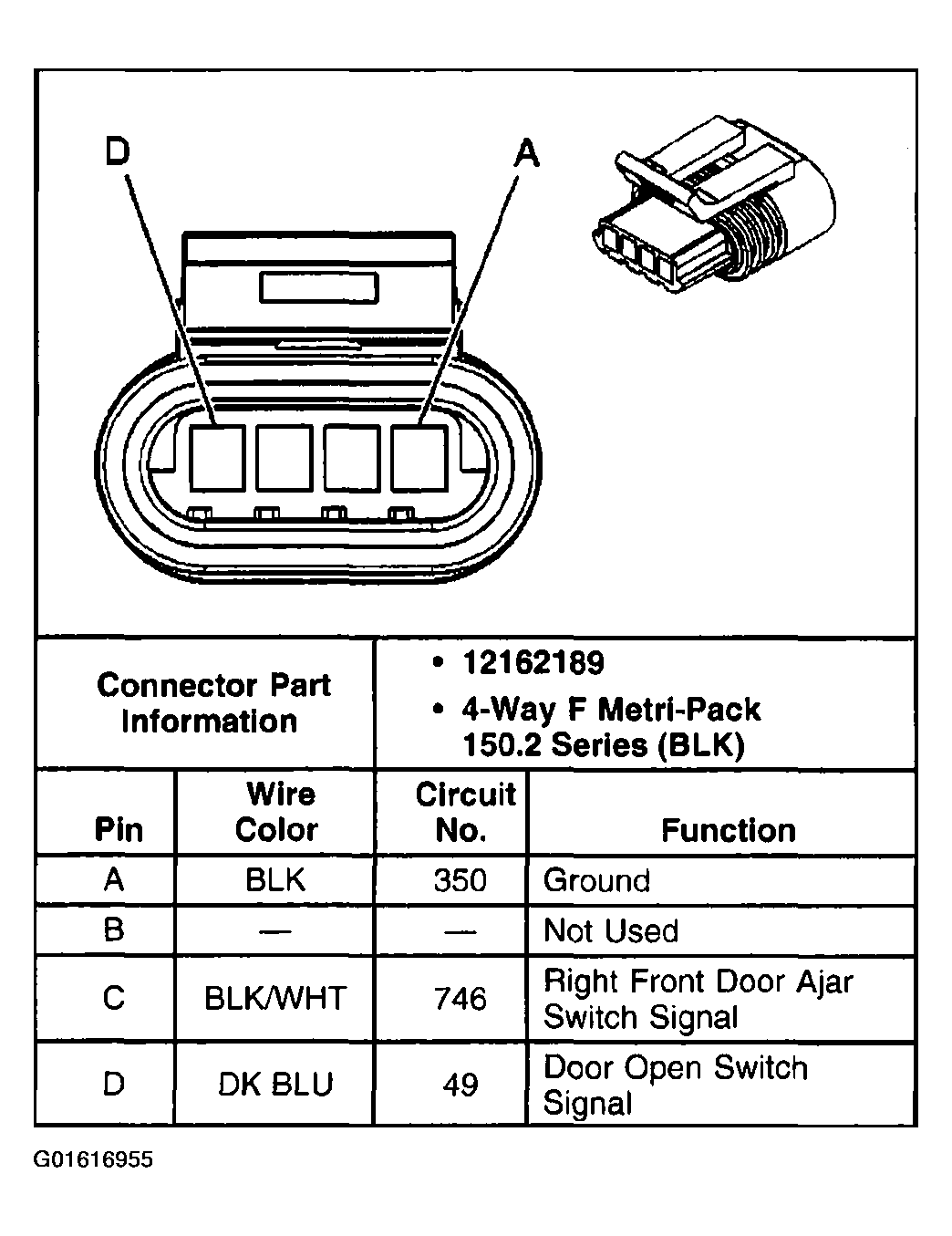

Fig 3: Door Lock - Front Passenger, C1

G01616955

Courtesy of GENERAL MOTORS CORP.

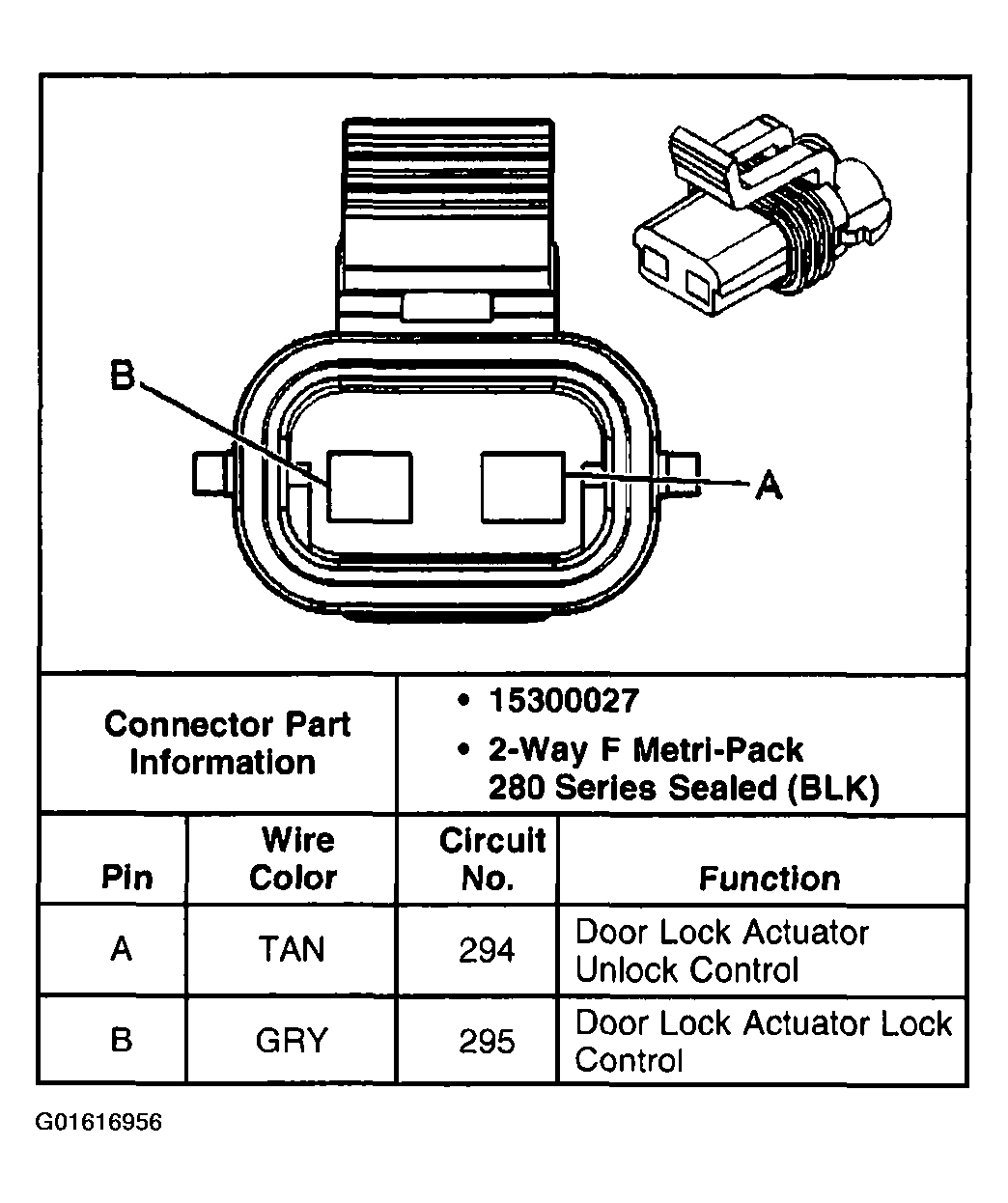

Fig 4: Door Lock - Front Passenger, C2

G01616956

Courtesy of GENERAL MOTORS CORP.

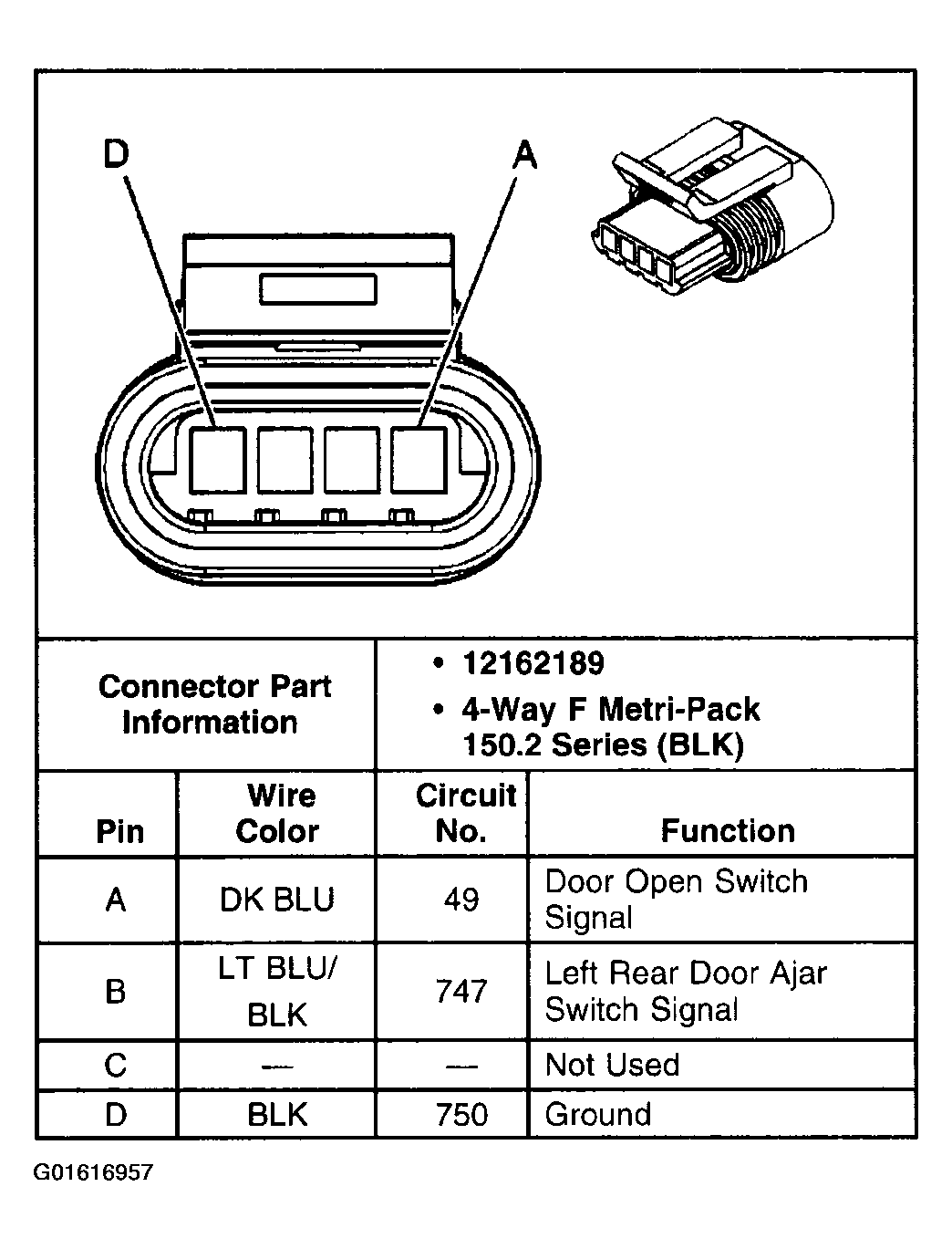

Fig 5: Door Lock - LR, C1

G01616957

Courtesy of GENERAL MOTORS CORP.

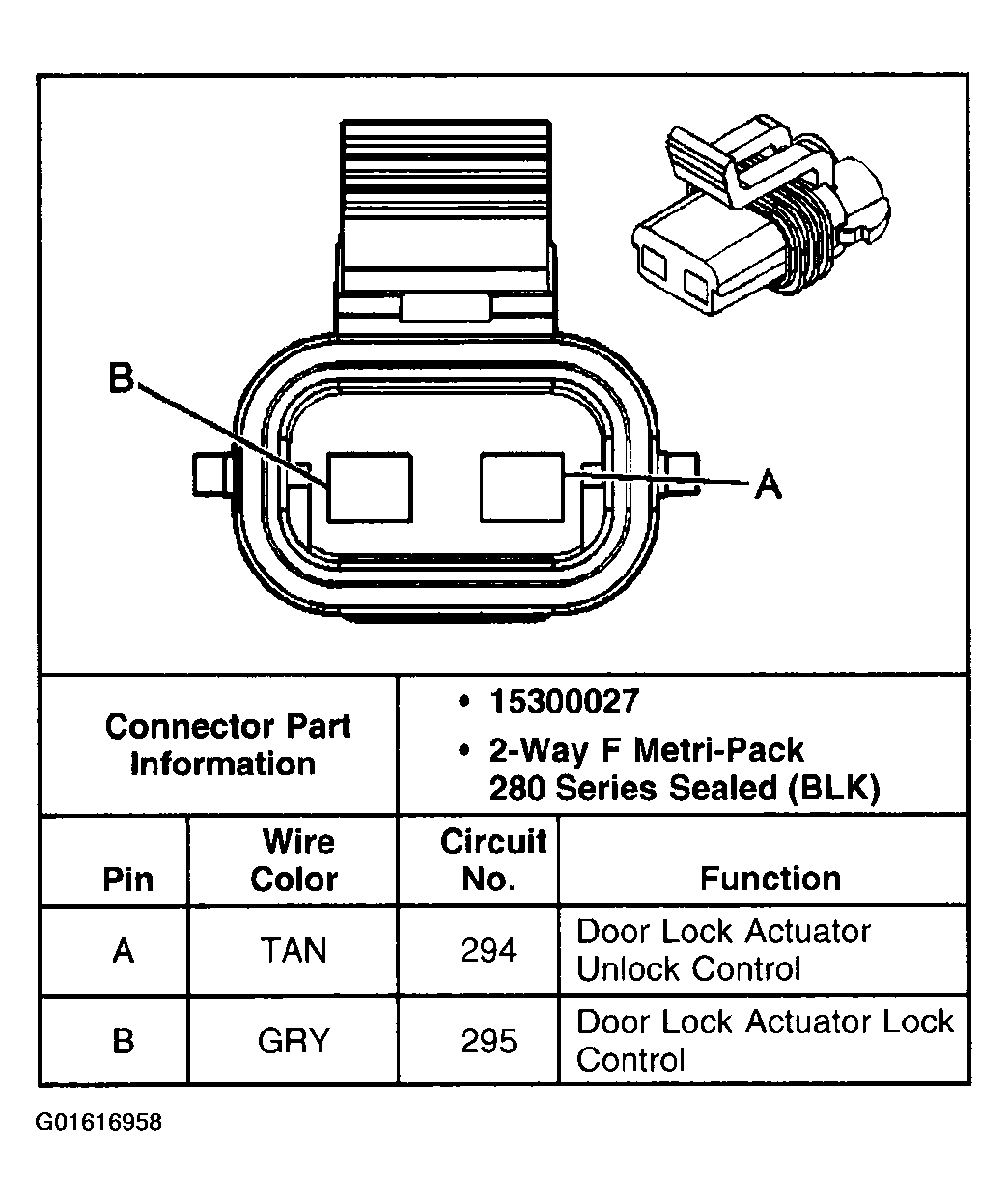

Fig 6: Door Lock - LR, C2

G01616958

Courtesy of GENERAL MOTORS CORP.

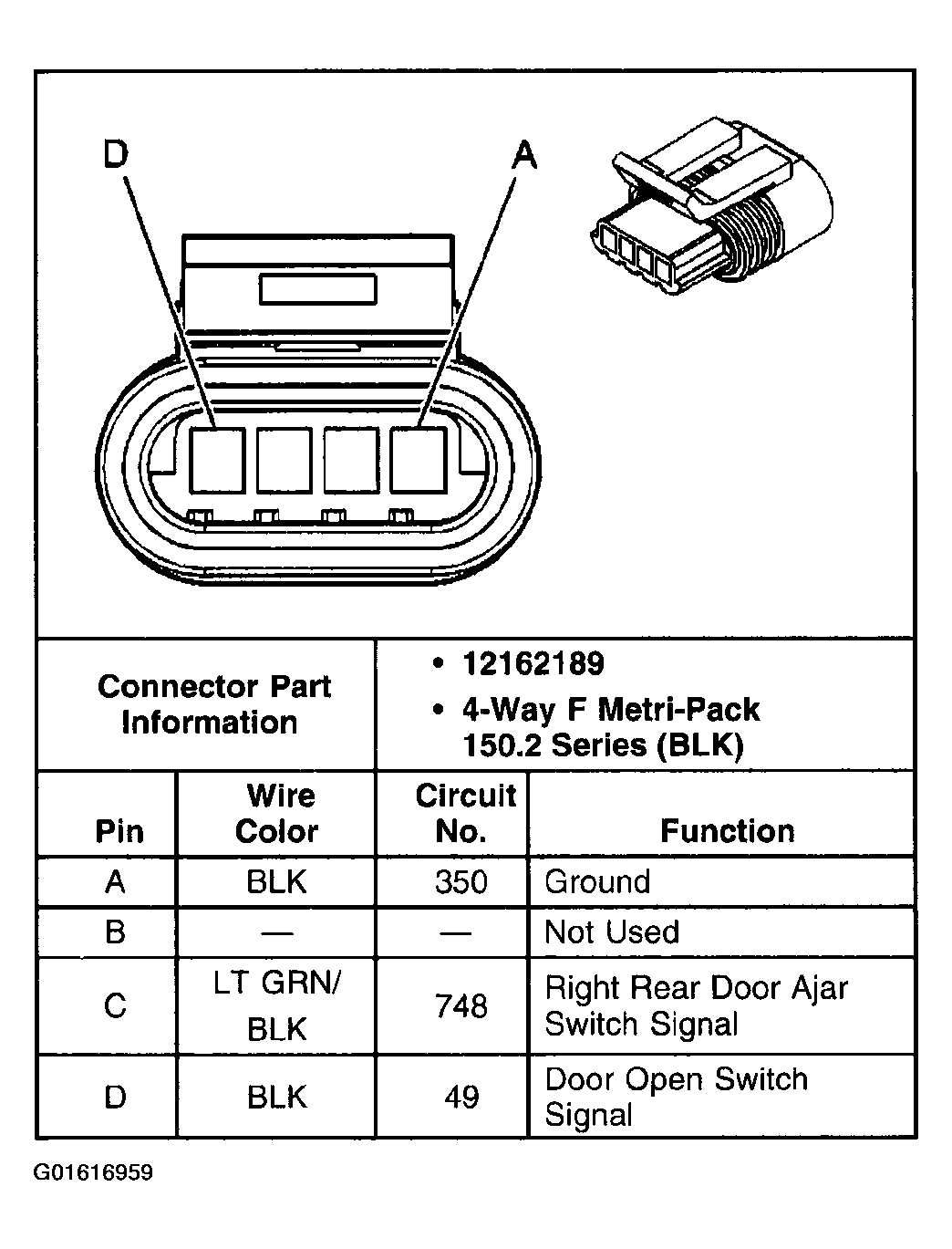

Fig 7: Door Lock - RR, C1

G01616959

Courtesy of GENERAL MOTORS CORP.

Fig 8: Door Lock - RR, C2

G01616960

Courtesy of GENERAL MOTORS CORP.

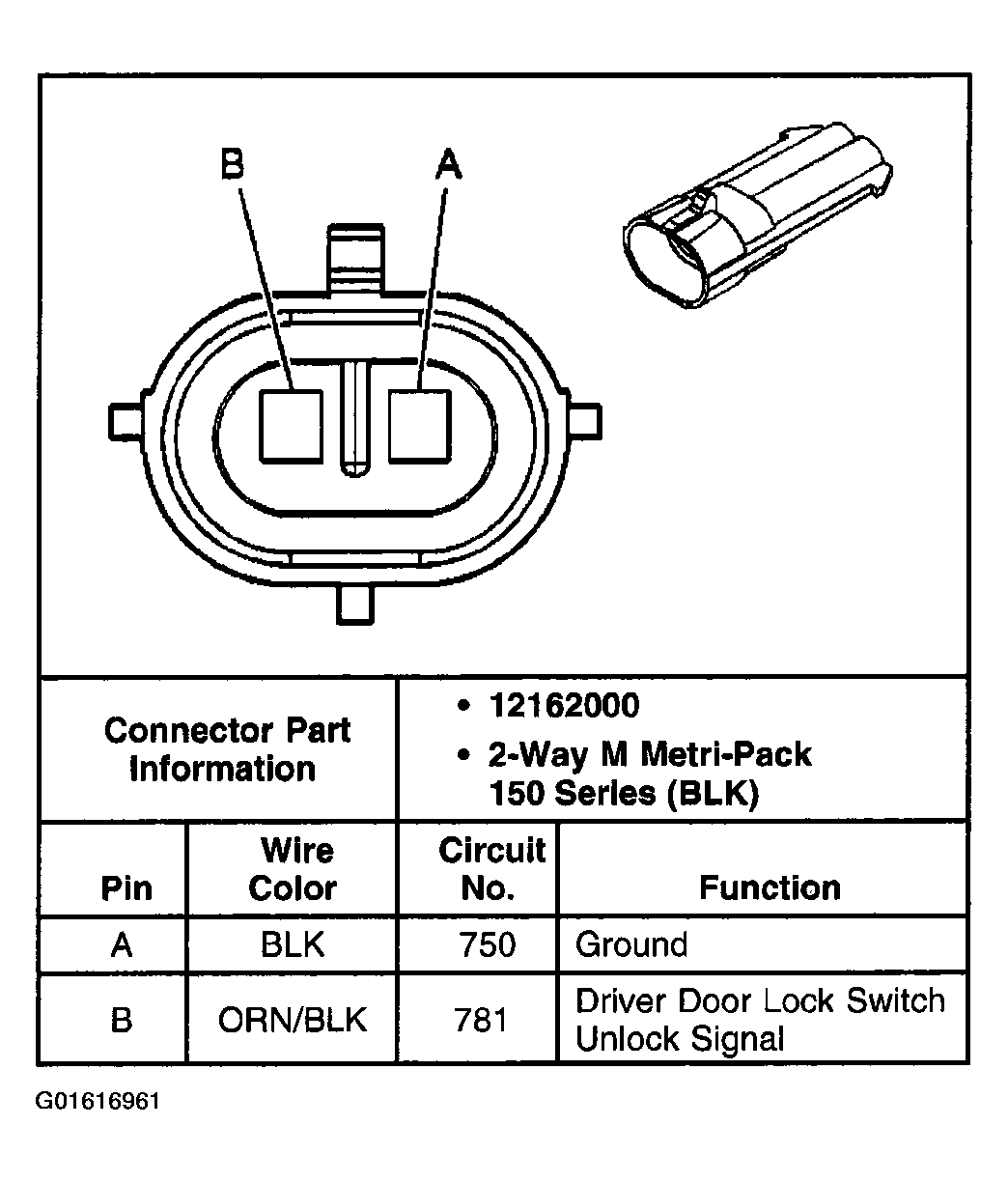

Fig 9: Door Lock Cylinder Switch - Driver

G01616961

Courtesy of GENERAL MOTORS CORP.

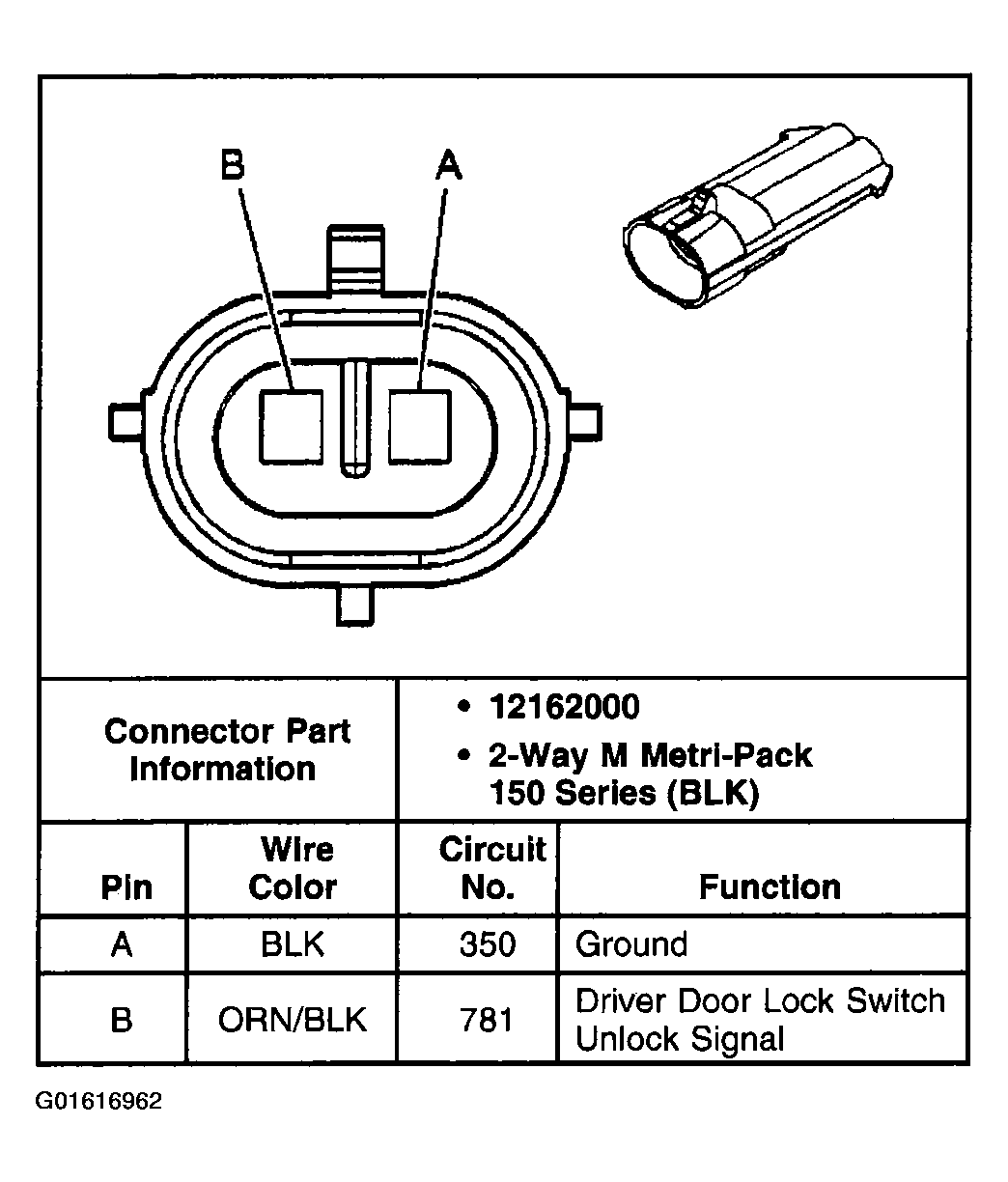

Fig 10: Door Lock Cylinder Switch - Front Passenger

G01616962

Courtesy of GENERAL MOTORS CORP.

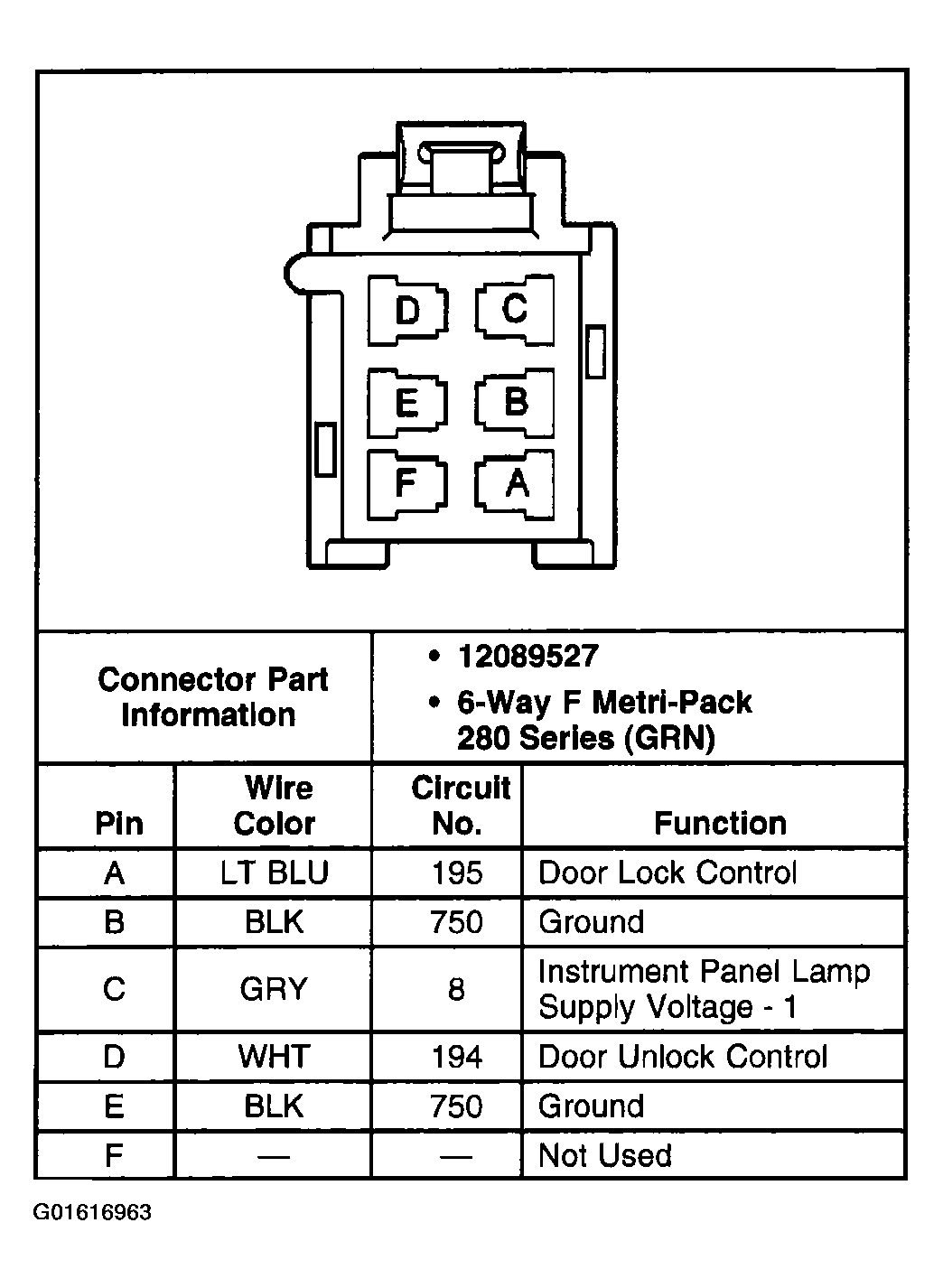

Fig 11: Door Lock Switch - Driver

G01616963

Courtesy of GENERAL MOTORS CORP.

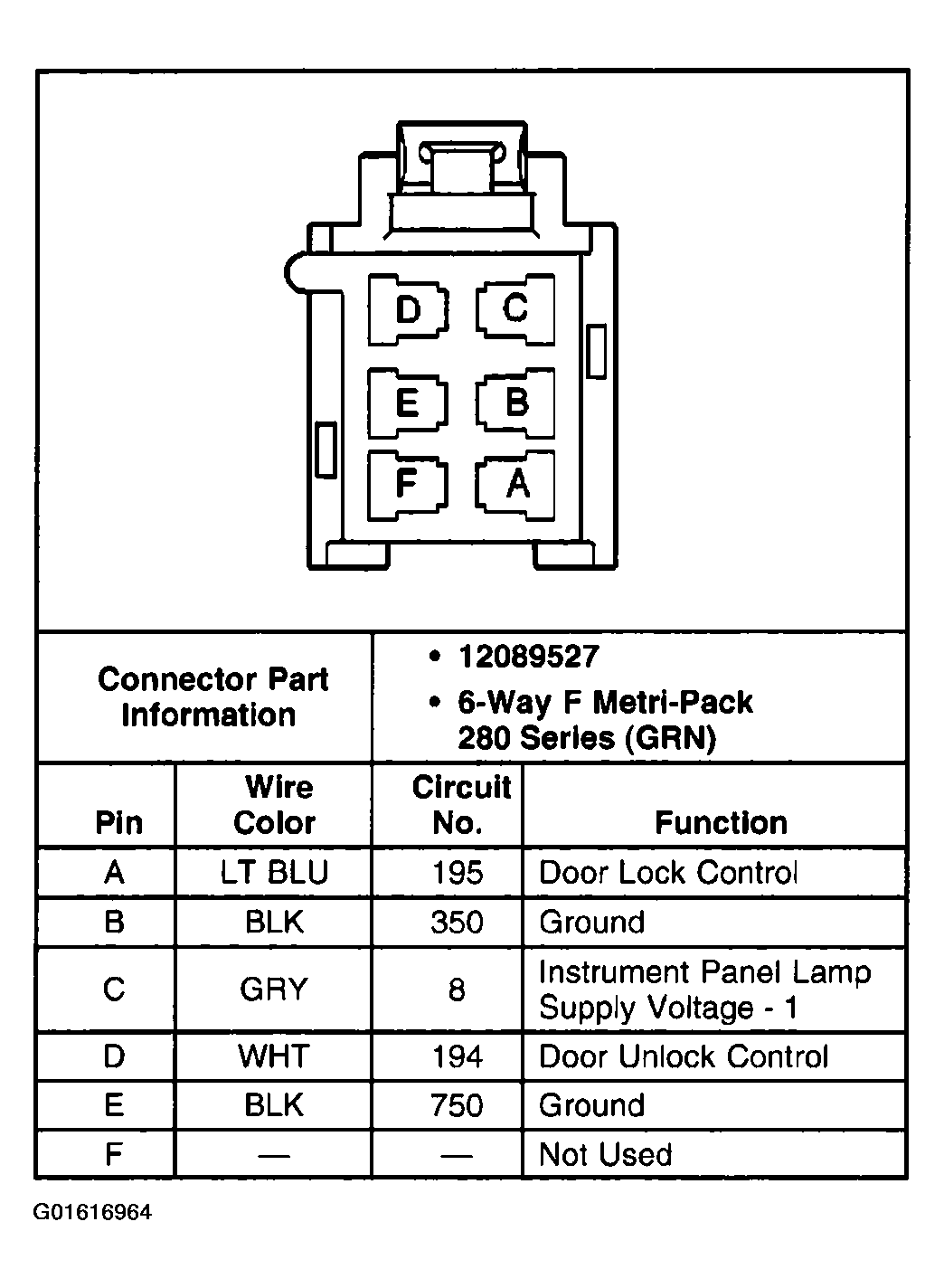

Fig 12: Door Lock Switch, Front Passenger

G01616964

Courtesy of GENERAL MOTORS CORP.

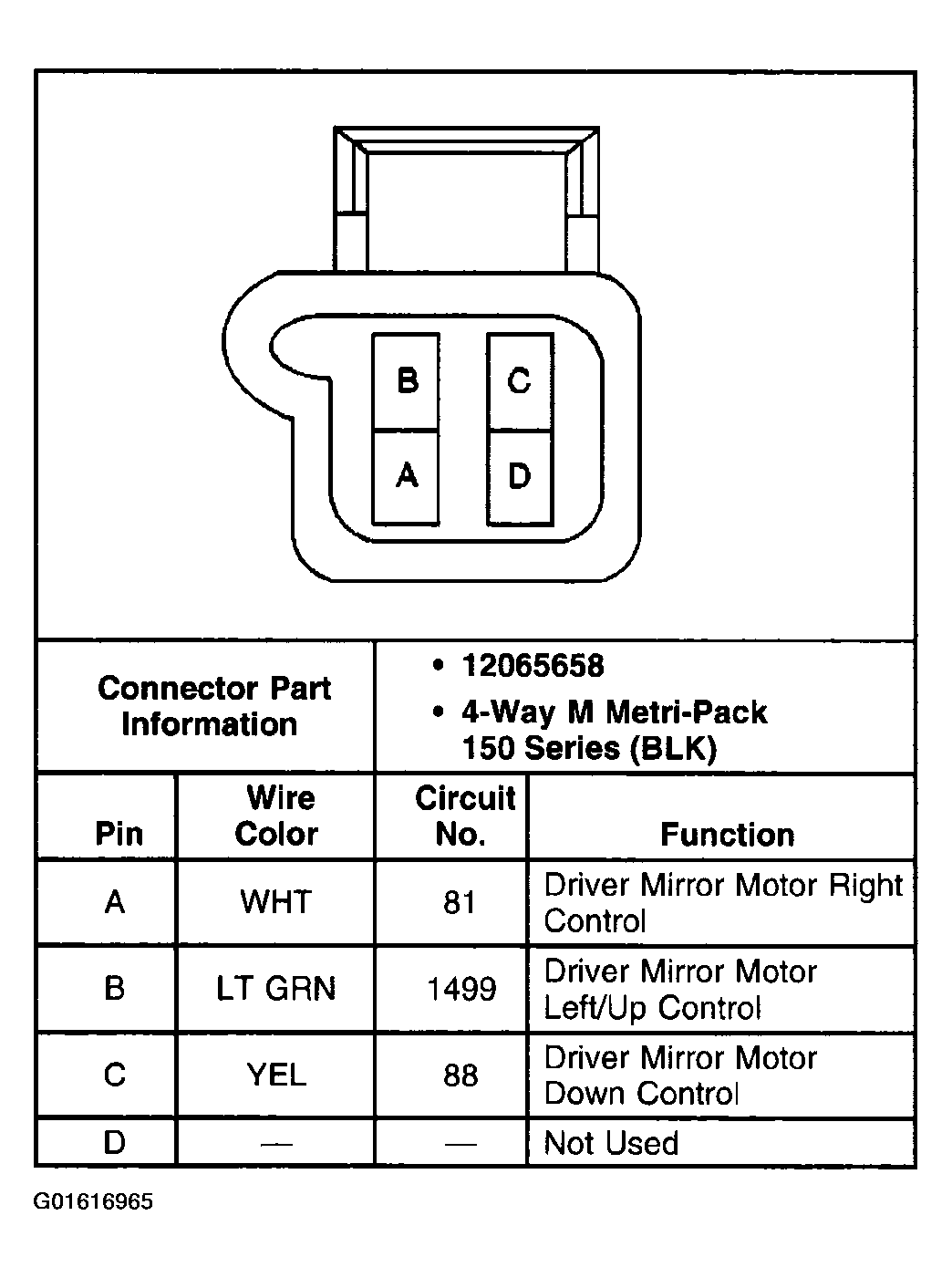

Fig 13: Outside Rearview Mirror - Driver

G01616965

Courtesy of GENERAL MOTORS CORP.

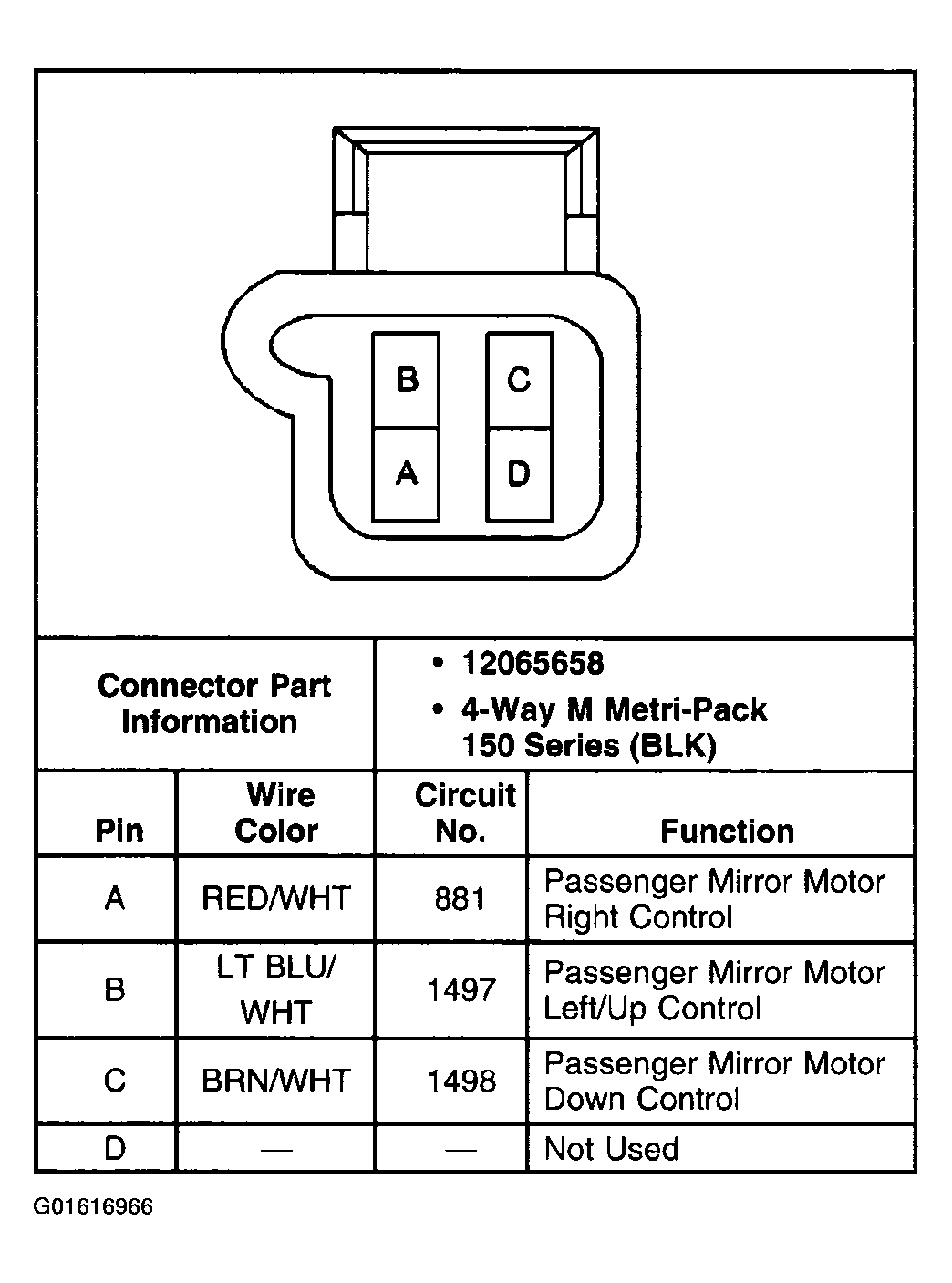

Fig 14: Outside Rearview Mirror - Passenger

G01616966

Courtesy of GENERAL MOTORS CORP.

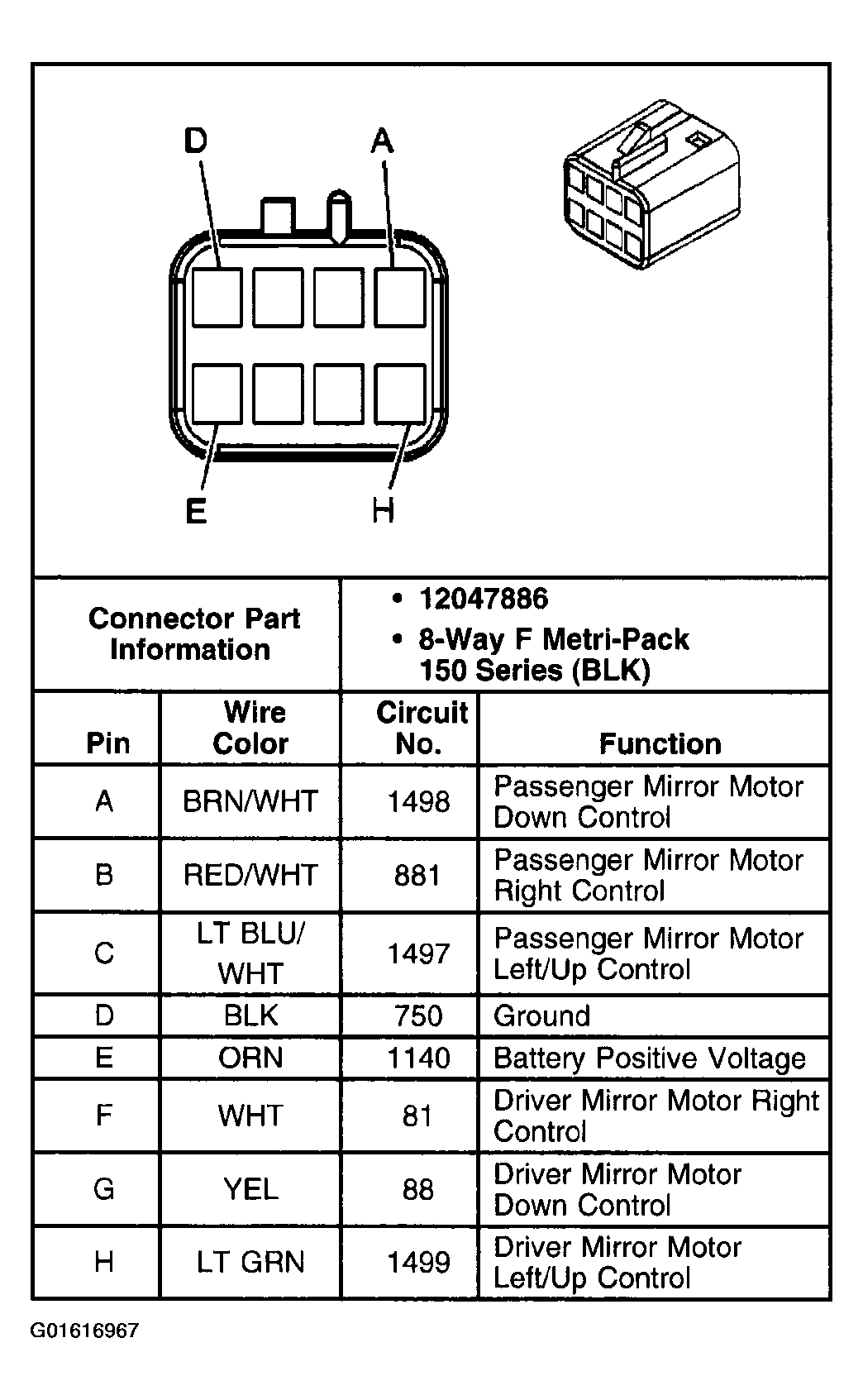

Fig 15: Outside Rearview Mirror Switch

G01616967

Courtesy of GENERAL MOTORS CORP.

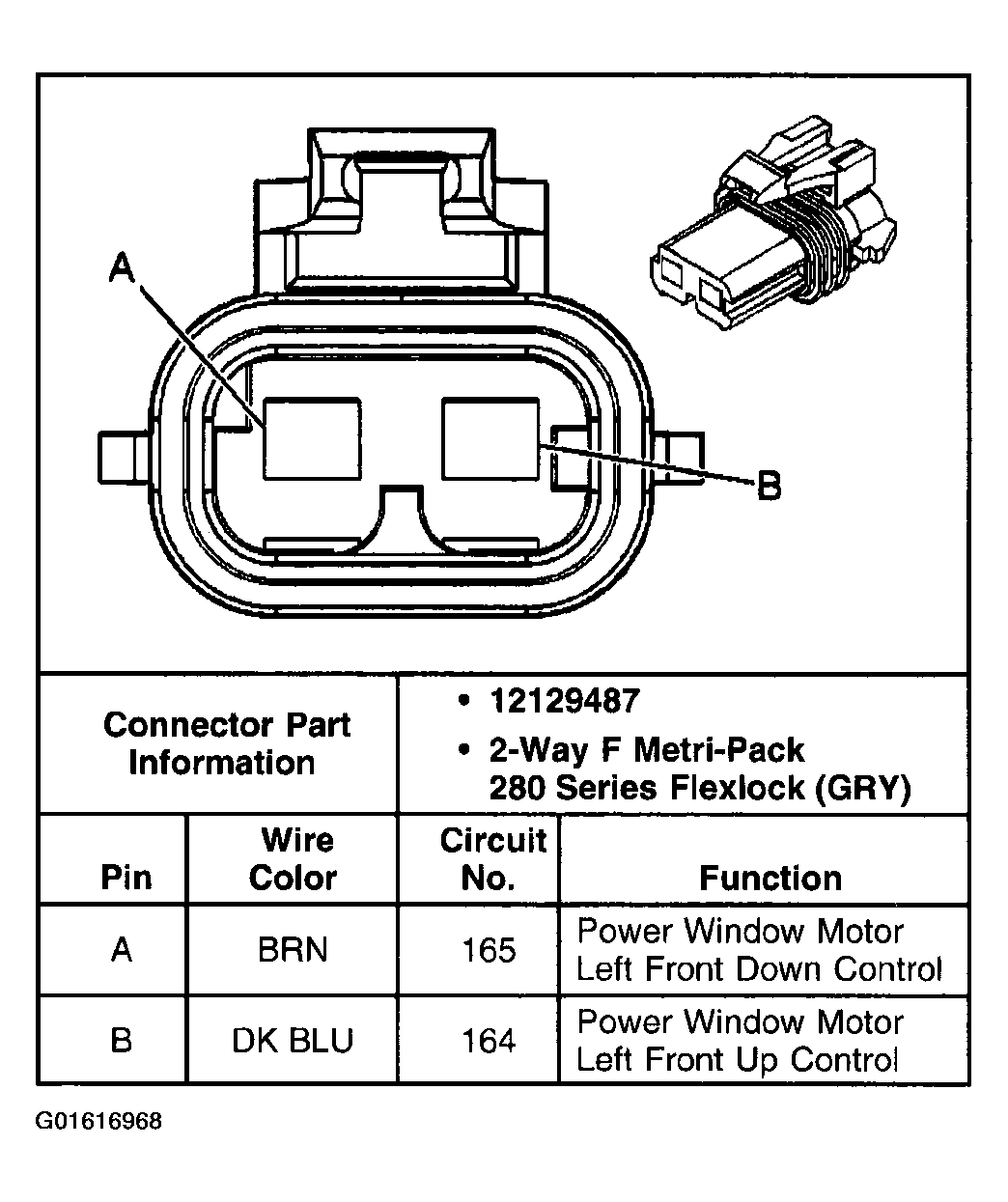

Fig 16: Window Motor - Driver

G01616968

Courtesy of GENERAL MOTORS CORP.

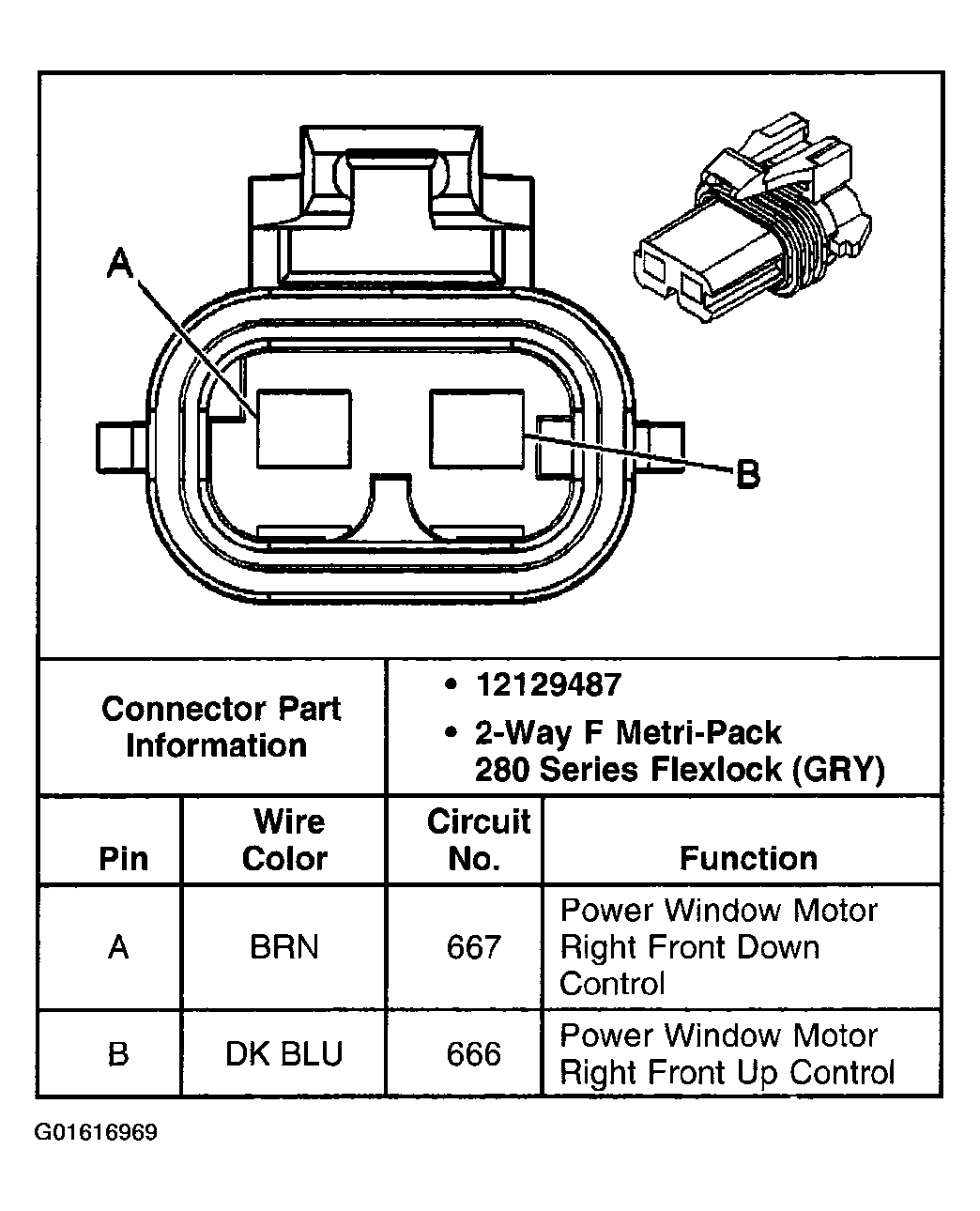

Fig 17: Window Motor - Front Passenger

G01616969

Courtesy of GENERAL MOTORS CORP.

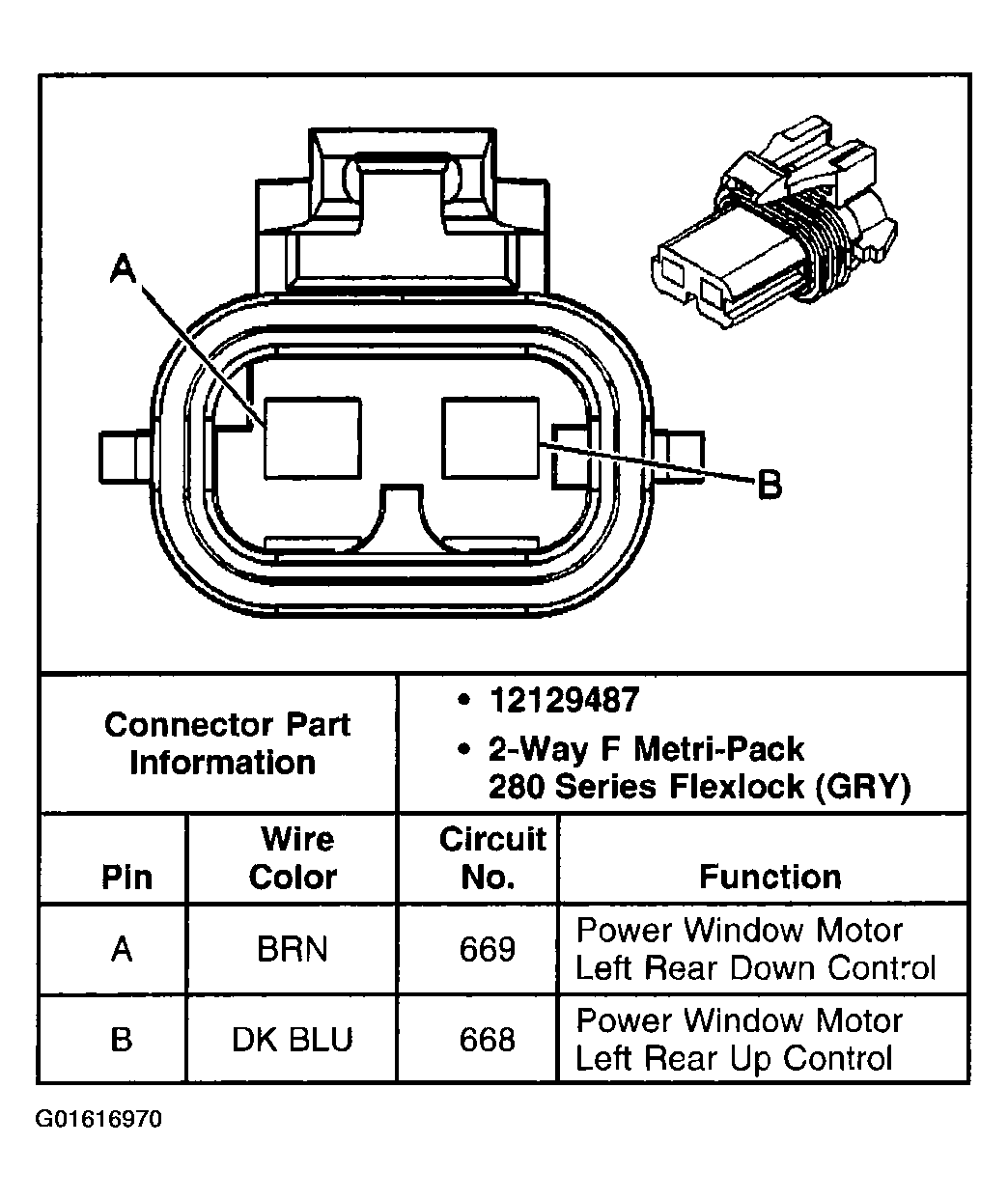

Fig 18: Window Motor - LR

G01616970

Courtesy of GENERAL MOTORS CORP.

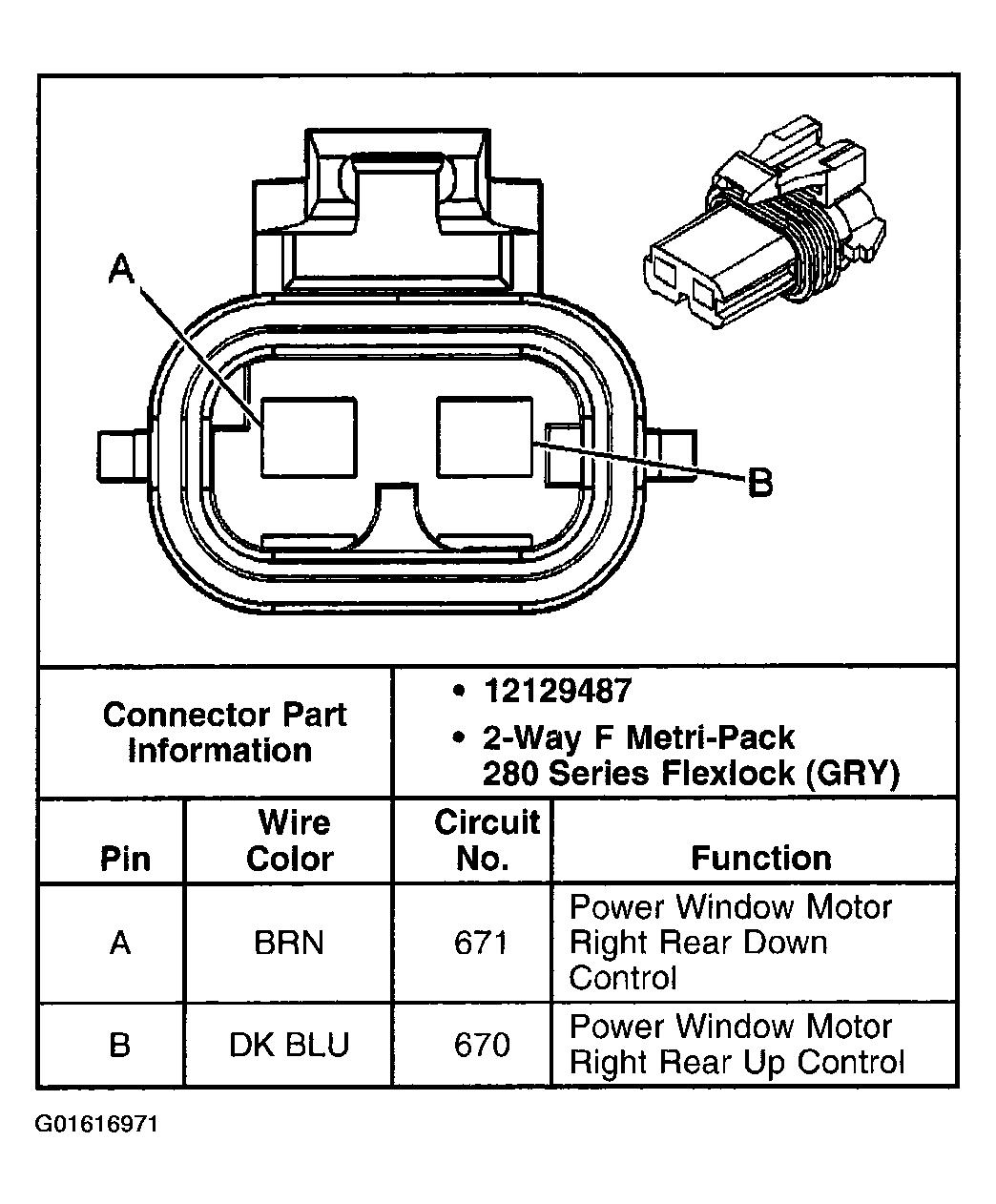

Fig 19: Window Motor - RR

G01616971

Courtesy of GENERAL MOTORS CORP.

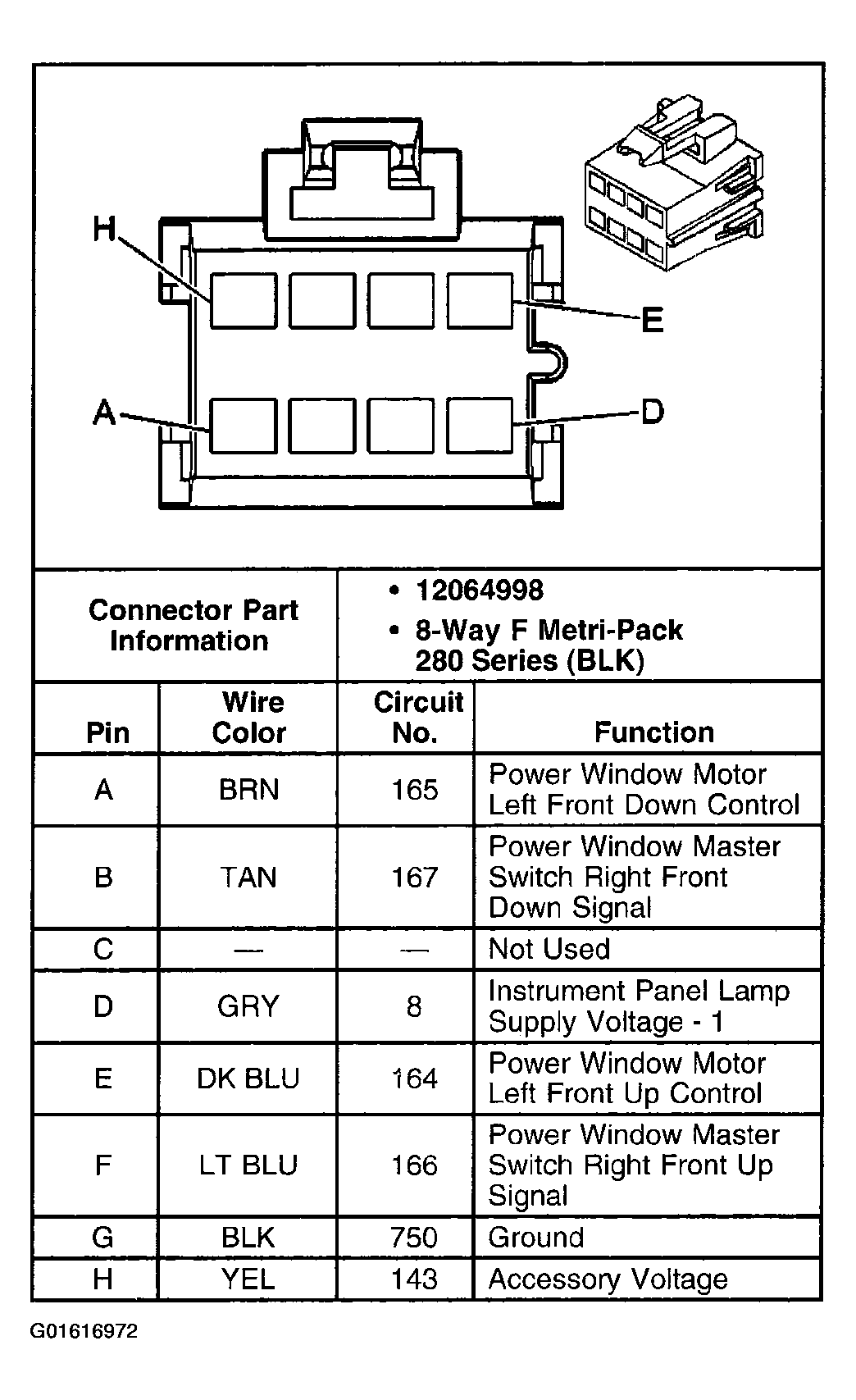

Fig 20: Window Switch - Driver, 2-Door

G01616972

Courtesy of GENERAL MOTORS CORP.

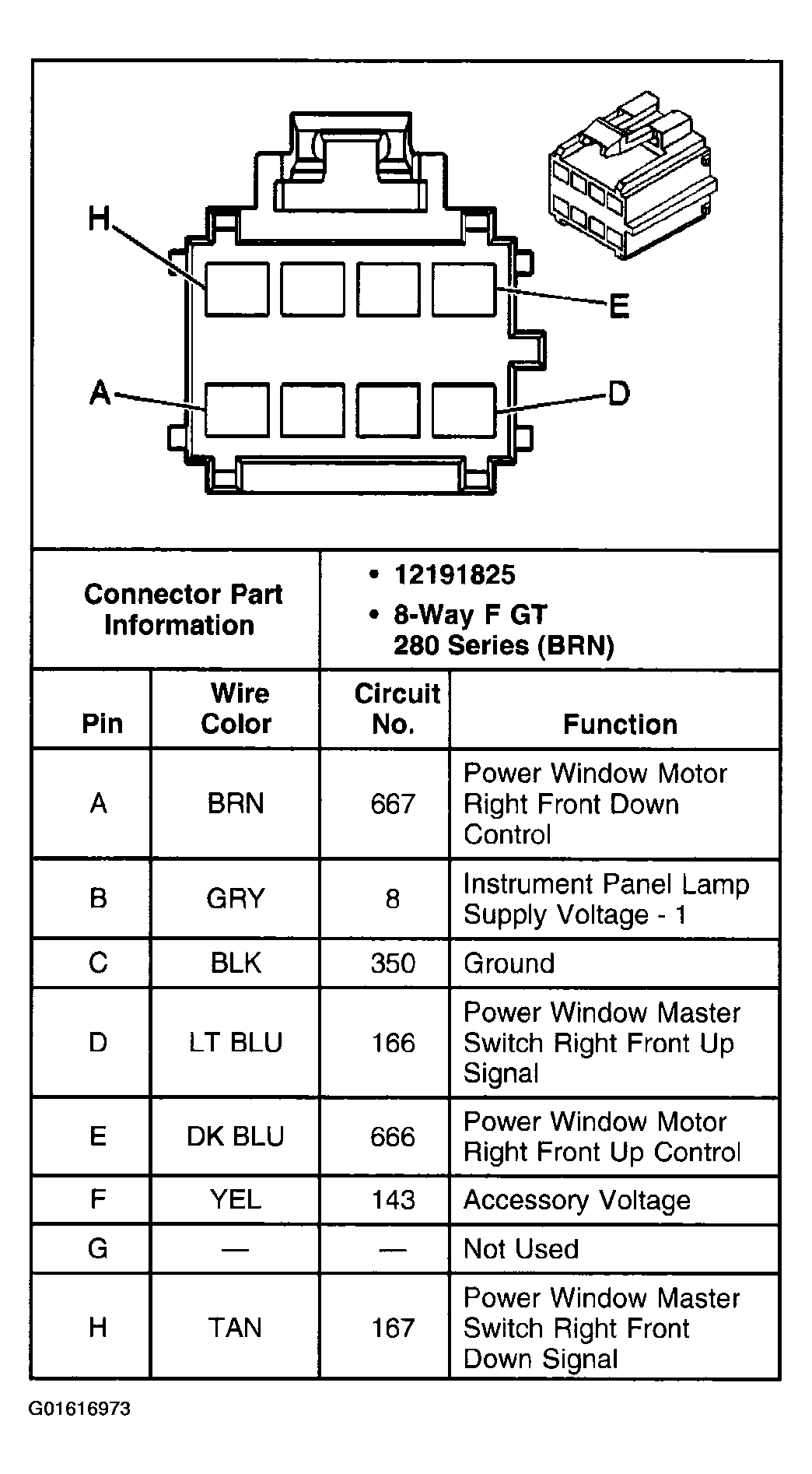

Fig 21: Window Switch - Front Passenger, 2-Door

G01616973

Courtesy of GENERAL MOTORS CORP.

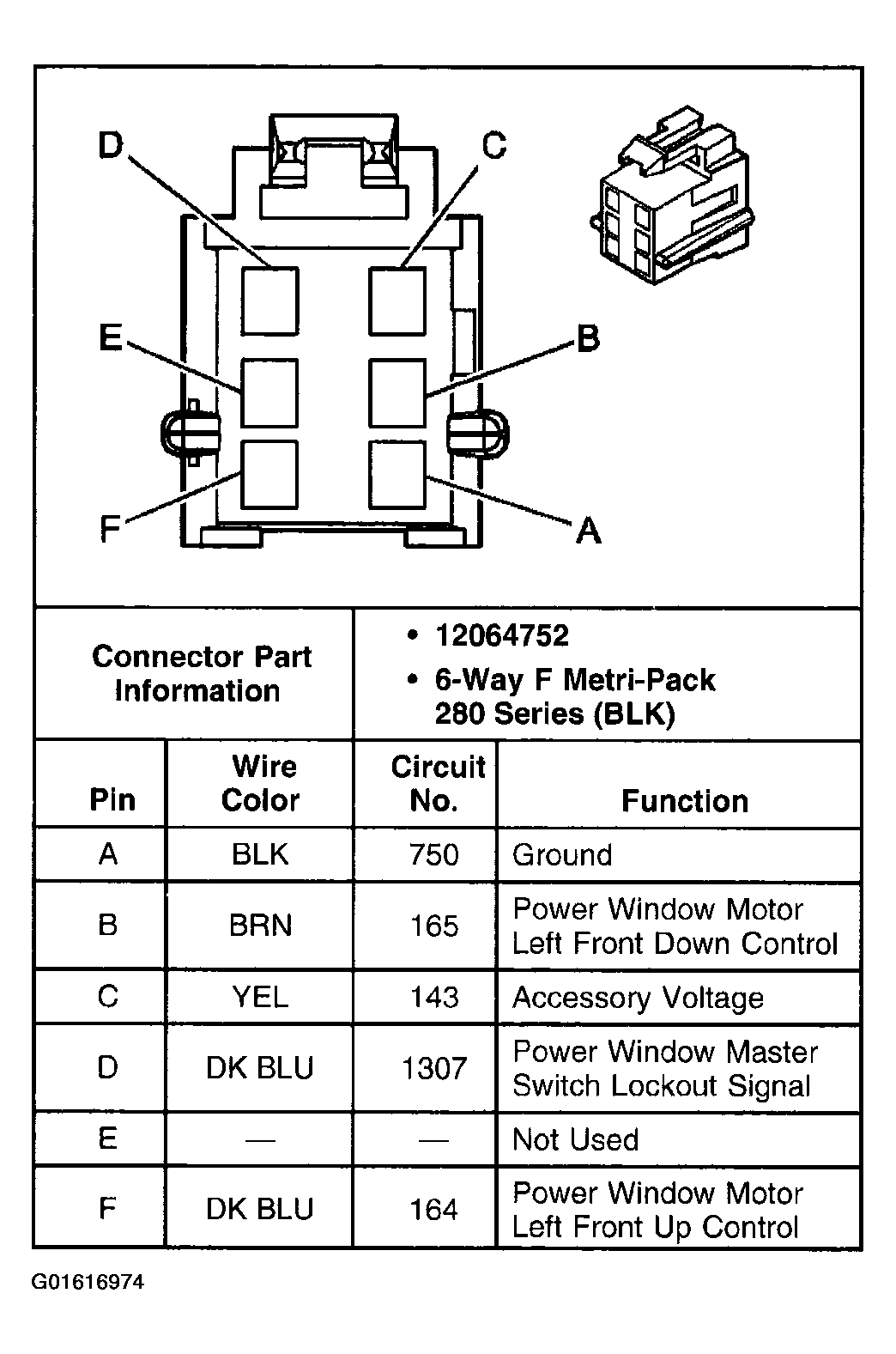

Fig 22: Window Switch - Driver, C1, 4-Door

G01616974

Courtesy of GENERAL MOTORS CORP.

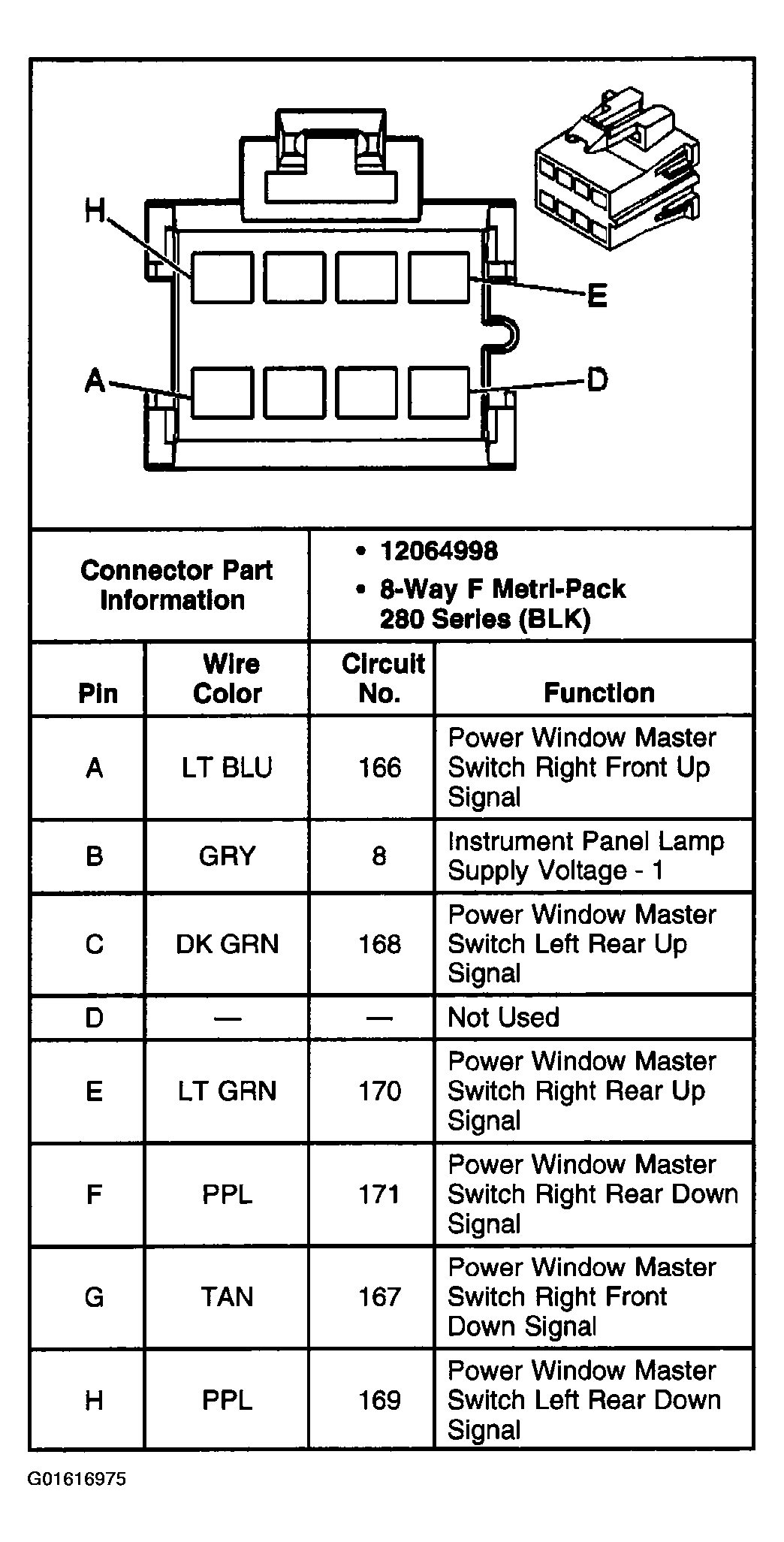

Fig 23: Window Switch - Driver, C2, 4-Door

G01616975

Courtesy of GENERAL MOTORS CORP.

Fig 24: Window Switch - Front Passenger, 4-Door

G01616976

Courtesy of GENERAL MOTORS CORP.

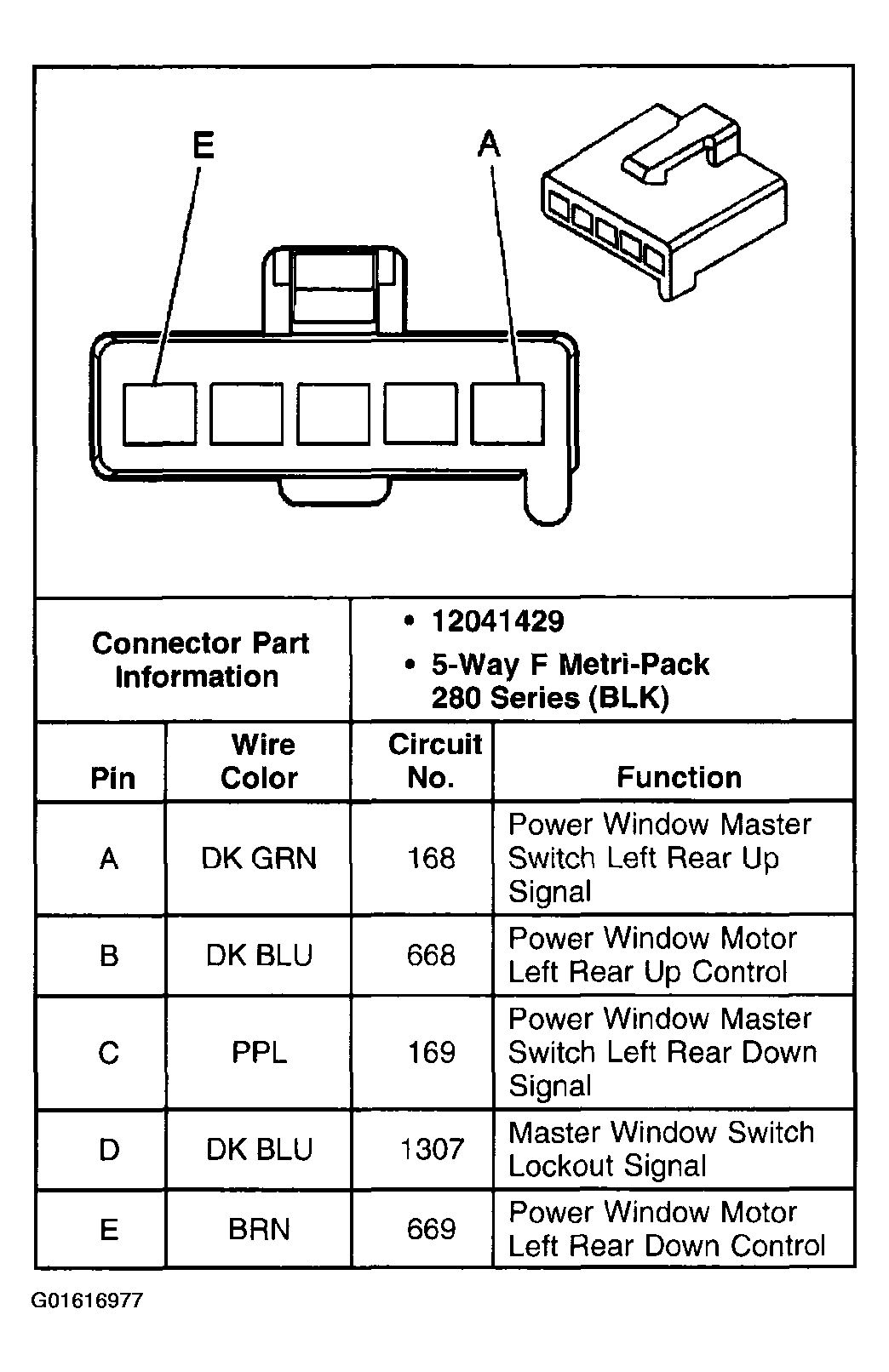

Fig 25: Window Switch - LR

G01616977

Courtesy of GENERAL MOTORS CORP.

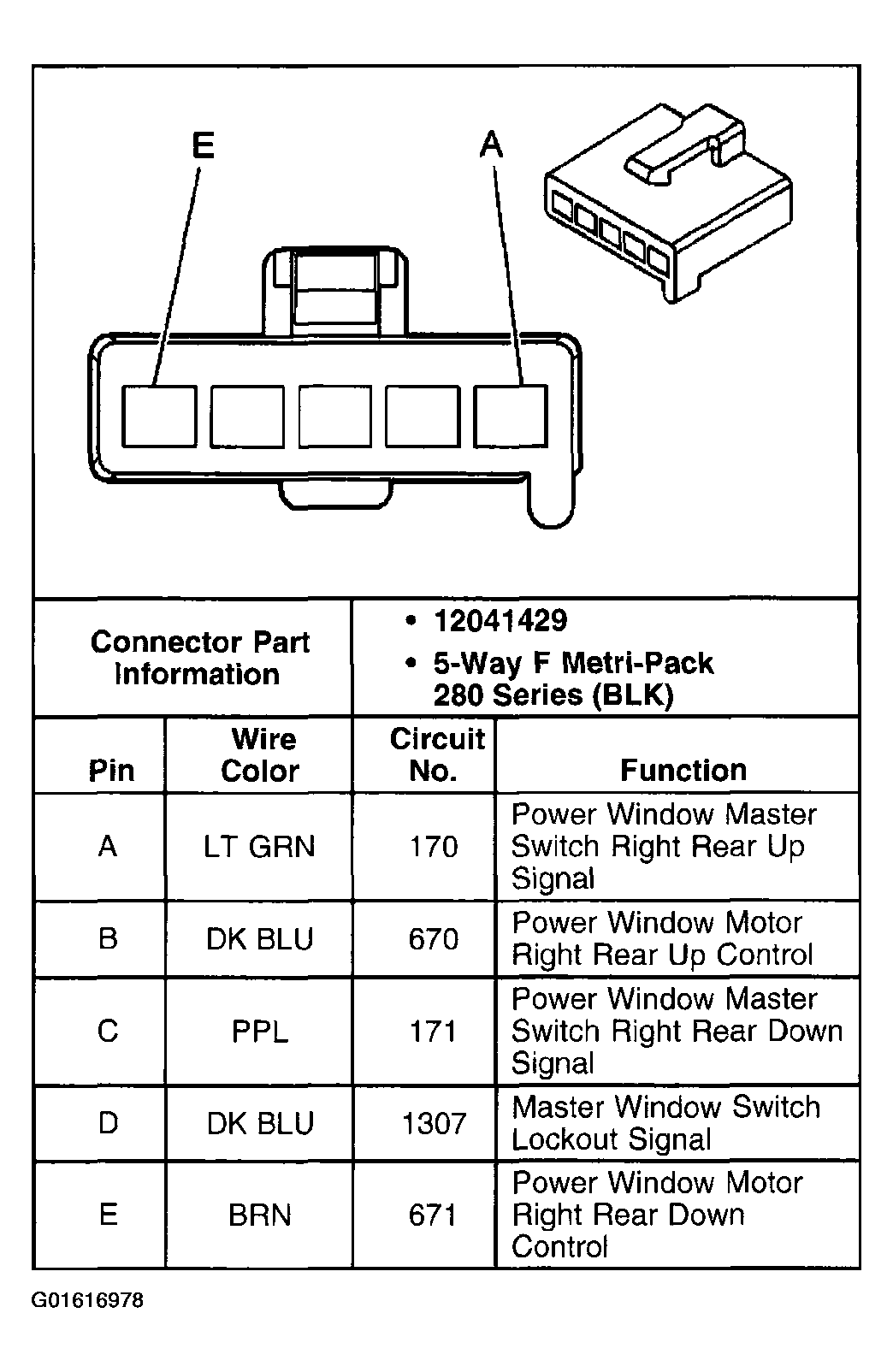

Fig 26: Window Switch - RR

G01616978

Courtesy of GENERAL MOTORS CORP.
