Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right frame rail.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the washer solvent container bracket screw.

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

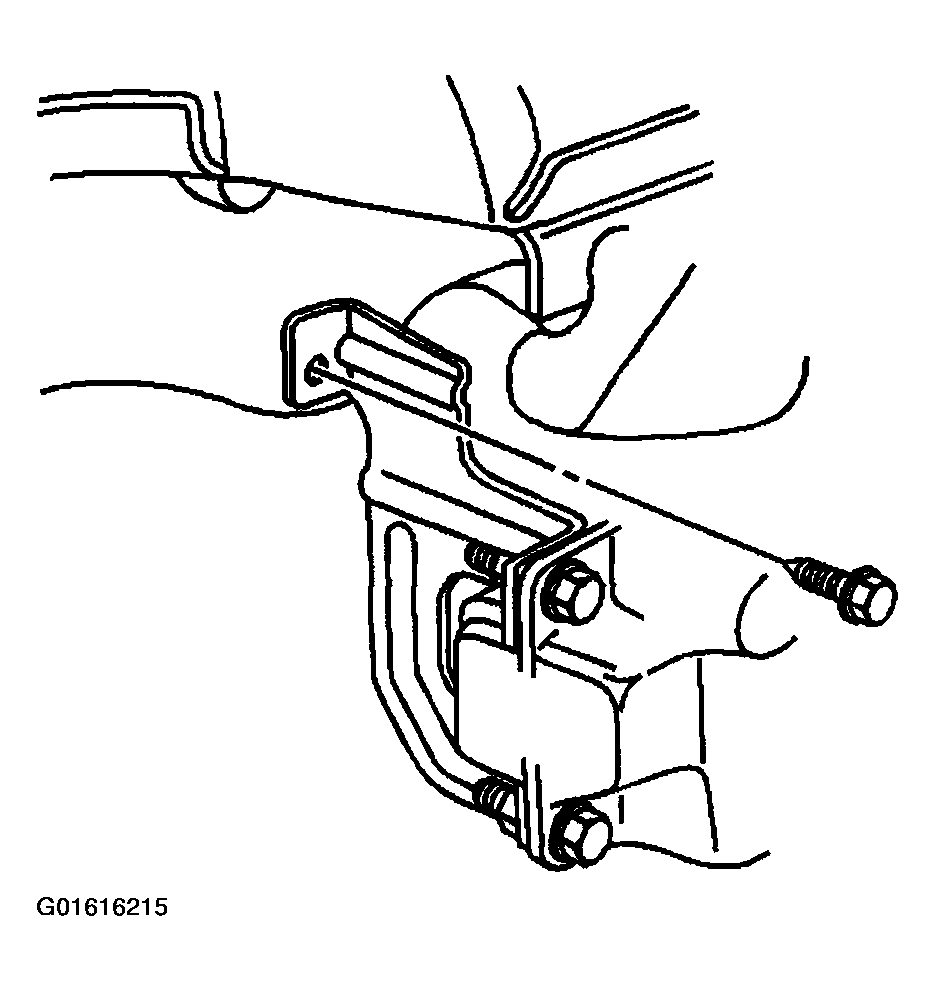

    Fig 1: Washer Solvent Container Bracket & Screws
    G01616215Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer pump electrical connector.
  5. Connect the washer pump hose.
  6. Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
    Fig 2: Washer Solvent Container Level Sensor
    G01616216Courtesy of GENERAL MOTORS CORP.
  7. Install the washer solvent container screws.

    Tighten

    Tighten the washer solvent container screws to 10 N.m (89 lb in).

  8. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  9. Install the washer solvent container filler neck. Refer to Washer Solvent Container Filler Neck Replacement .
  10. Fill the washer solvent container with washer solvent.

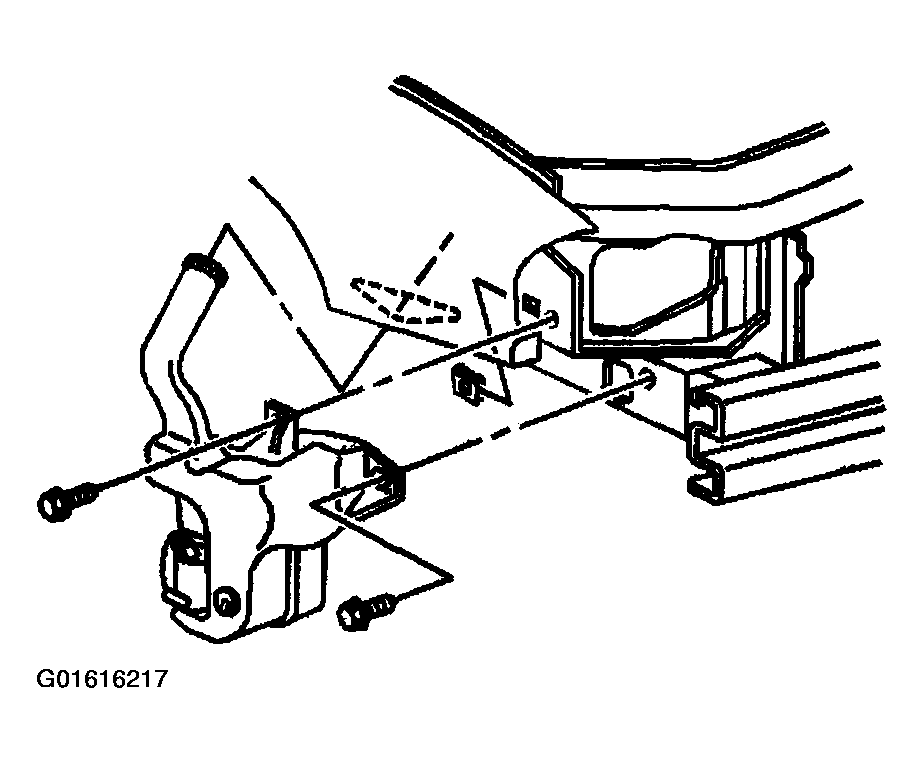

    Fig 3: Washer Solvent Container
    G01616217Courtesy of GENERAL MOTORS CORP.
