Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  Turn the cooling fan nut counterclockwise to tighten.

  2. Install the cooling fan nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb. in).

  3. Install the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .

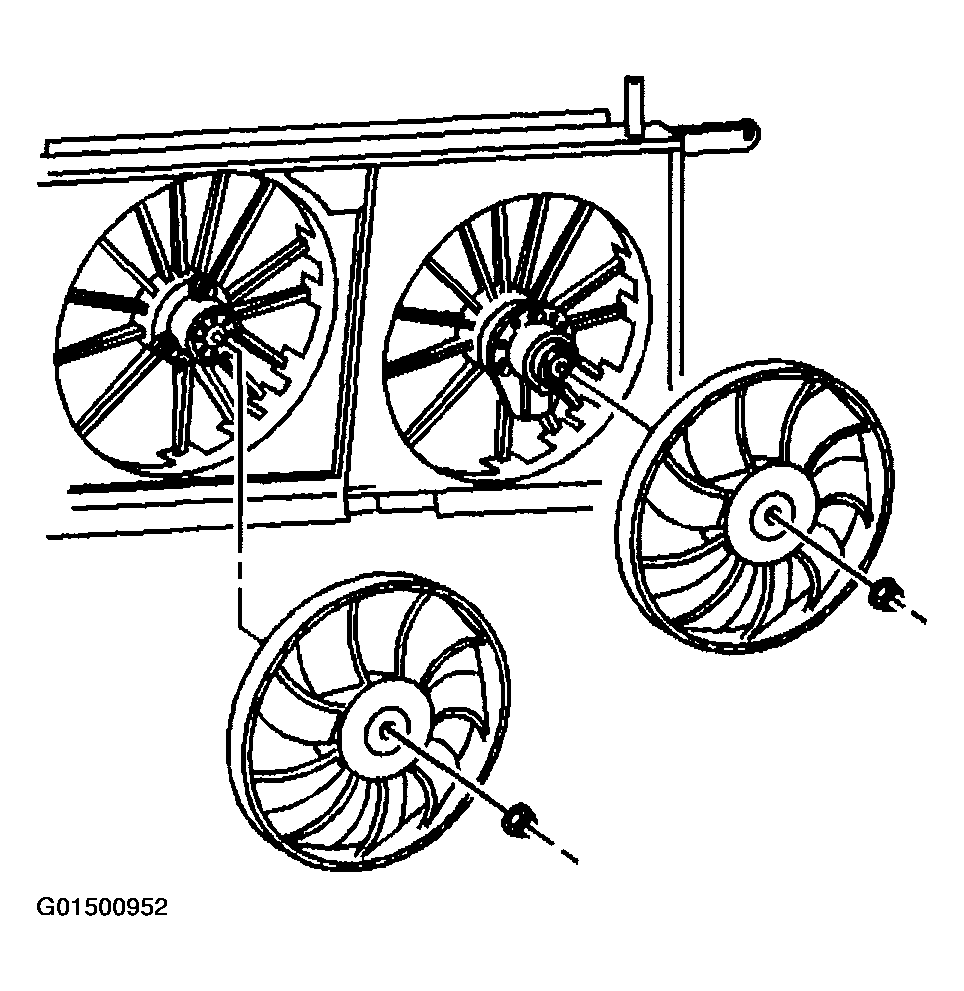

Fig 1: Installing Cooling Fan
G01500952Courtesy of GENERAL MOTORS CORP.
