Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shield to the vehicle. 15 Series is shown, 25 Series is similar.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the shield to frame bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

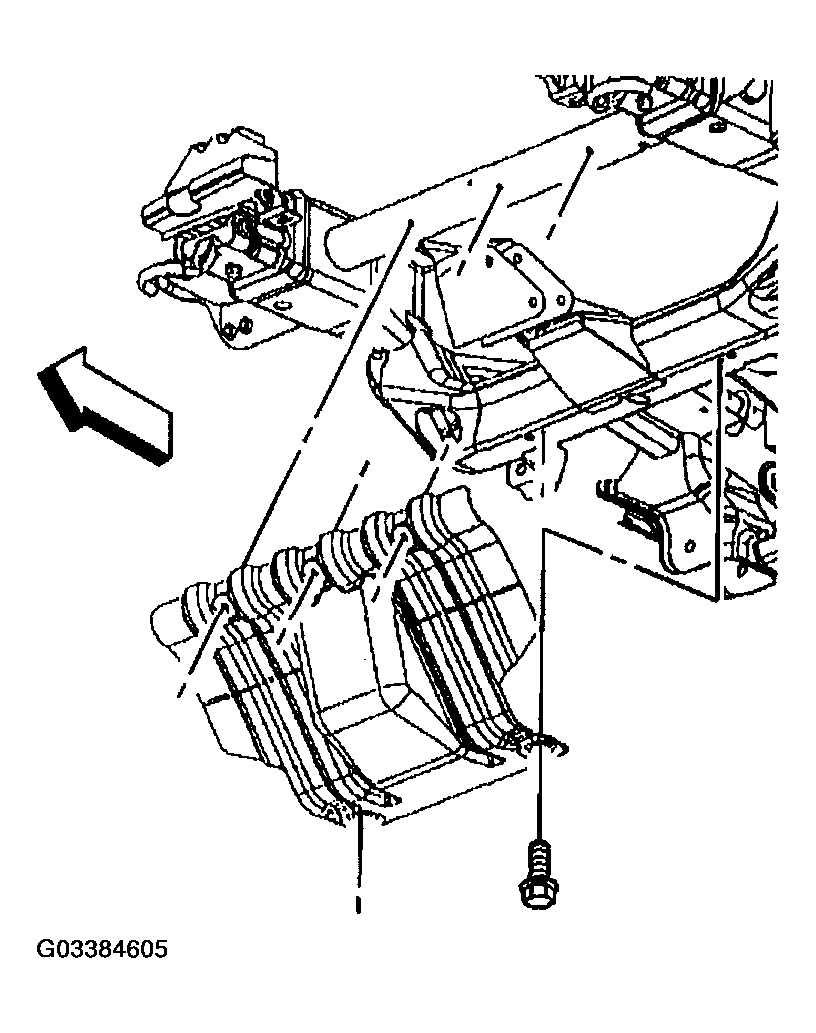

    Fig 1: Installing Shield To Frame Bolts
    G03384605Courtesy of GENERAL MOTORS CORP.
