ECM Harness Resistance

Turn ignition switch to LOCK position. Disconnect ECM and appropriate component harness connectors. Check for open or short circuits between appropriate ECM harness connector terminal and appropriate component harness connector terminal. See WIRING DIAGRAMS  . If harness is open or shorted, repair as necessary.

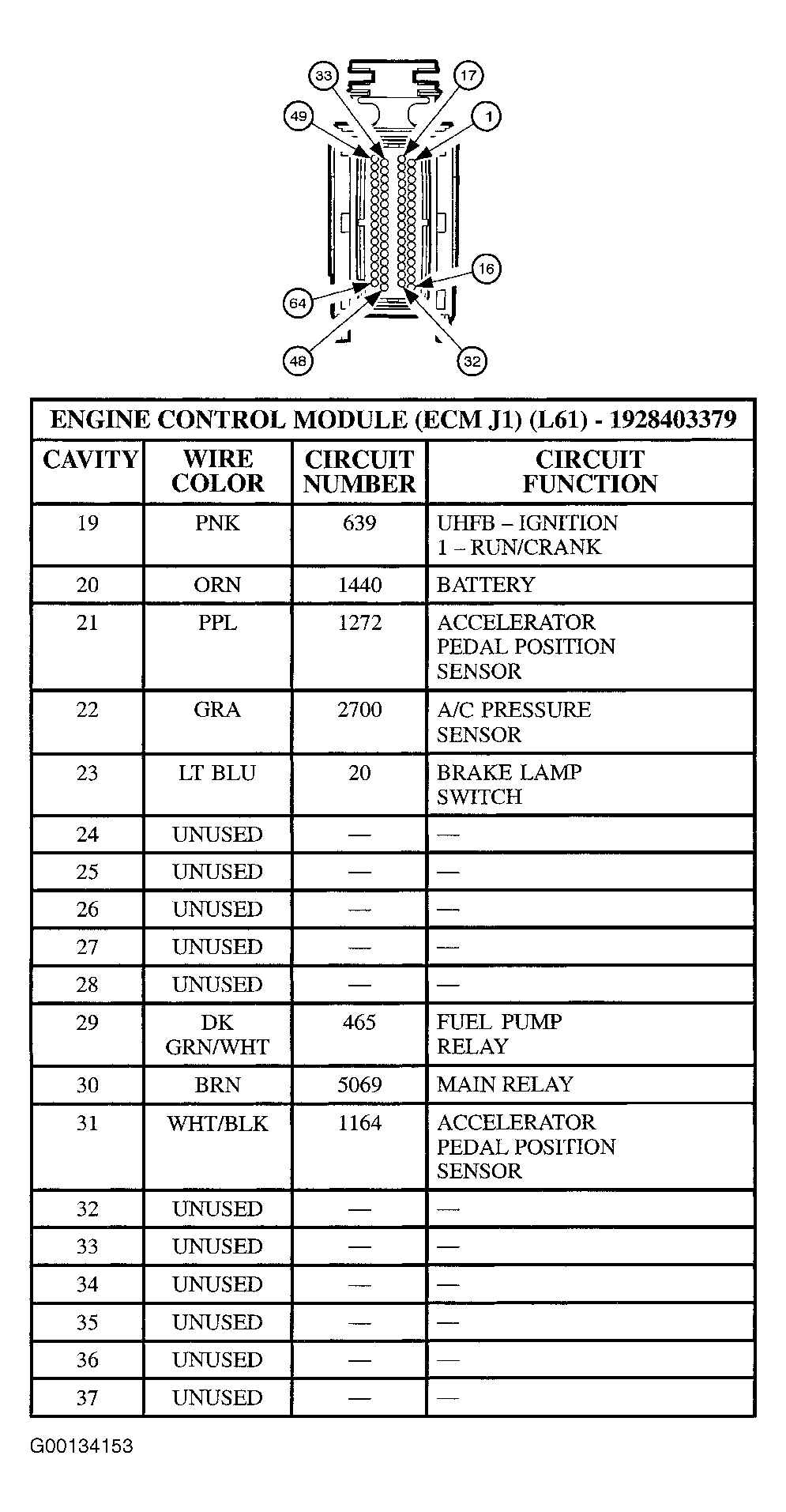

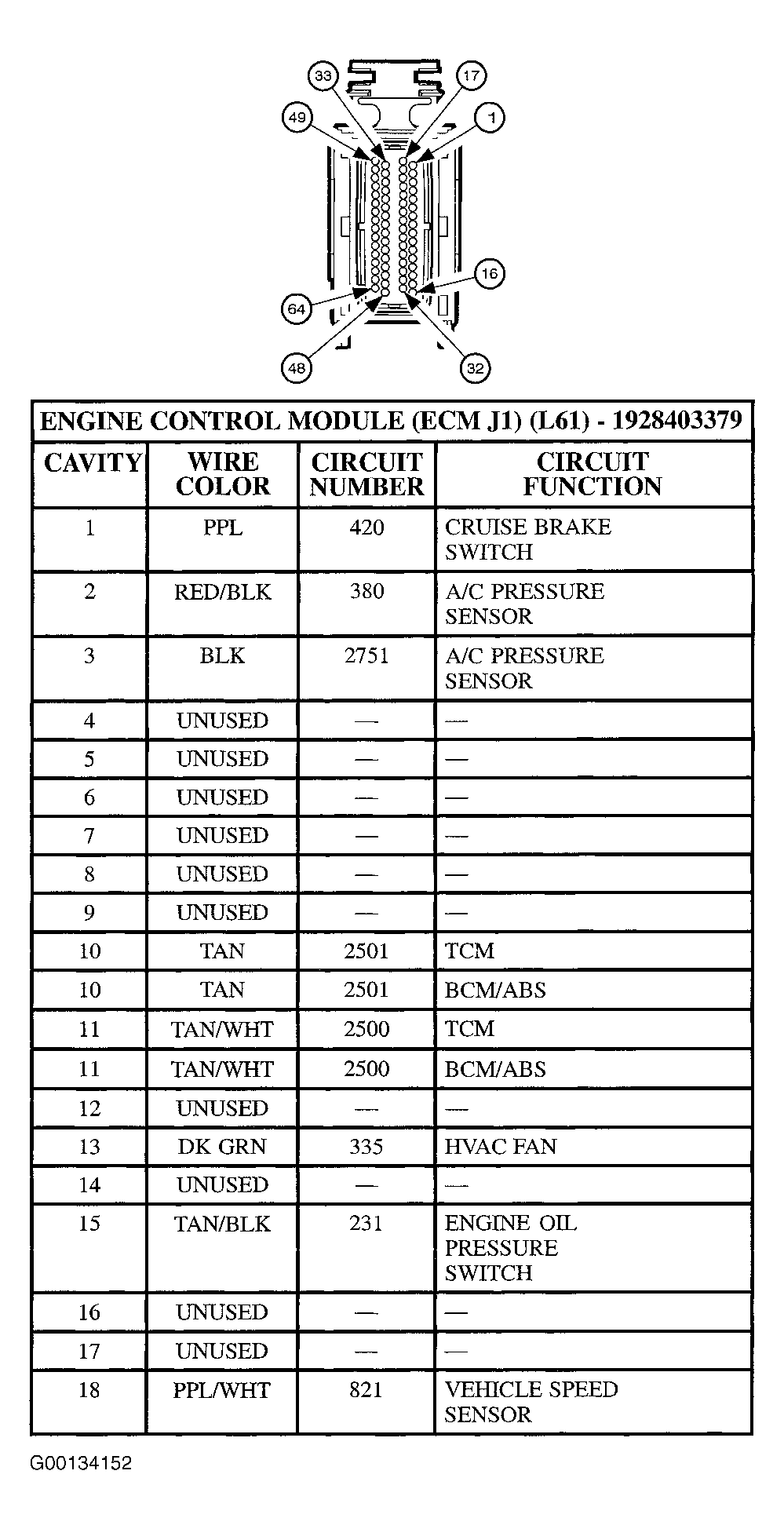

Fig 1: Identifying ECM Connector J1 Terminals - 2.2L (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying ECM Connector J1 Terminals - 2.2L (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

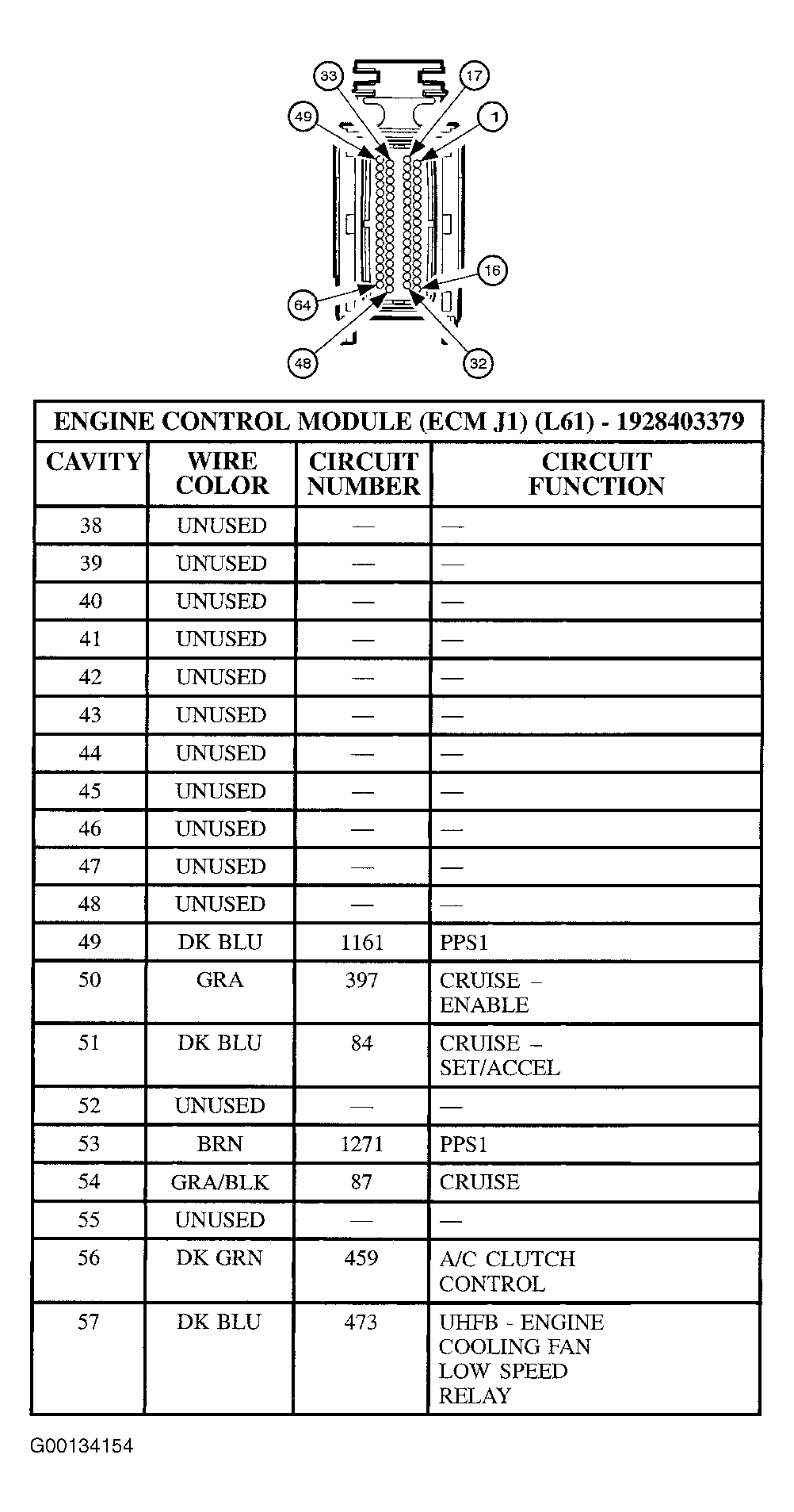

Fig 3: Identifying ECM Connector J1 Terminals - 2.2L (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying ECM Connector J1 Terminals - 2.2L (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

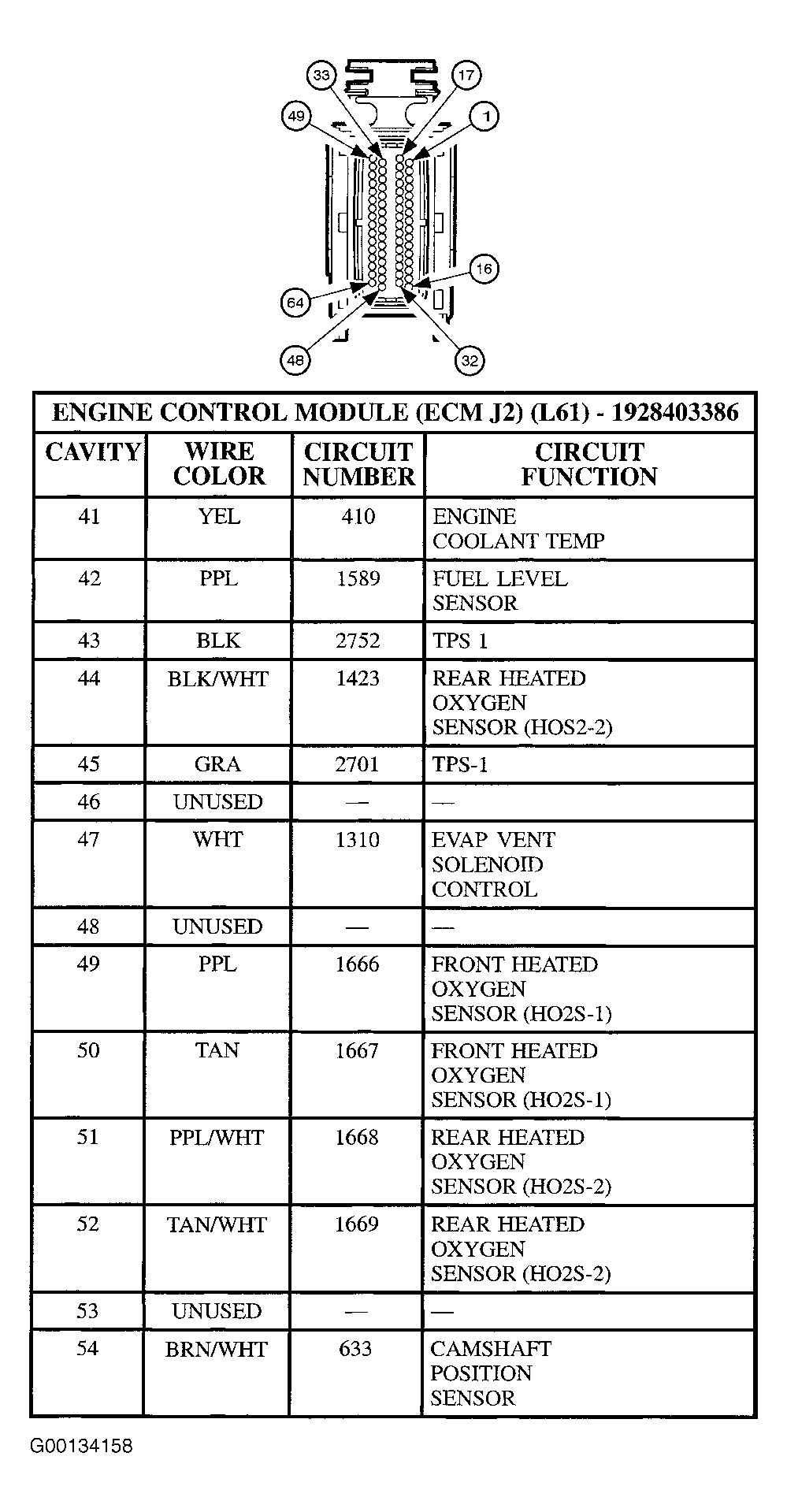

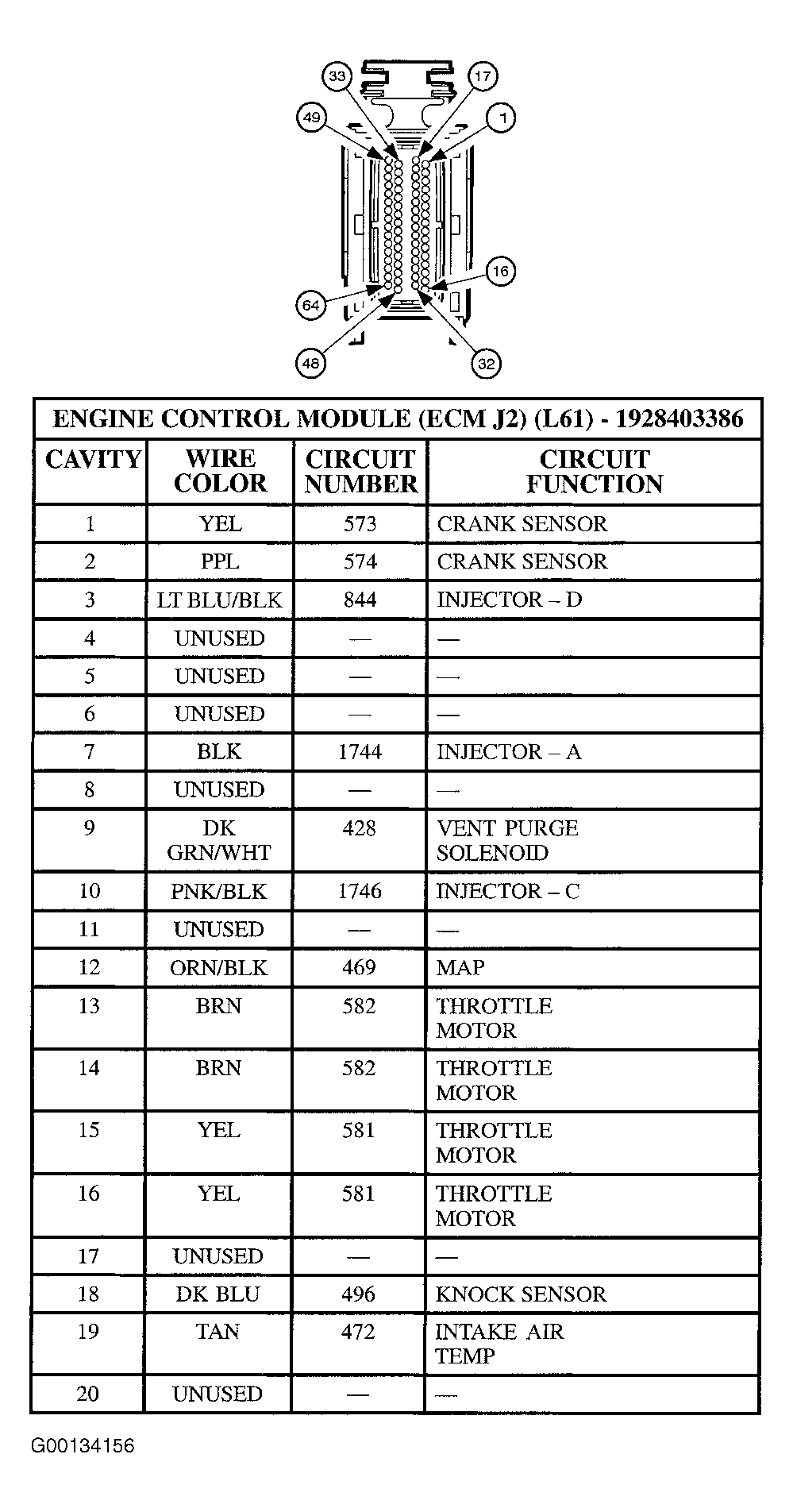

Fig 5: Identifying ECM Connector J2 Terminals - 2.2L (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

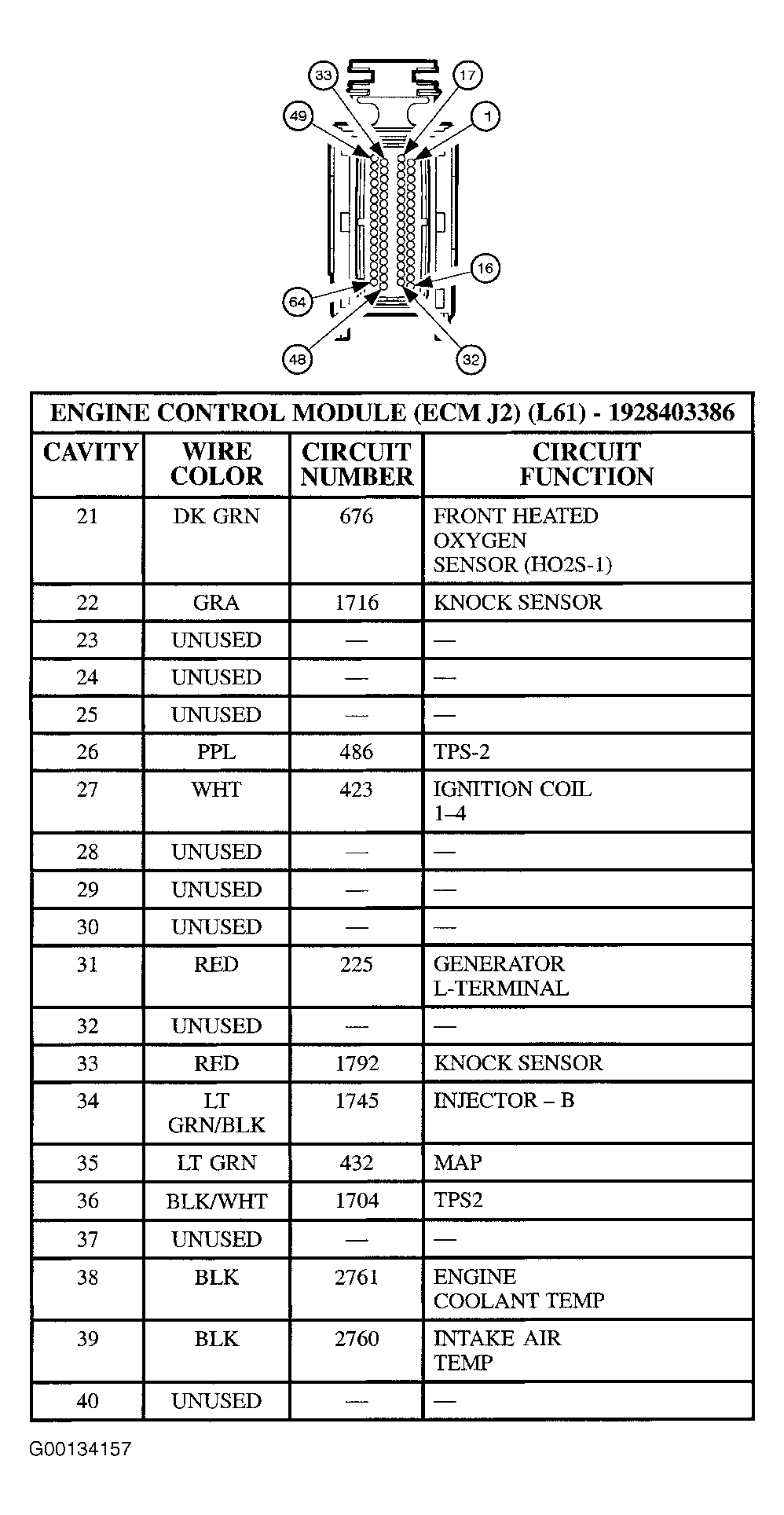

Fig 6: Identifying ECM Connector J2 Terminals - 2.2L (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying ECM Connector J2 Terminals - 2.2L (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying ECM Connector J2 Terminals - 2.2L (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

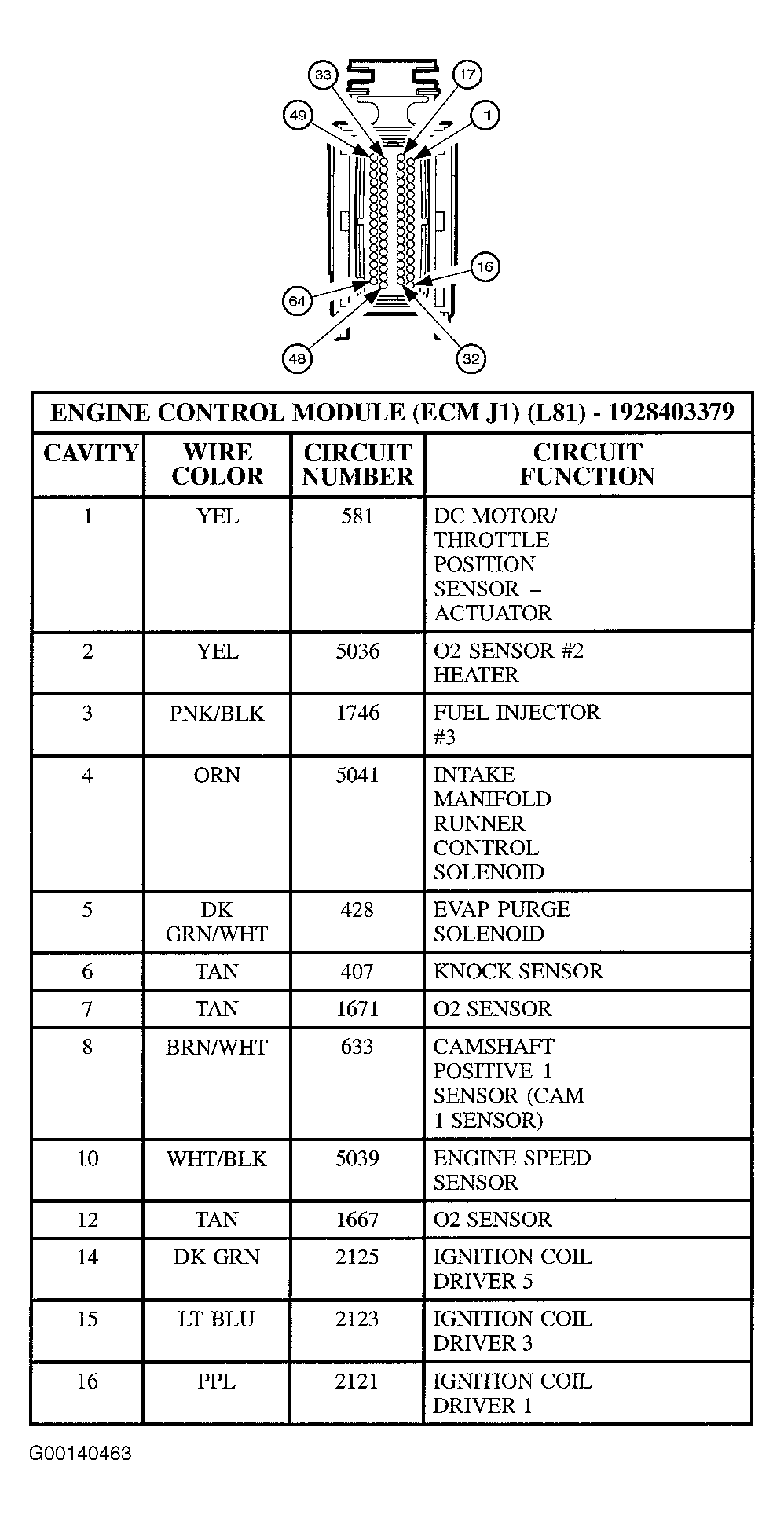

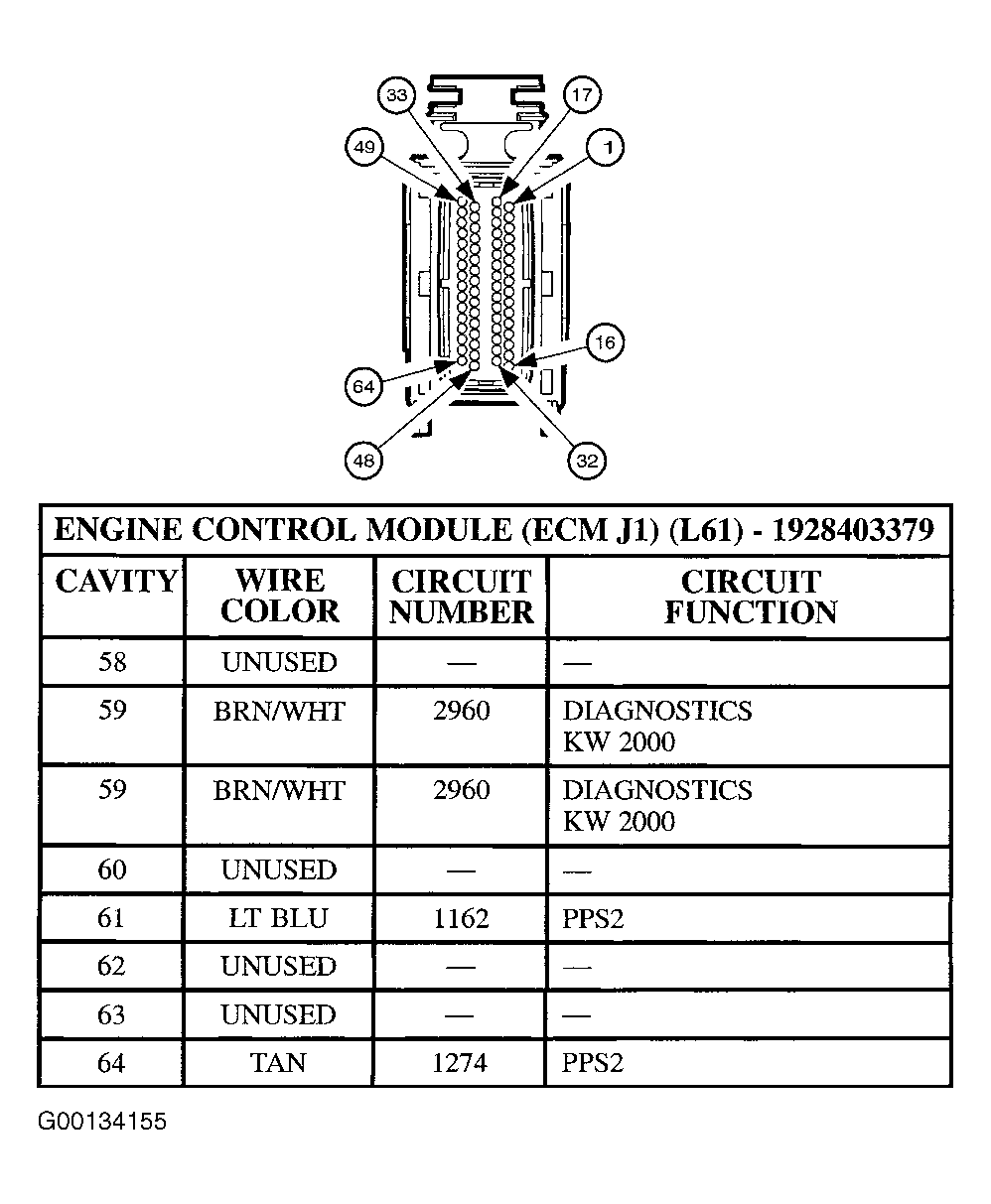

Fig 9: Identifying ECM Connector J1 Terminals - 3.0L (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

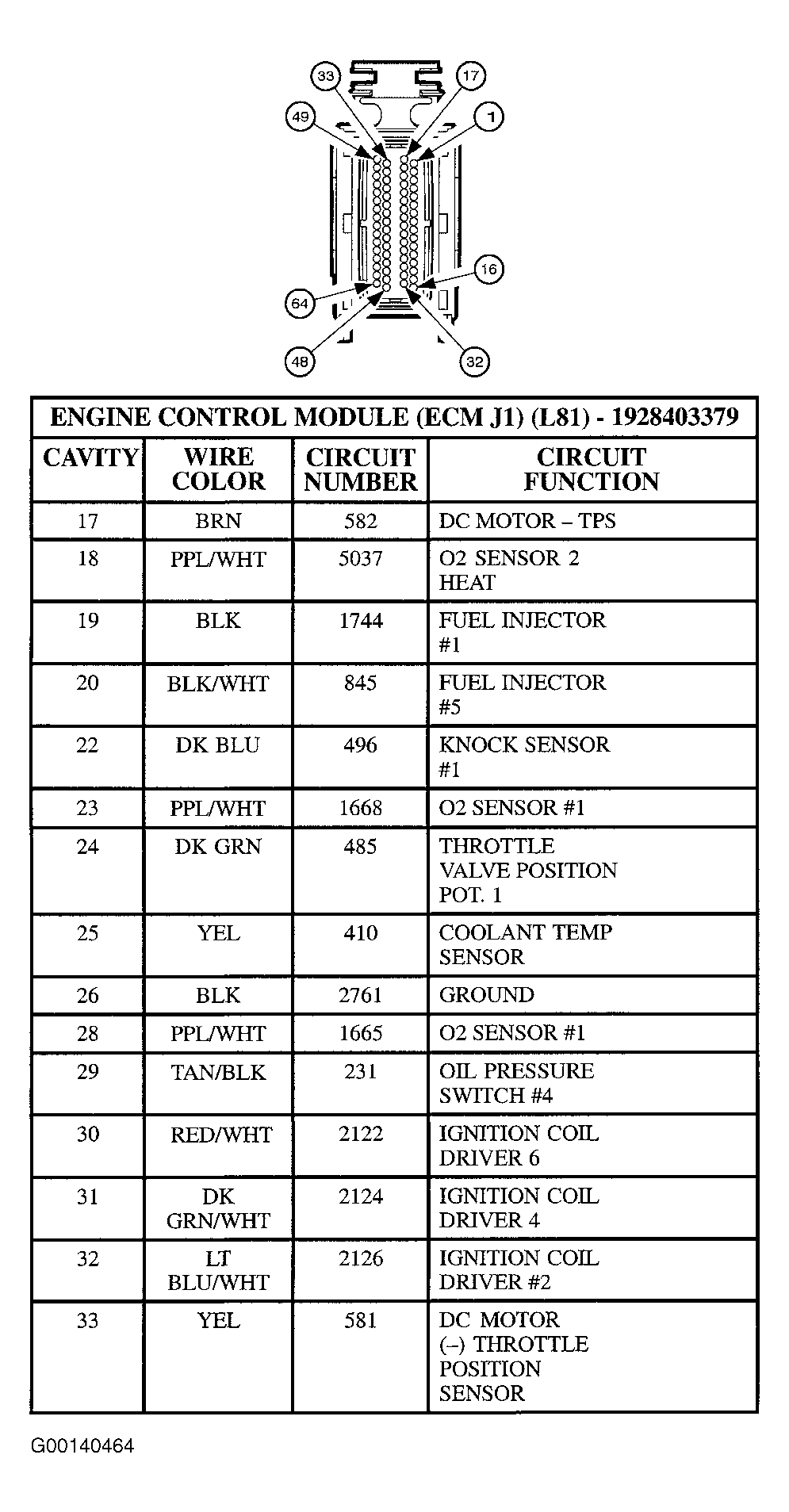

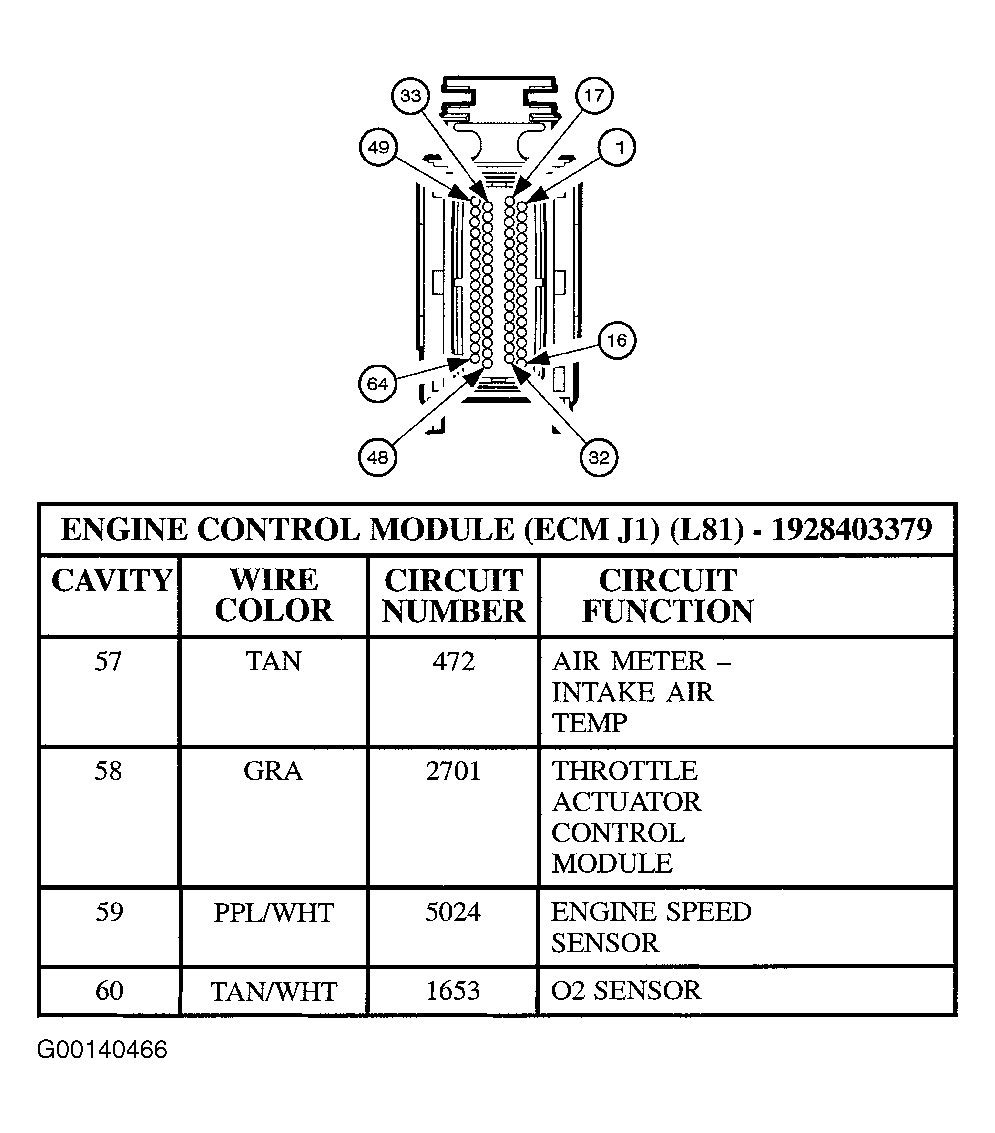

Fig 10: Identifying ECM Connector J1 Terminals - 3.0L (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

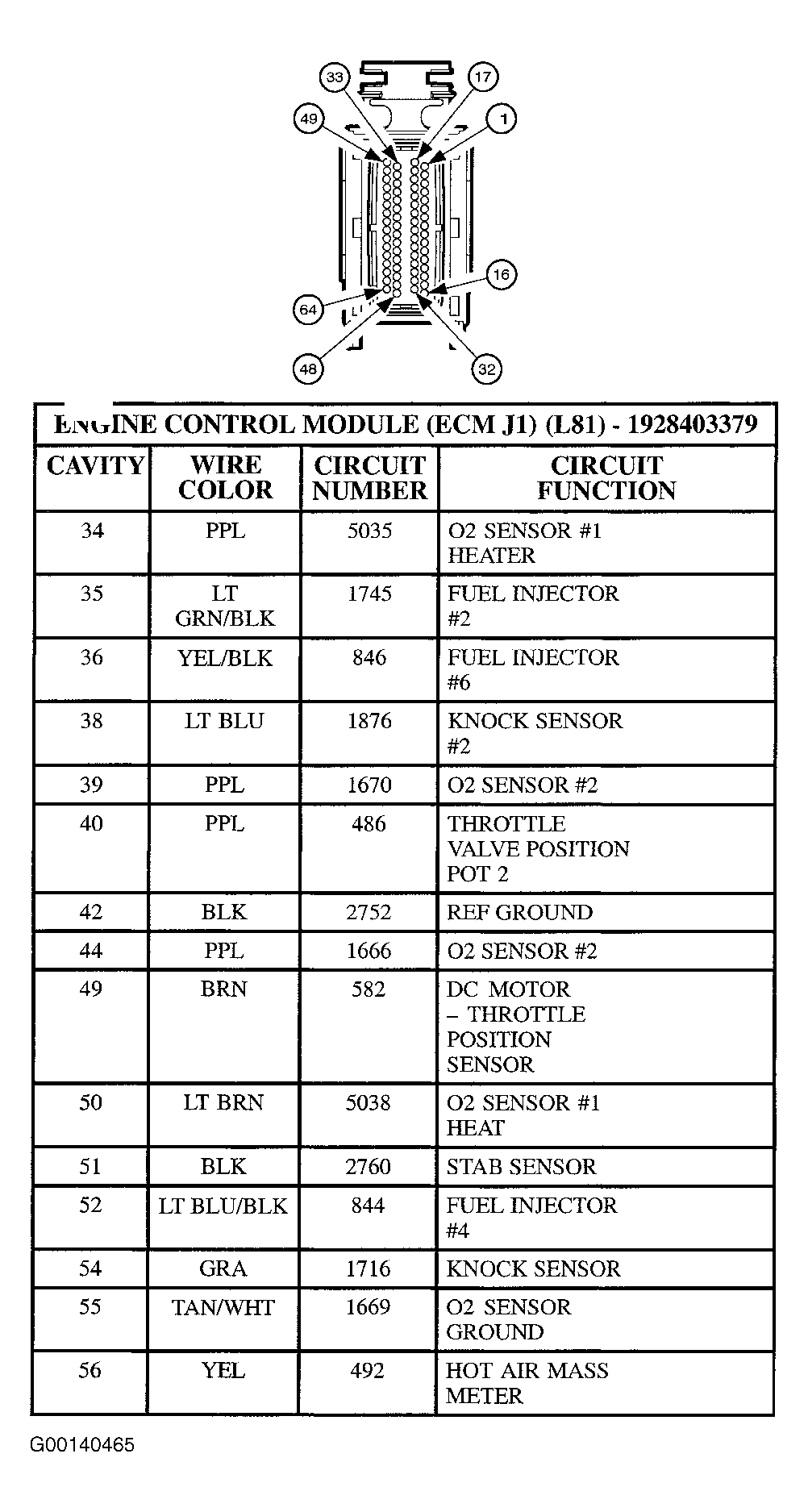

Fig 11: Identifying ECM Connector J1 Terminals - 3.0L (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying ECM Connector J1 Terminals - 3.0L (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

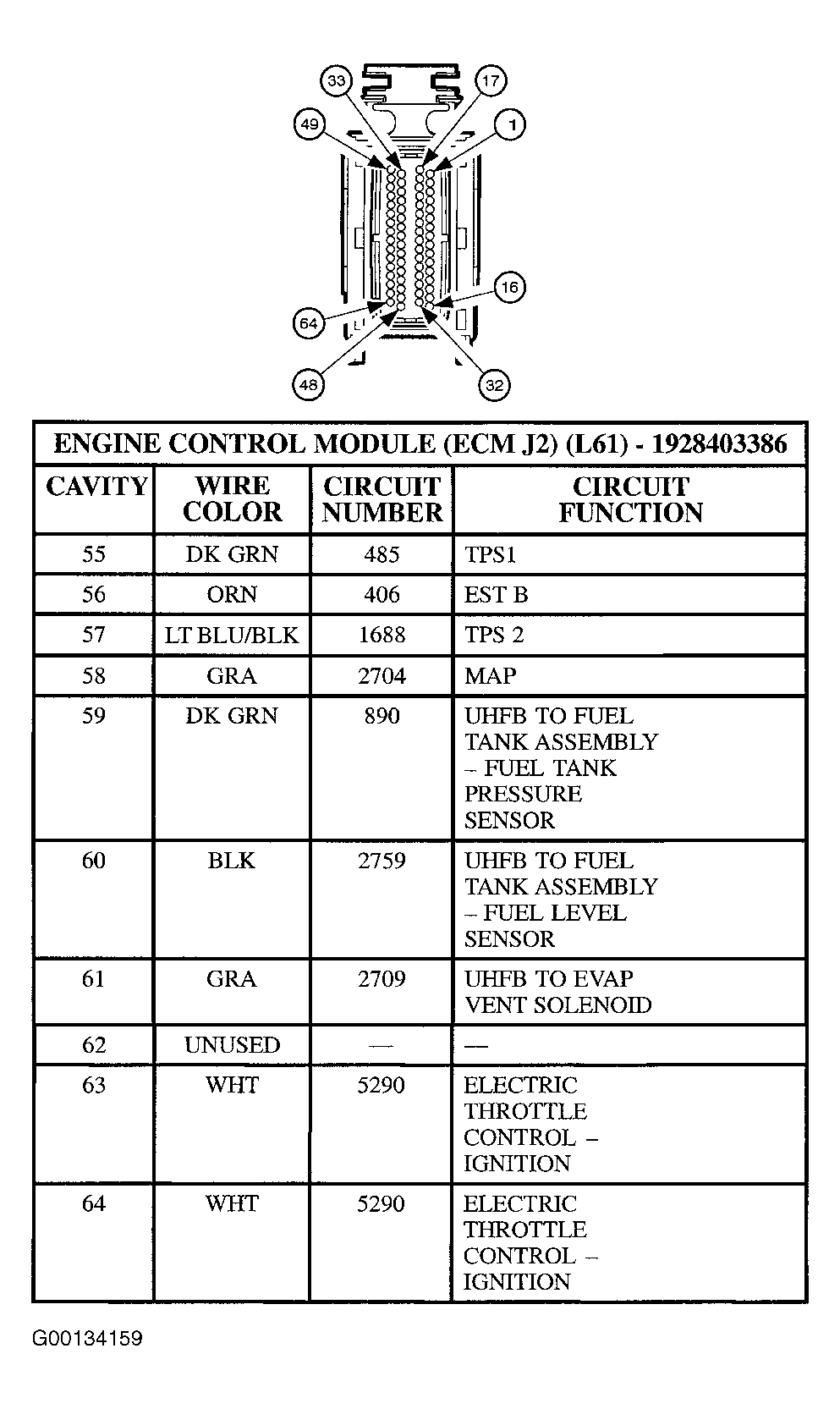

Fig 13: Identifying ECM Connector J2 Terminals - 3.0L (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

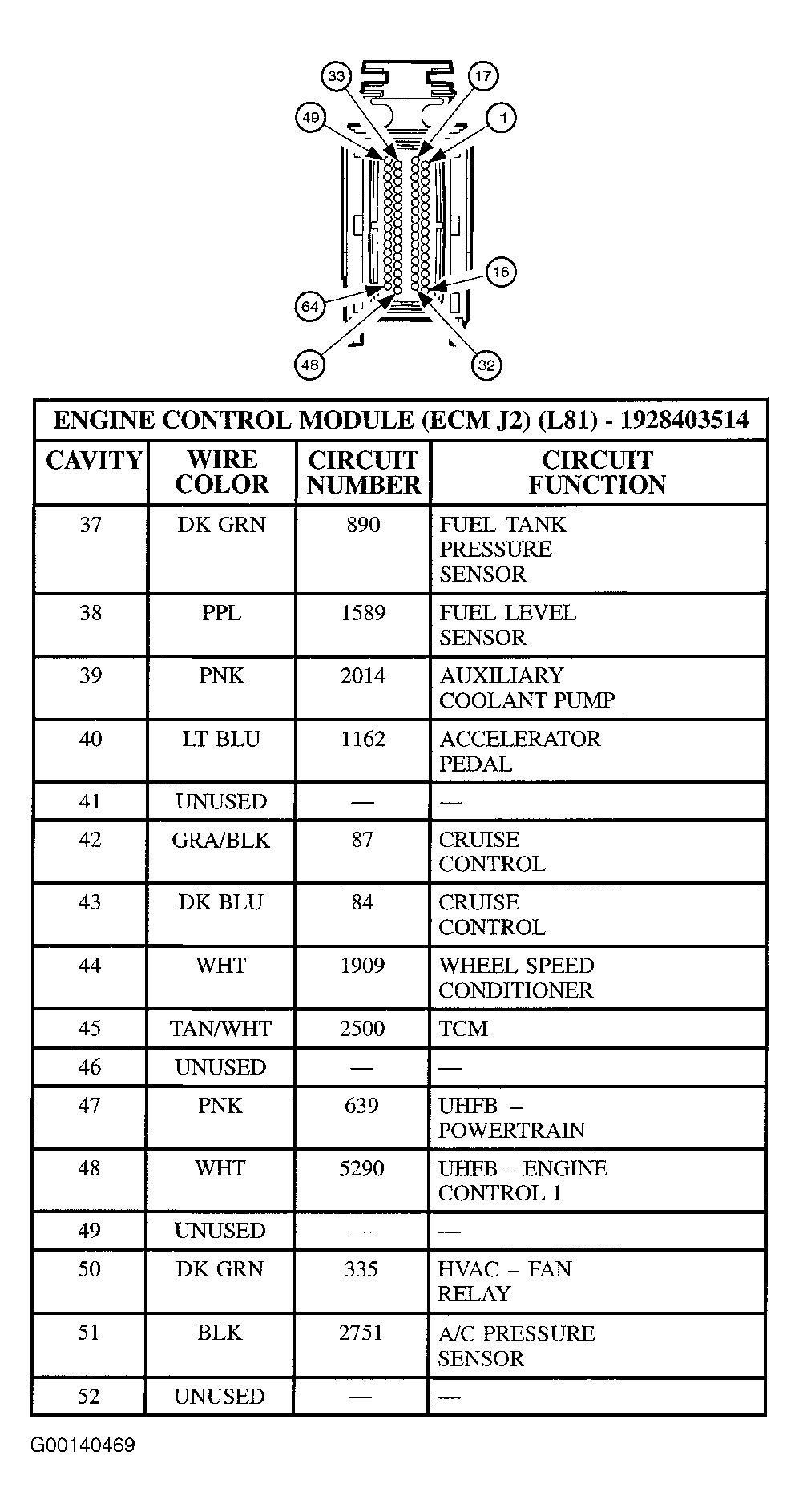

Fig 14: Identifying ECM Connector J2 Terminals - 3.0L (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

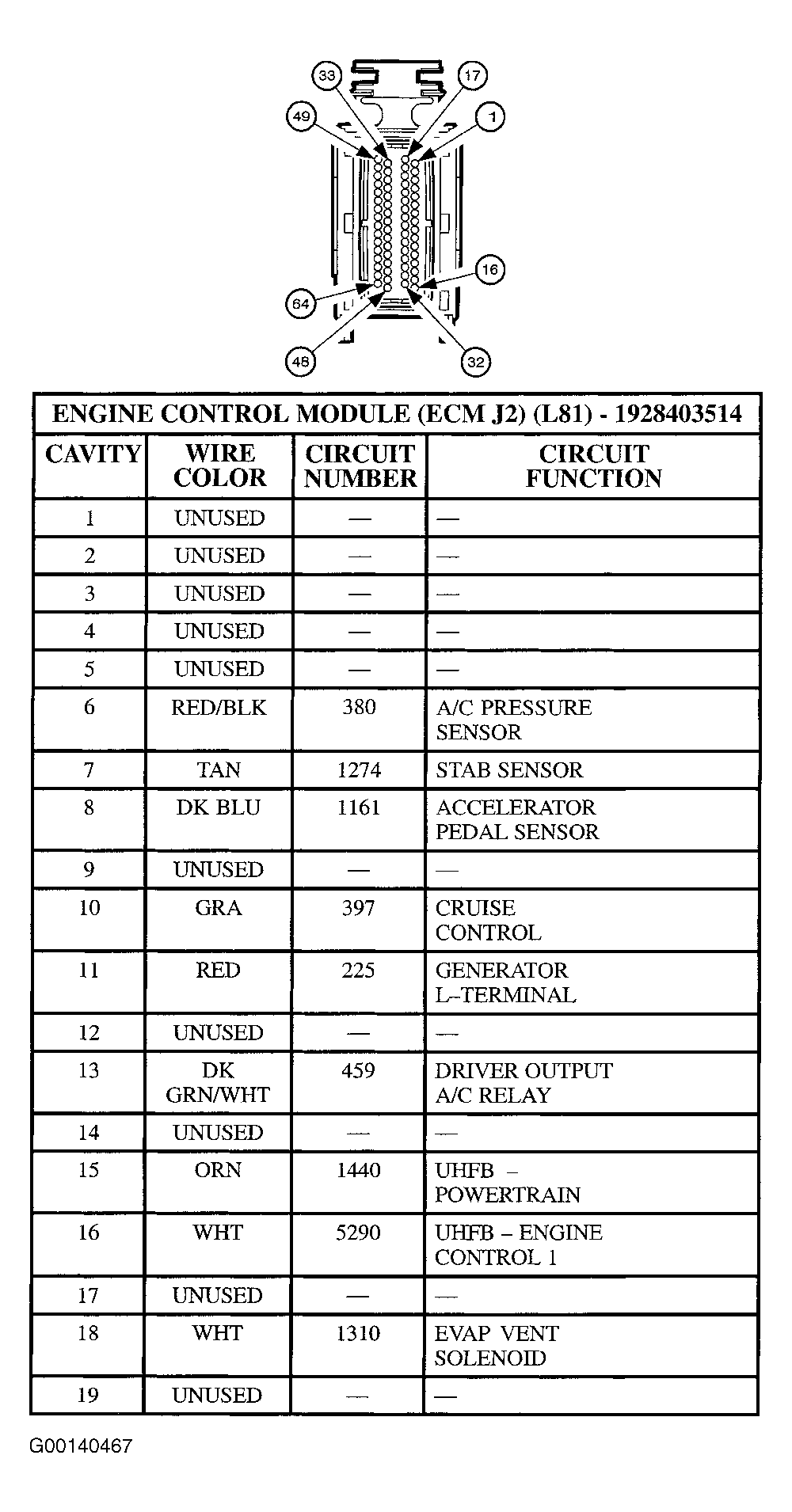

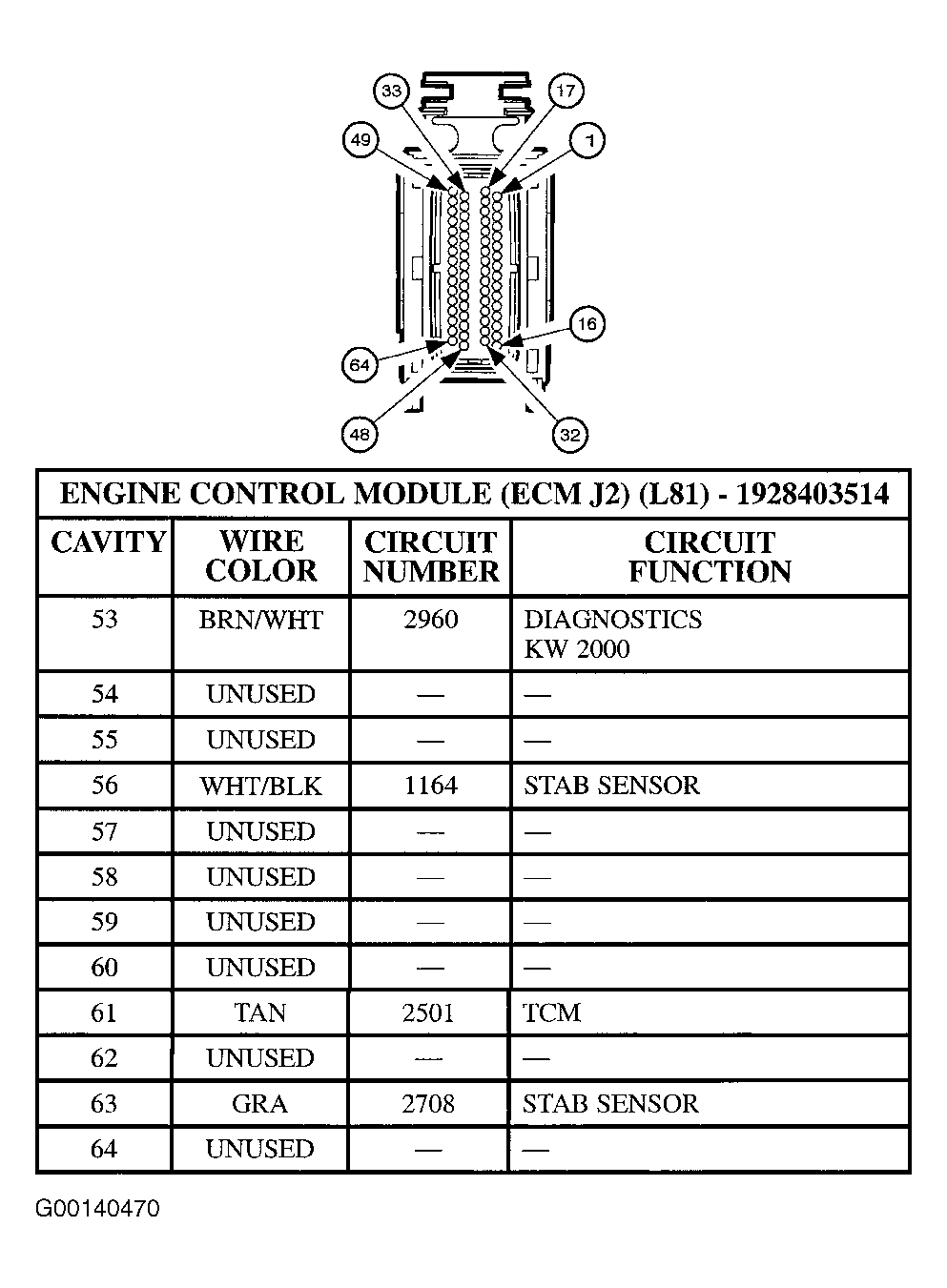

Fig 15: Identifying ECM Connector J2 Terminals - 3.0L (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

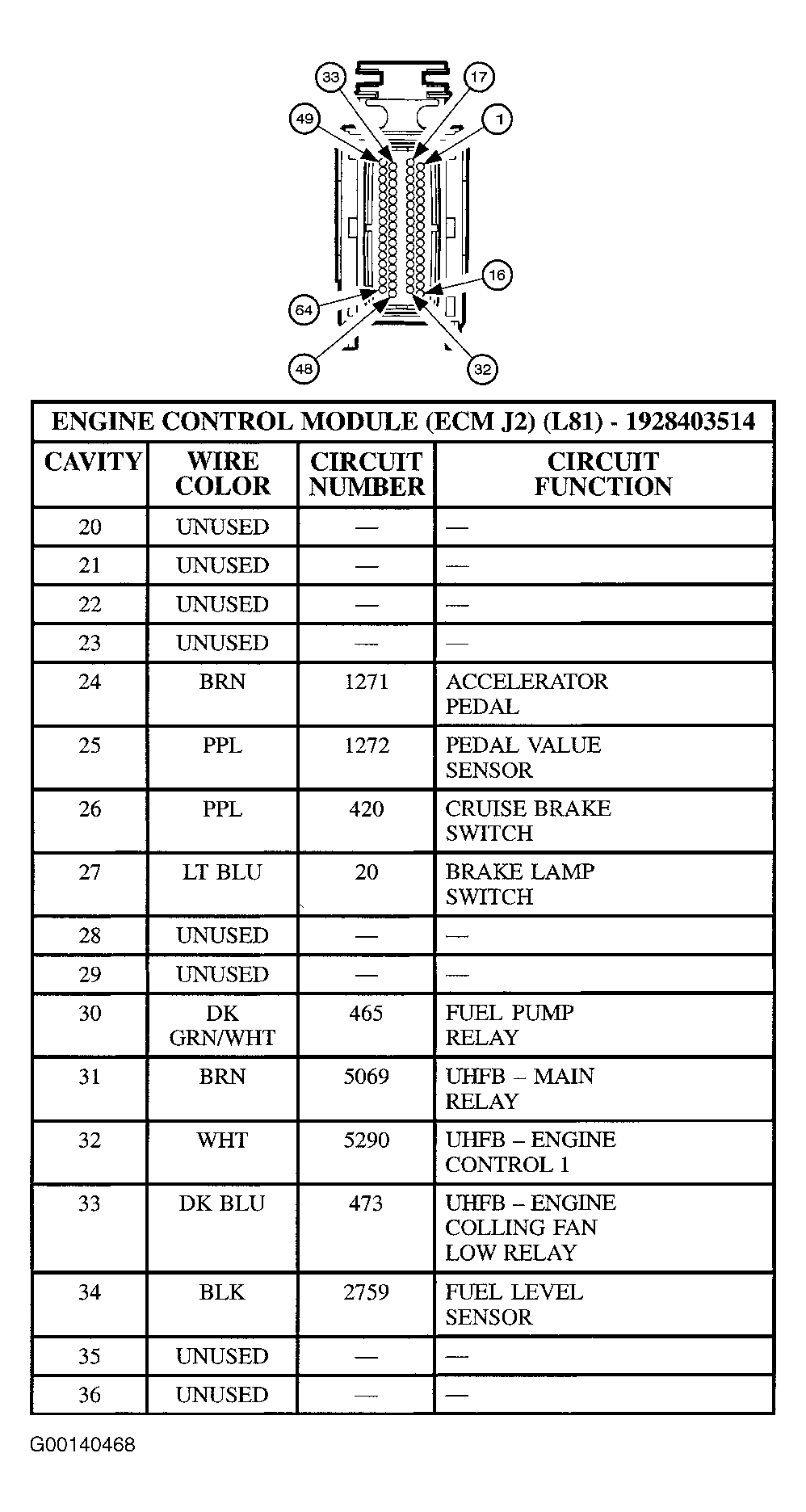

Fig 16: Identifying ECM Connector J2 Terminals - 3.0L (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
