HVAC Control Module: Removal

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the right side instrument panel insulator. Remove the HVAC Control Module retaining screws. See Fig 1 . Pull the HVAC Control Module out from the I/P.
Disconnect the aspirator hose from the HVAC Control Module. See Fig 2 . Disconnect the electrical connector from the HVAC Control Module. Remove the HVAC Control Module.

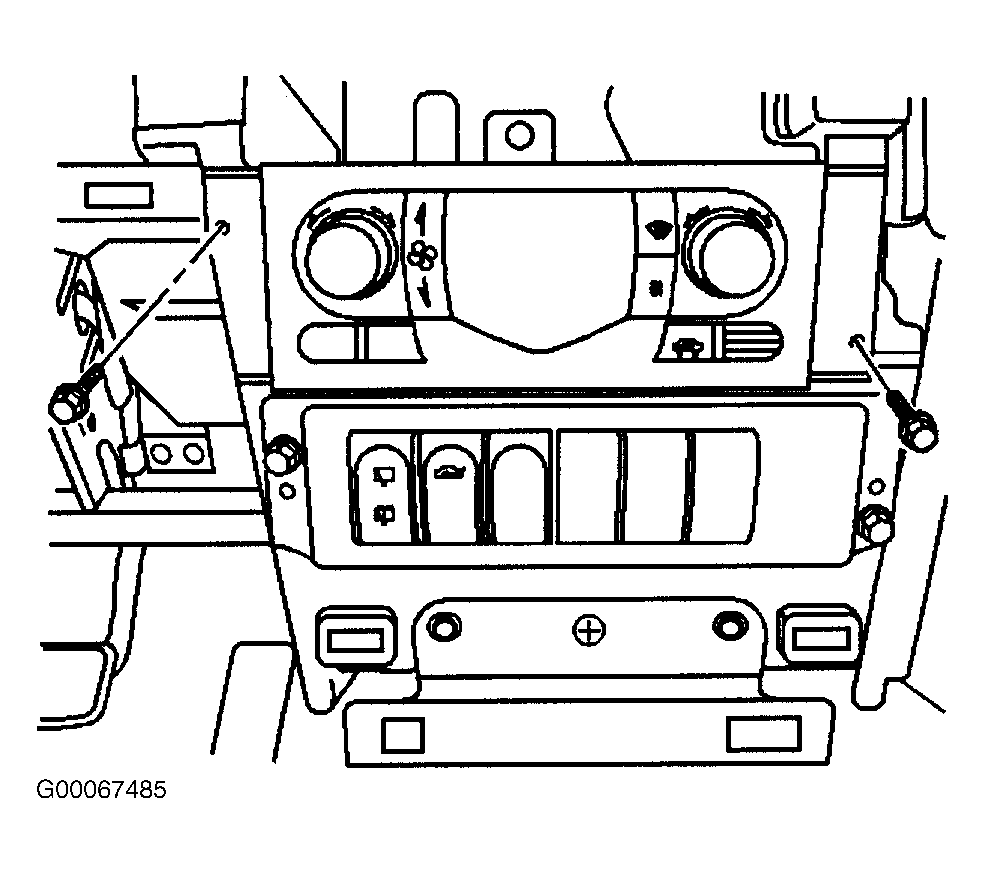

Fig 1: Identifying A/C-Heater Control Panel

Courtesy of GENERAL MOTORS CORP.

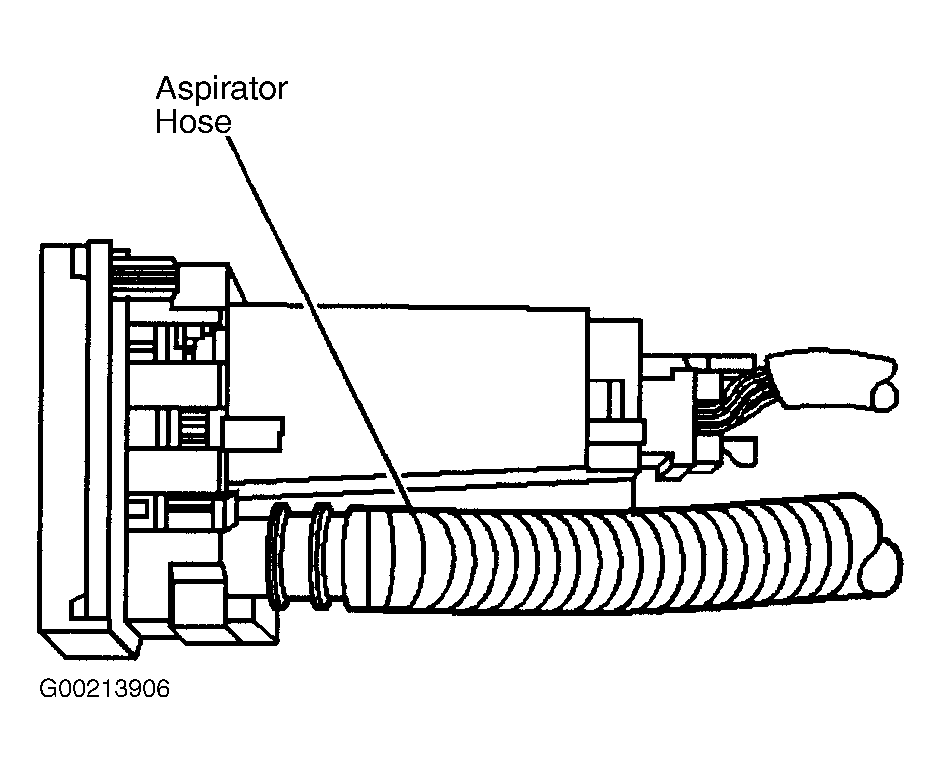

Fig 2: Removing & Installing Aspirator Hose From HVAC Control Module

Courtesy of GENERAL MOTORS CORP.
