Scan Tool Data List

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

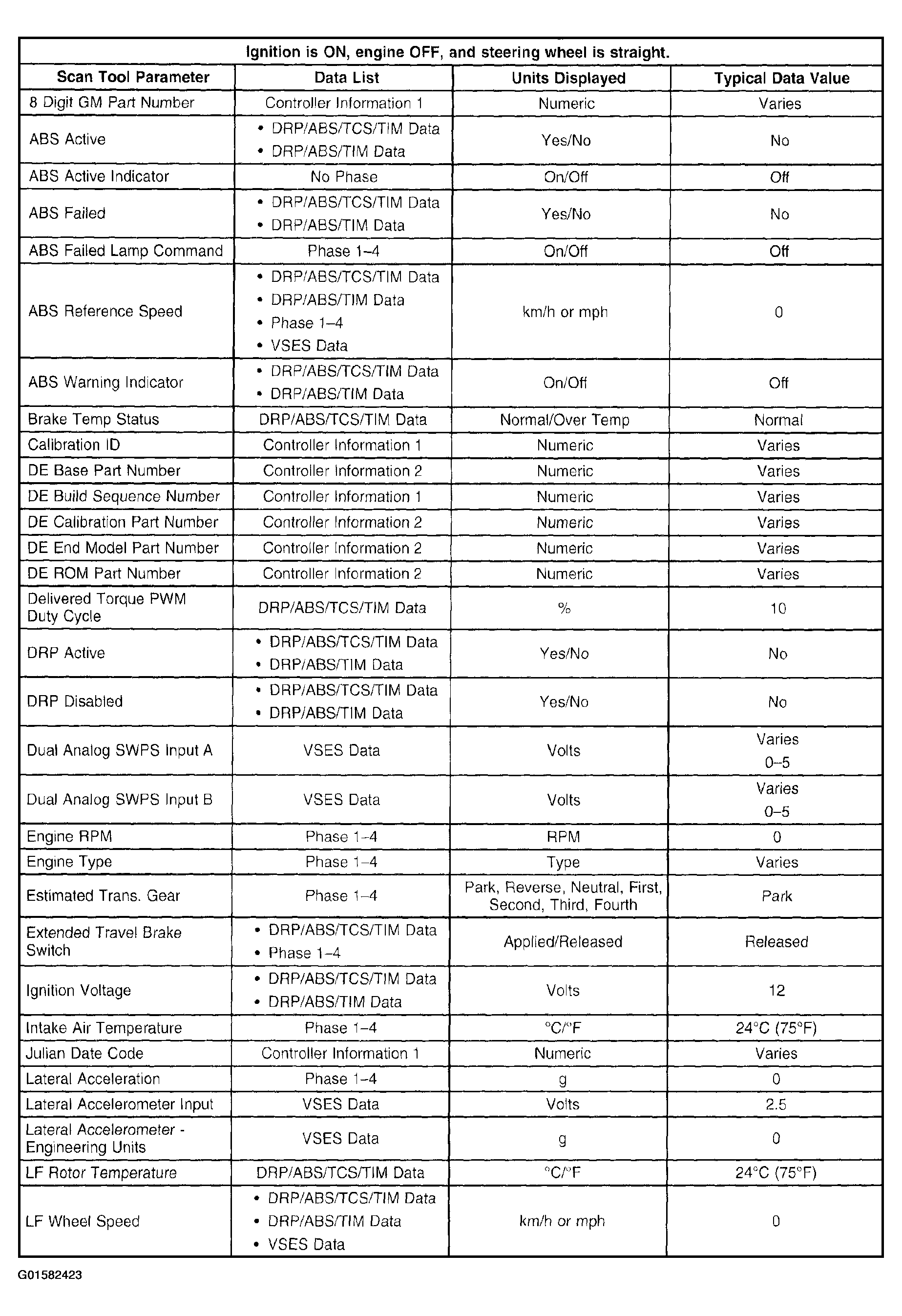

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

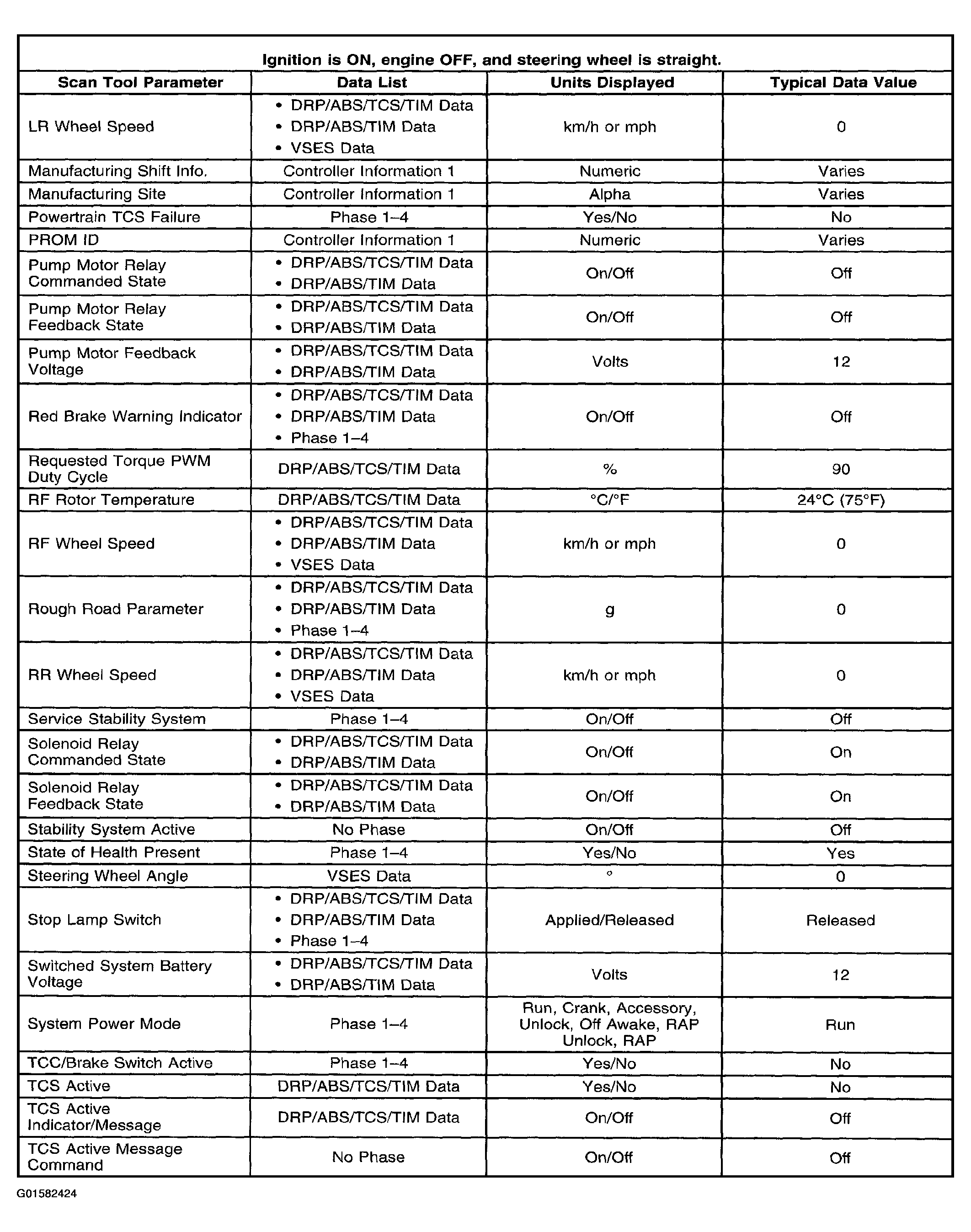

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

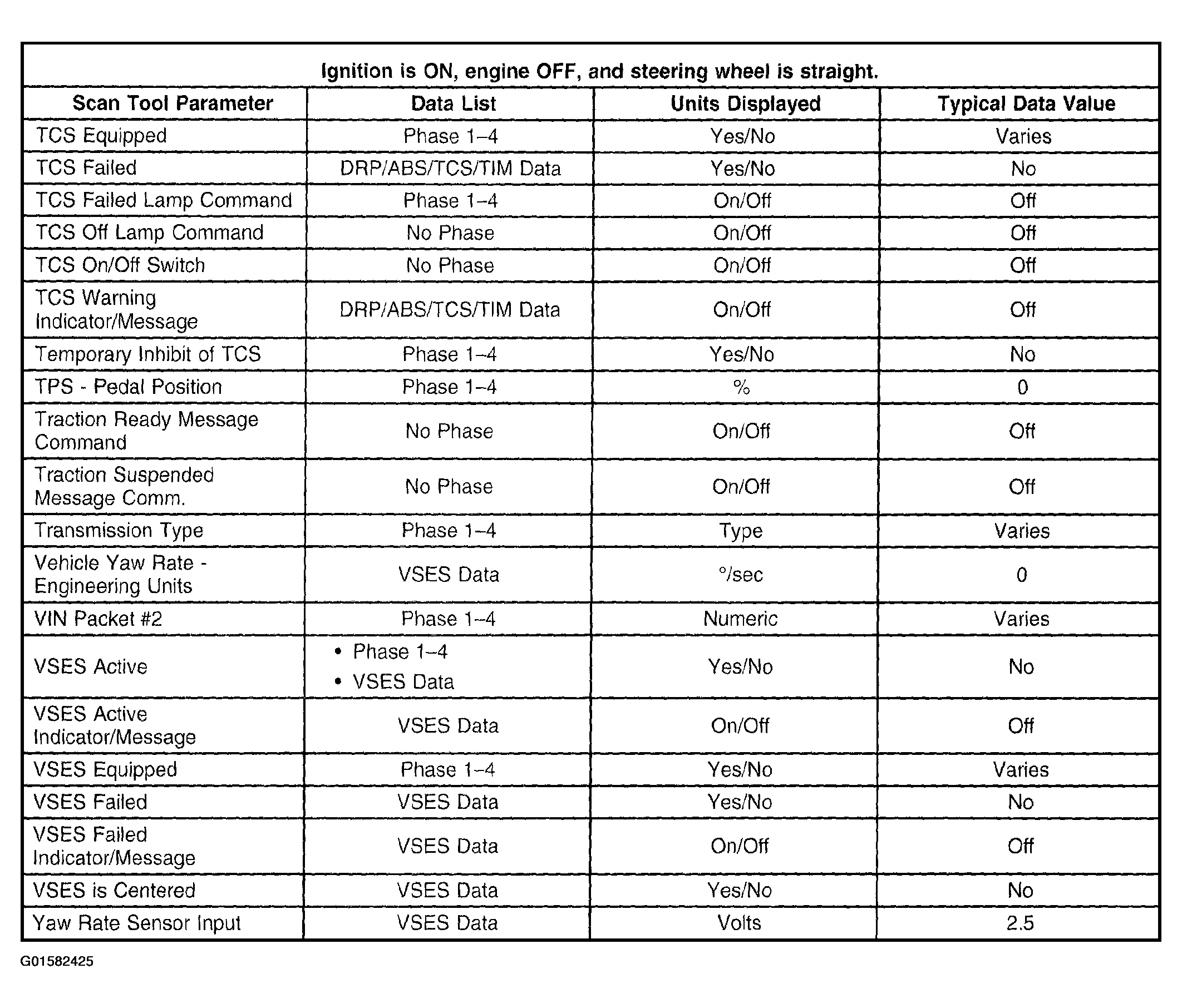

Fig 4: Electronic Brake Control Module (EBCM) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Instrument Panel Module (IPM)

Courtesy of GENERAL MOTORS CORP.

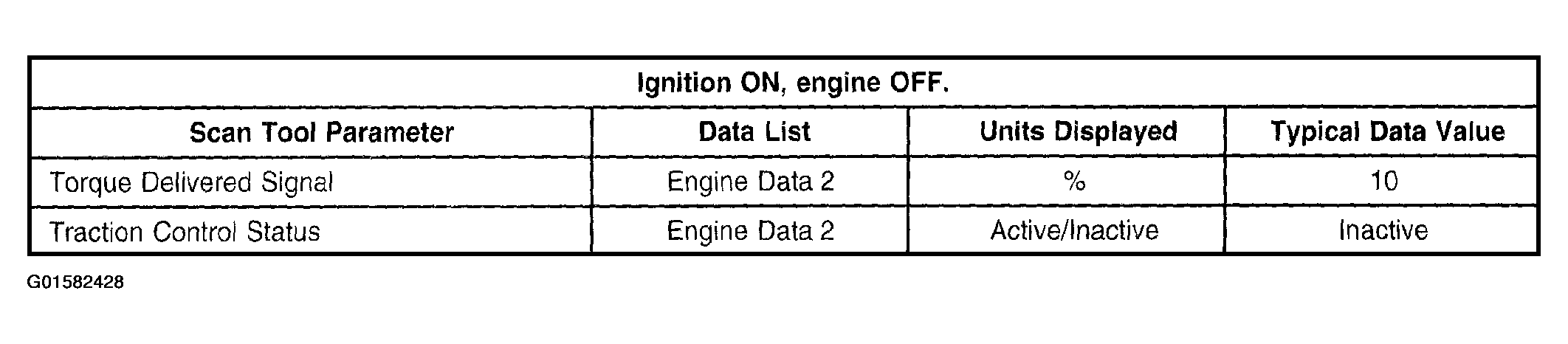

Fig 6: Powertrain Control Module (PCM) (w/LX5)

Courtesy of GENERAL MOTORS CORP.

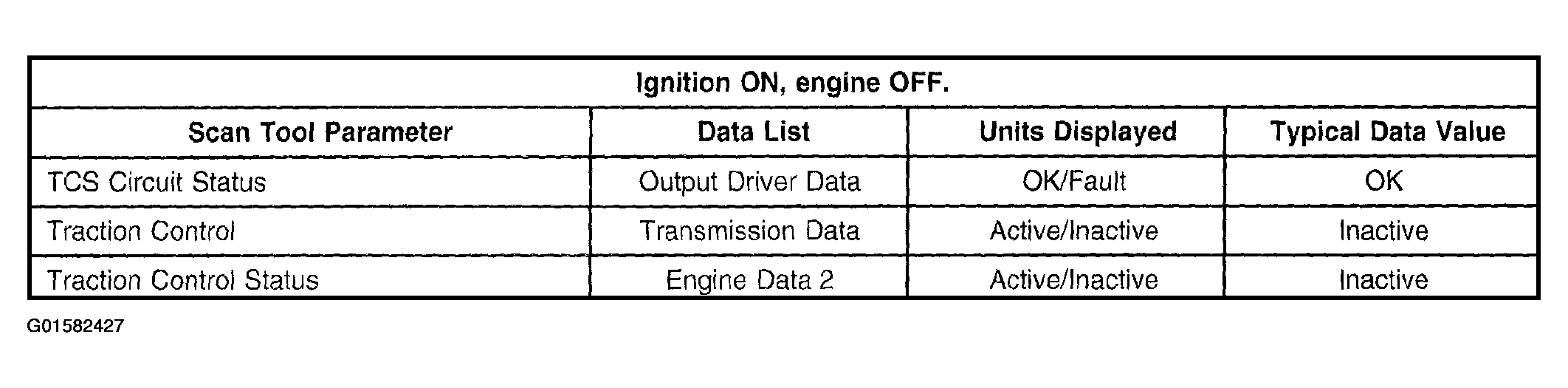

Fig 7: Powertrain Control Module (PCM) (w/L47)

Courtesy of GENERAL MOTORS CORP.
