Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lateral accelerometer sensor (1).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 2 lateral accelerometer sensor mounting screws (3).

    Tighten

    Tighten the 2 lateral accelerometer sensor mounting screws to 2.4 N.m (21 in lbs).

  3. Connect the lateral accelerometer sensor electrical connector (2).
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  5. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS

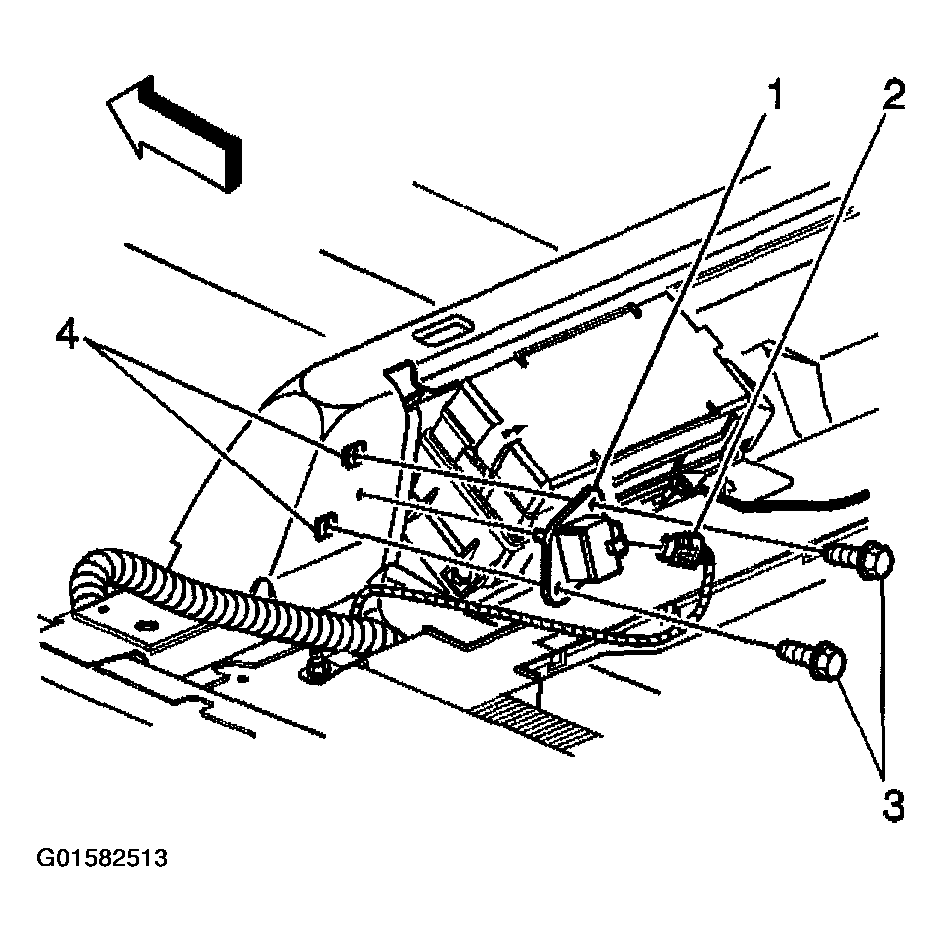

    Fig 1: Installing Lateral Accelerometer Sensor
    G01582513Courtesy of GENERAL MOTORS CORP.
