Power Door Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

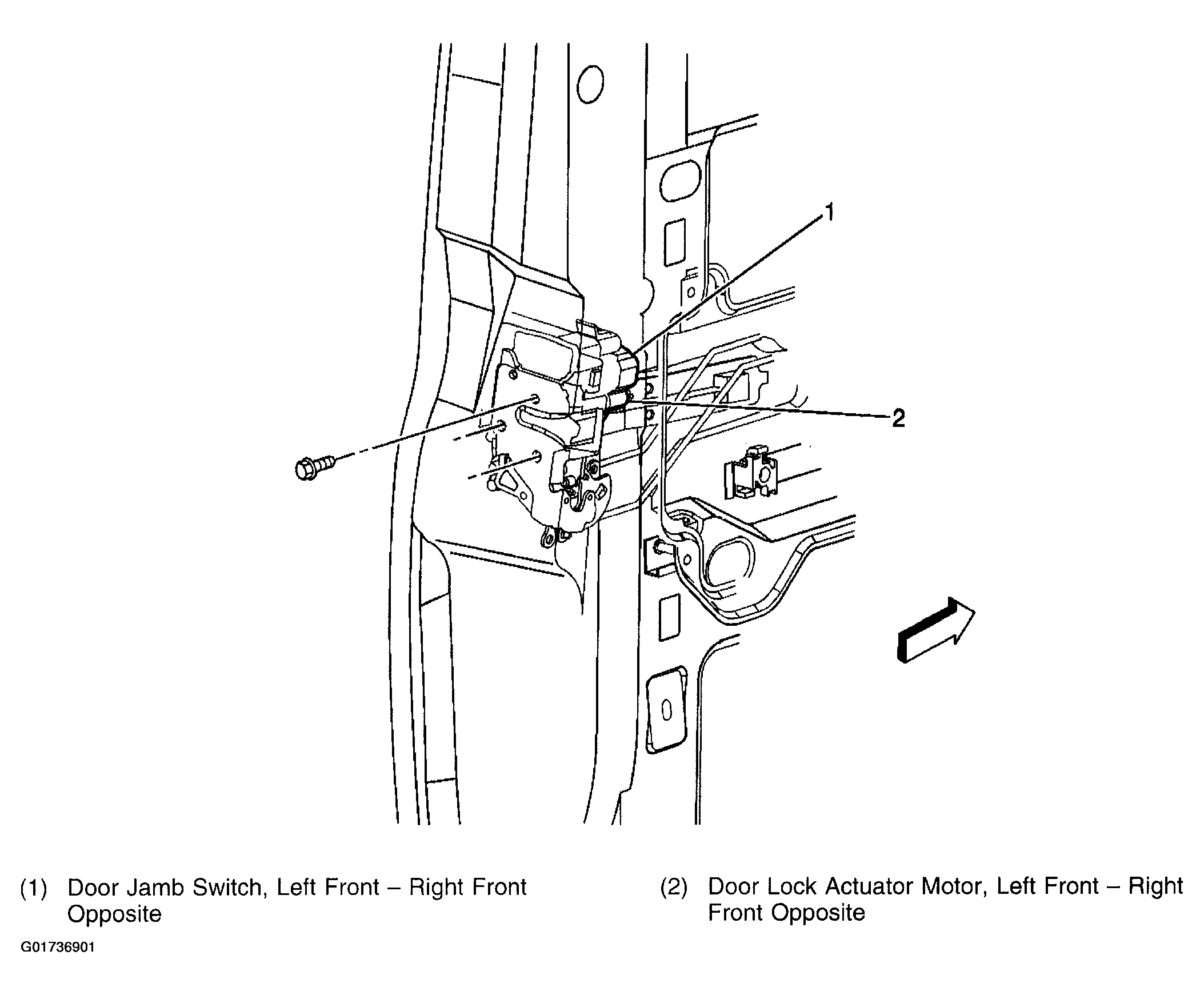

Fig 1: Identifying Door Latch, Front Component View

Courtesy of GENERAL MOTORS CORP.

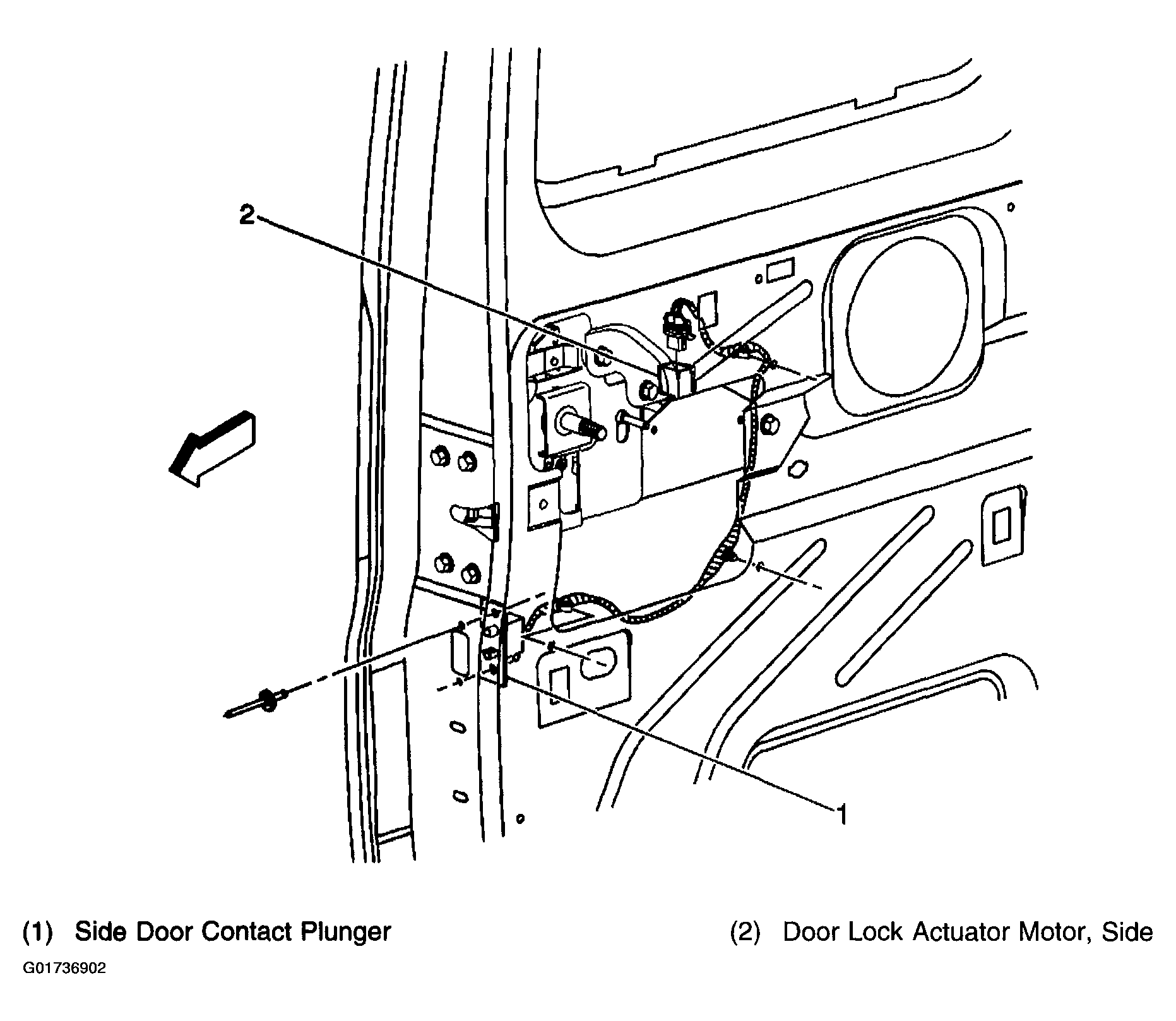

Fig 2: Identifying Door Lock Control Wiring, Sliding Door Component View

Courtesy of GENERAL MOTORS CORP.

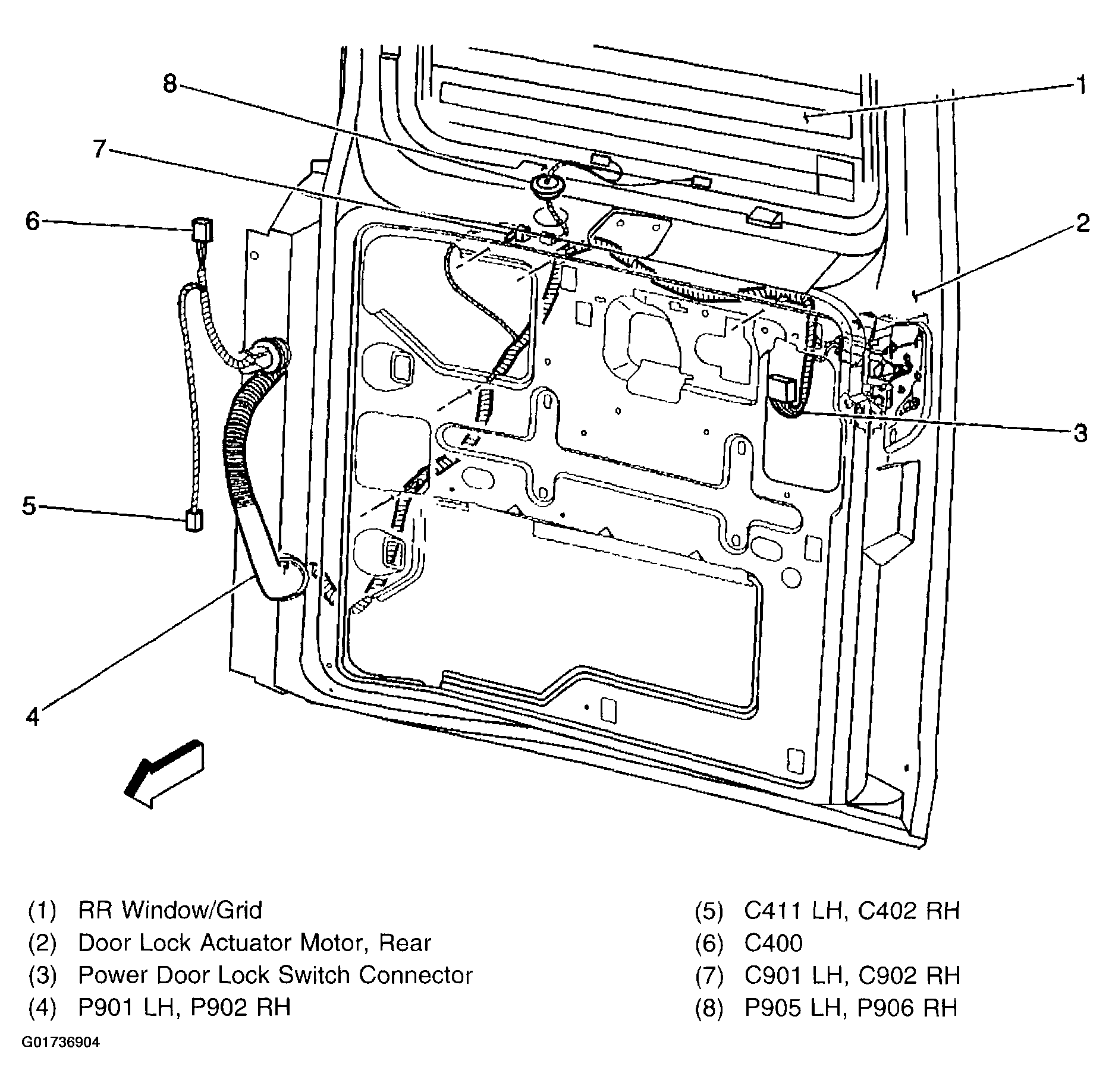

Fig 3: Identifying Door Latch, Rear Component View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Rear Defogger Details - Stationary Window Component View

Courtesy of GENERAL MOTORS CORP.

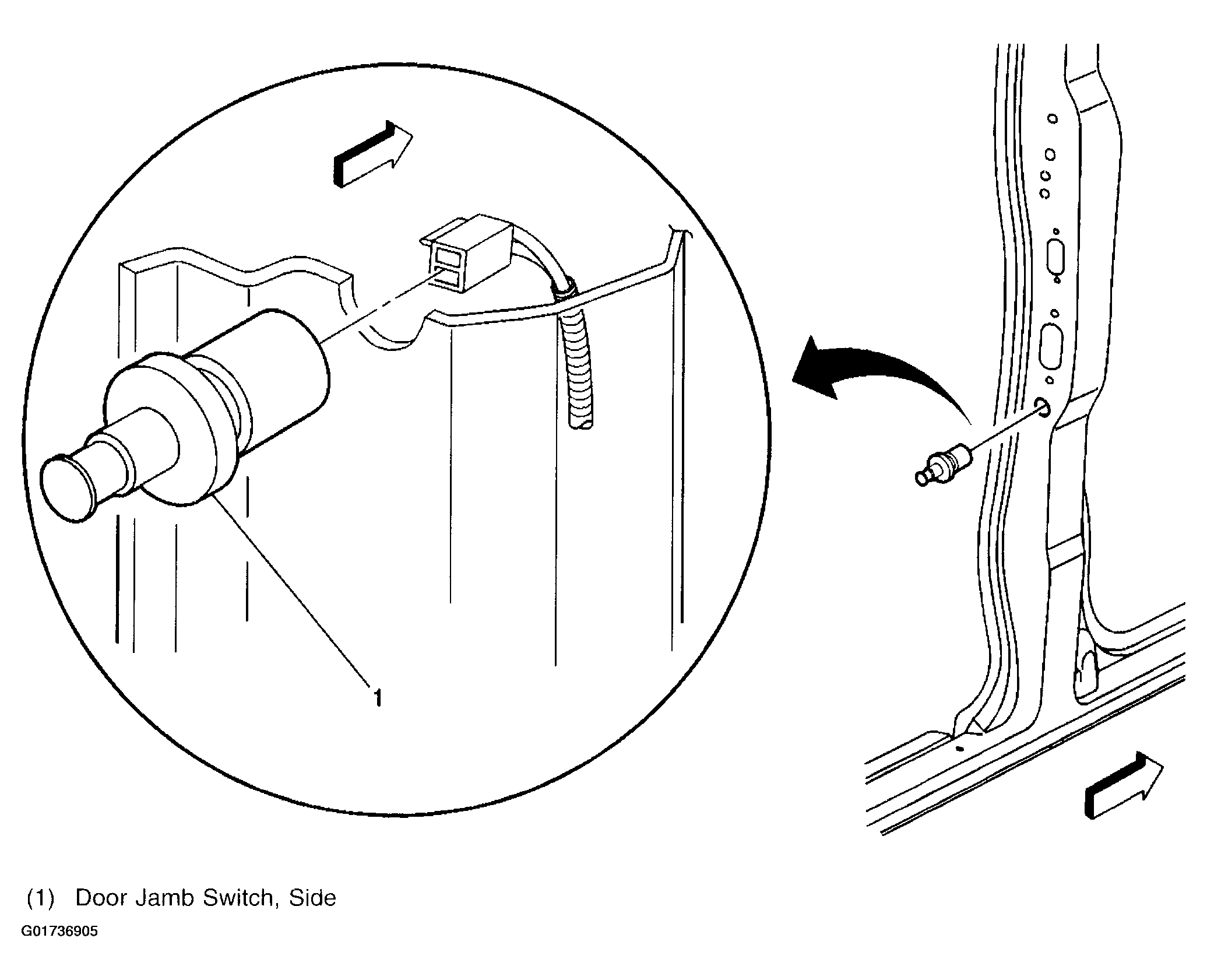

Fig 5: Identifying Door Jamb Switch, Side Component View

Courtesy of GENERAL MOTORS CORP.

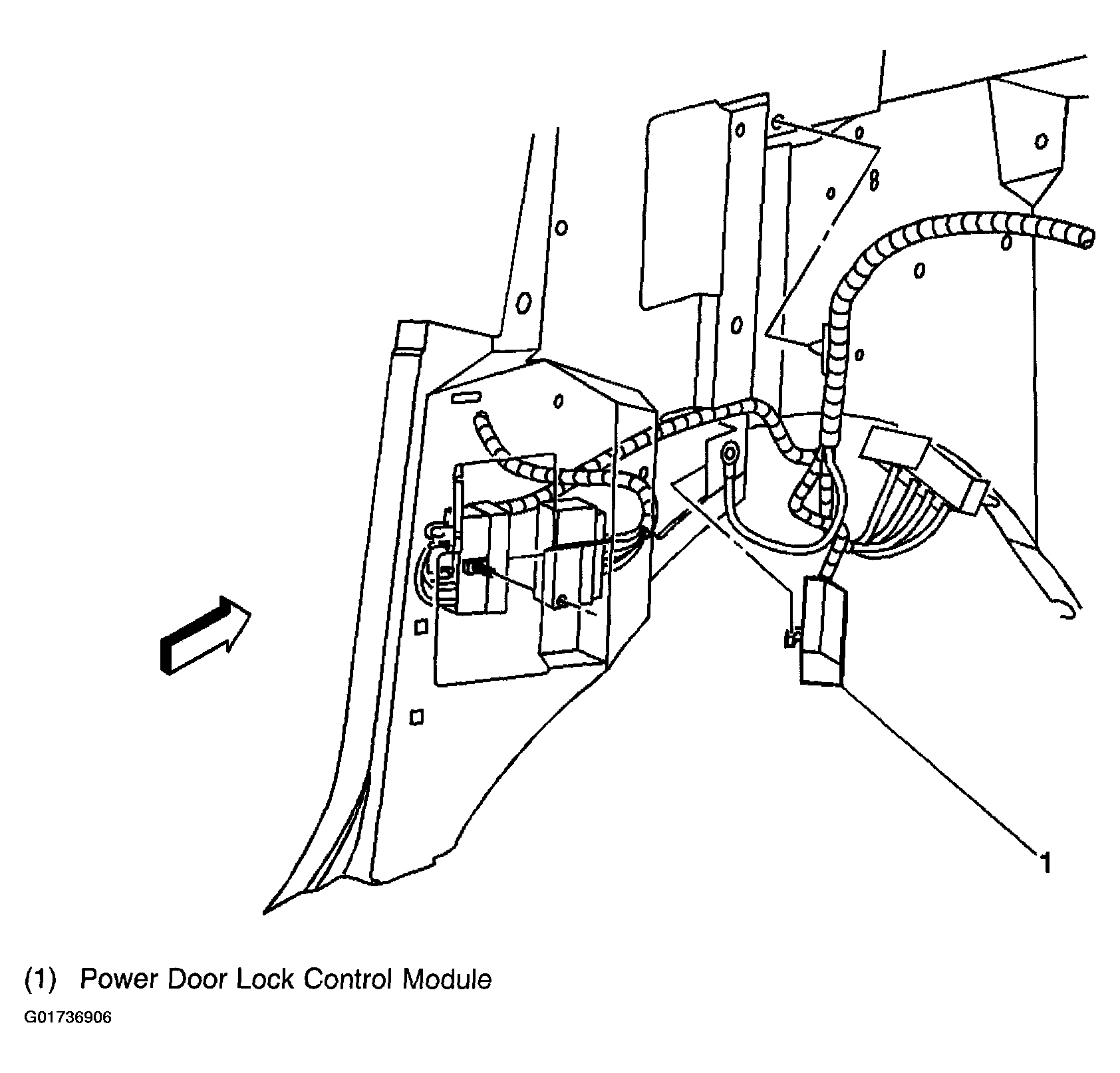

Fig 6: Identifying Power Door Lock Control Module Component View

Courtesy of GENERAL MOTORS CORP.

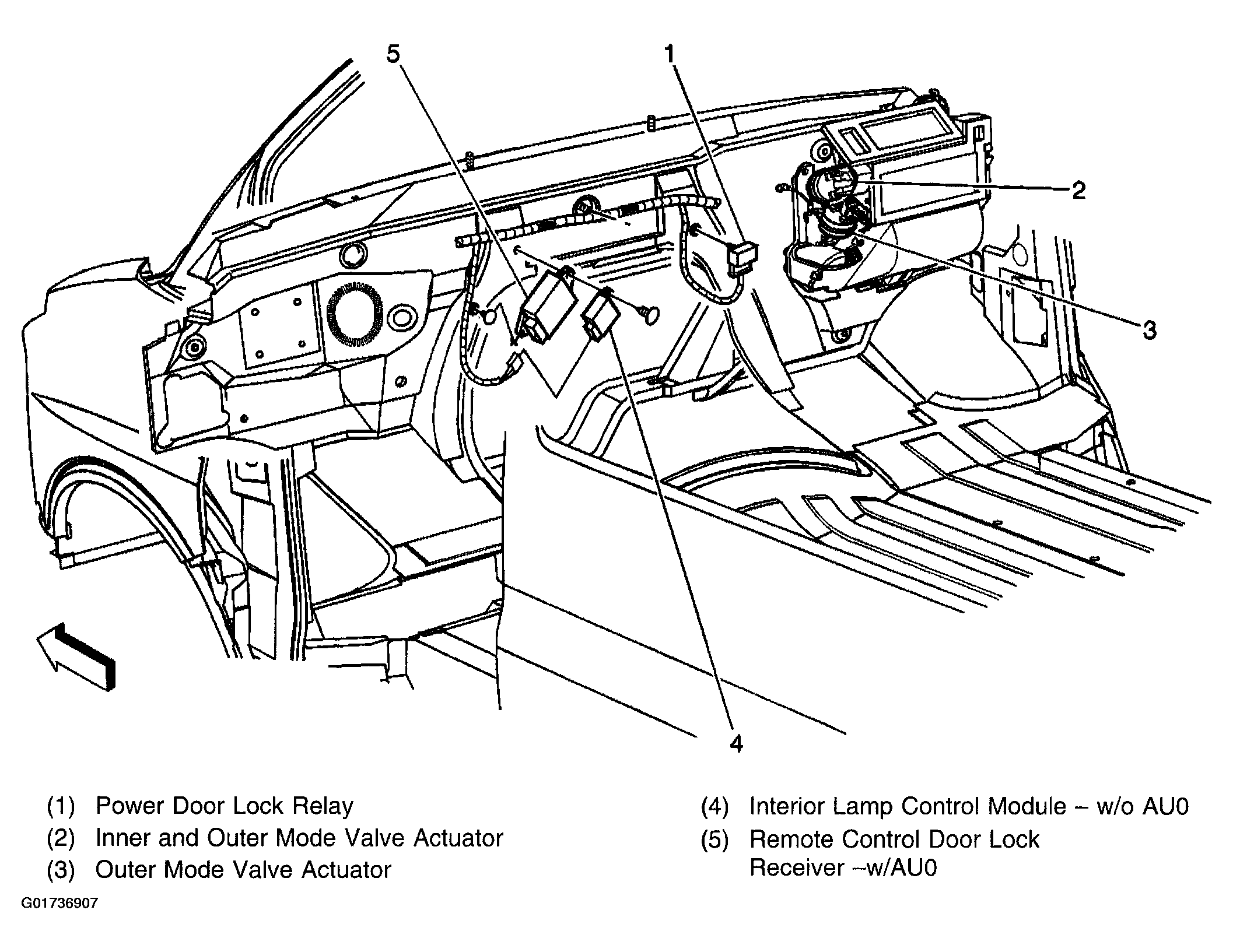

Fig 7: Identifying Power Door Lock Components View

Courtesy of GENERAL MOTORS CORP.

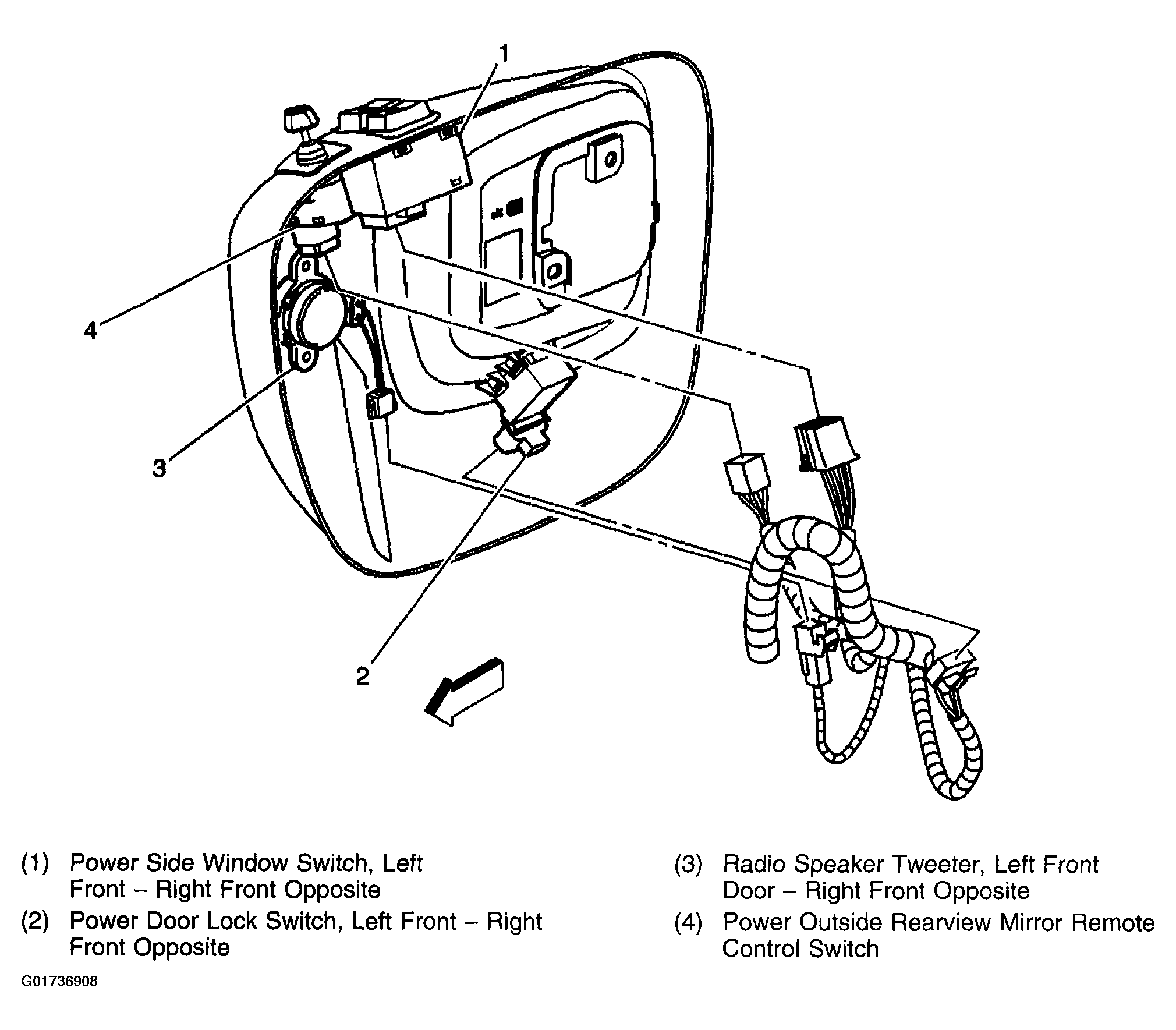

Fig 8: Identifying Front Side Door Wiring, Left Component View

Courtesy of GENERAL MOTORS CORP.

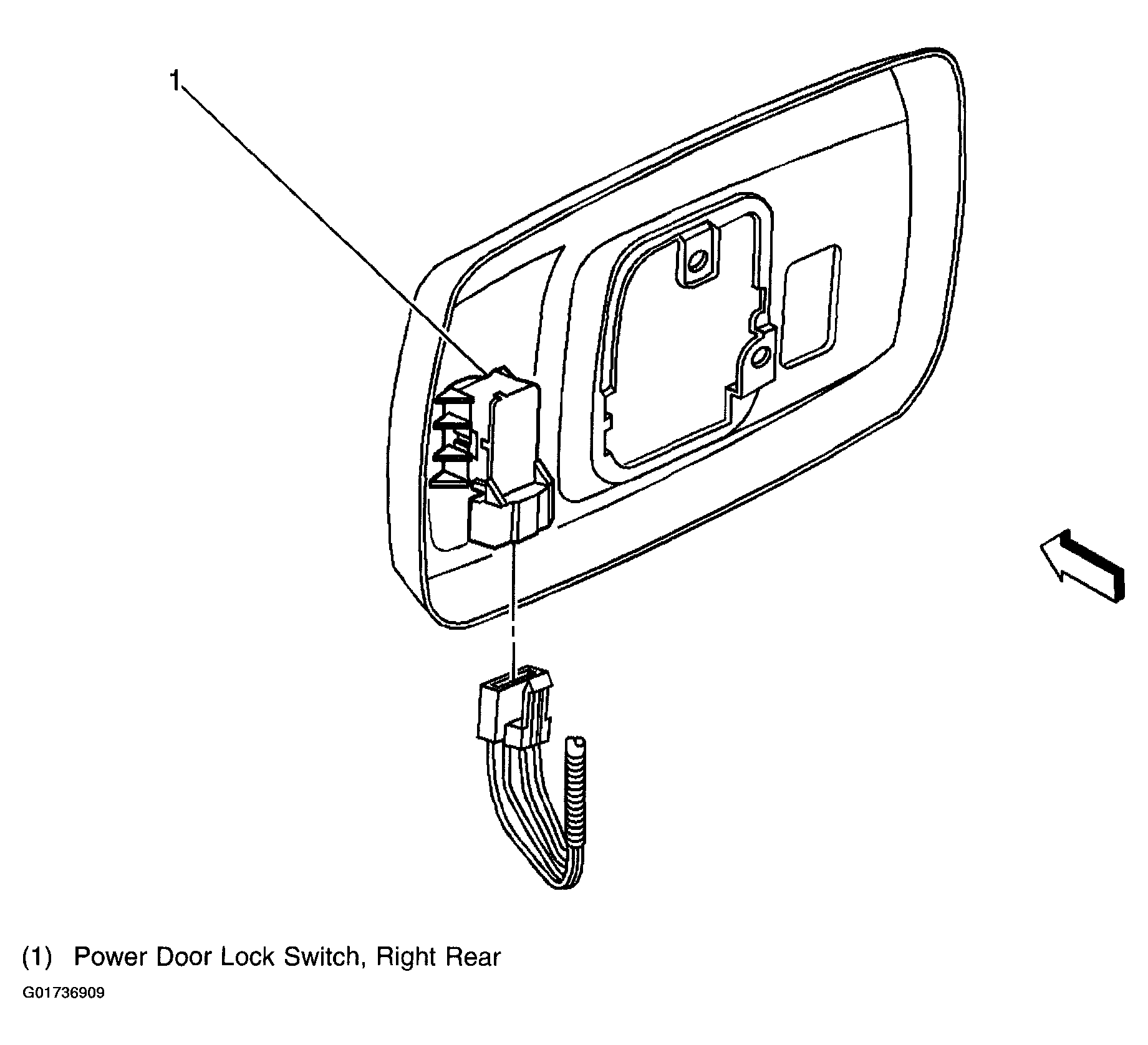

Fig 9: Identifying Power Door Lock Switch, RR Component View

Courtesy of GENERAL MOTORS CORP.

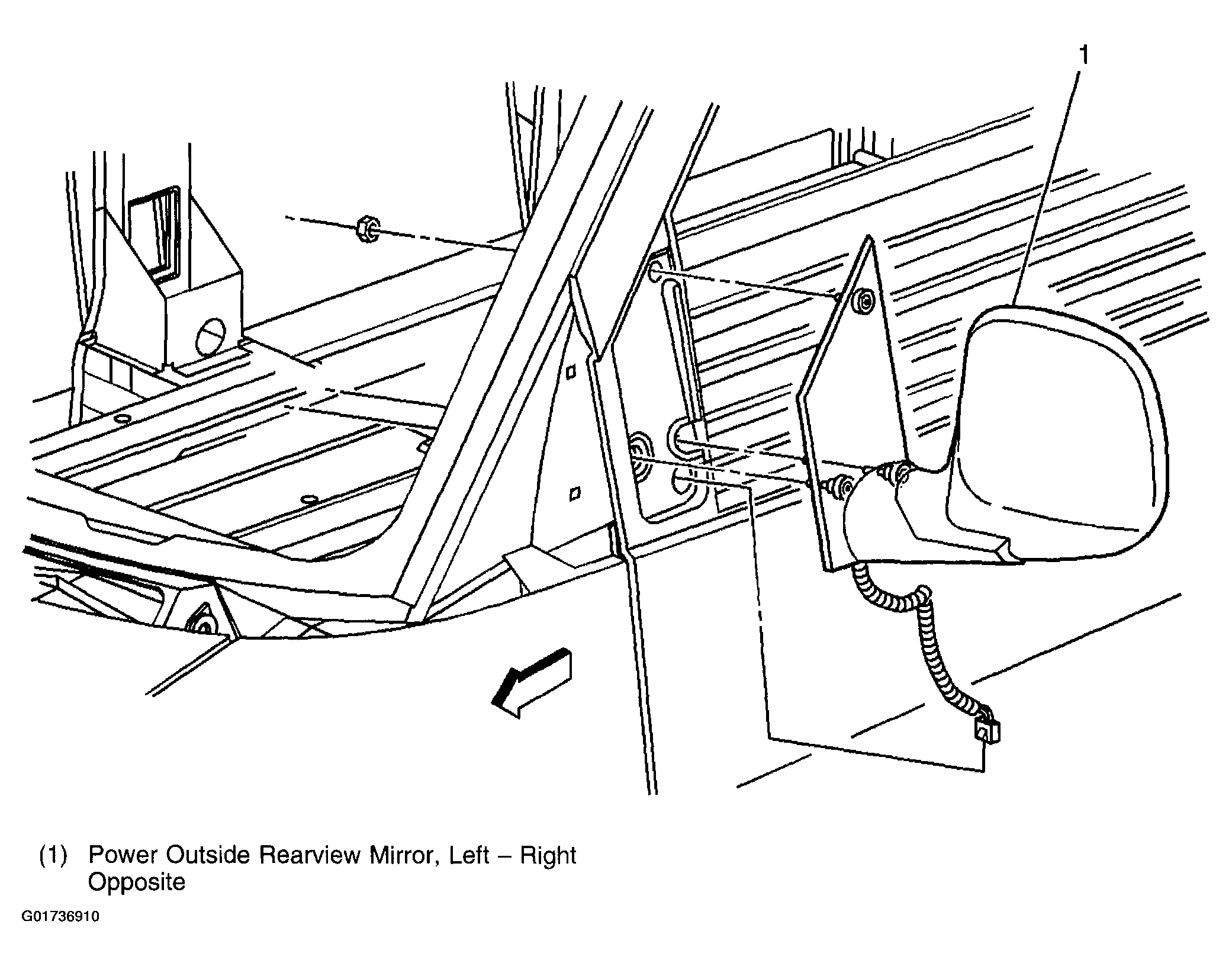

Fig 10: Identifying Power Outside Rearview Mirror Component View

Courtesy of GENERAL MOTORS CORP.

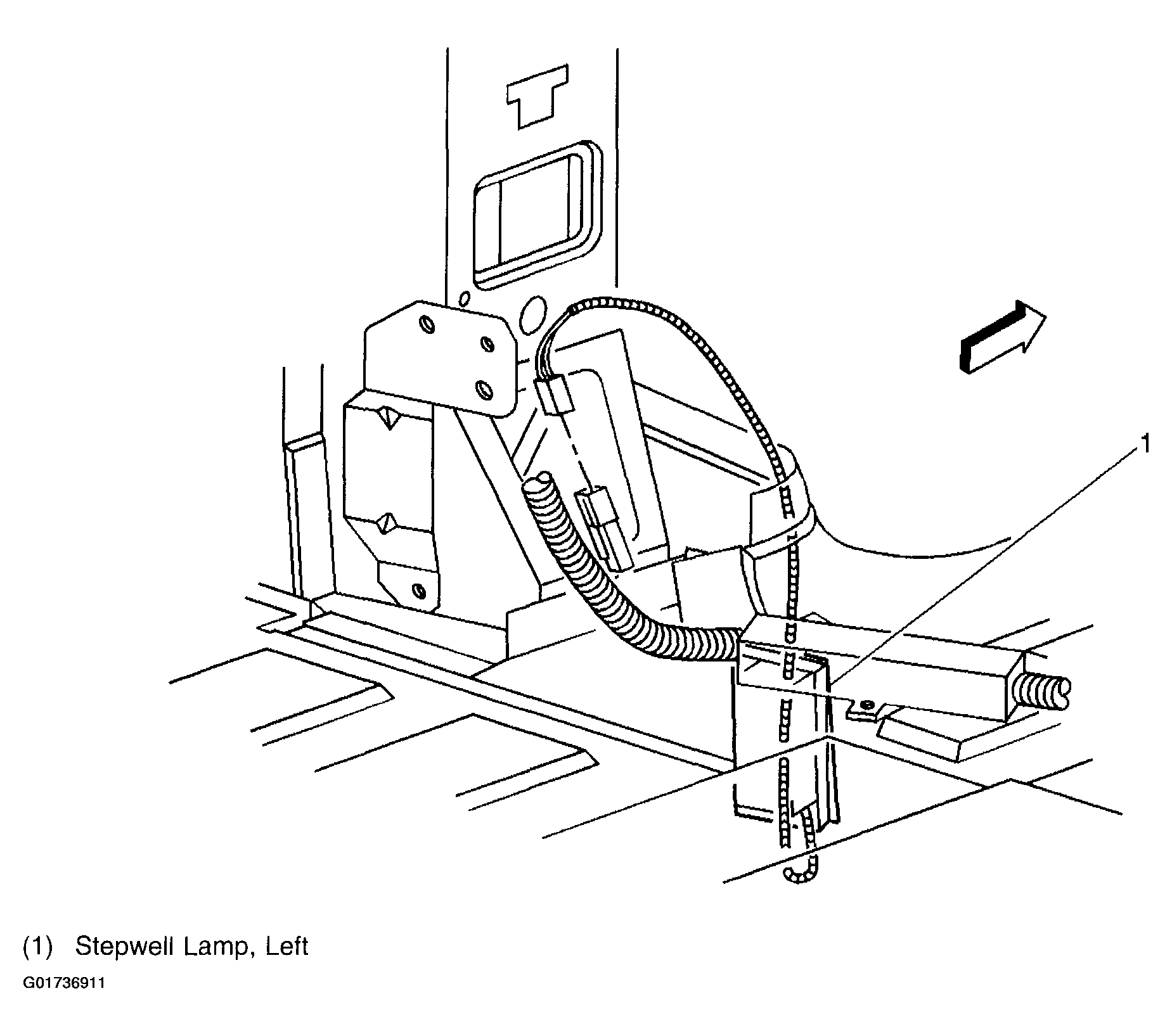

Fig 11: Identifying Stepwell Lamp, Left Component View

Courtesy of GENERAL MOTORS CORP.

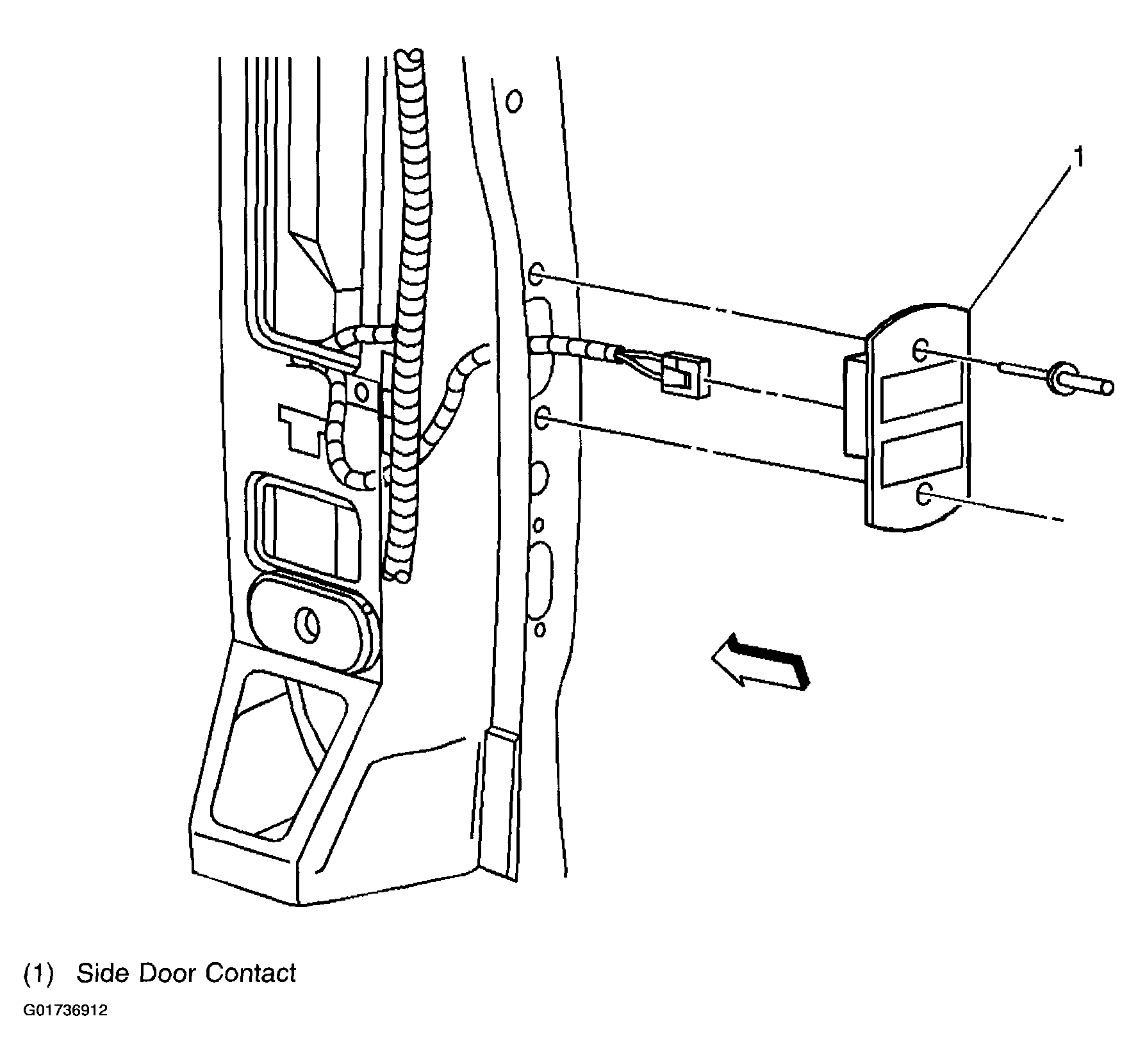

Fig 12: Identifying Side Door Contact Component View

Courtesy of GENERAL MOTORS CORP.

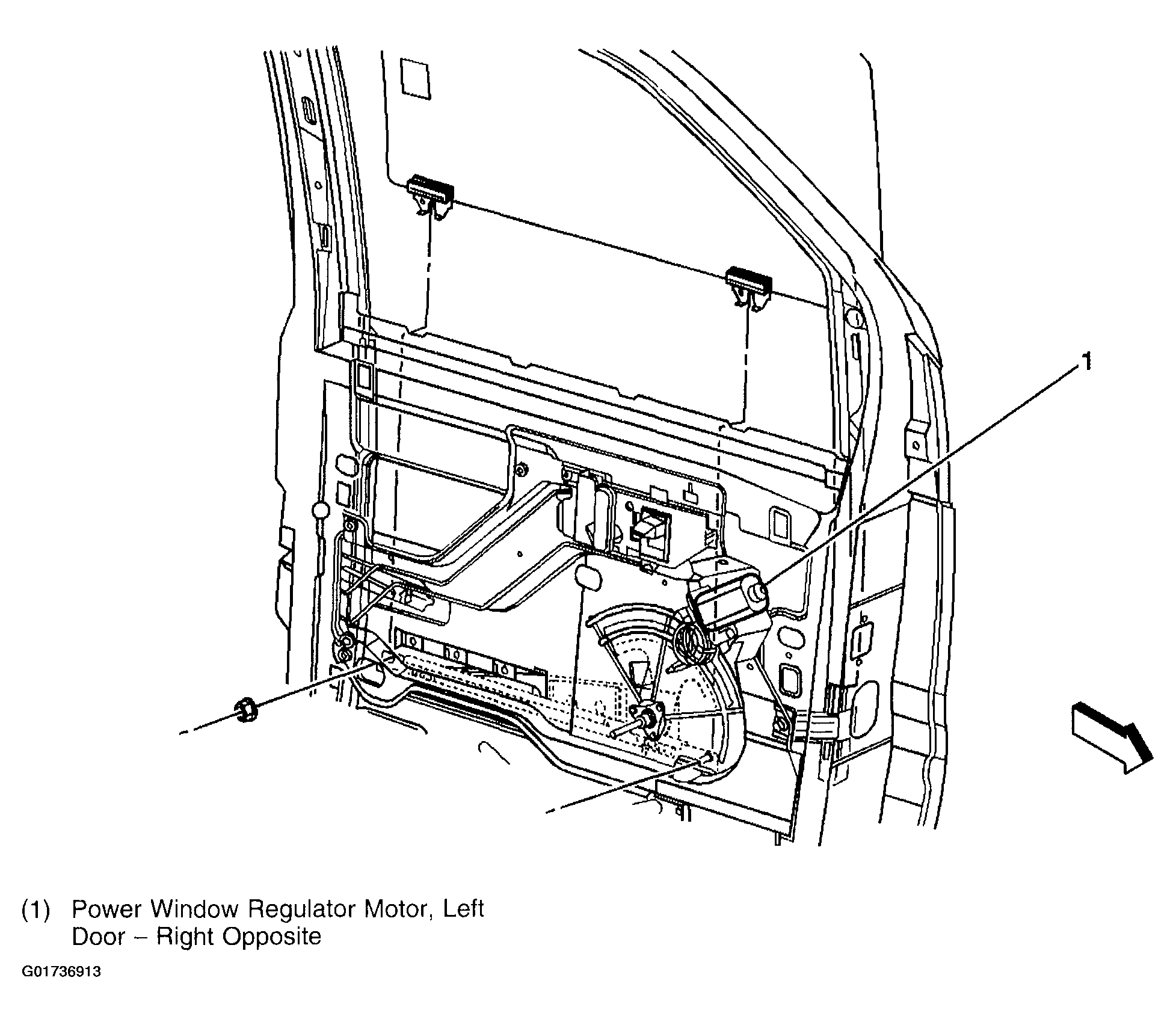

Fig 13: Identifying Power Window Regulator Motor Component View

Courtesy of GENERAL MOTORS CORP.

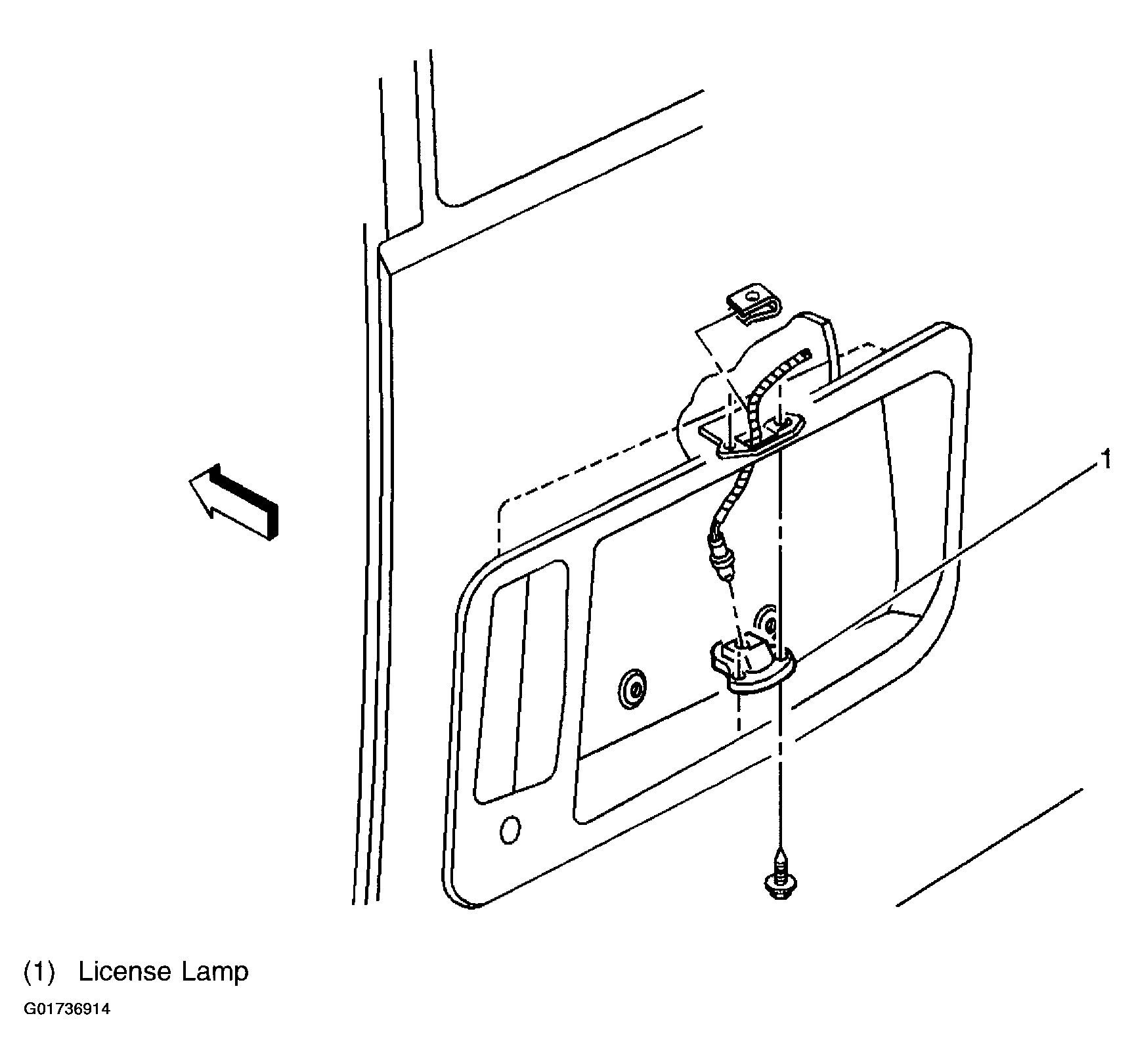

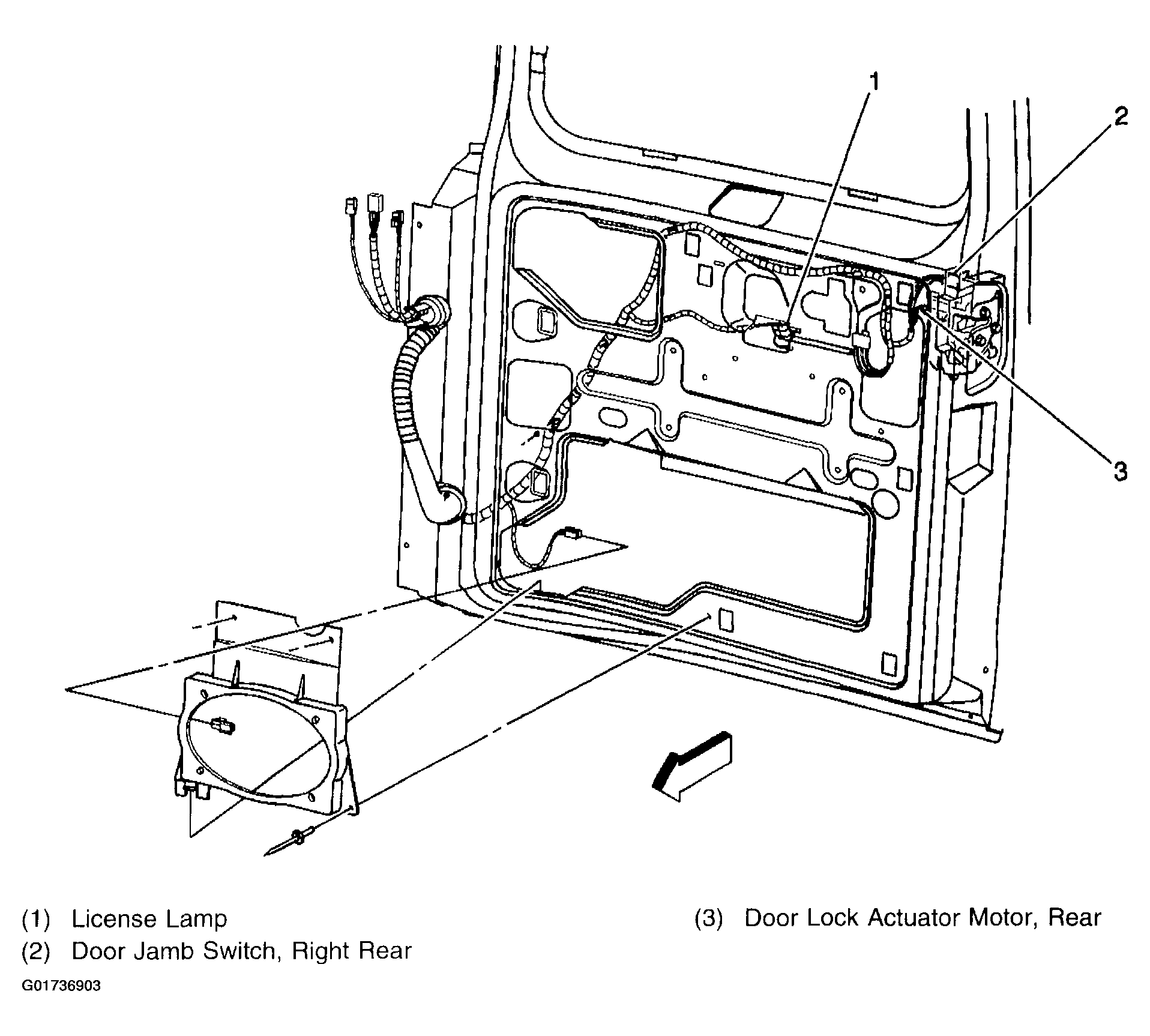

Fig 14: Identifying License Lamp Component View

Courtesy of GENERAL MOTORS CORP.
