Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear run channel (1) to the door.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the bolt (2) in order to retain the rear run channel (1) to the door. Tighten the retaining bolt to 11 N.m (97 lb in).
  3. Install the front door window to the door from the outside of the vehicle.

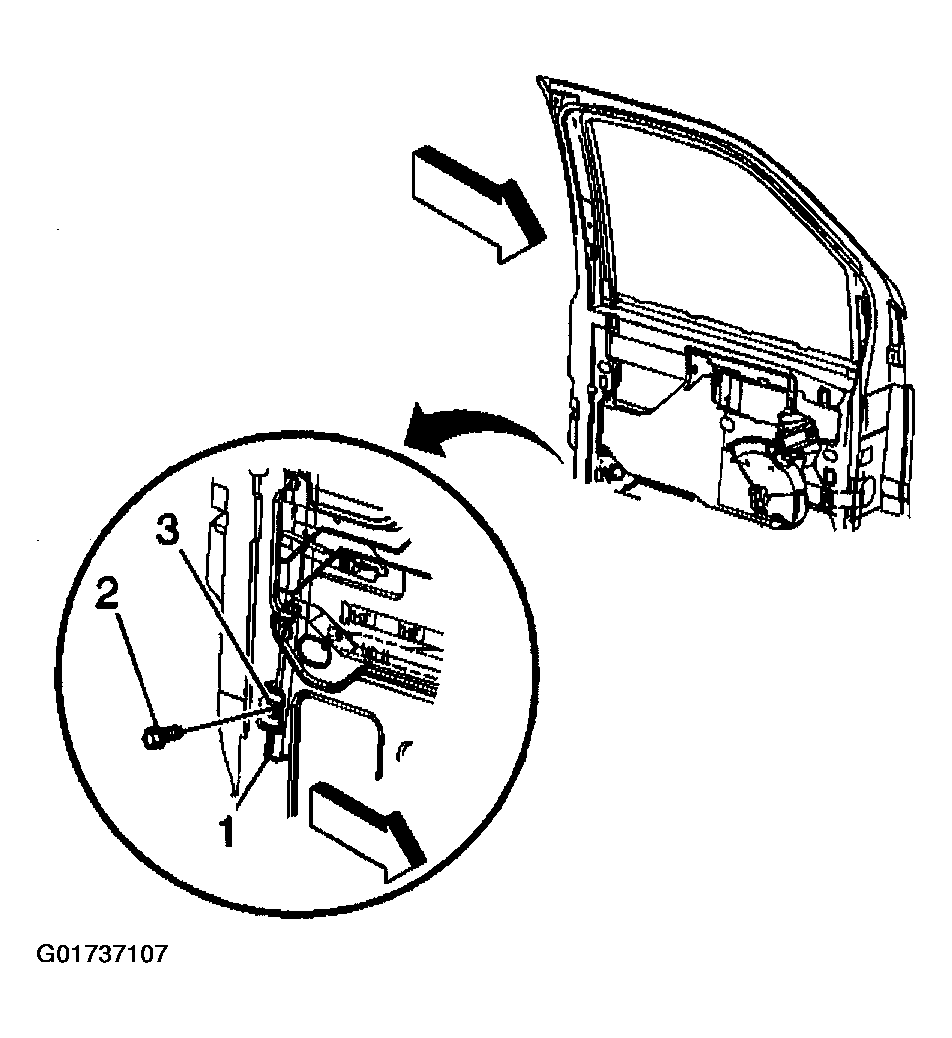

    Fig 1: Installing Rear Run Channel
    G01737107Courtesy of GENERAL MOTORS CORP.
  4. Install the nuts (3) in order to retain the front door window to the sash. Tighten the retaining nuts to 11 N.m (97 lb in).

    Important:  Before raising or lowering the front door window ensure that the front door window is properly aligned in the rear run channel.

  5. Lower the front door window.
  6. Install the front run channel (1) to the door.
  7. Install the bolt (2) in order to retain the front run channel (1) to the door. Tighten the retaining bolt to 11 N.m (97 lb in).
  8. Install the inner window sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .

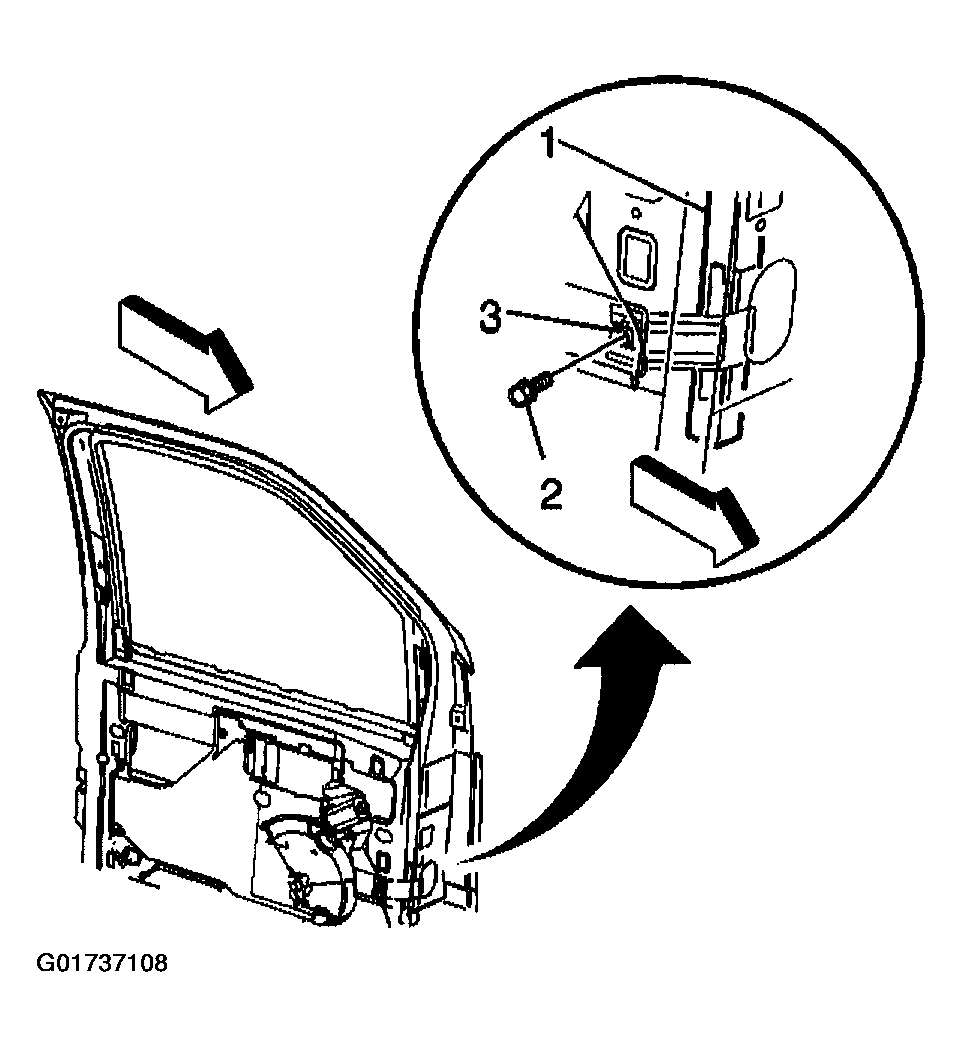

    Fig 2: Installing Front Run Channel
    G01737108Courtesy of GENERAL MOTORS CORP.
  9. Install the outer window sealing strip. Refer to Sealing Strip Replacement - Outer Belt .
  10. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  11. Install the front door rear garnish. Refer to Garnish Molding Replacement - Front Door Rear .
  12. Install the front door trim panel. Refer to Trim Panel Replacement - Door .
