Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

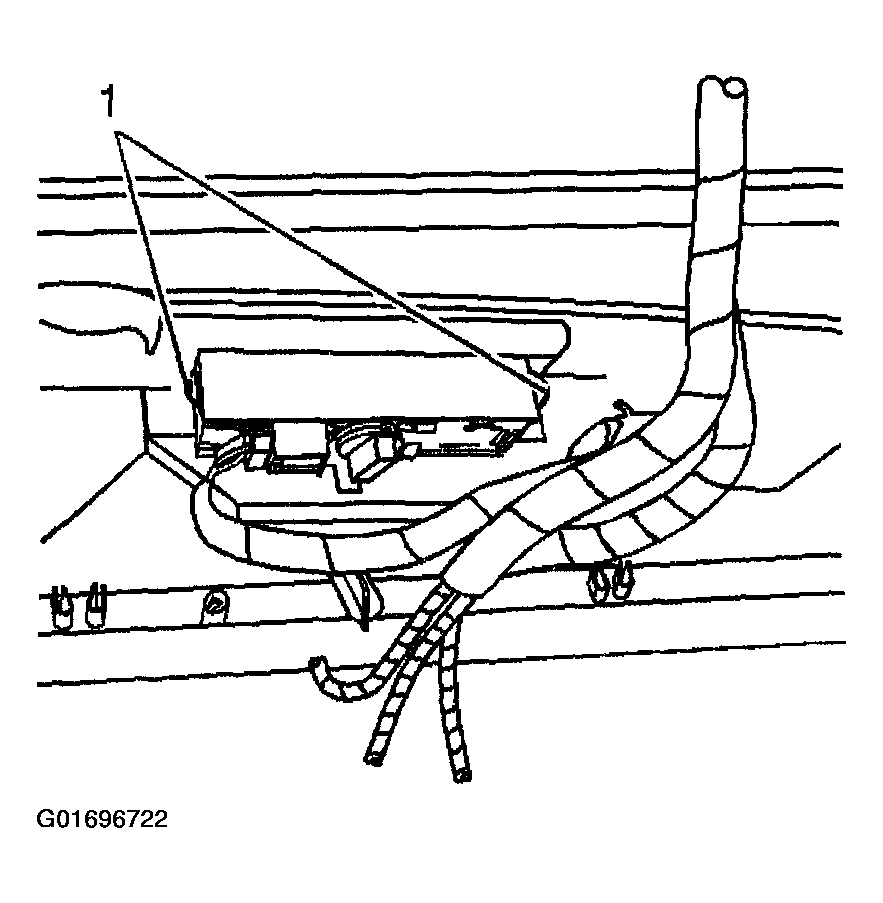

Fig 1: Console Lamp
G01696722Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb by turning clockwise.
  2. Connect the electrical connector to the lamp.
  3. Push in the lamp assembly until the tabs (1) are fully seated.
  4. Install the console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT .
