Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head lamp leveling switch into accessary switch housing.

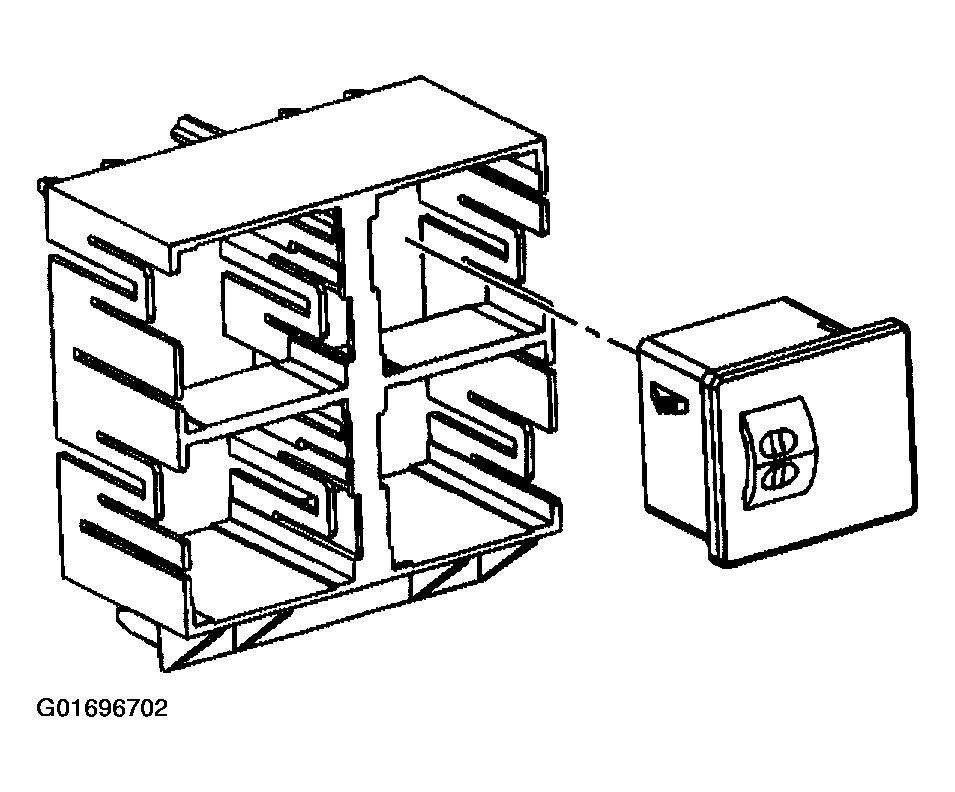

    2. Fig 1: Installing Head Lamp Leveling Switch
    G01696702Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install the accessary switch housing.
  4. Install the instrument panel bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER .
