Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.

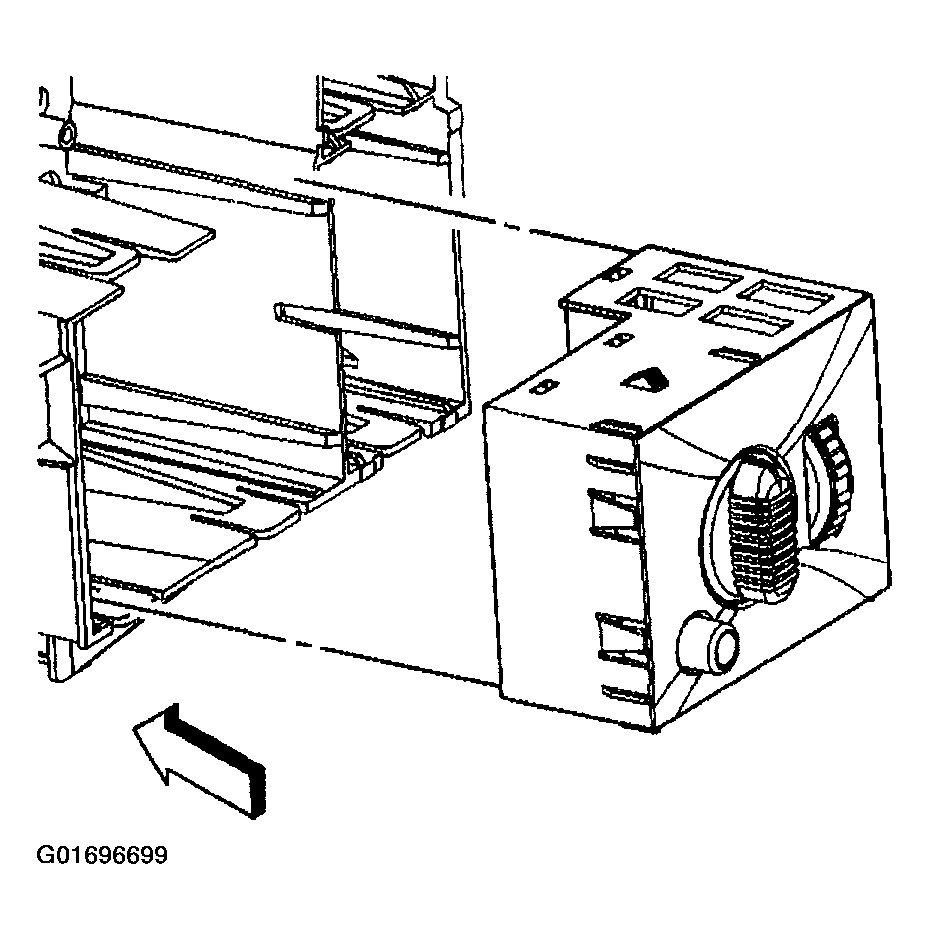

    2. Fig 1: Headlamp Switch
    G01696699Courtesy of GENERAL MOTORS CORP.
  2. Install the headlamp switch by snapping the headlamps switch into place.

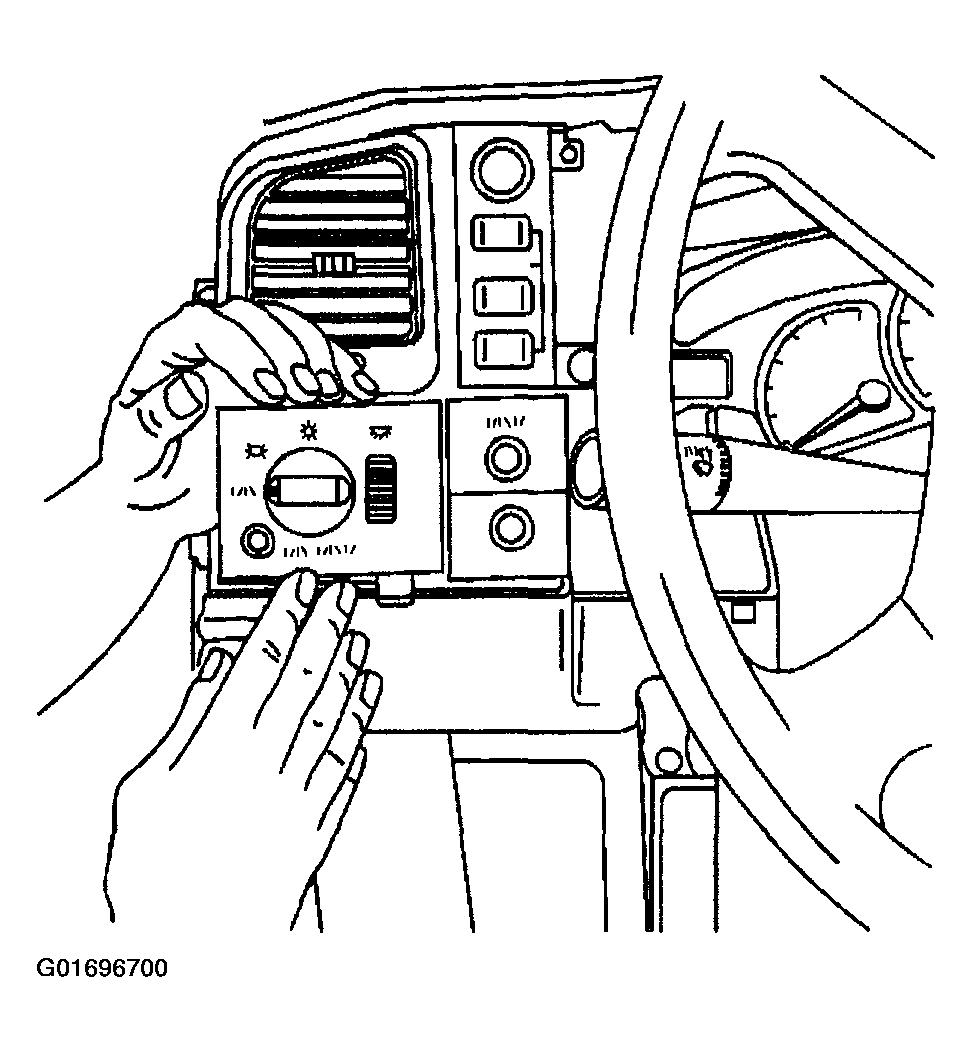

    3. Fig 2: Installing Headlamp Switch
    G01696700Courtesy of GENERAL MOTORS CORP.
  3. Install the bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
