Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not grab or pull on the CD storage door when removing the trim bezel.

Remove the screws securing the trim bezel to the console extension.
Protect the console extension from damage then carefully use a small prying device to push in the tabs underneath the trim bezel securing the top of the trim bezel.
Remove the trim bezel.
To remove the bezel on the luxury console, refer to BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY) .

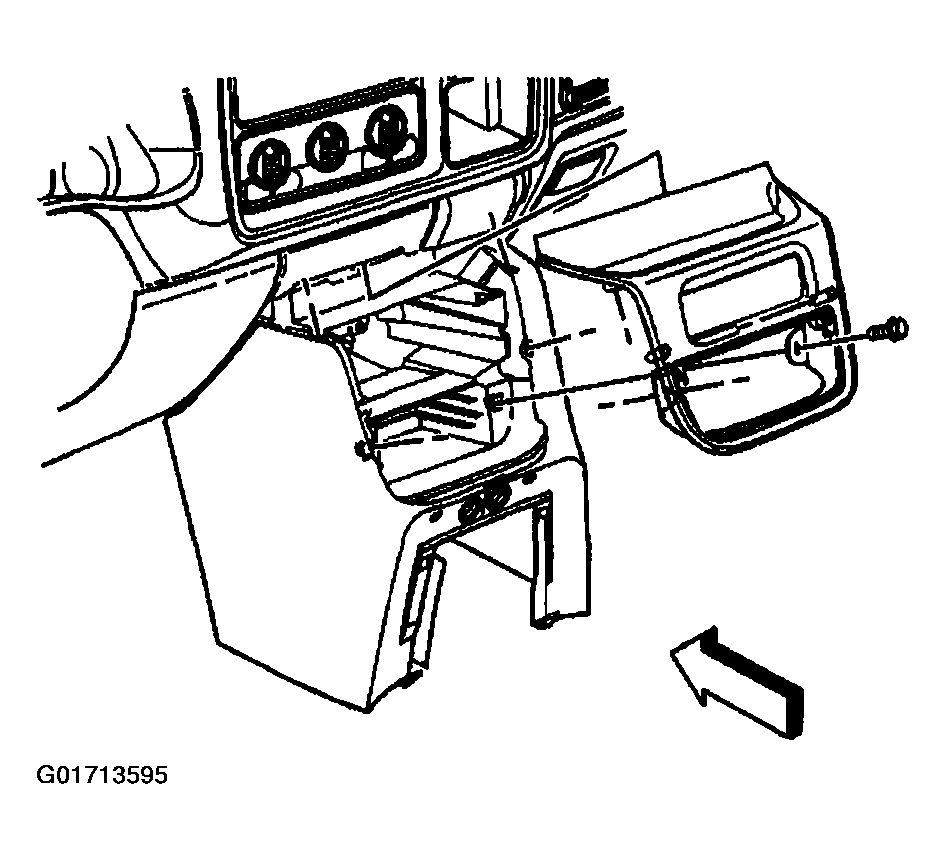

Fig 1: Trim Bezel
Courtesy of GENERAL MOTORS CORP.
Use a small screwdriver in order to release the CD player retainers.
Slide the CD player out.
Disconnect the electrical connector.

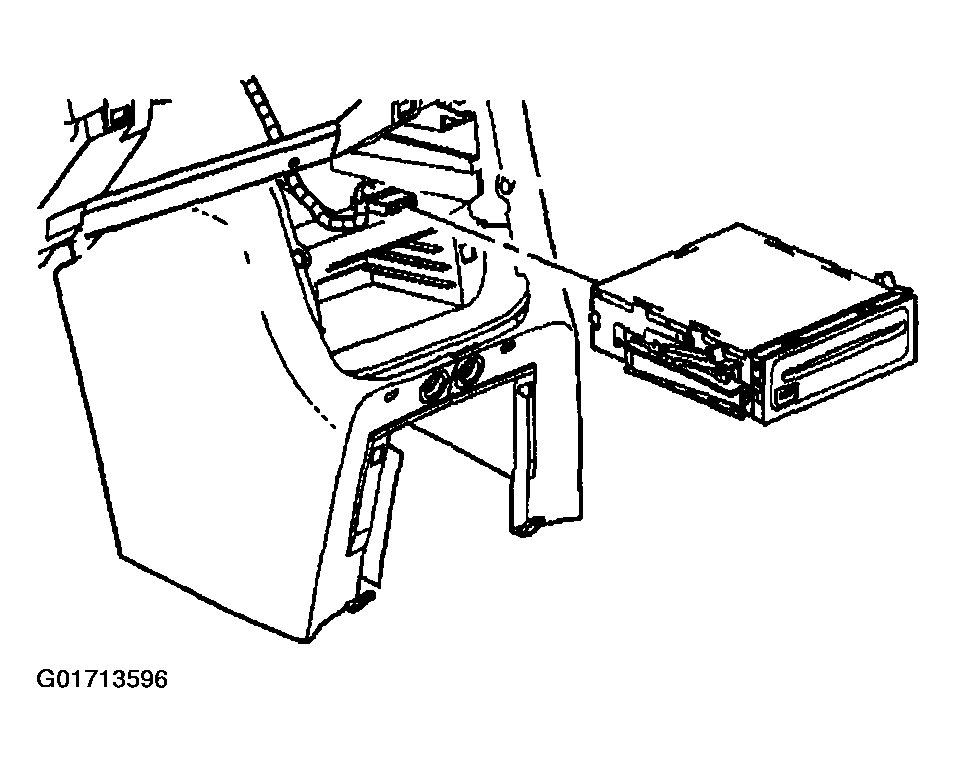

Fig 2: CD Player
Courtesy of GENERAL MOTORS CORP.
