Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear door window assembly to the down position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Disengage the glass sash regulator (2) from the rear side door window (1).
  5. Remove the door window frame applique. Refer to Door Frame Applique Replacement-Rear .

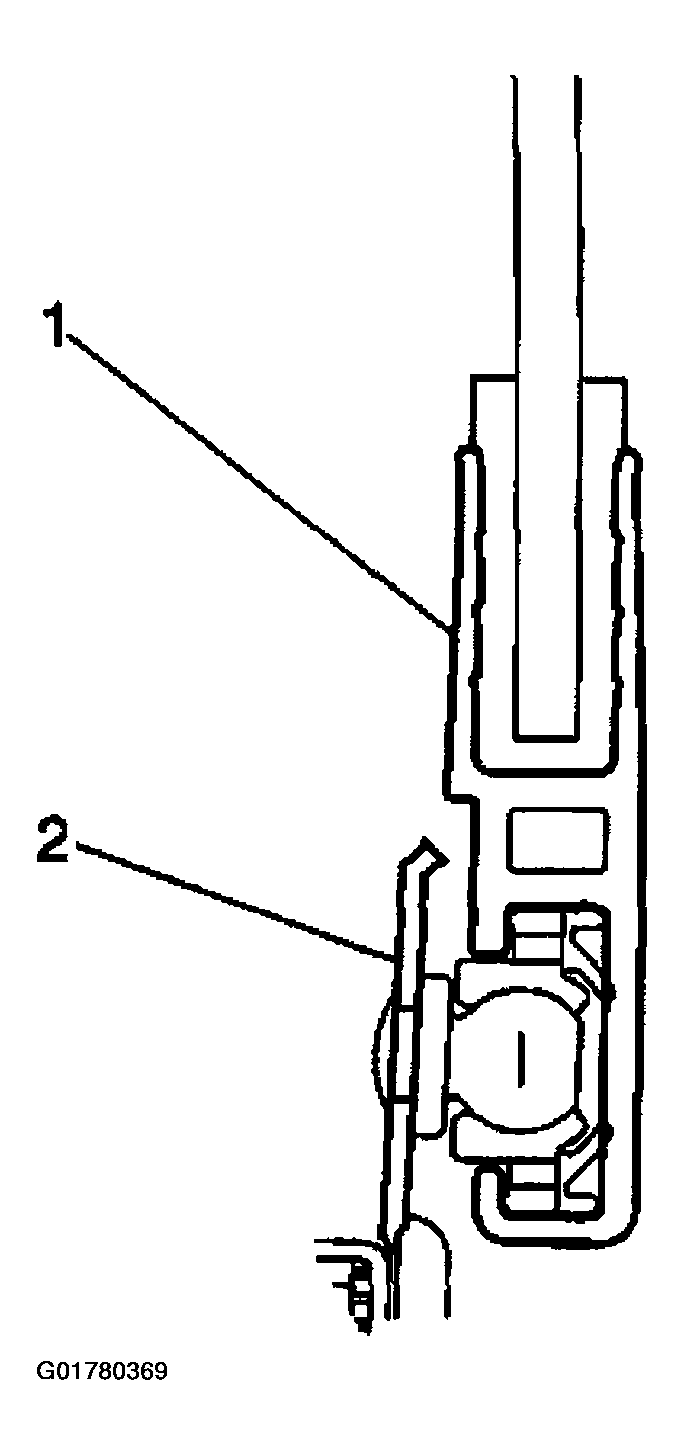

    Fig 1: Disengaging Glass Sash Regulator
    G01780369Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear side door window (1).

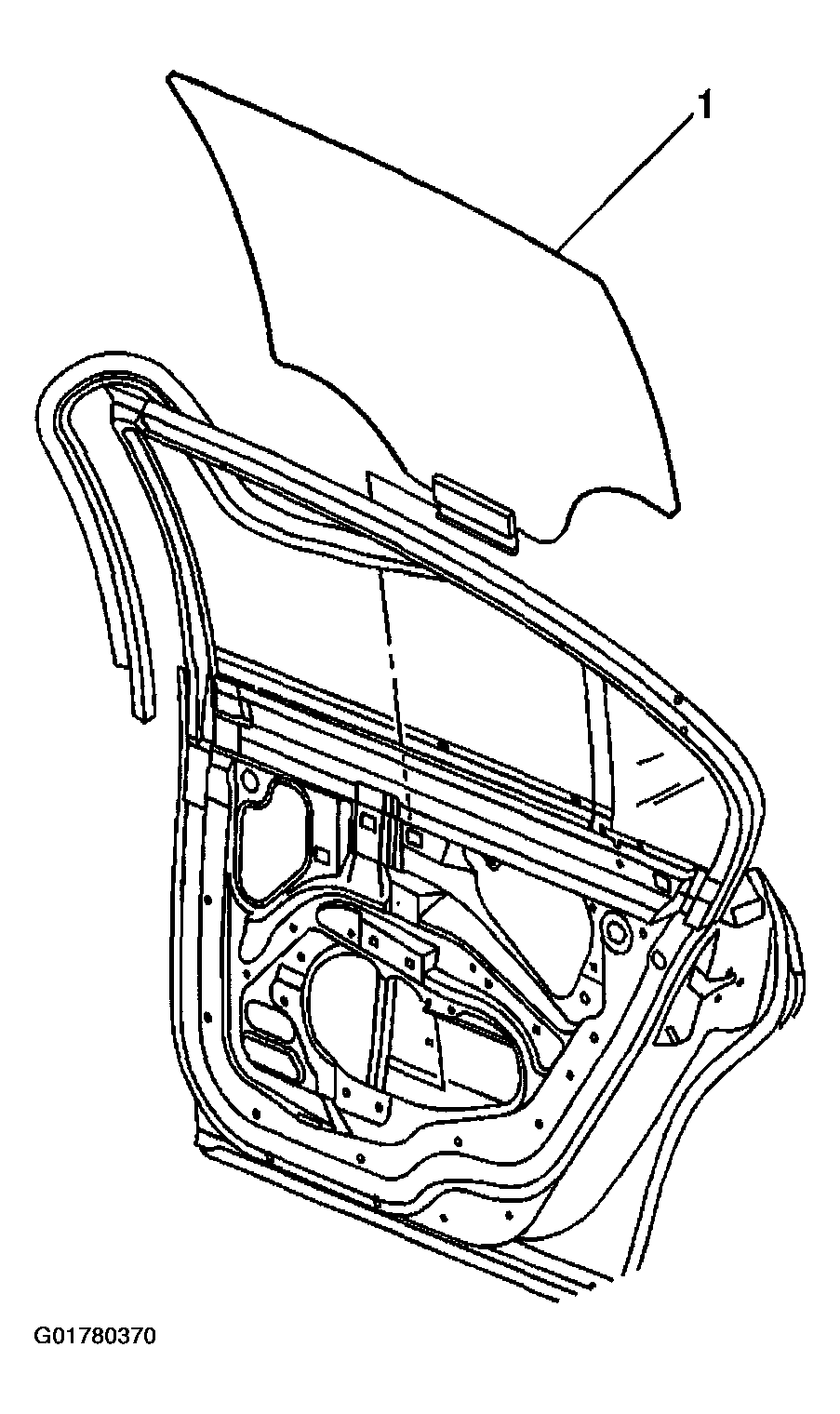

    Fig 2: Removing Rear Side Door Window
    G01780370Courtesy of GENERAL MOTORS CORP.
