Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (3) to the remote cassette player (2).
Install the remote cassette player (2) to the instrument panel (1).
CAUTION: Refer to FASTENER NOTICE .

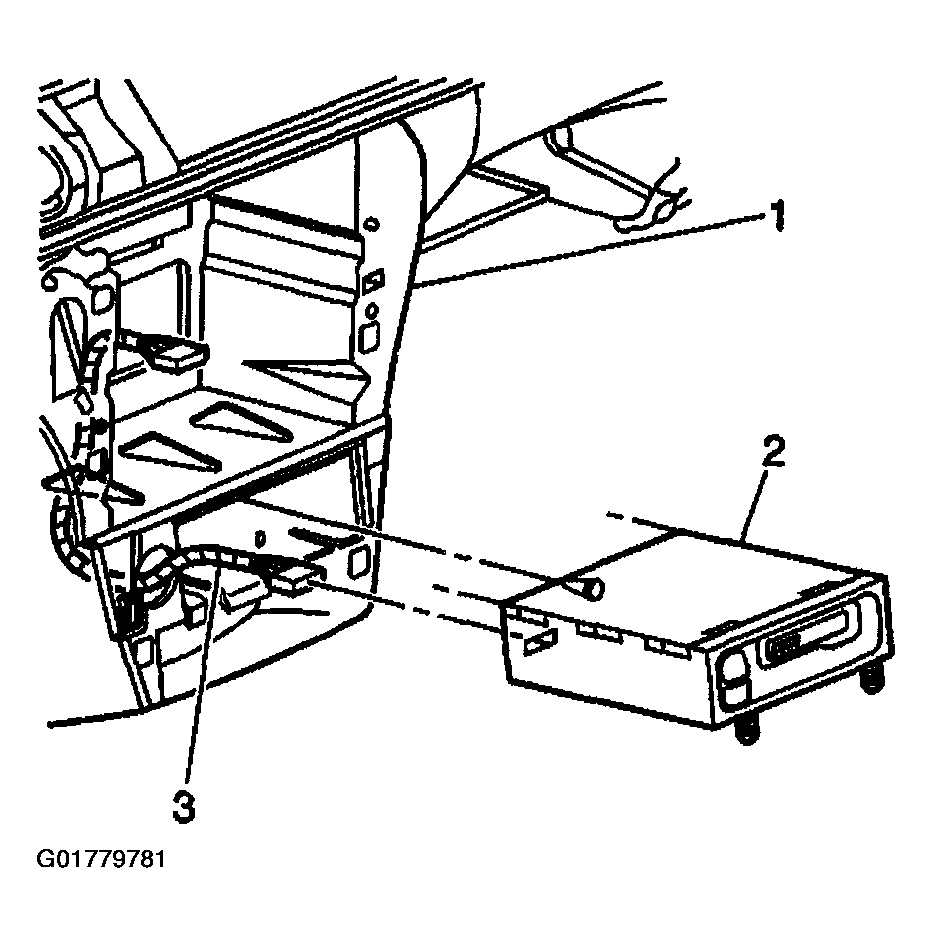

Fig 1: Installing Remote Cassette Player
Courtesy of GENERAL MOTORS CORP.
Install the remote cassette player nuts (2) to the remote cassette player (1).
Tighten

Tighten the nuts to 3 N.m (27 lb in).
Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- IP ACCESSORY .

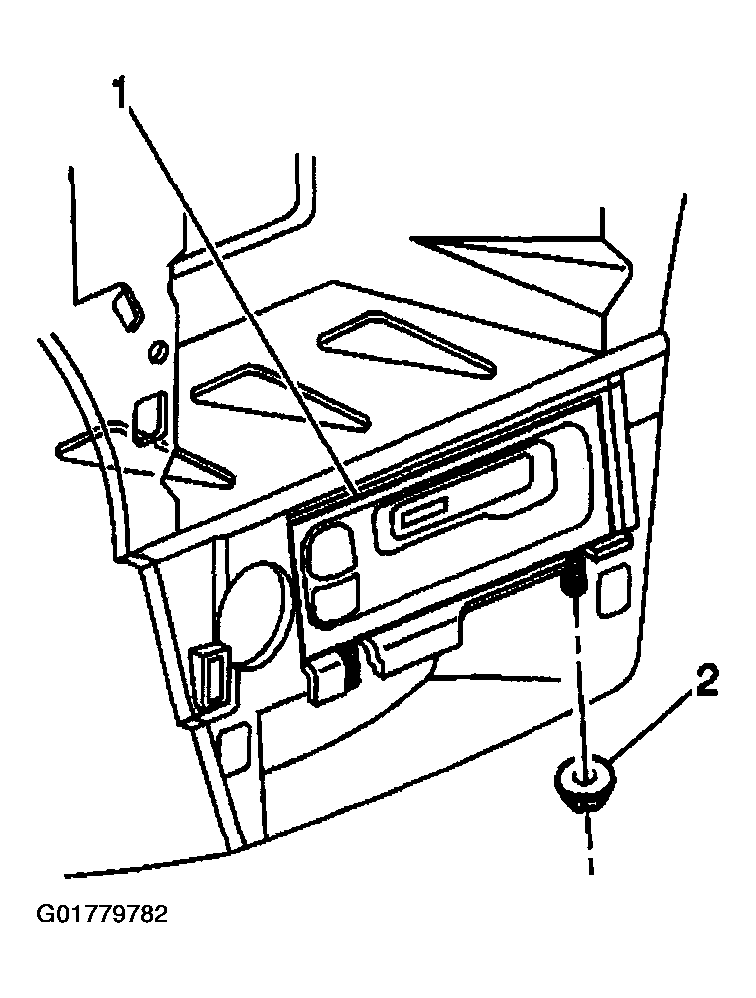

Fig 2: Installing Remote Cassette Player Nuts
Courtesy of GENERAL MOTORS CORP.
