Climate Control Unit Removal

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Ashtray panel. See CONSOLE REMOVAL/INSTALLATION .
    2. Detach the hood release lever from the lower panel. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
    3. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    4. Front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    5. Lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
    6. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    7. Glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
    8. PJB and PJB bracket. See FUSES & CIRCUIT BREAKERS .
  3. Detach the PJB wiring harness clamp from the dashboard.
  4. Remove the center panel module. See INTERIOR TRIM .
  5. Remove the air mix wire and airflow mode wire from the A/C unit.
  6. Release the left and right tabs and remove in the order indicated in the figure.

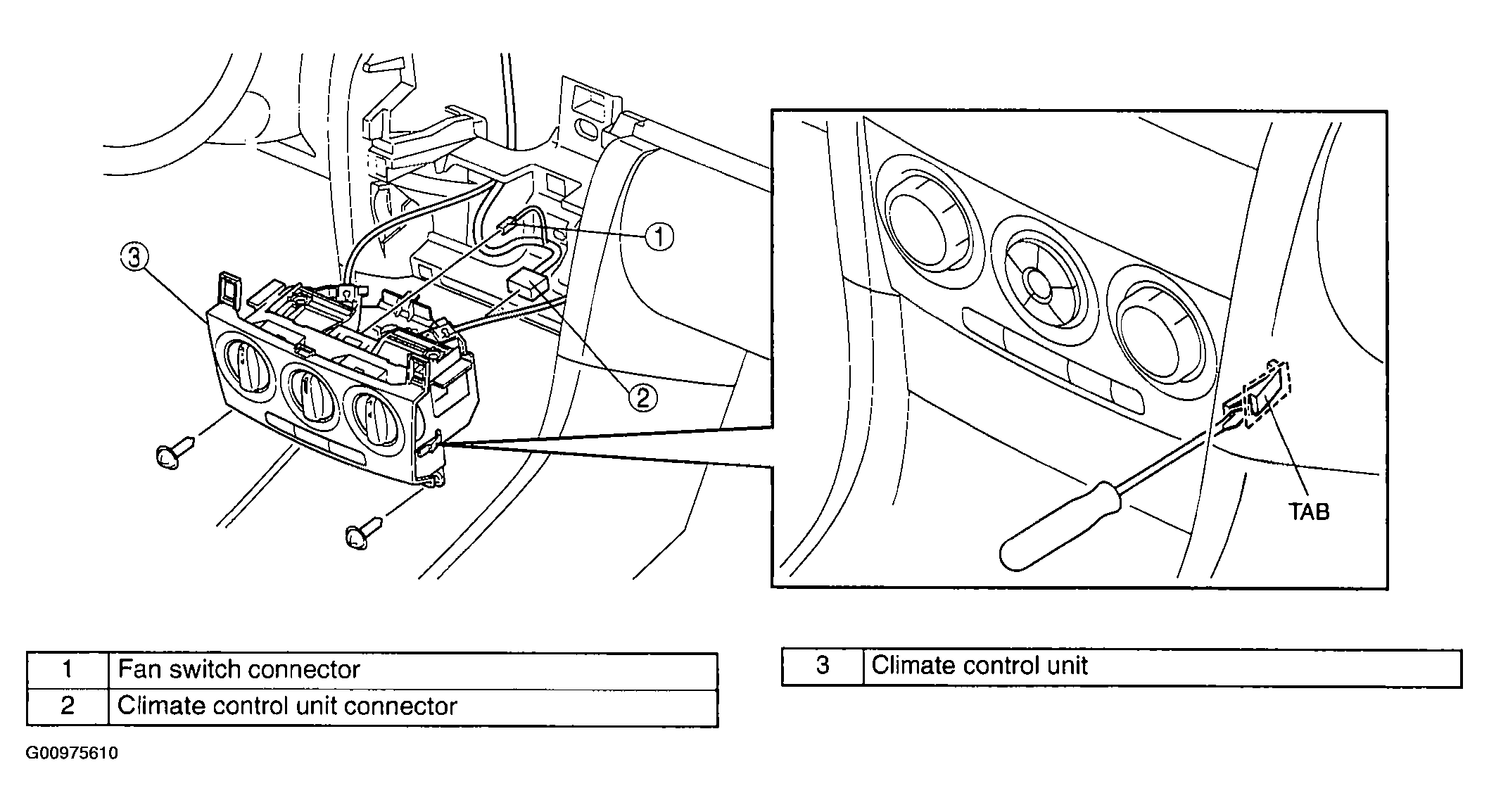

    Fig 1: Removing Climate Control Unit
    G00975610Courtesy of MAZDA MOTORS CORP.
