Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar switch to the power seat switch bezel.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lumbar switch screws.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).
  3. Install the power seat switch bezel (1) to the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

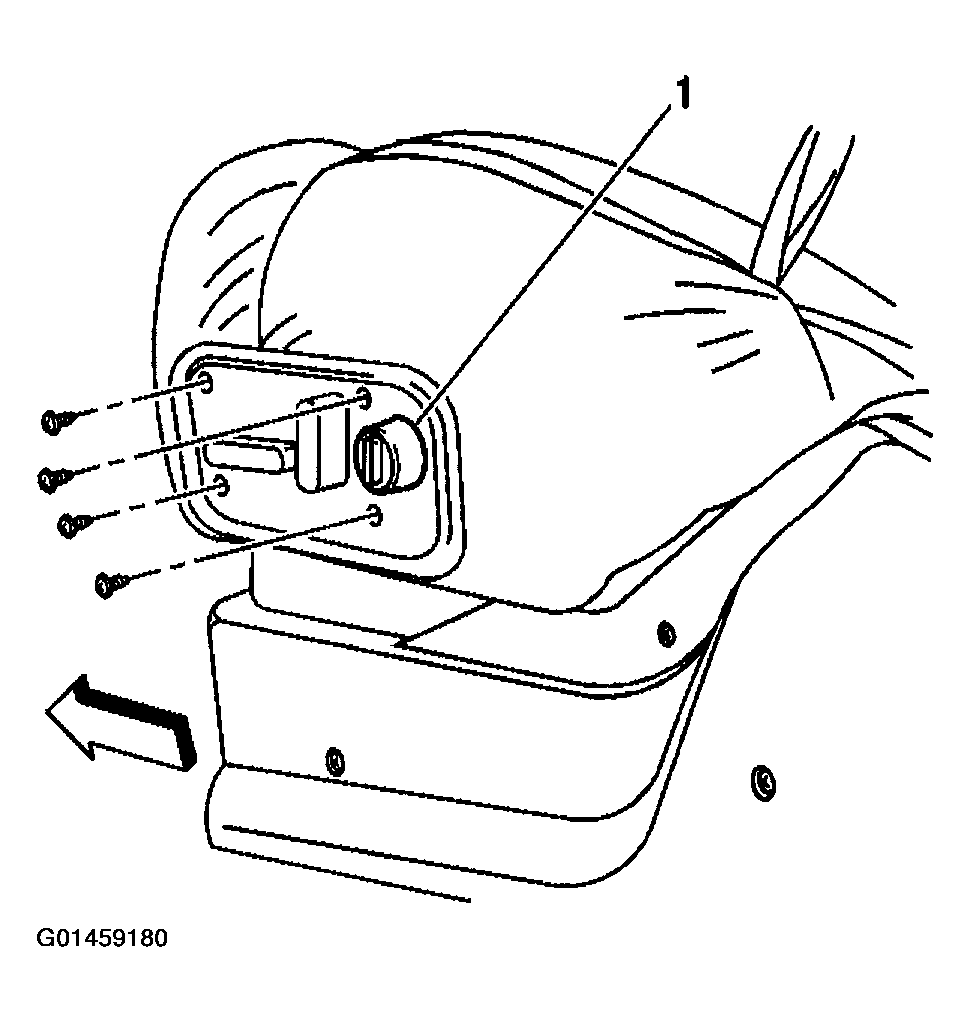

    Fig 1: Installing Lumbar Switch Screws
    G01459180Courtesy of GENERAL MOTORS CORP.
