Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp (3) to the instrument panel upper trim:
    1. Insert the lamp.
    2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .

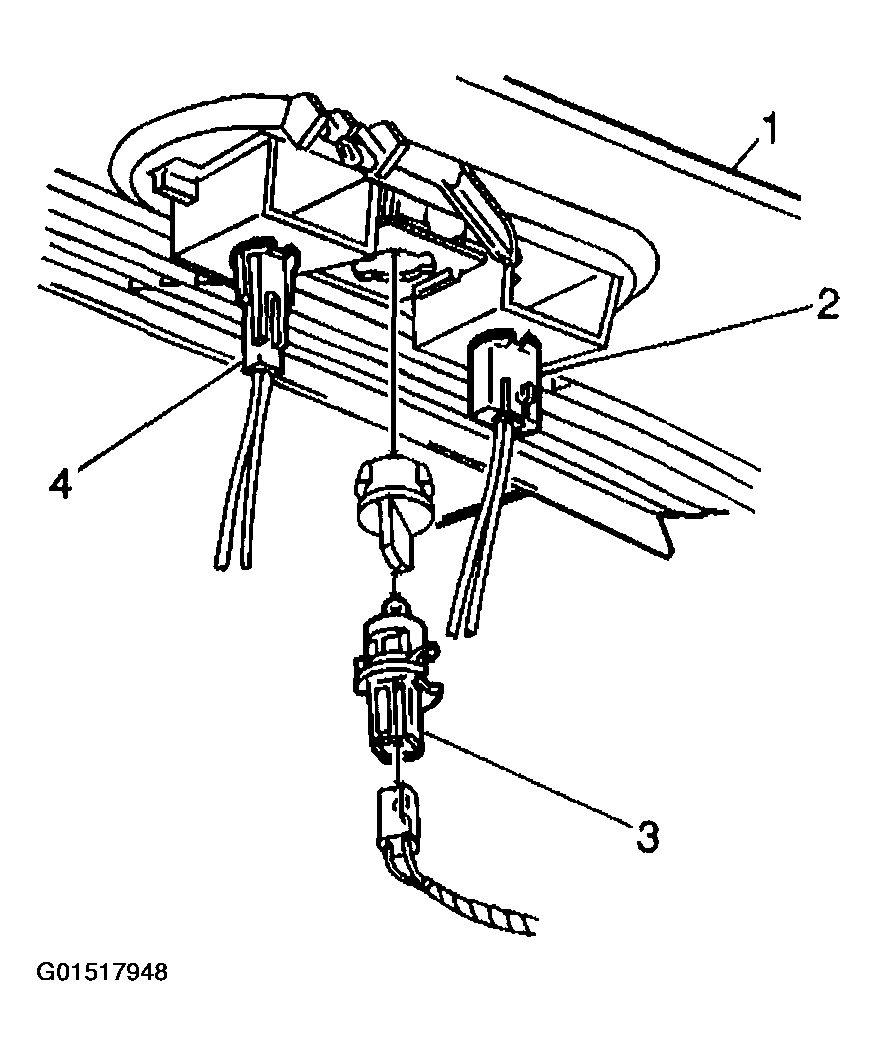

    Fig 1: Connecting Security Indicator Lamp Electrical Connector To Security Indicator Lamp
    G01517948Courtesy of GENERAL MOTORS CORP.
