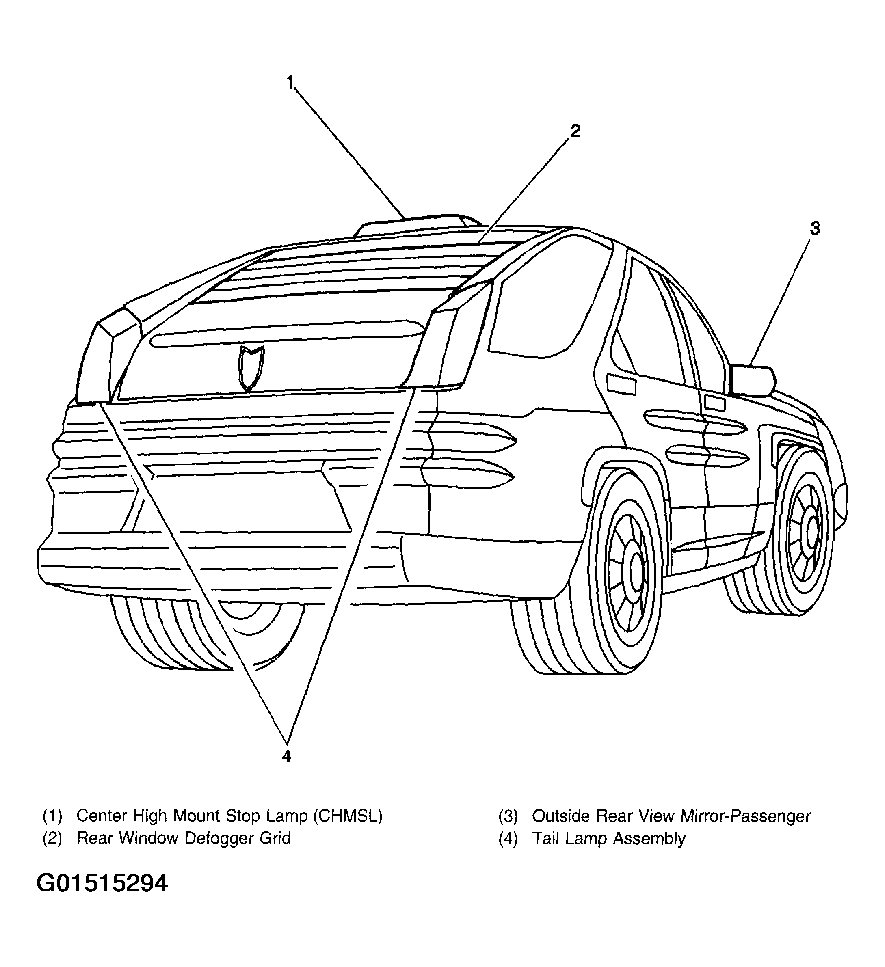

Fig 1: Identifying Rear Lighting System Components - Pontiac
Courtesy of GENERAL MOTORS CORP.

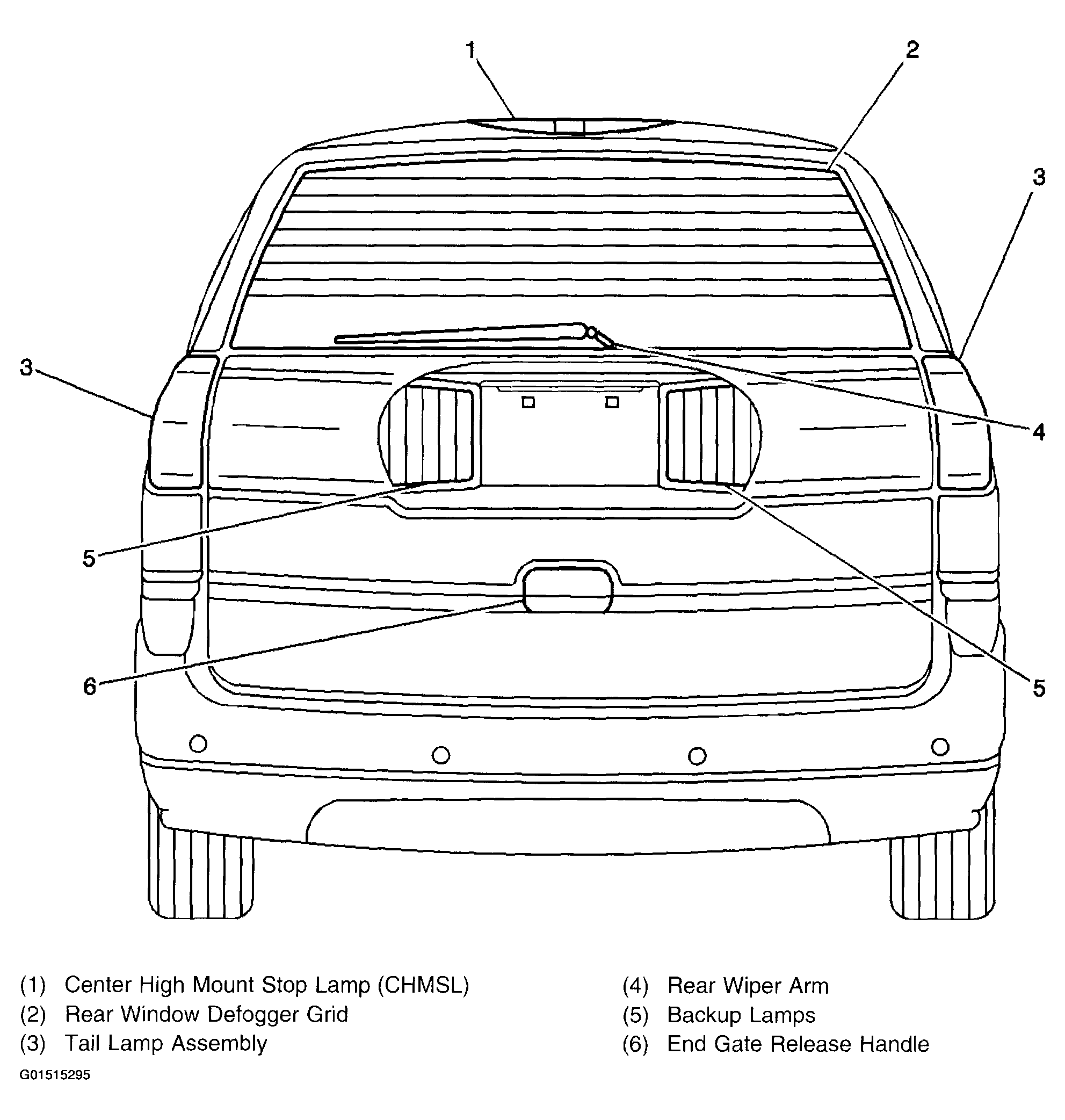

Fig 2: Identifying Rear Lighting System Components - Buick
Courtesy of GENERAL MOTORS CORP.

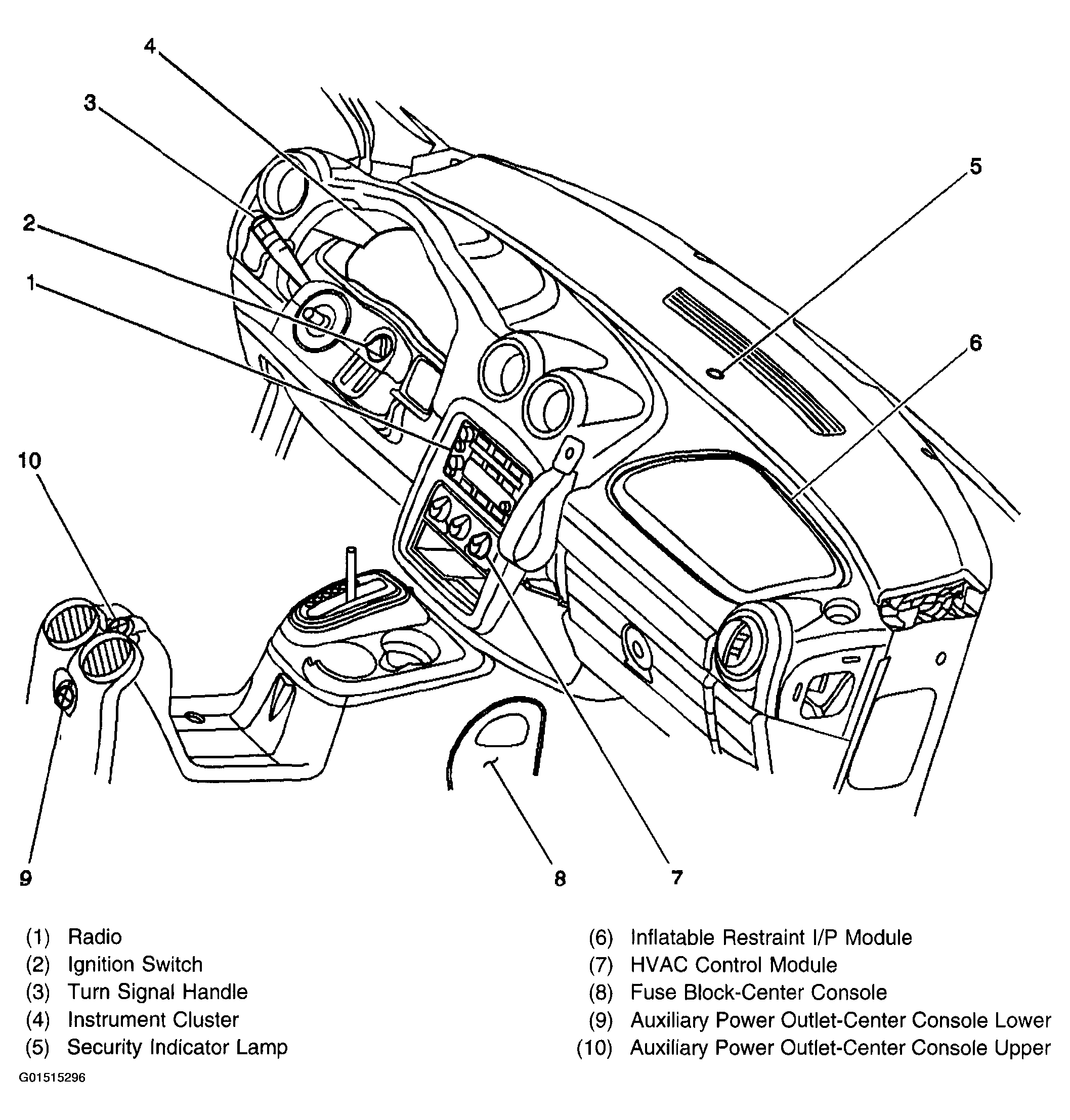

Fig 3: Identifying Instrument Panel & Center Console Lighting System Components - Pontiac
Courtesy of GENERAL MOTORS CORP.

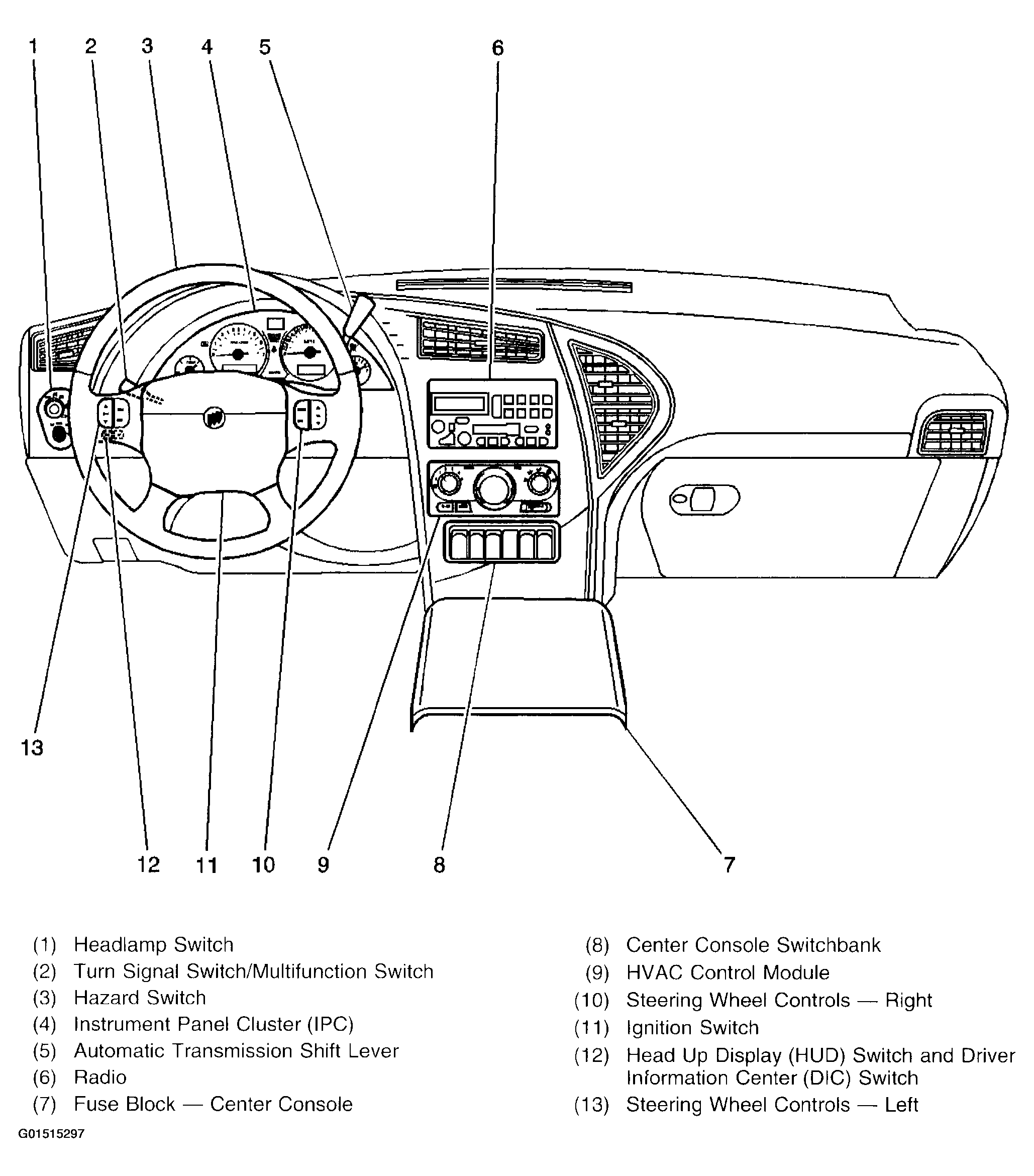

Fig 4: Identifying Instrument Panel Lighting Systems Components - Buick
