Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

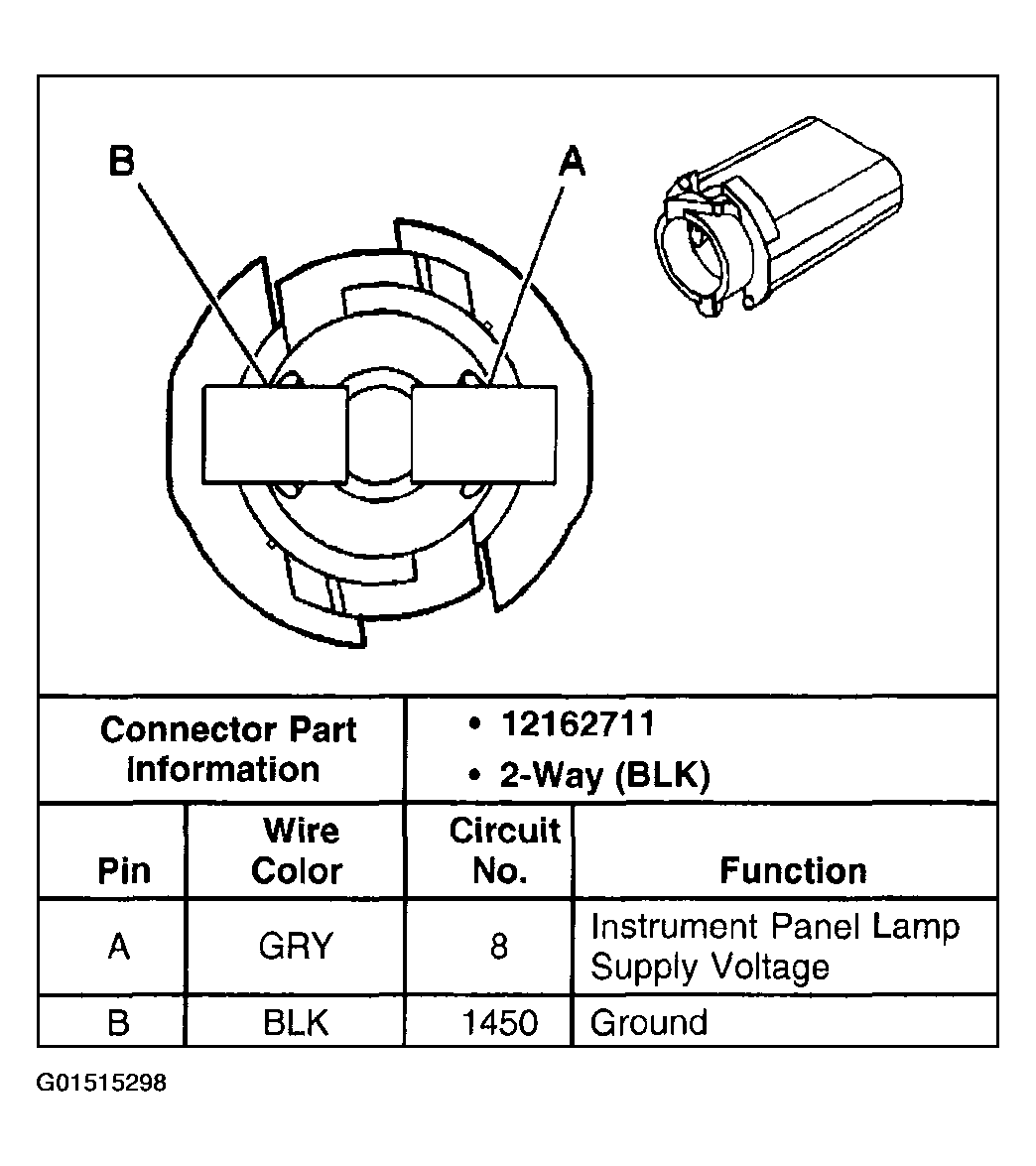

Fig 1: Identifying A/T Shift Lever Position Indicator Lamp Connector Terminals - Pontiac

G01515298

Courtesy of GENERAL MOTORS CORP.

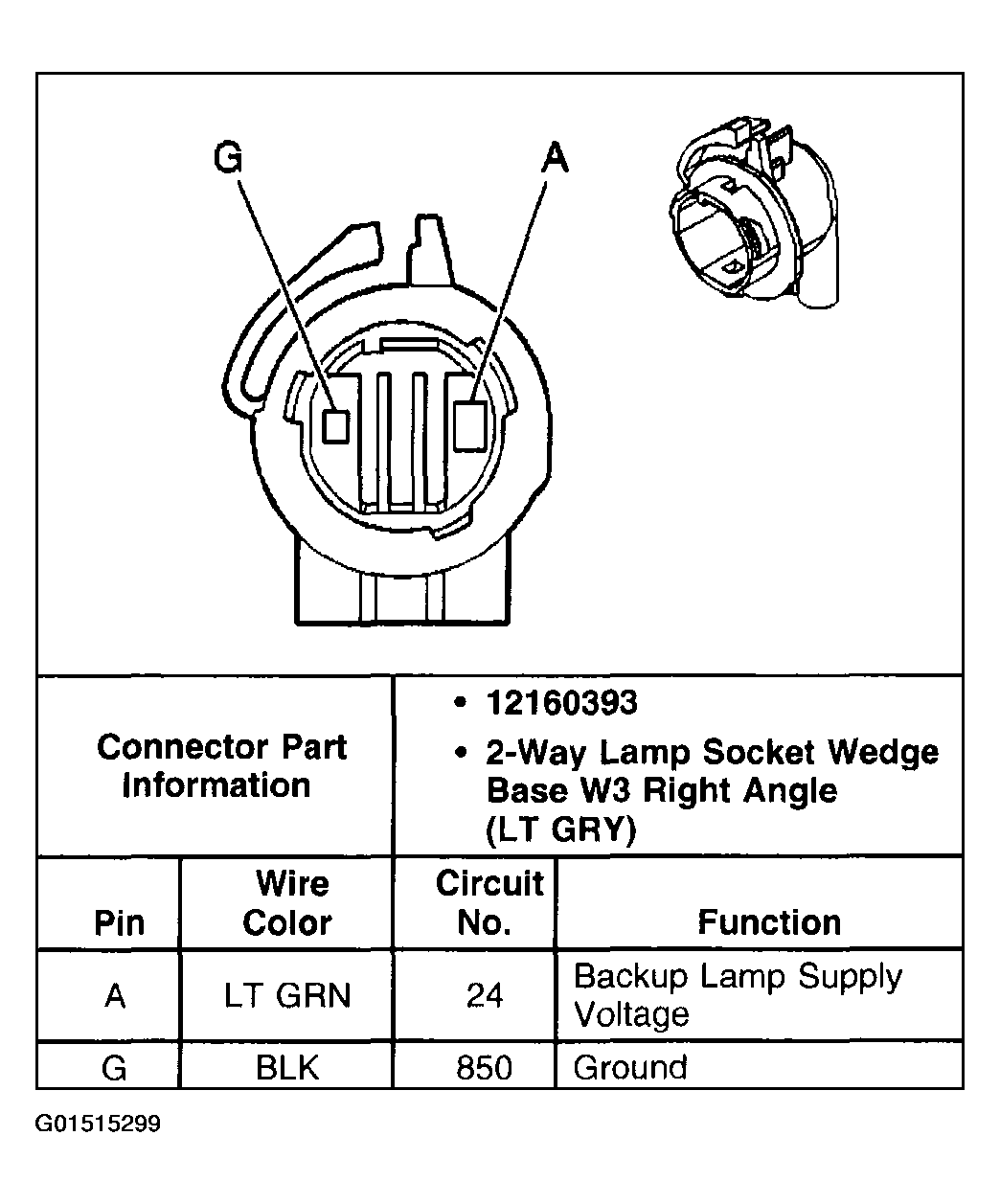

Fig 2: Identifying Left Backup Lamp Connector Terminals - Pontiac

G01515299

Courtesy of GENERAL MOTORS CORP.

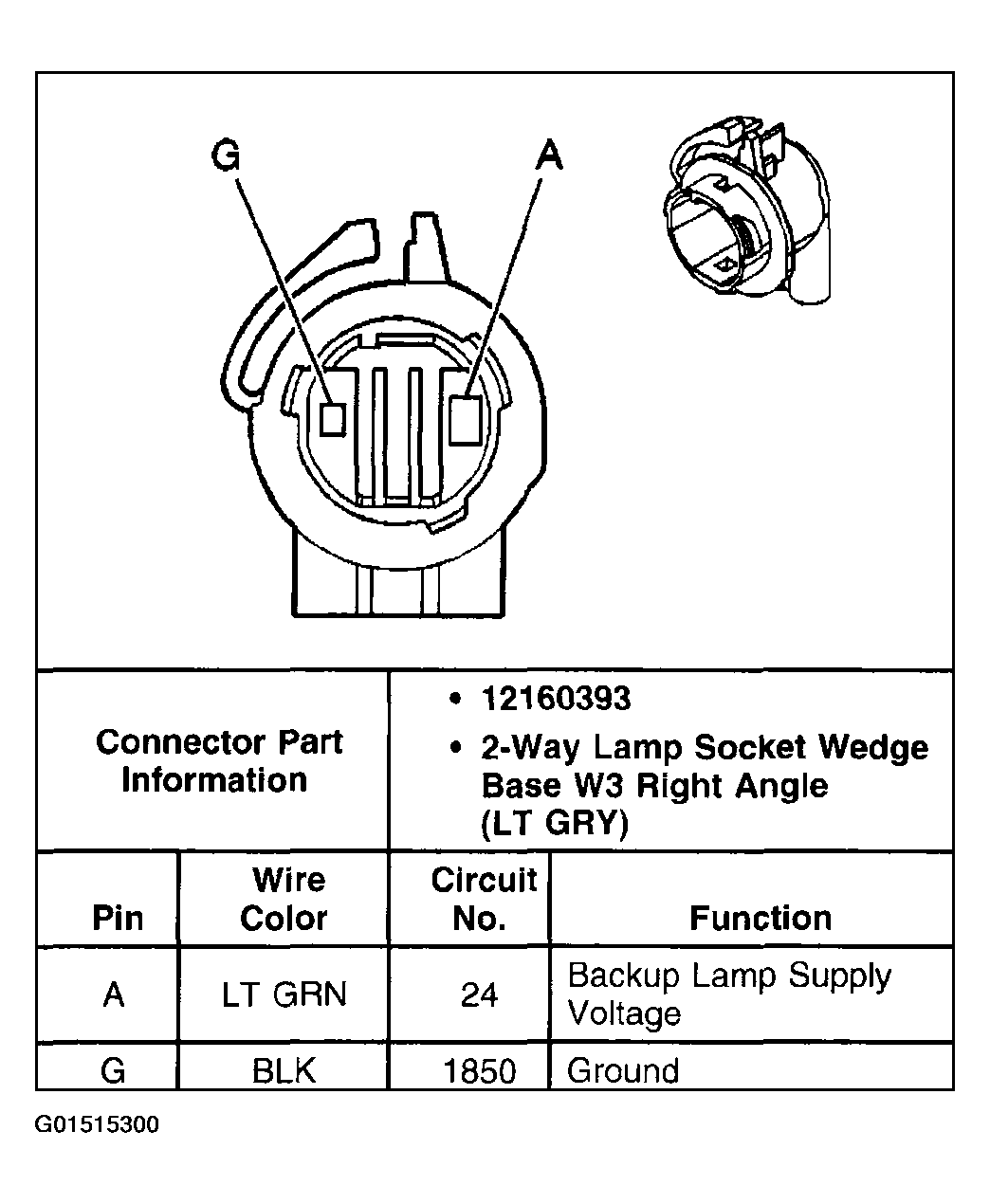

Fig 3: Identifying Right Backup Lamp Connector Terminals - Pontiac

G01515300

Courtesy of GENERAL MOTORS CORP.

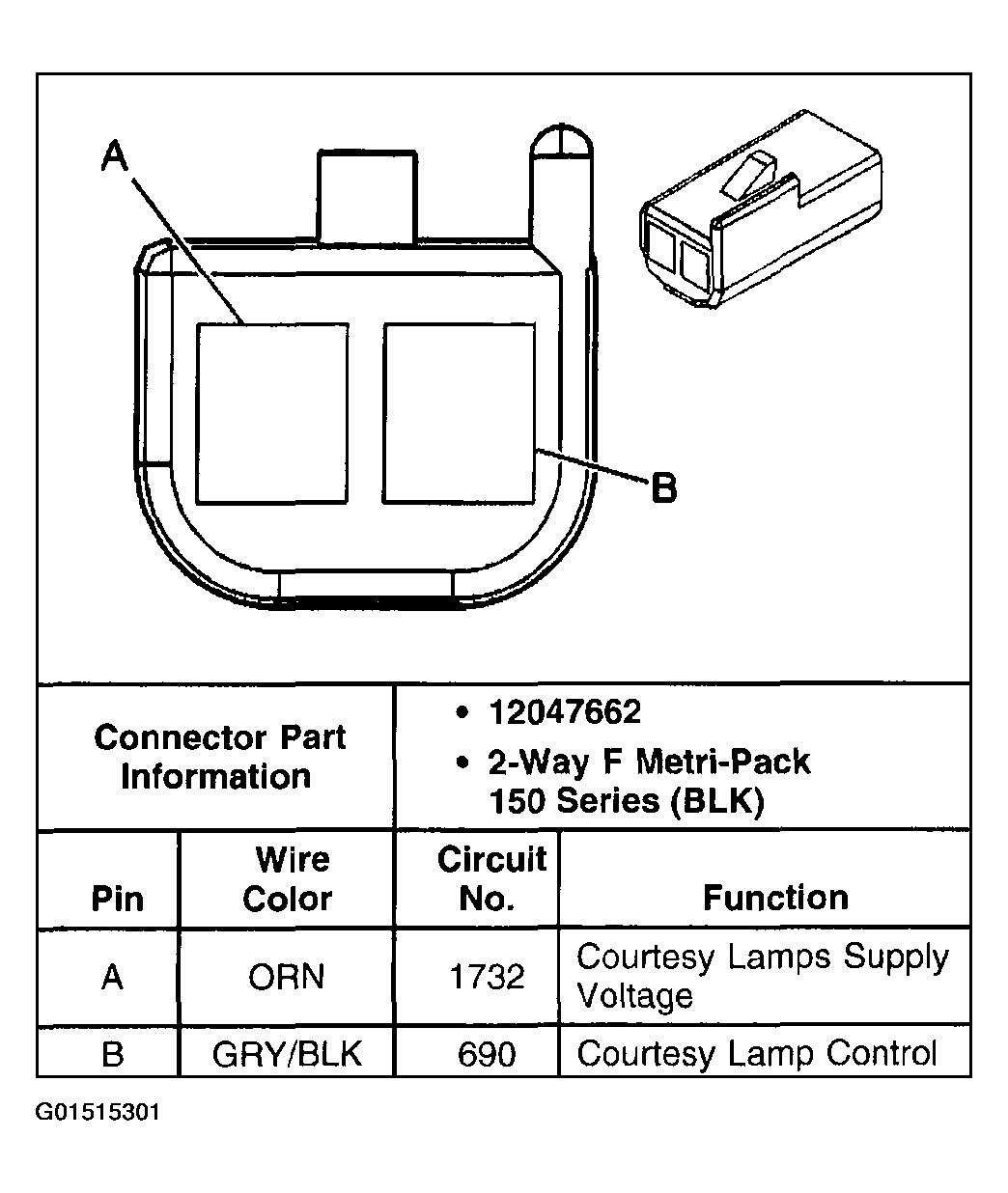

Fig 4: Identifying Cargo Lamp Connector Terminals - Pontiac

G01515301

Courtesy of GENERAL MOTORS CORP.

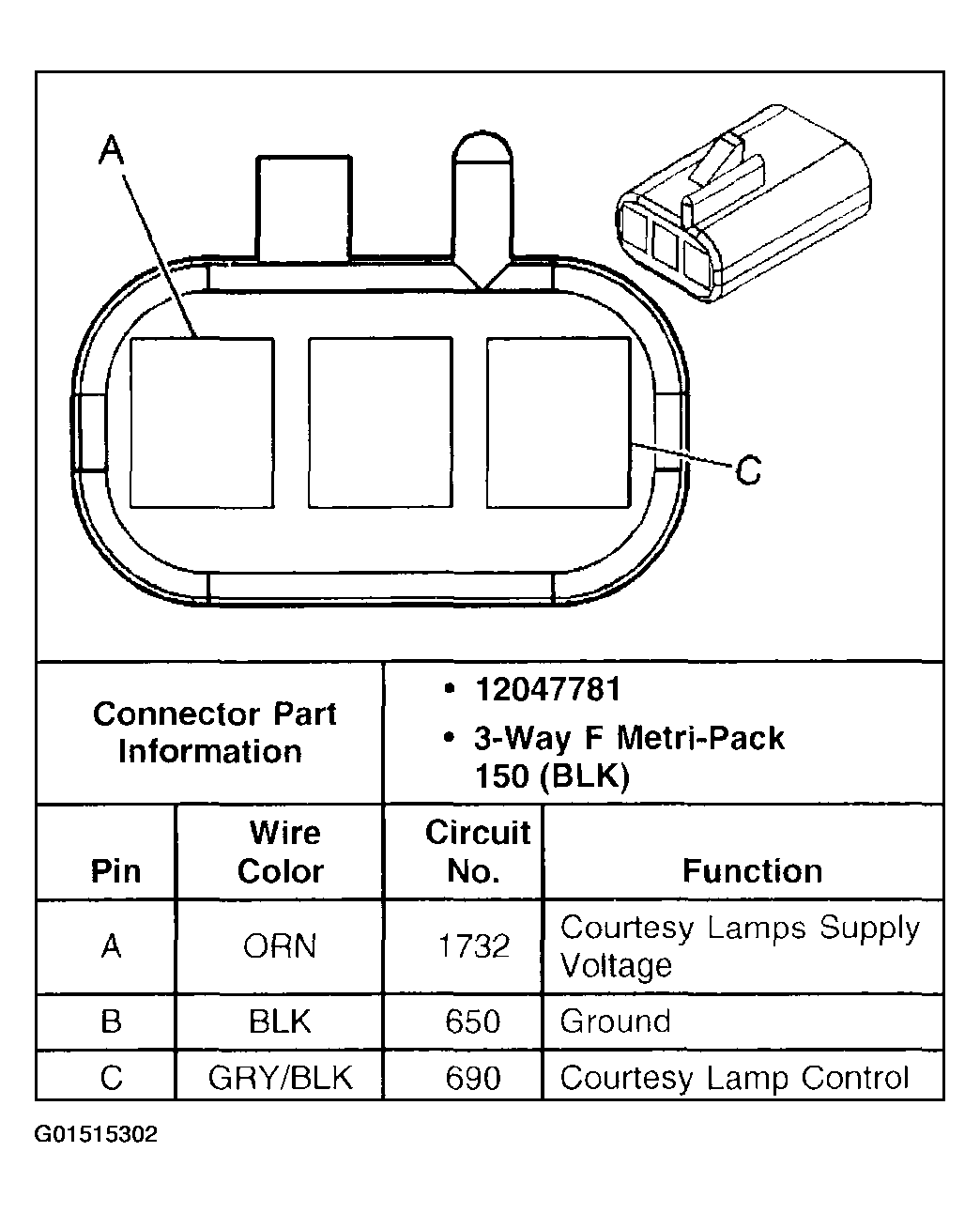

Fig 5: Identifying Cargo Lamp Connector Terminals - Buick

G01515302

Courtesy of GENERAL MOTORS CORP.

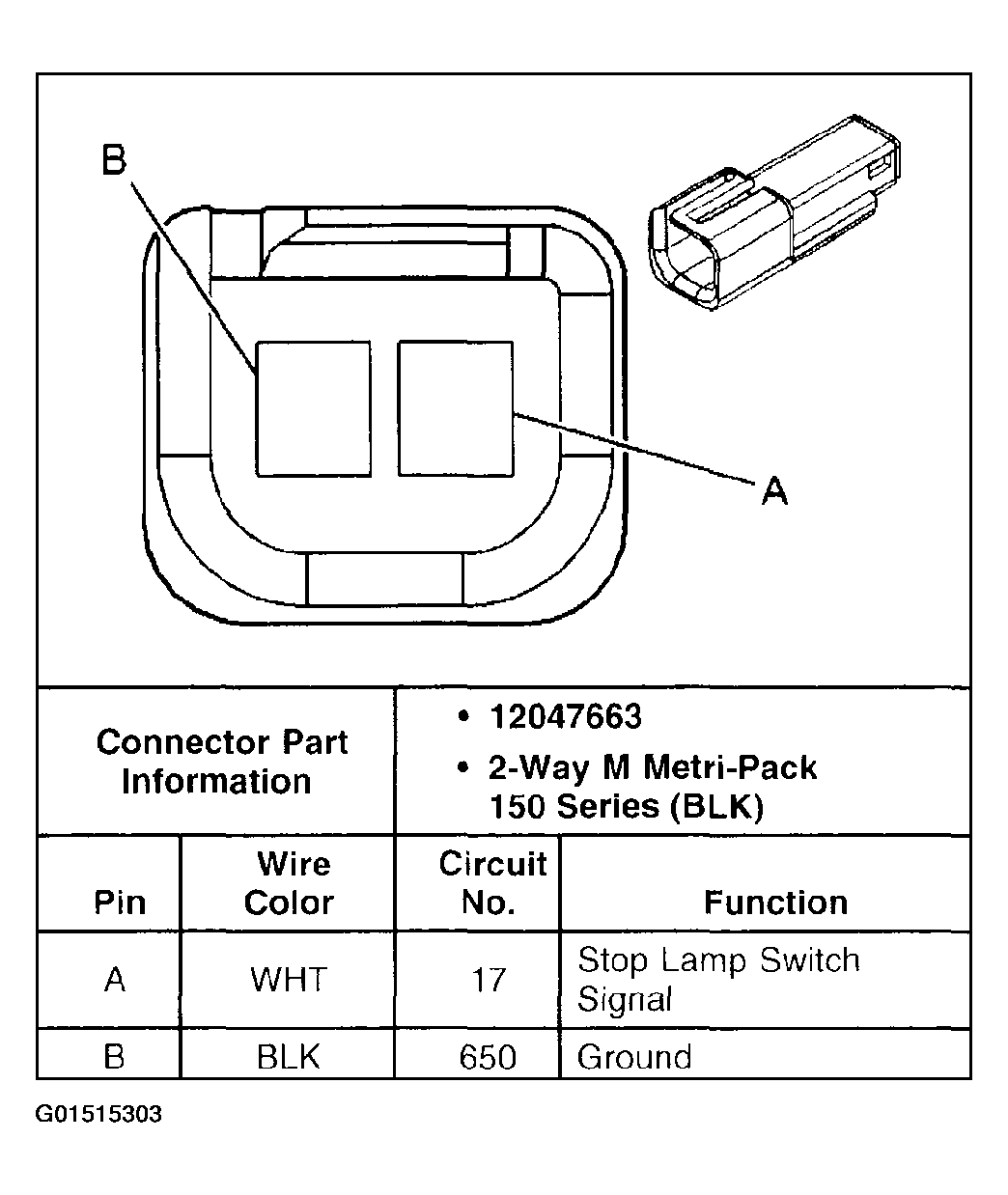

Fig 6: Identifying Center High Mounted Stop Lamp Connector Terminals

G01515303

Courtesy of GENERAL MOTORS CORP.

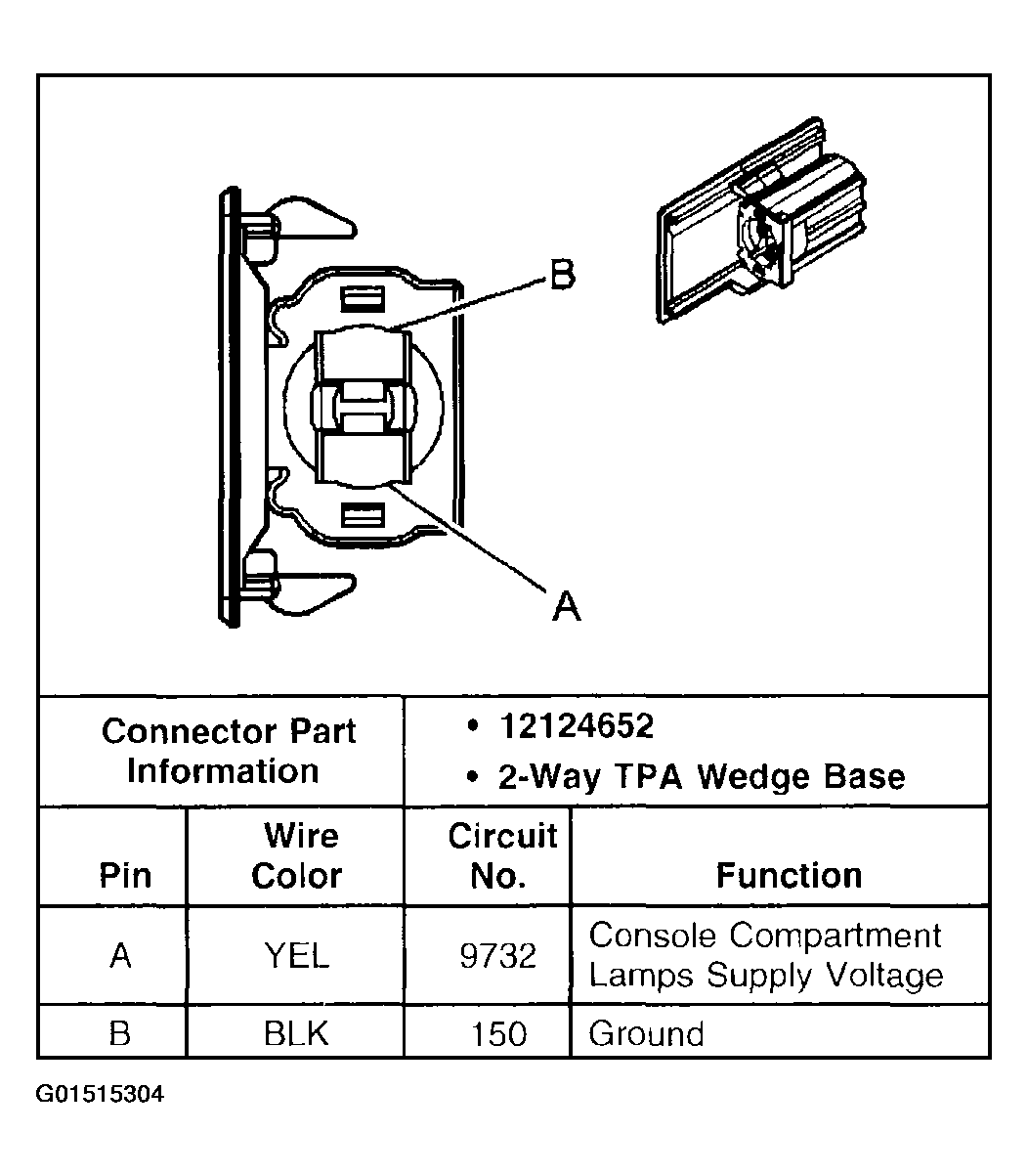

Fig 7: Identifying Console Compartment Lamp Connector Terminals - Buick

G01515304

Courtesy of GENERAL MOTORS CORP.

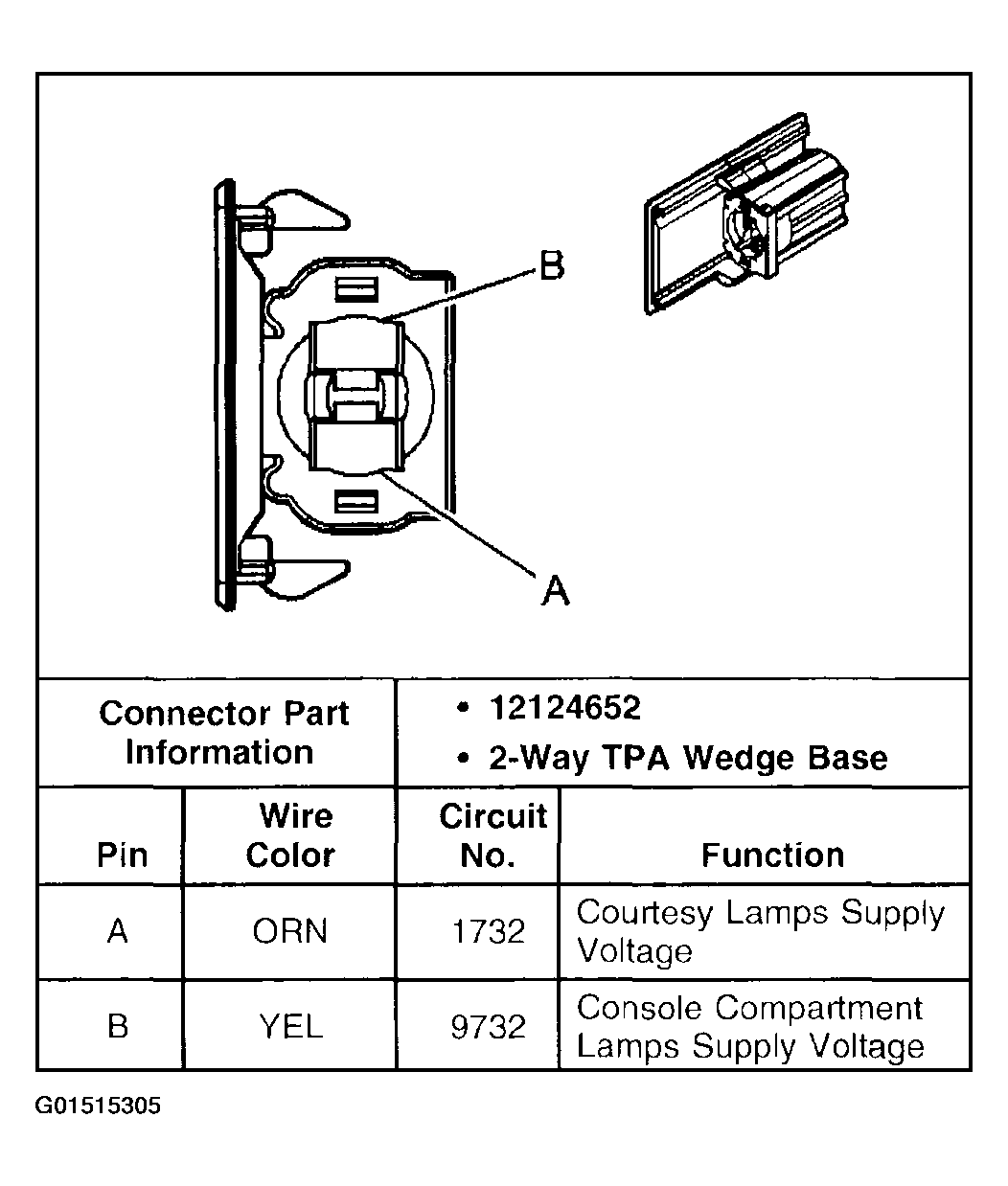

Fig 8: Identifying Console Compartment Lamp Switch Connector Terminals - Buick

G01515305

Courtesy of GENERAL MOTORS CORP.

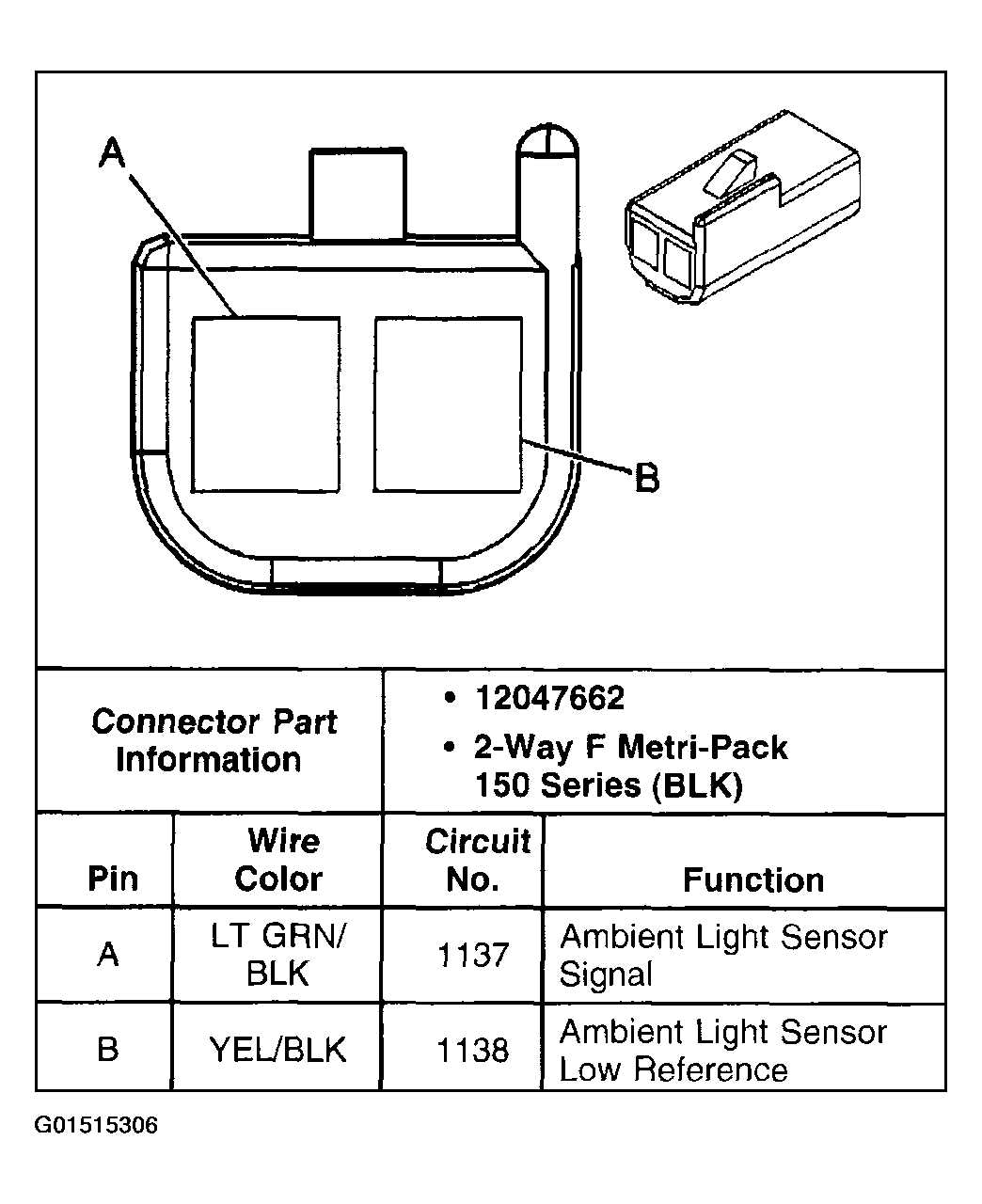

Fig 9: Identifying Daytime Running Lamps (DRL) Ambient Light Sensor Connector Terminals

G01515306

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Left Fog Lamp Connector Terminals

G01515307

Courtesy of GENERAL MOTORS CORP.

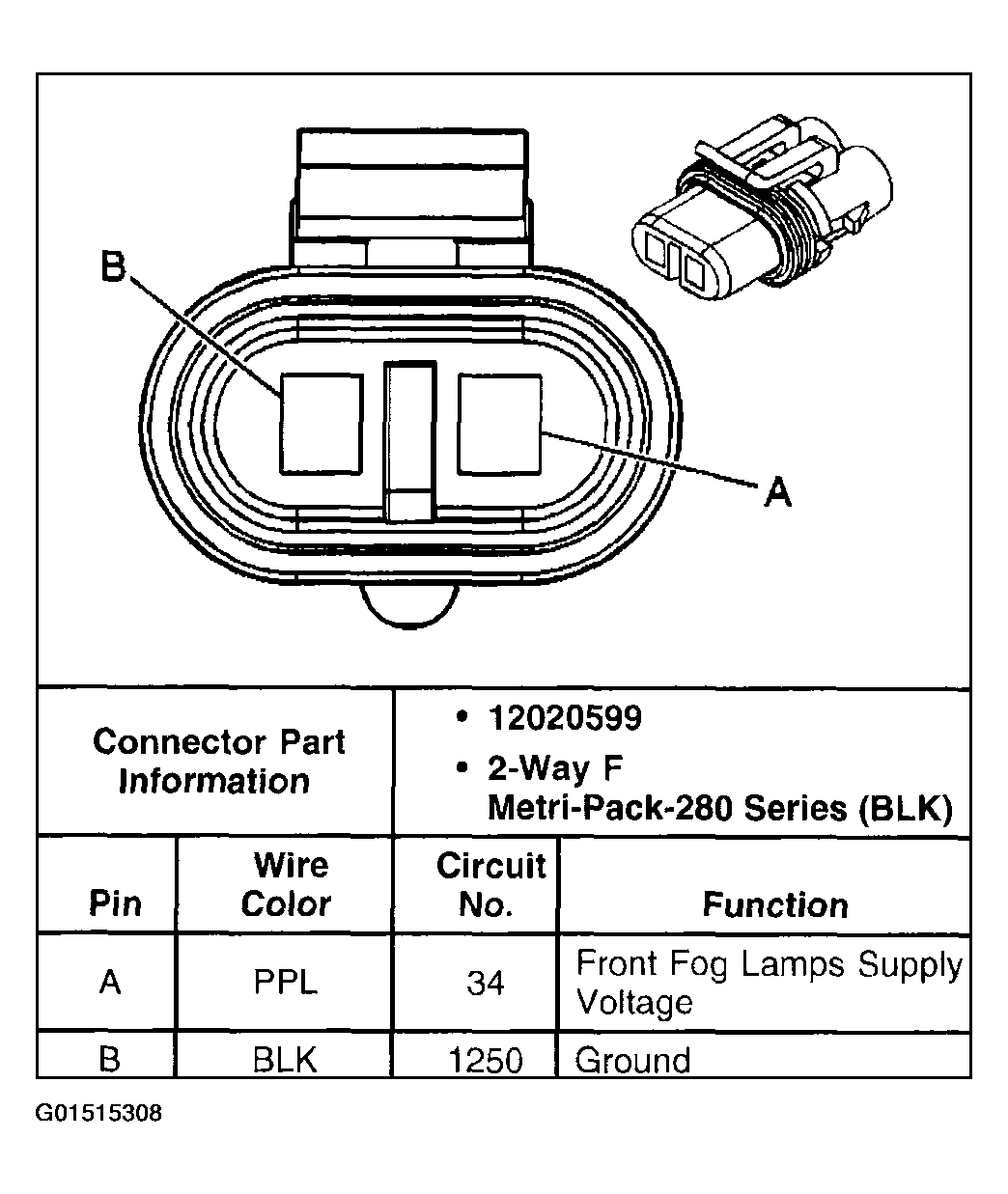

Fig 11: Identifying Right Fog Lamp Connector Terminals

G01515308

Courtesy of GENERAL MOTORS CORP.

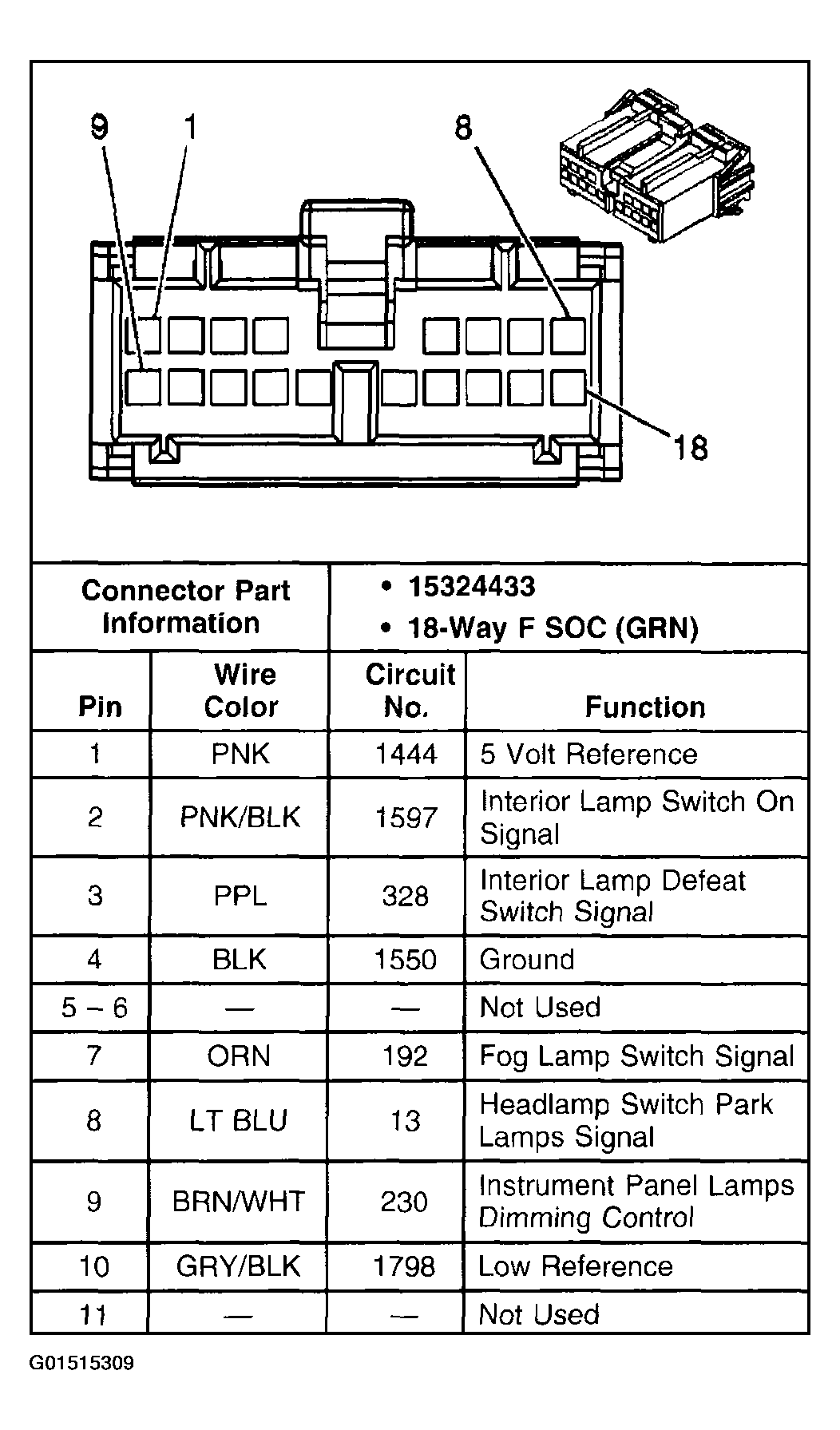

Fig 12: Identifying Headlamp Switch Connector Terminals (1 Of 2)

G01515309

Courtesy of GENERAL MOTORS CORP.

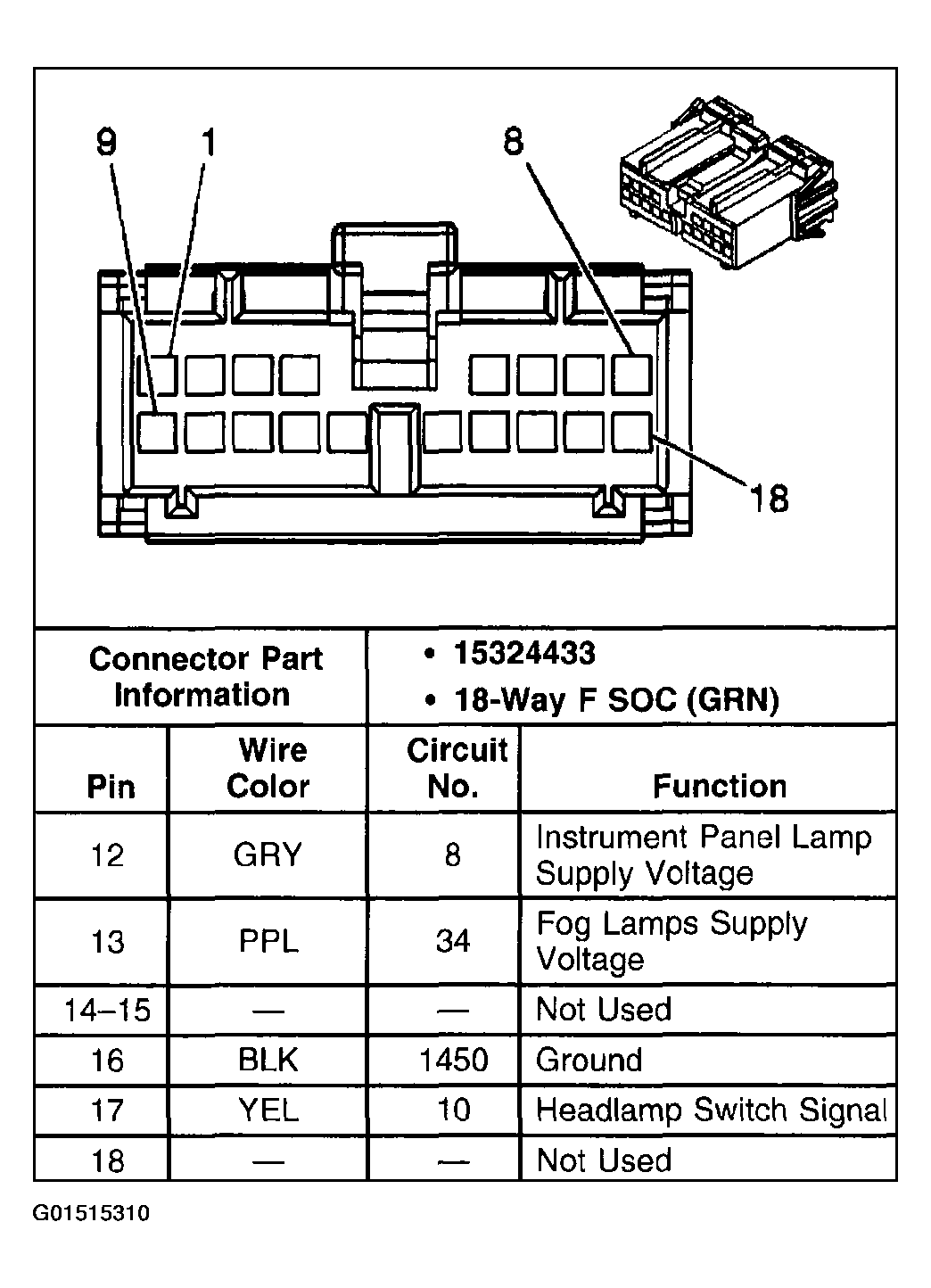

Fig 13: Identifying Headlamp Switch Connector Terminals (2 Of 2)

G01515310

Courtesy of GENERAL MOTORS CORP.

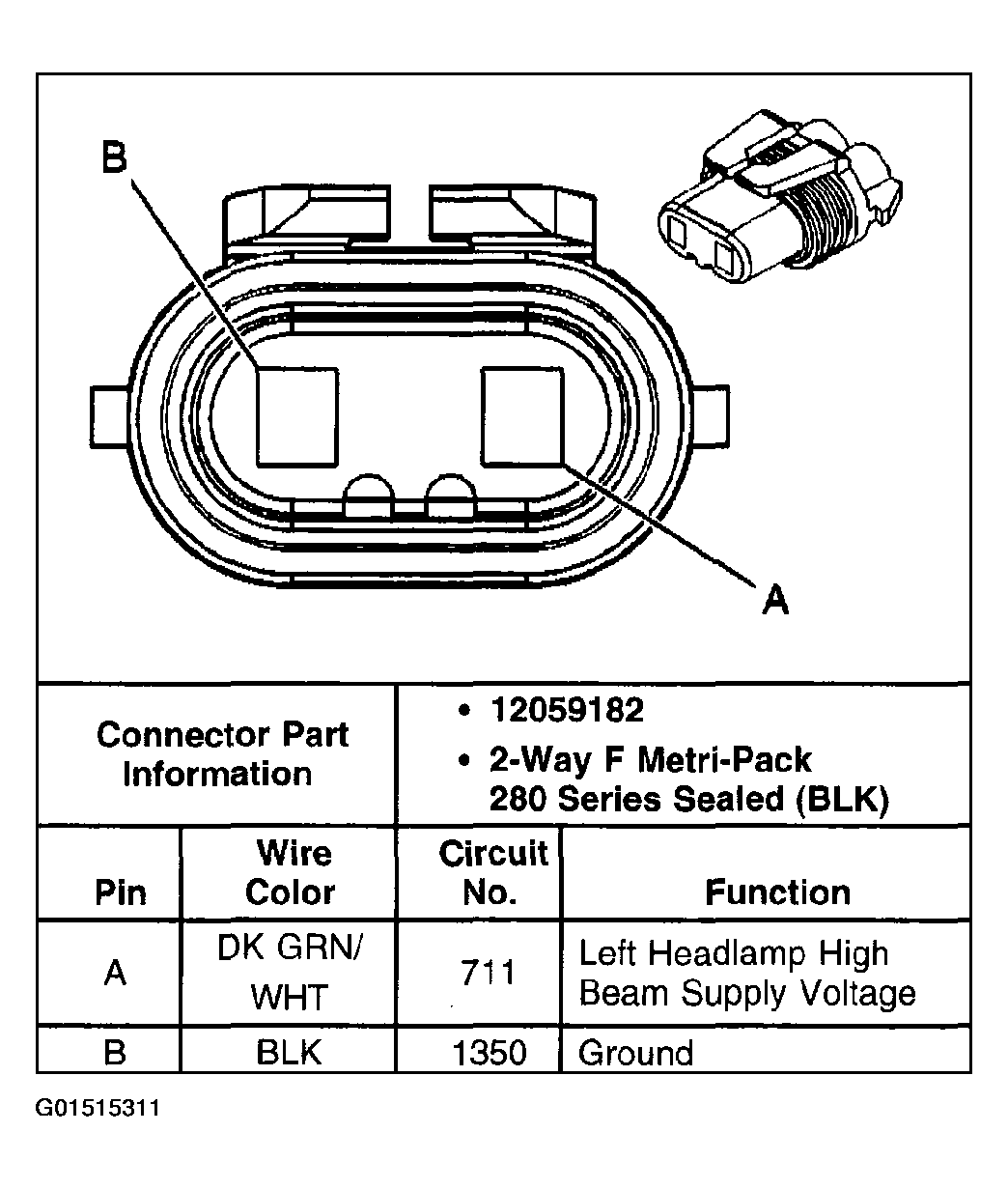

Fig 14: Identifying Left Headlamp - High Beam Connector Terminals

G01515311

Courtesy of GENERAL MOTORS CORP.

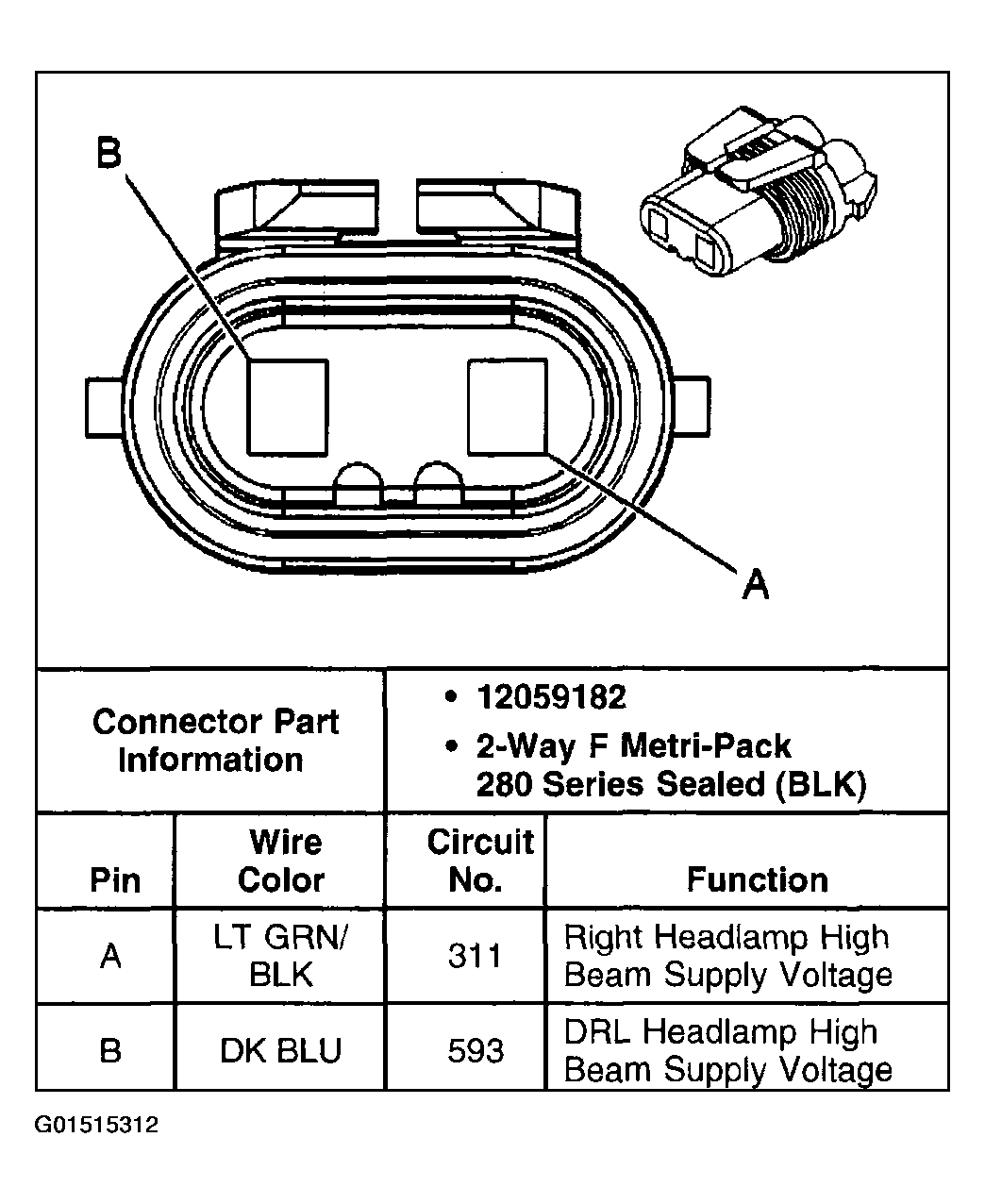

Fig 15: Identifying Right Headlamp - High Beam Connector Terminals

G01515312

Courtesy of GENERAL MOTORS CORP.

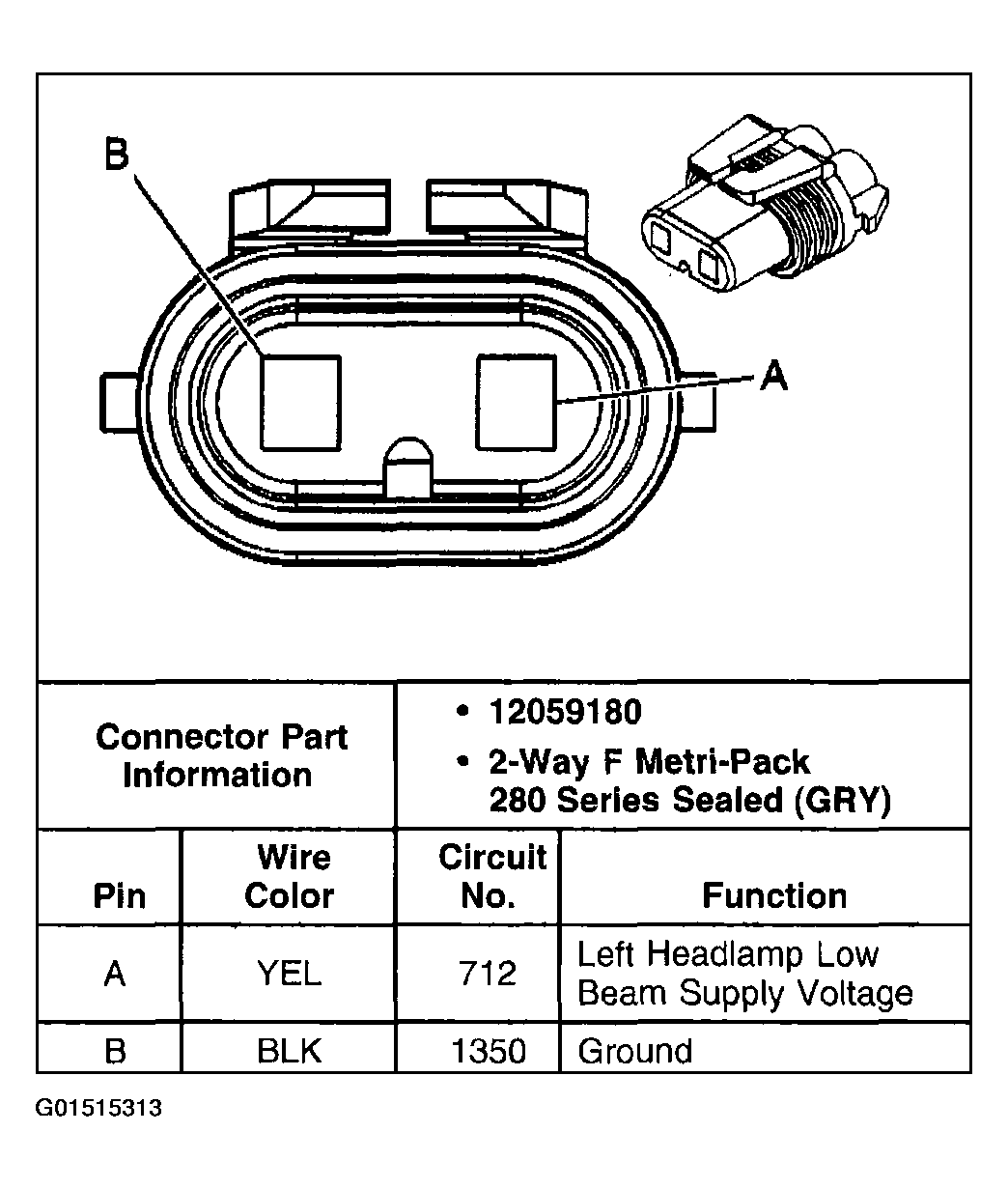

Fig 16: Identifying Left Headlamp - Low Beam Connector Terminals

G01515313

Courtesy of GENERAL MOTORS CORP.

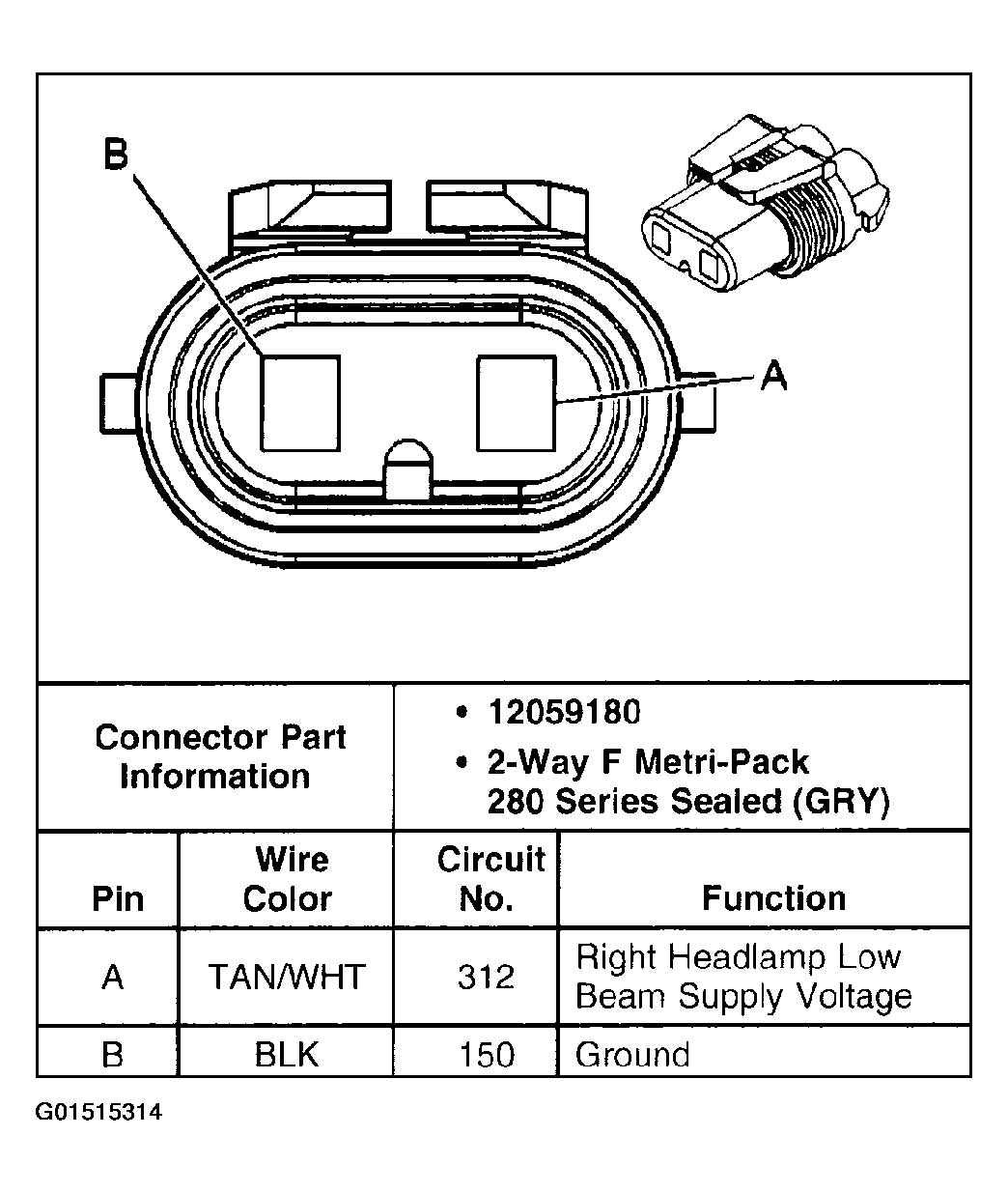

Fig 17: Identifying Right Headlamp - Low Beam Connector Terminals

G01515314

Courtesy of GENERAL MOTORS CORP.

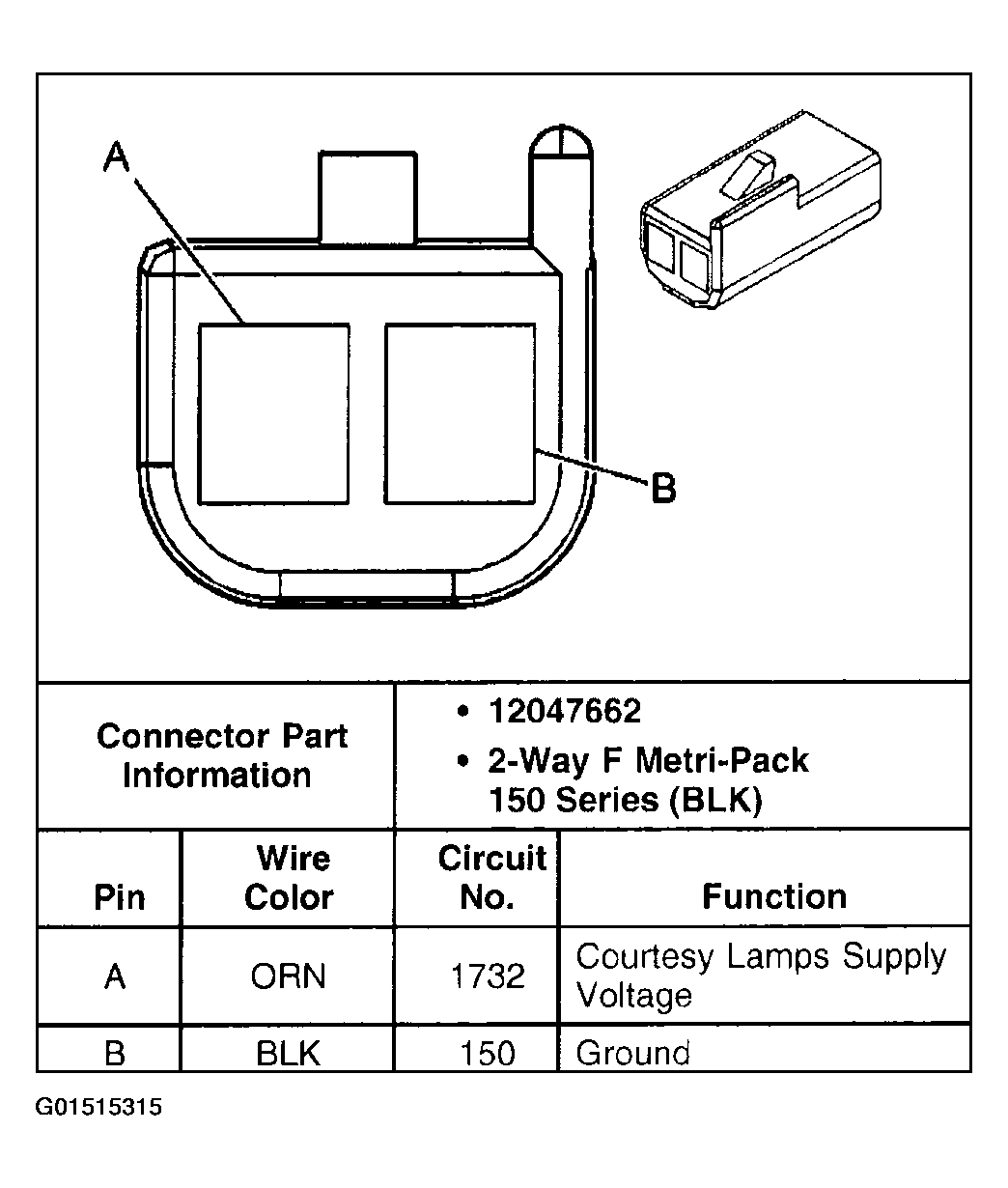

Fig 18: Identifying I/P Compartment Lamp Connector Terminals

G01515315

Courtesy of GENERAL MOTORS CORP.

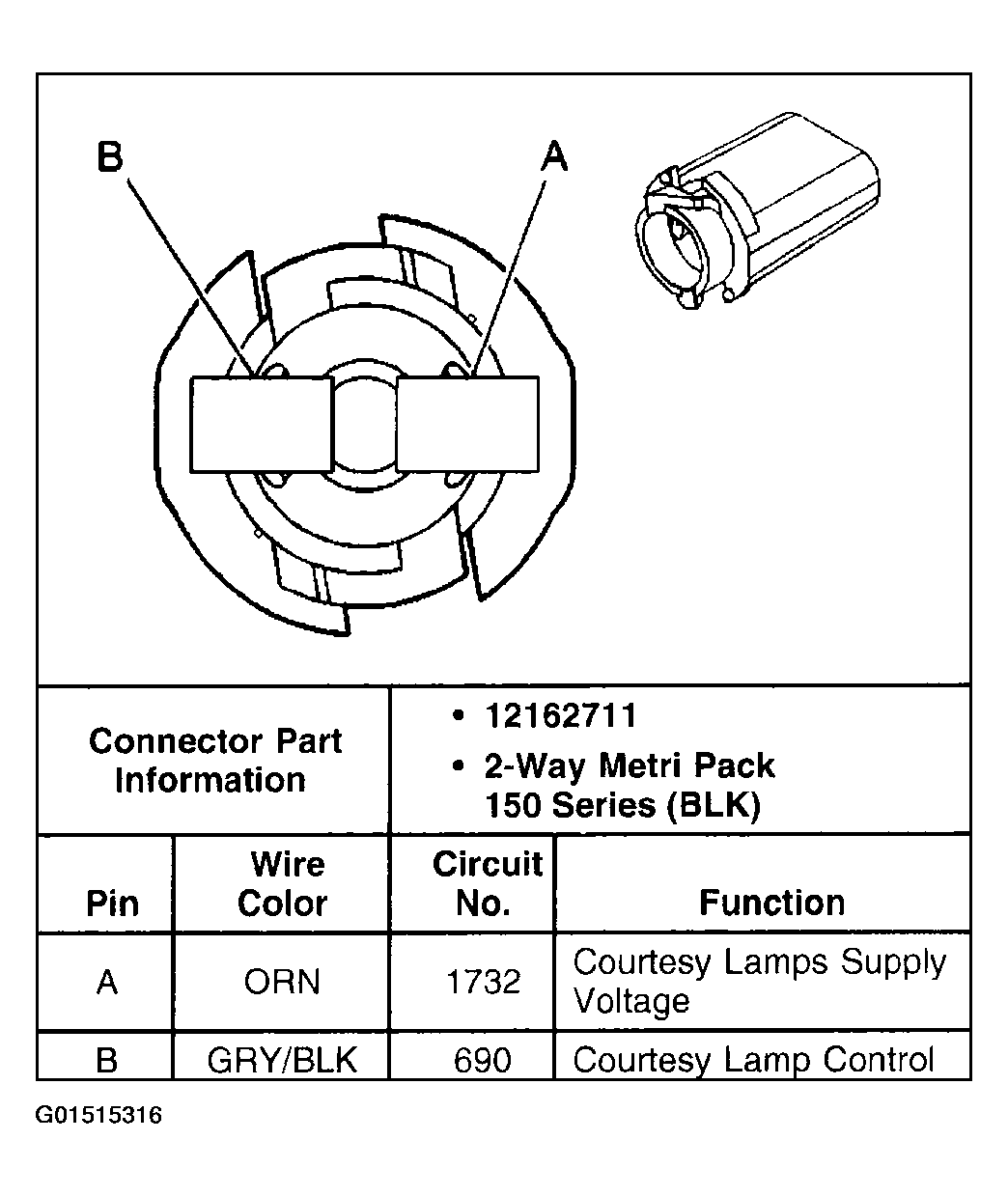

Fig 19: Identifying Left I/P Courtesy Lamp Connector Terminals

G01515316

Courtesy of GENERAL MOTORS CORP.

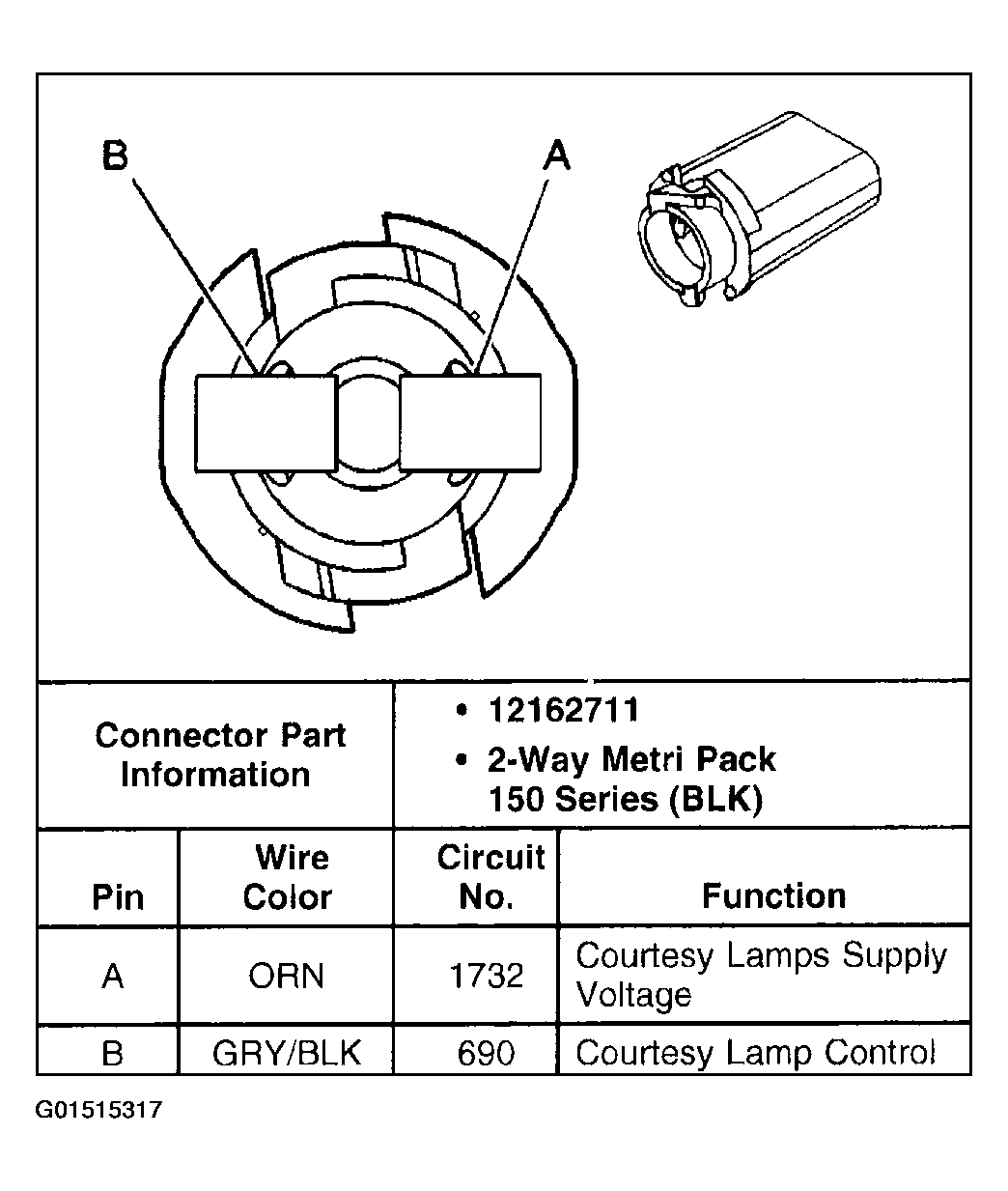

Fig 20: Identifying Right I/P Courtesy Lamp Connector Terminals

G01515317

Courtesy of GENERAL MOTORS CORP.

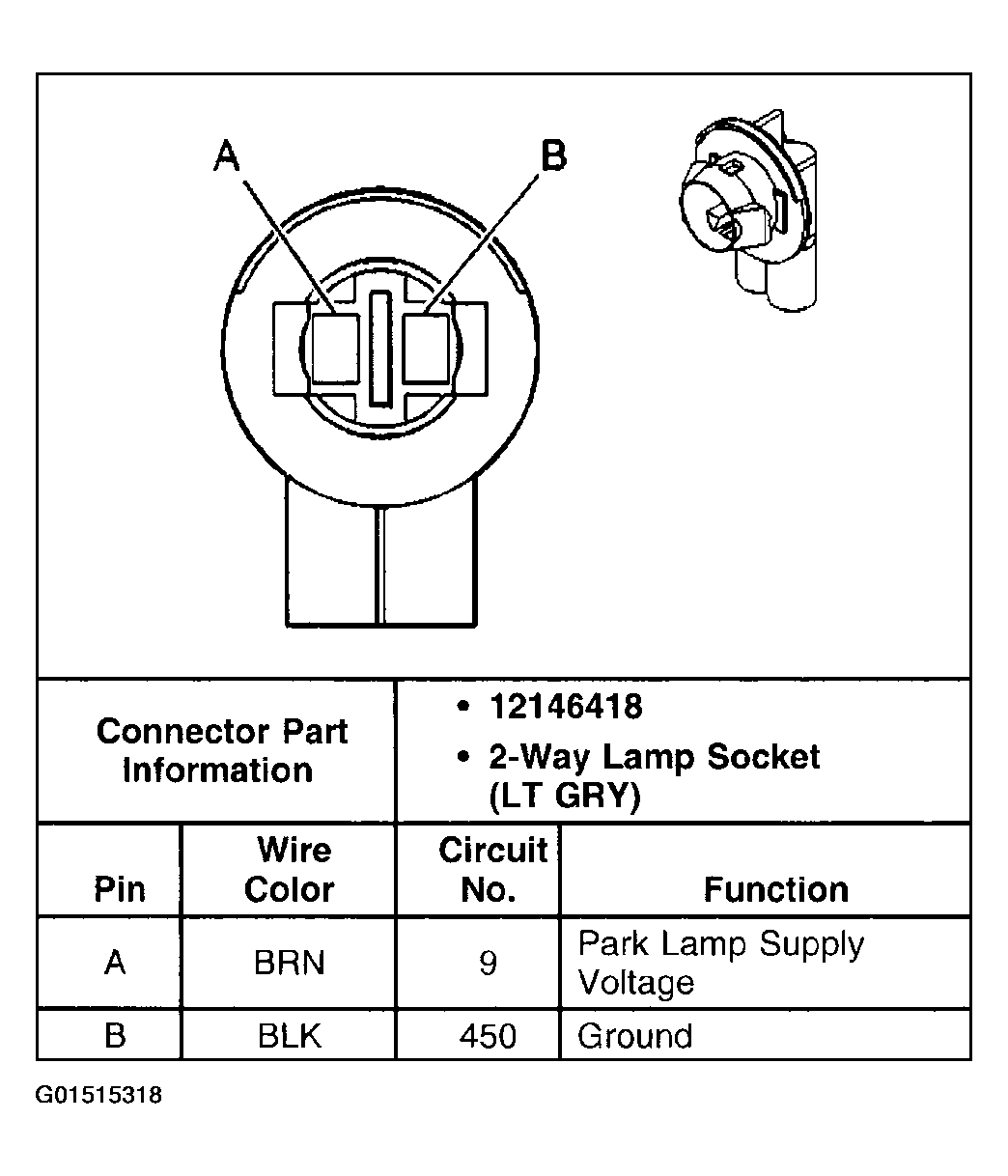

Fig 21: Identifying License Plate Lamp Connector Terminals

G01515318

Courtesy of GENERAL MOTORS CORP.

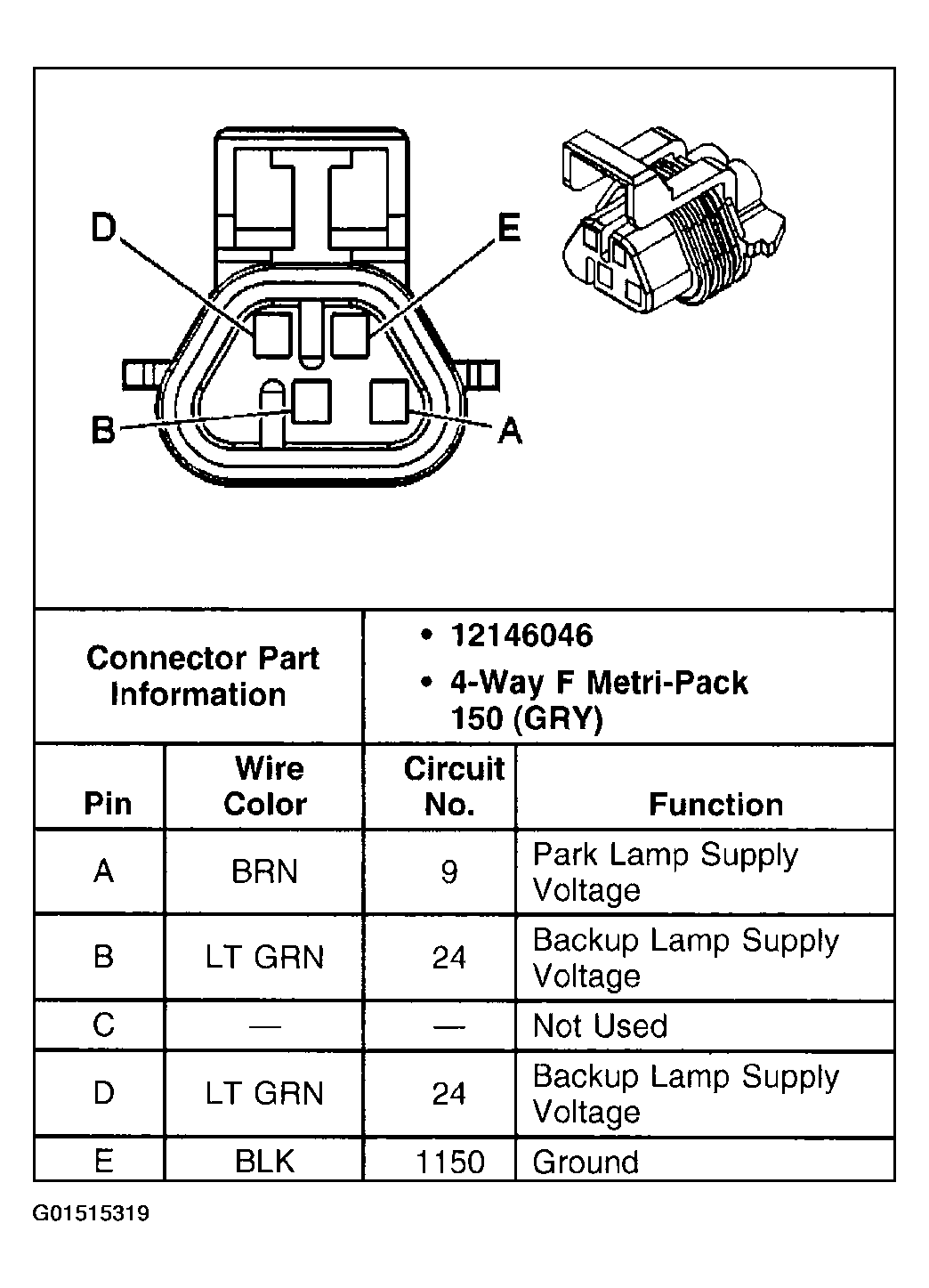

Fig 22: Identifying Liftgate Lamp Assembly Connector Terminals - Buick

G01515319

Courtesy of GENERAL MOTORS CORP.

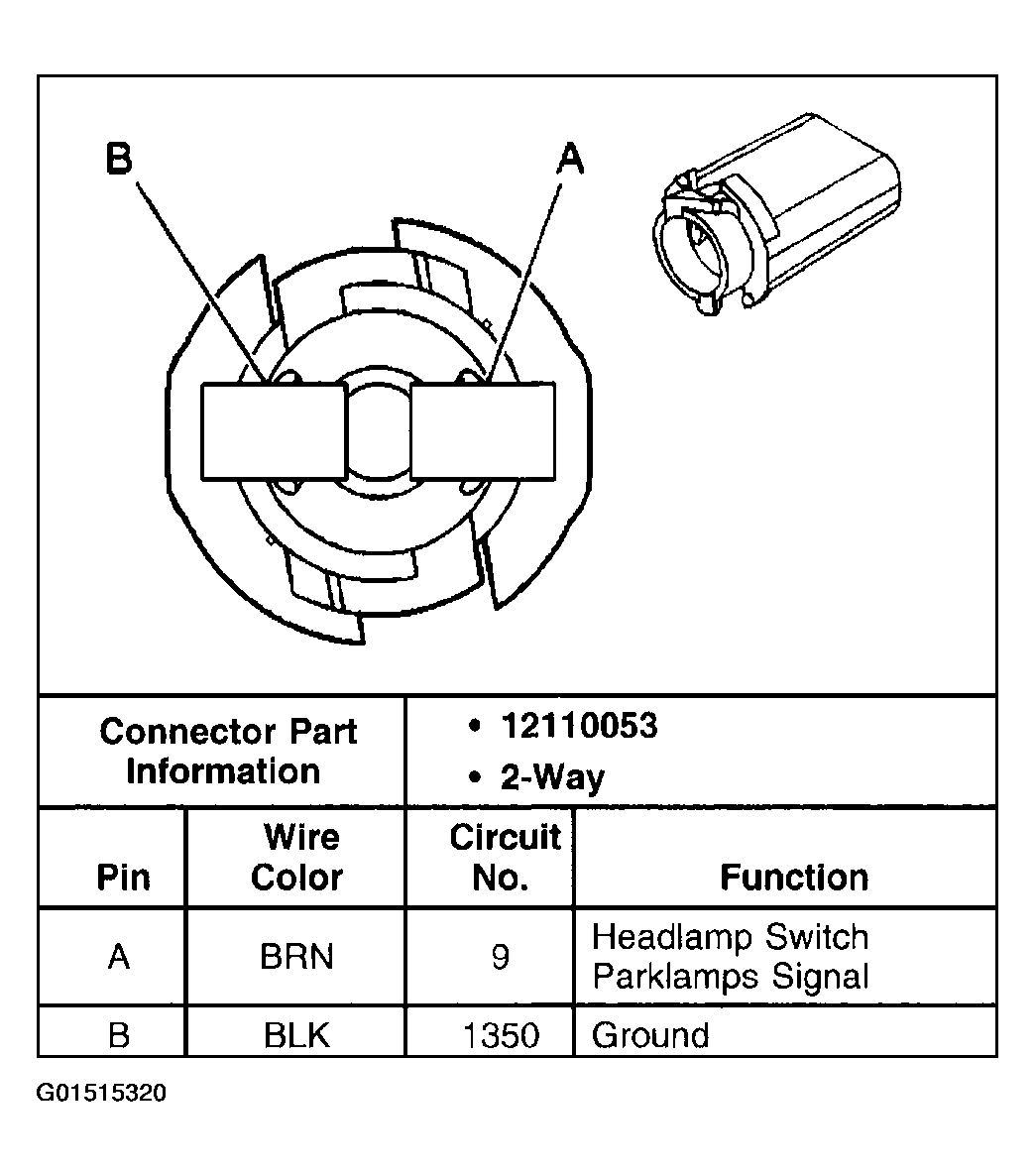

Fig 23: Identifying Marker Lamp - LF Connector Terminals - Buick

G01515320

Courtesy of GENERAL MOTORS CORP.

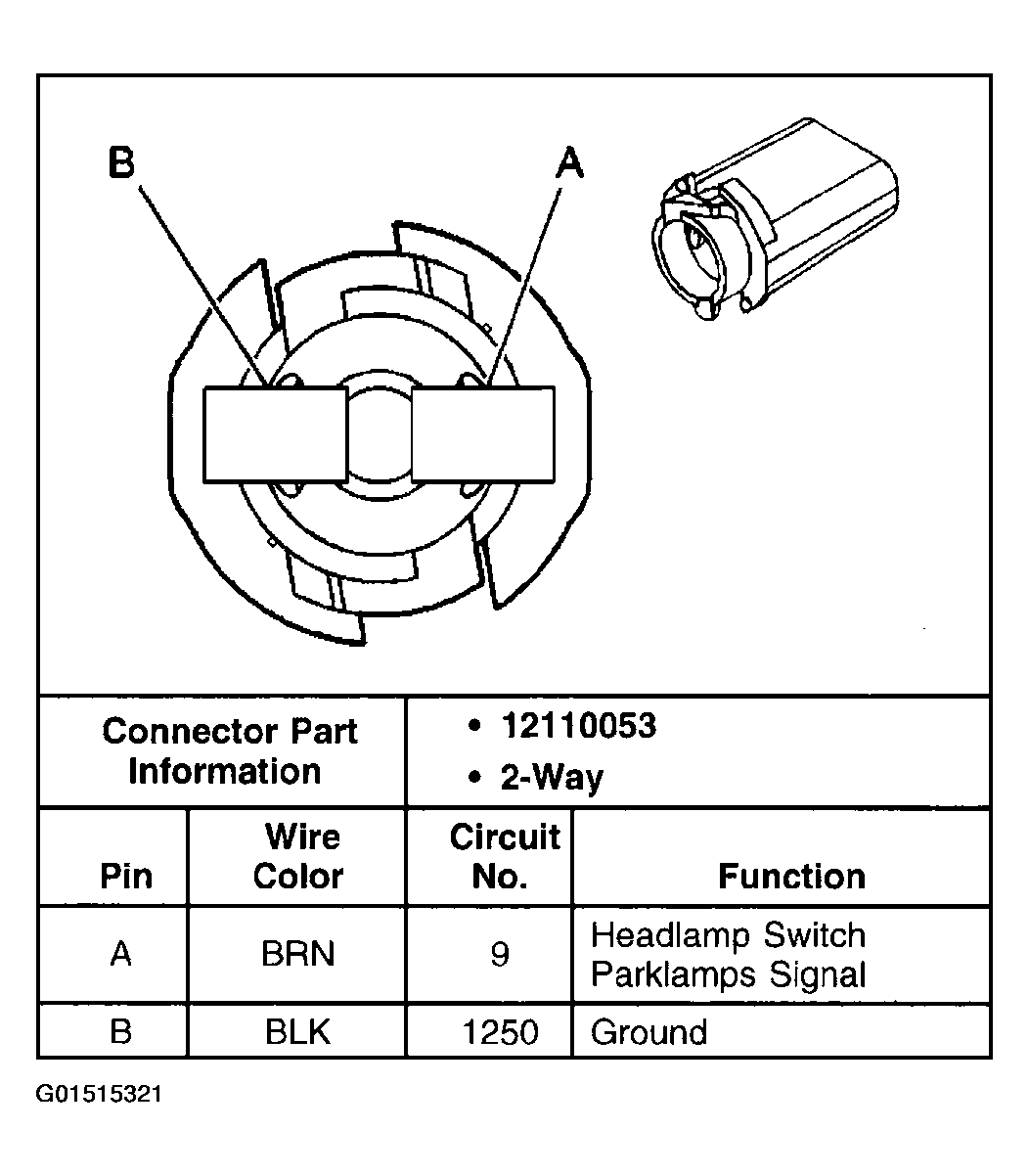

Fig 24: Identifying Marker Lamp - RF Connector Terminals - Buick

G01515321

Courtesy of GENERAL MOTORS CORP.

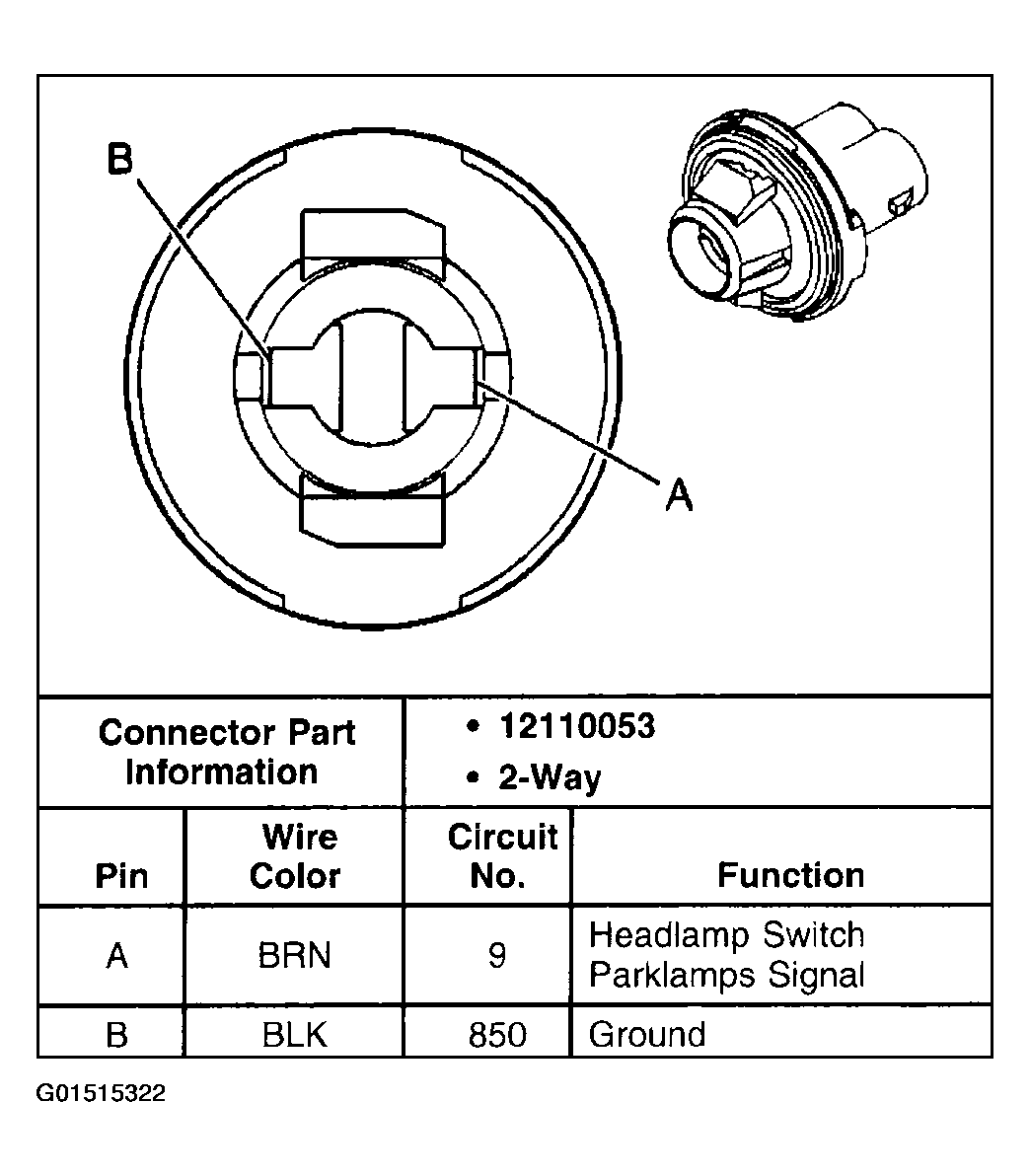

Fig 25: Identifying Marker Lamp - LR Connector Terminals - Buick

G01515322

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Marker Lamp - RR Connector Terminals - Buick

G01515323

Courtesy of GENERAL MOTORS CORP.

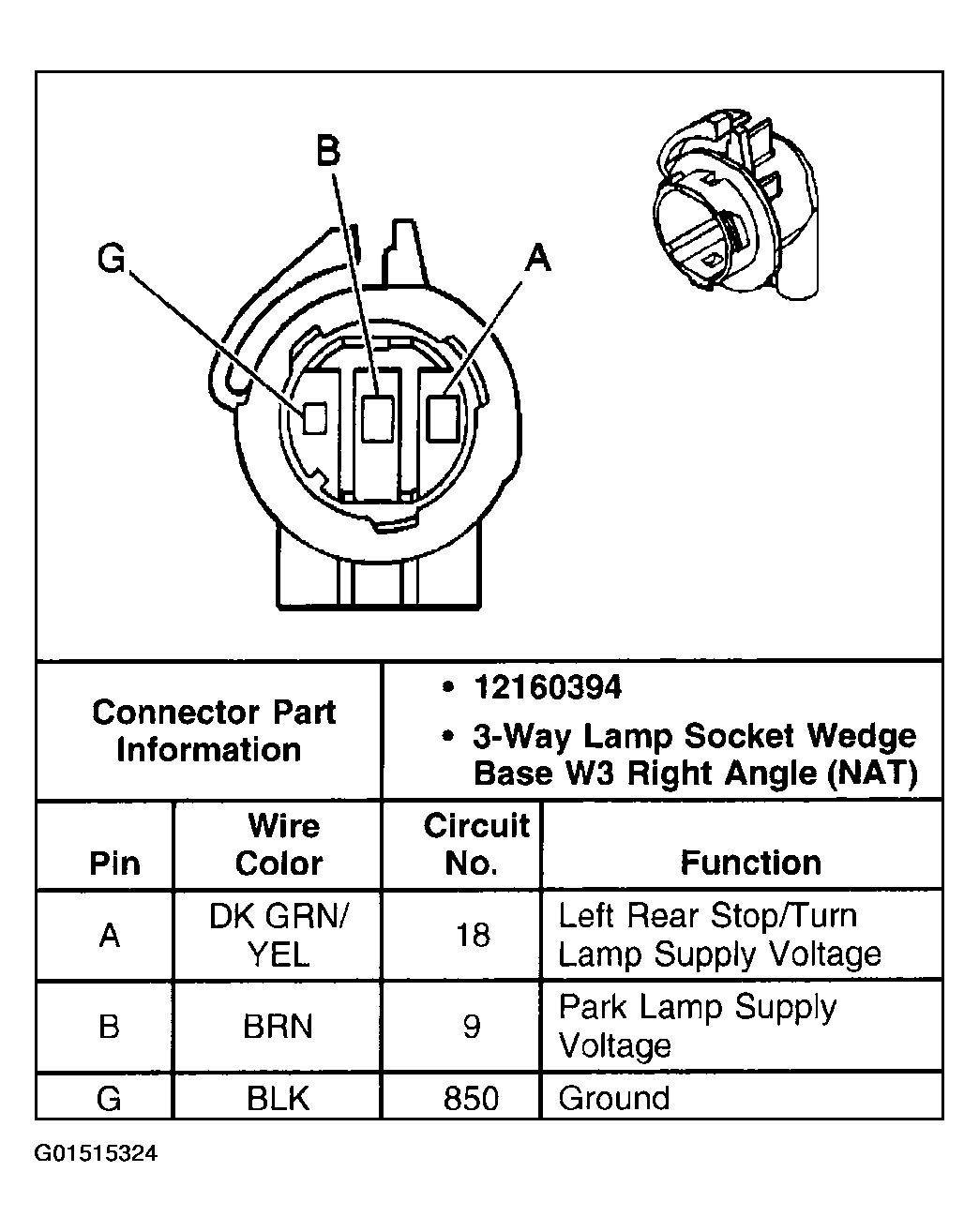

Fig 27: Identifying Park/Stop/Turn Signal Lamp - LR Connector Terminals

G01515324

Courtesy of GENERAL MOTORS CORP.

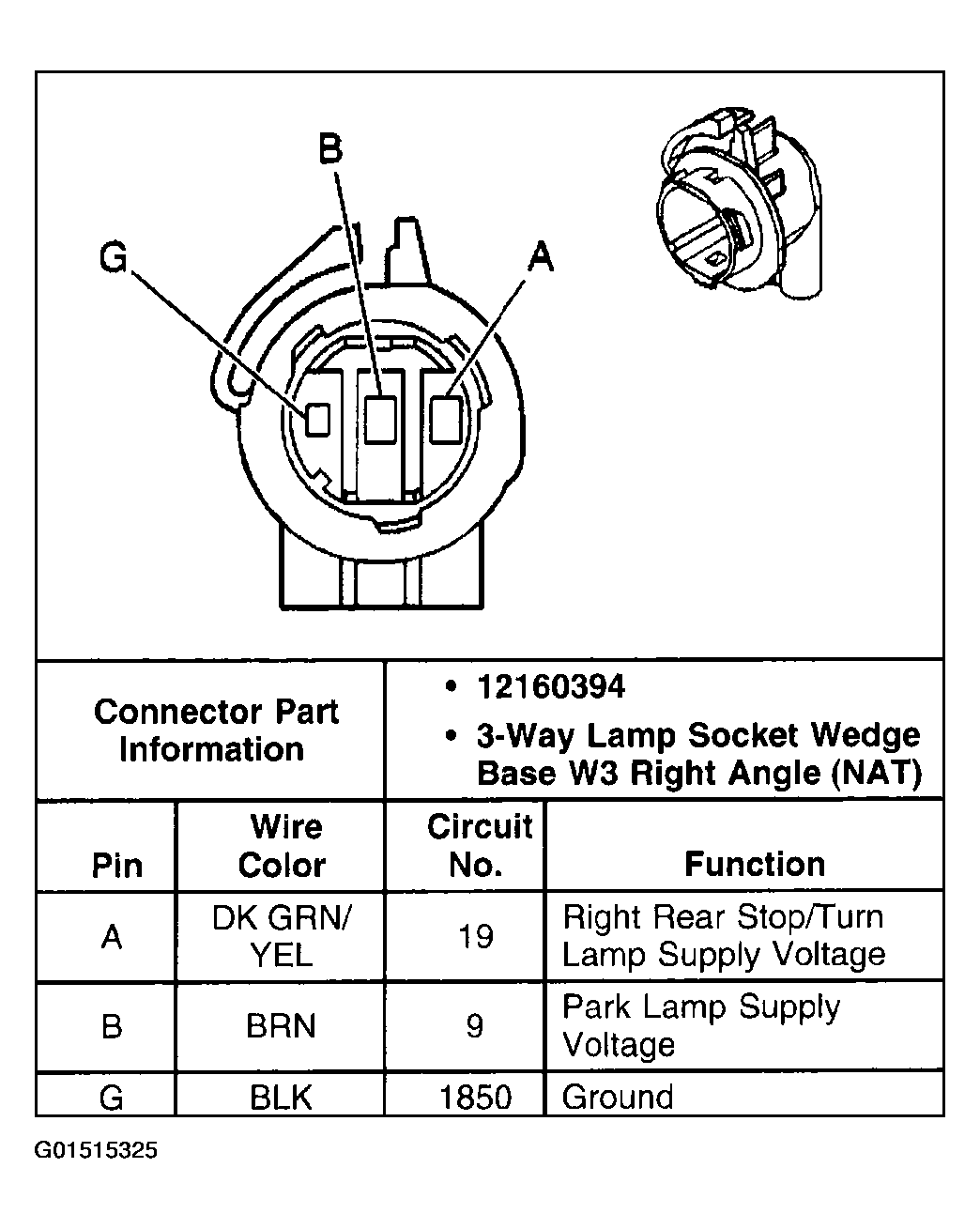

Fig 28: Identifying Park/Stop/Turn Signal Lamp - RR Connector Terminals

G01515325

Courtesy of GENERAL MOTORS CORP.

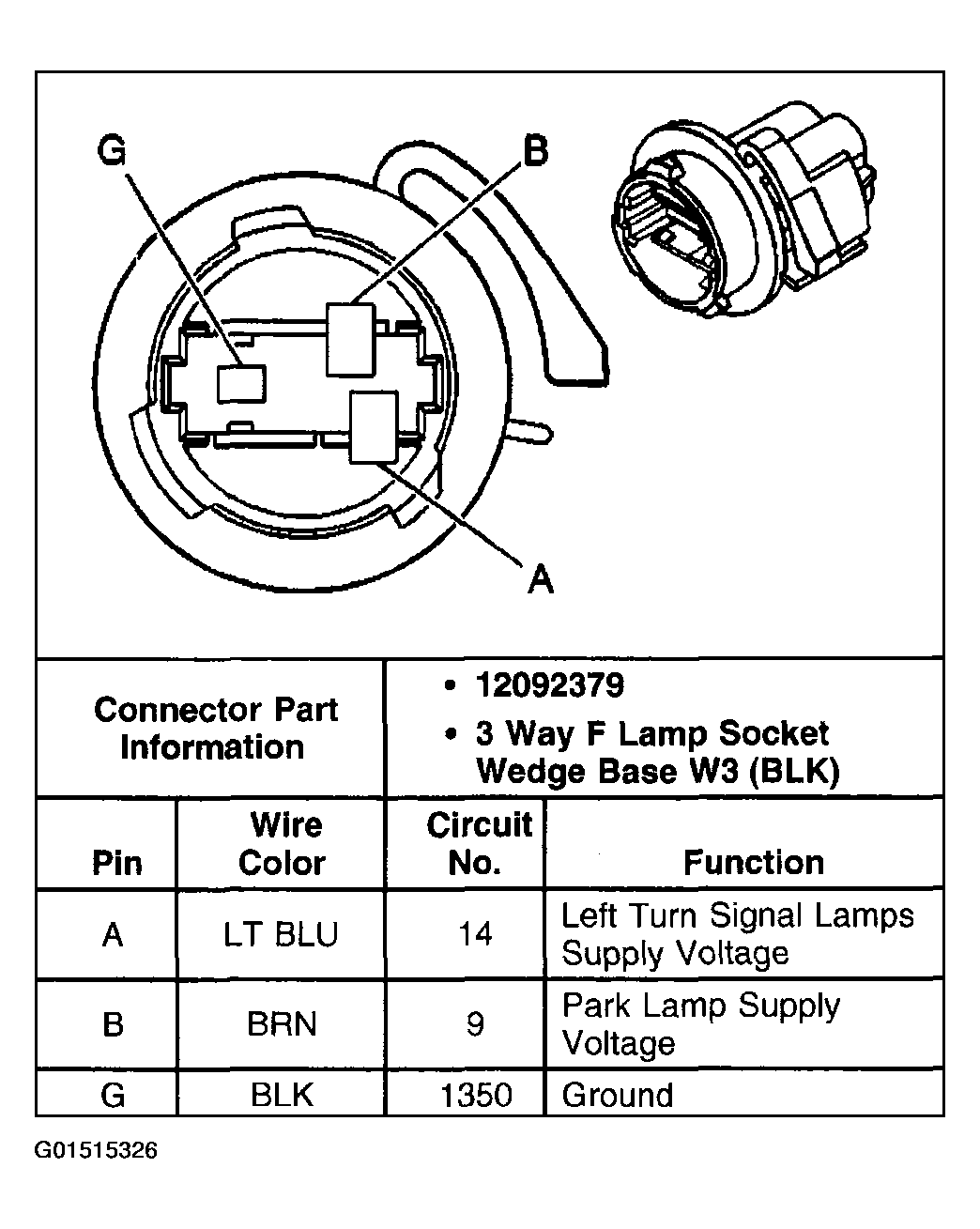

Fig 29: Identifying Park/Turn Signal Lamp - LF Connector Terminals

G01515326

Courtesy of GENERAL MOTORS CORP.

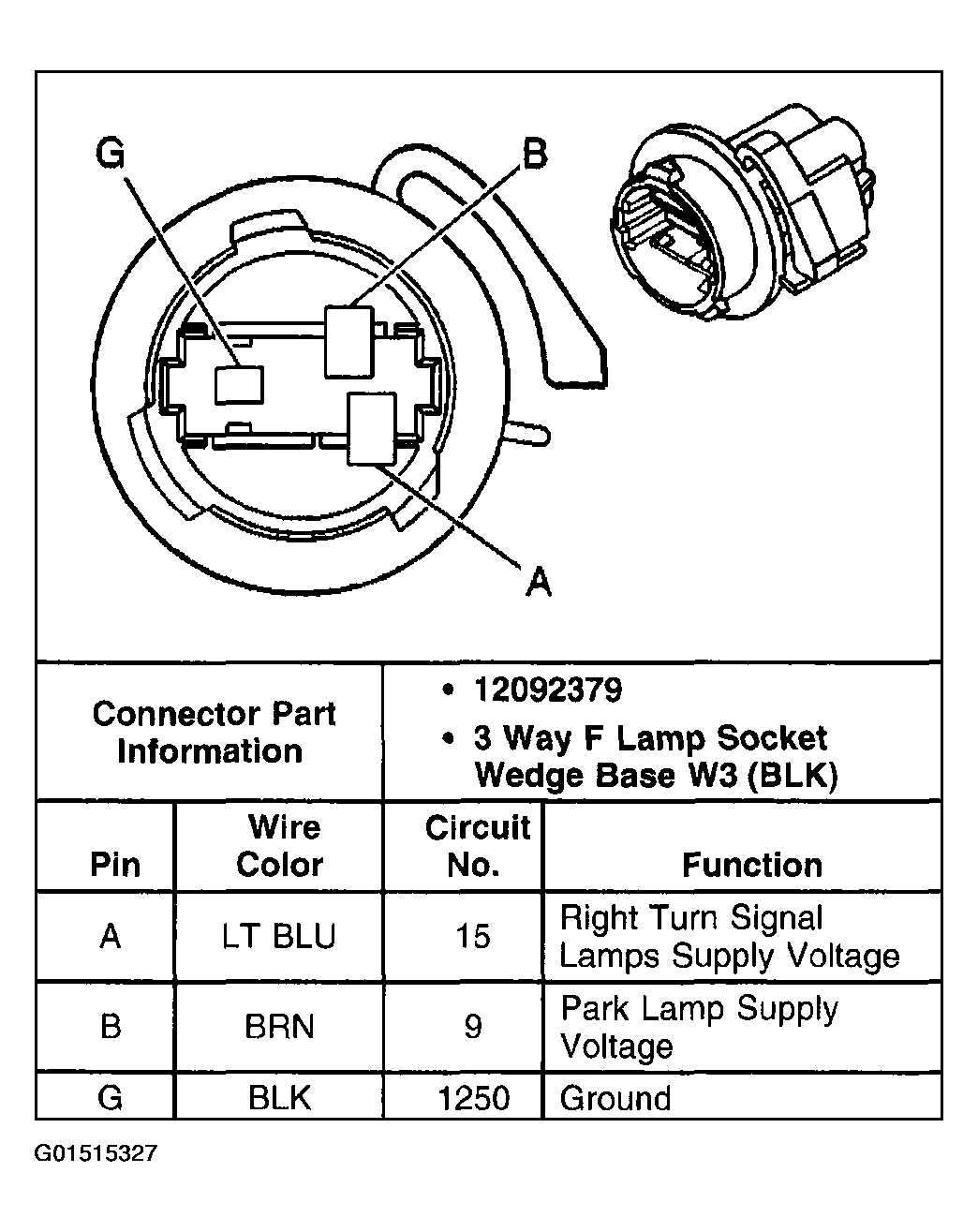

Fig 30: Identifying Park/Turn Signal Lamp - RF Connector Terminals

G01515327

Courtesy of GENERAL MOTORS CORP.

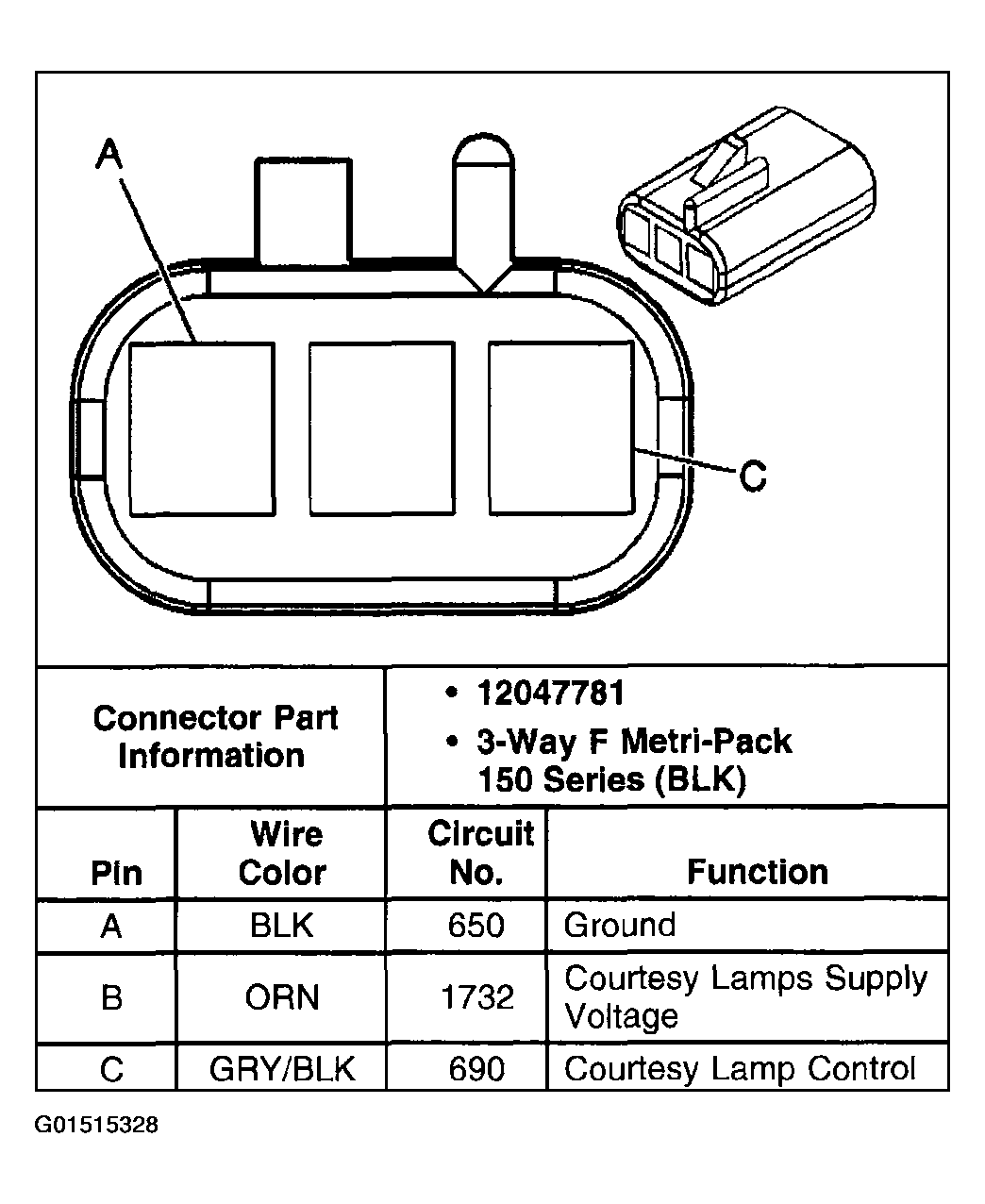

Fig 31: Identifying Roof Rail Reading Lamp - Left (C79) Connector Terminals

G01515328

Courtesy of GENERAL MOTORS CORP.

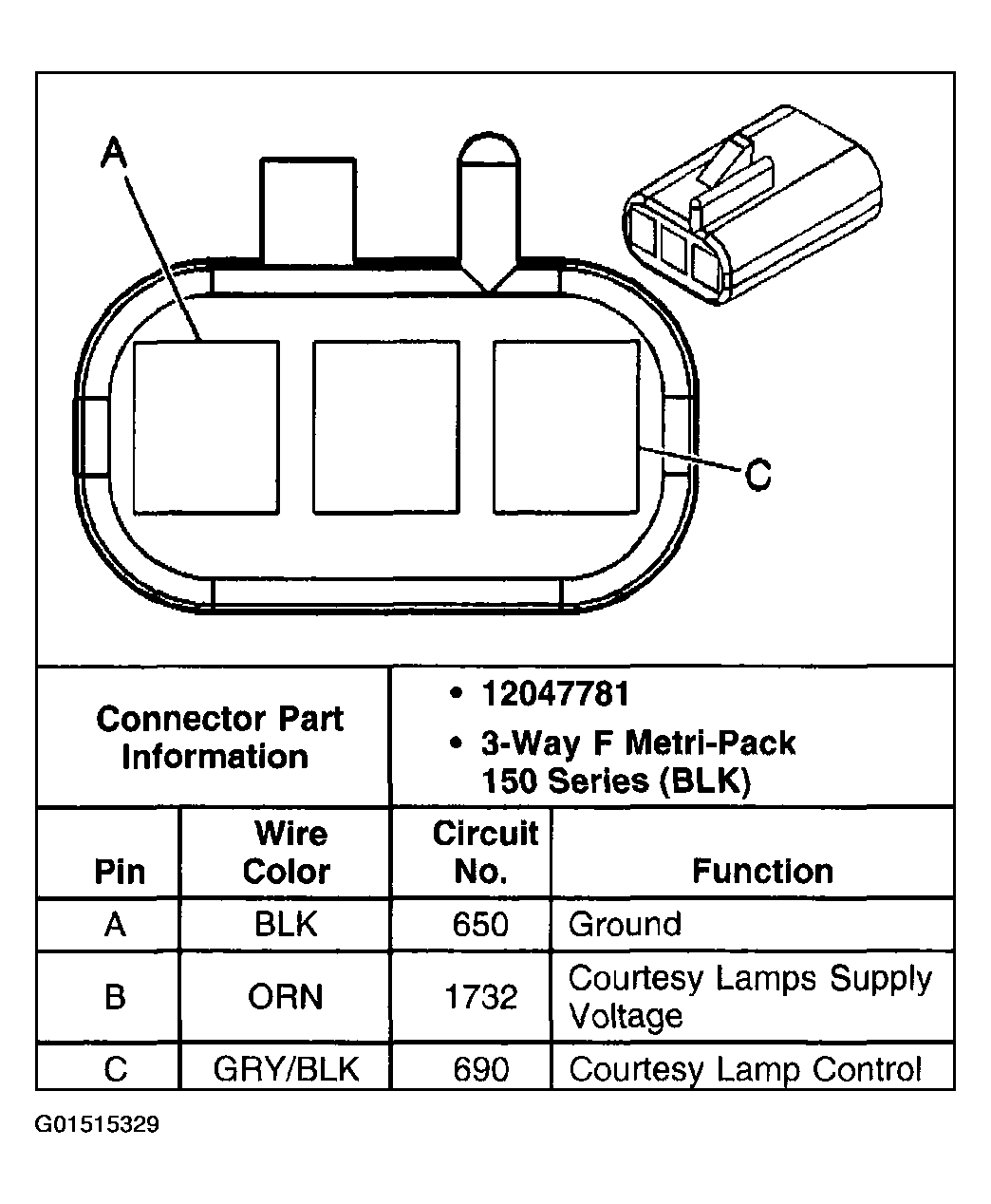

Fig 32: Identifying Roof Rail Reading Lamp - Right (C79) Connector Terminals

G01515329

Courtesy of GENERAL MOTORS CORP.

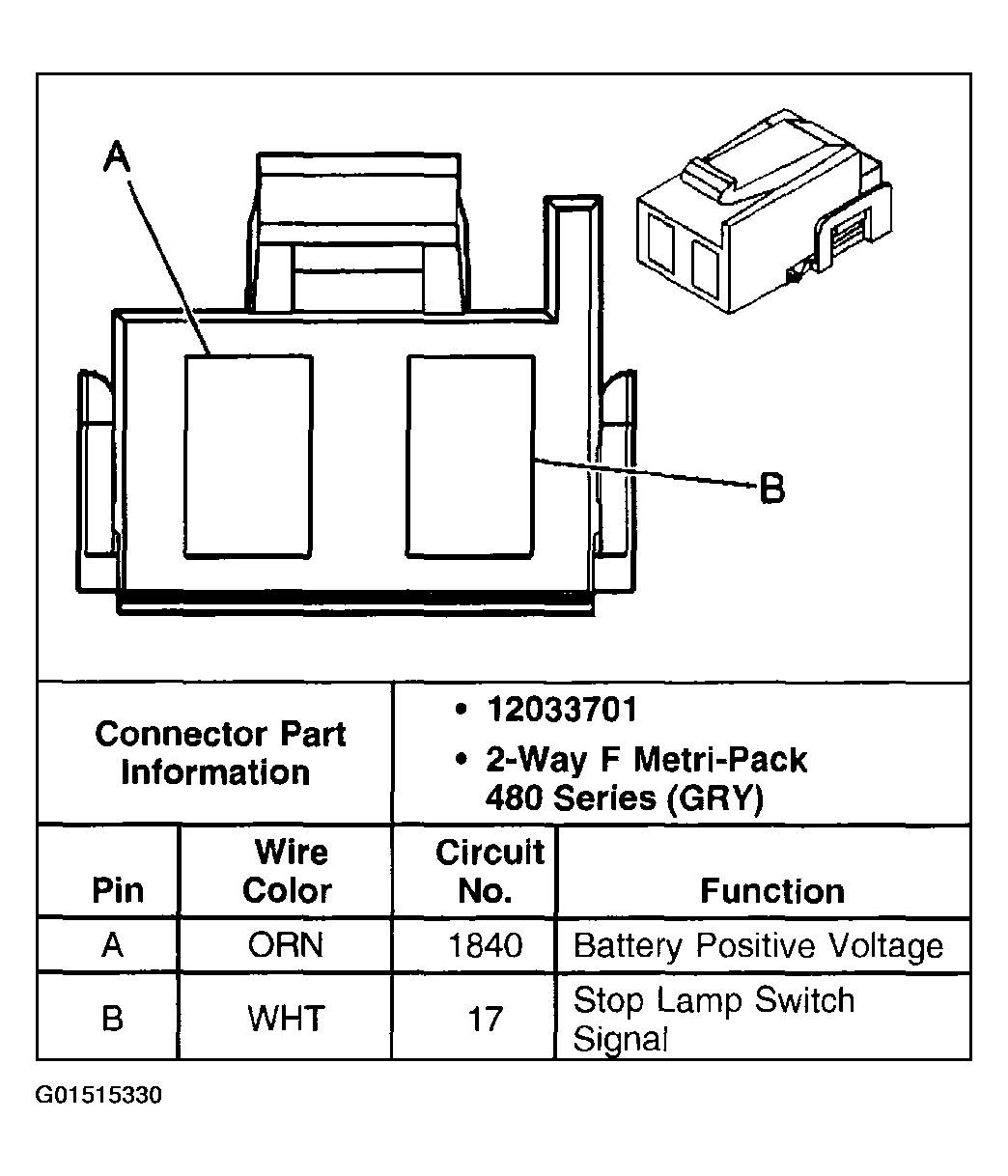

Fig 33: Identifying Stop Lamp Switch - C1 Connector Terminals

G01515330

Courtesy of GENERAL MOTORS CORP.

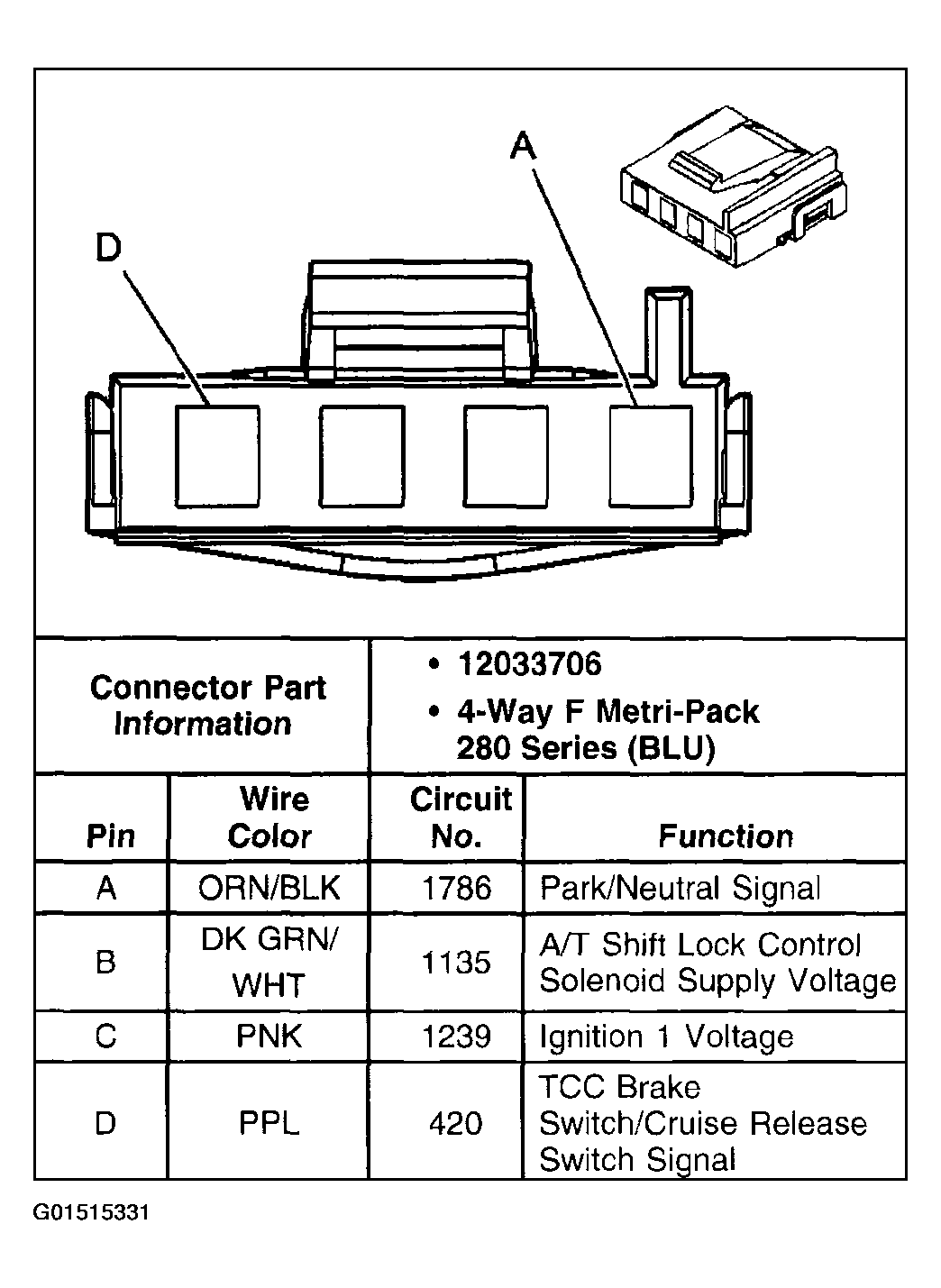

Fig 34: Identifying Stop Lamp Switch - C2 Connector Terminals

G01515331

Courtesy of GENERAL MOTORS CORP.

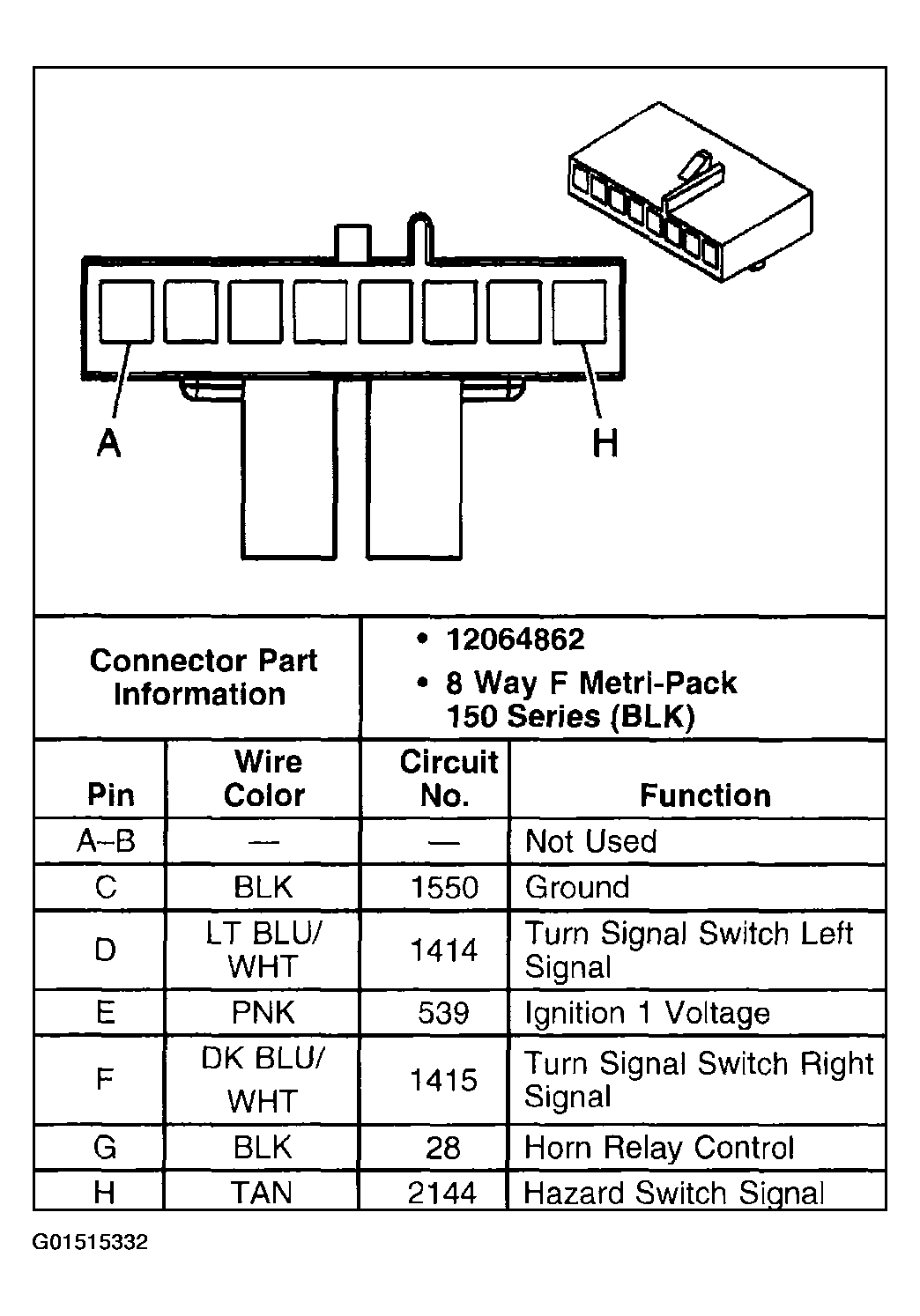

Fig 35: Identifying Turn Signal/Multifunction Switch - C1 Connector Terminals

G01515332

Courtesy of GENERAL MOTORS CORP.

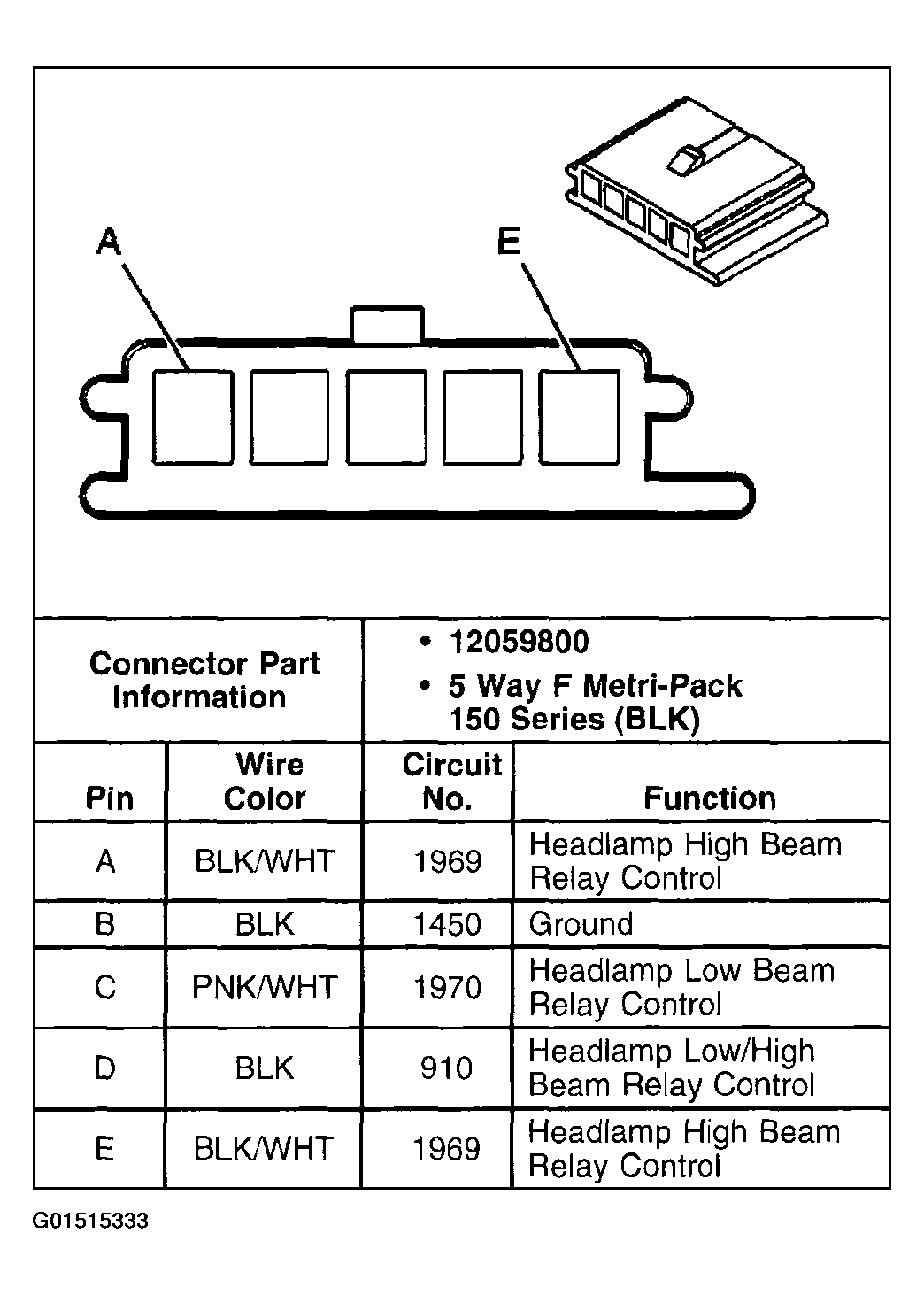

Fig 36: Identifying Turn Signal/Multifunction Switch - C2 Connector Terminals

G01515333

Courtesy of GENERAL MOTORS CORP.

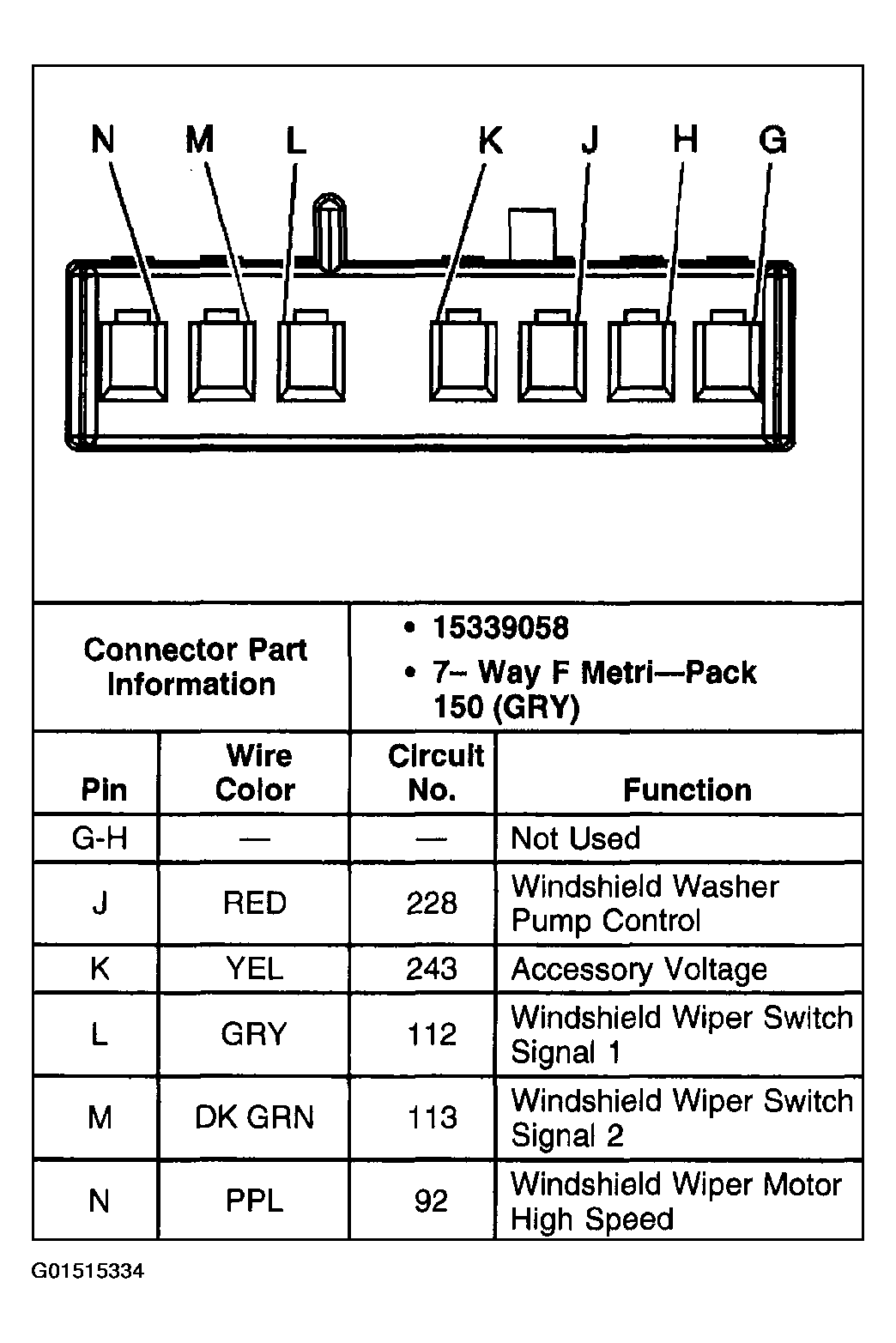

Fig 37: Identifying Turn Signal/Multifunction Switch - C3 Connector Terminals

G01515334

Courtesy of GENERAL MOTORS CORP.

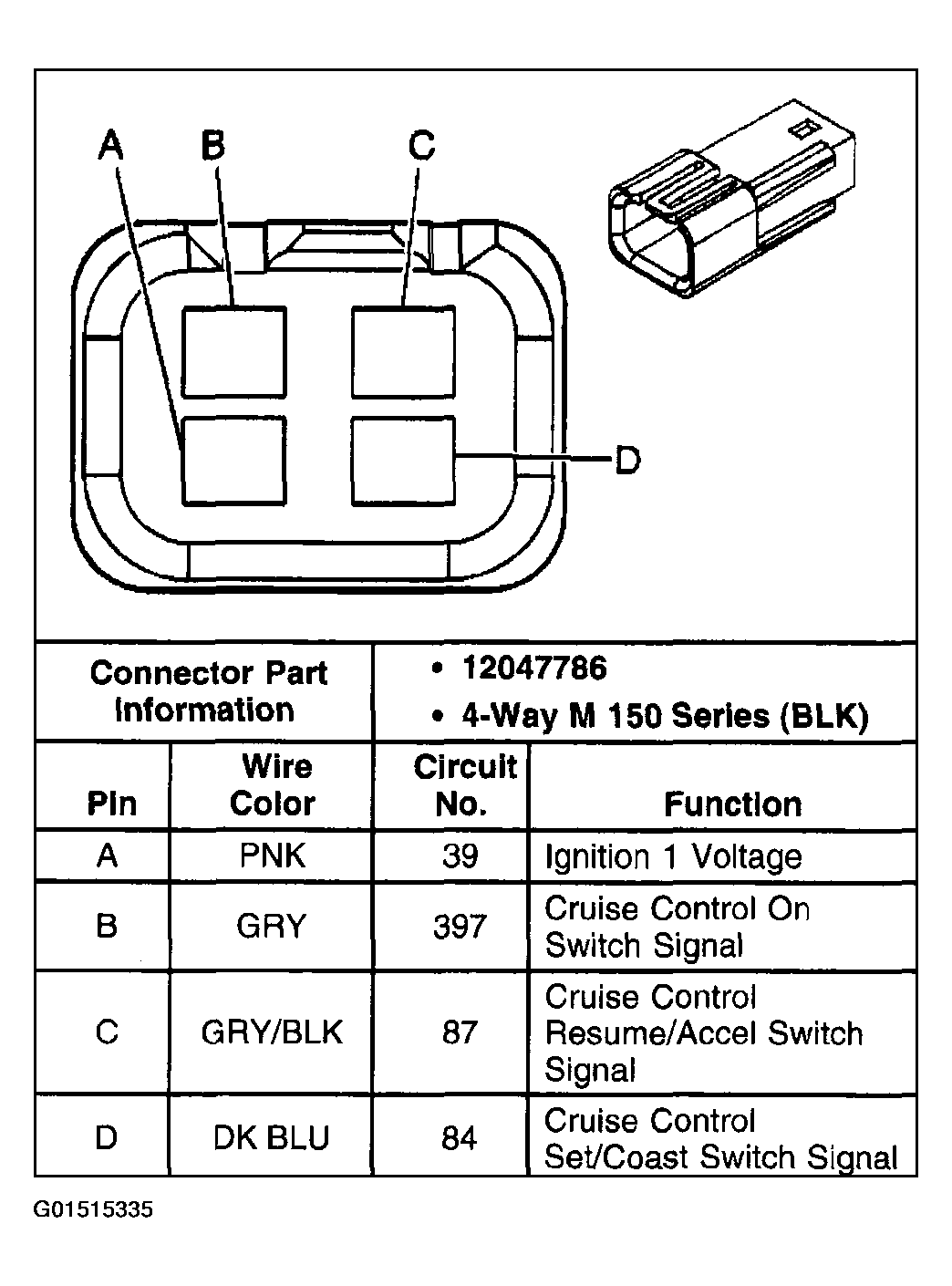

Fig 38: Identifying Turn Signal/Multifunction Switch - C4 (K34) Connector End Views

G01515335

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying Vanity Mirror - Left (C79) Connector Terminals

G01515336

Courtesy of GENERAL MOTORS CORP.

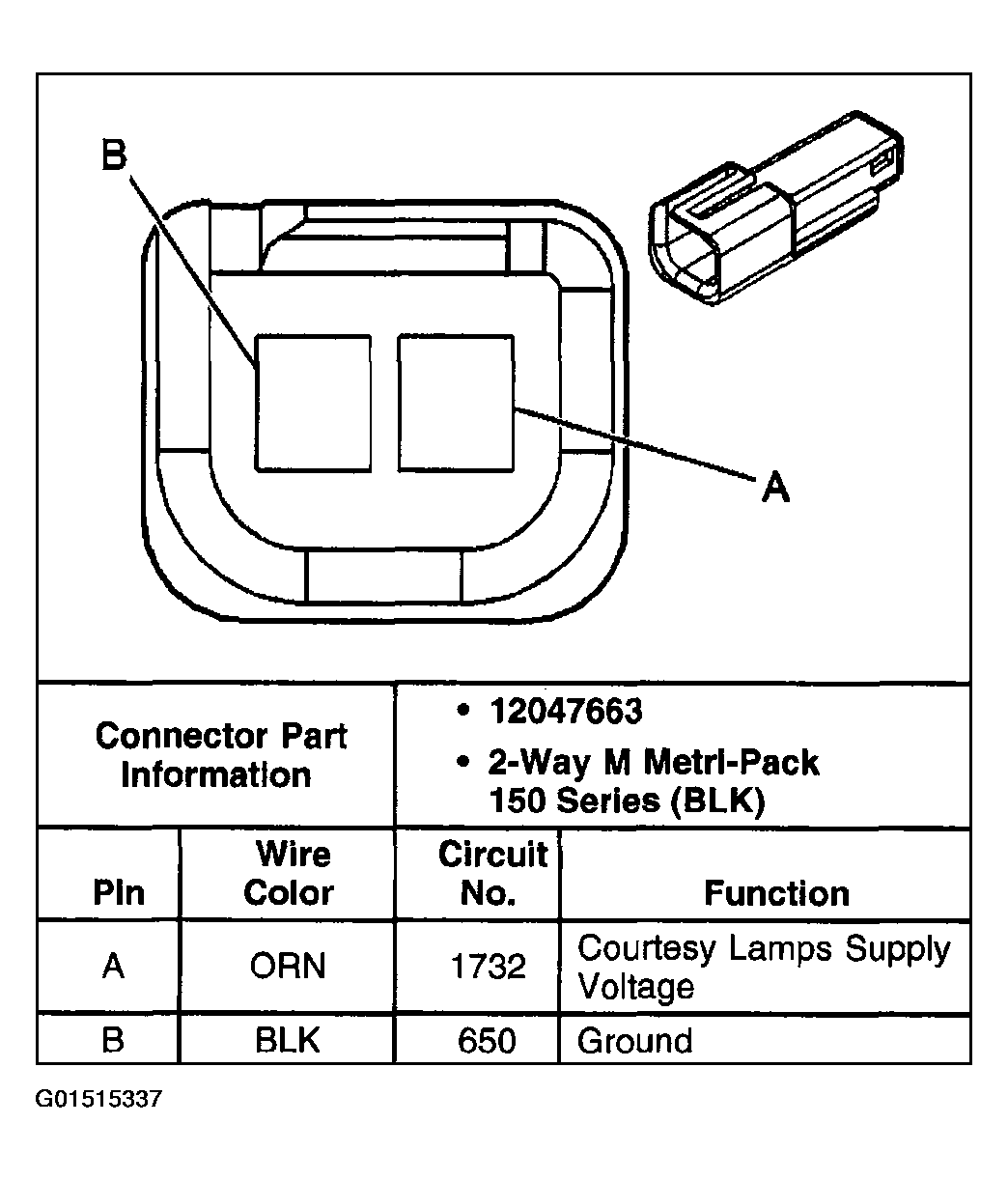

Fig 40: Identifying Vanity Mirror - Right (C79) Connector Terminals

G01515337

Courtesy of GENERAL MOTORS CORP.
