Fuse Block-Center Console-Label

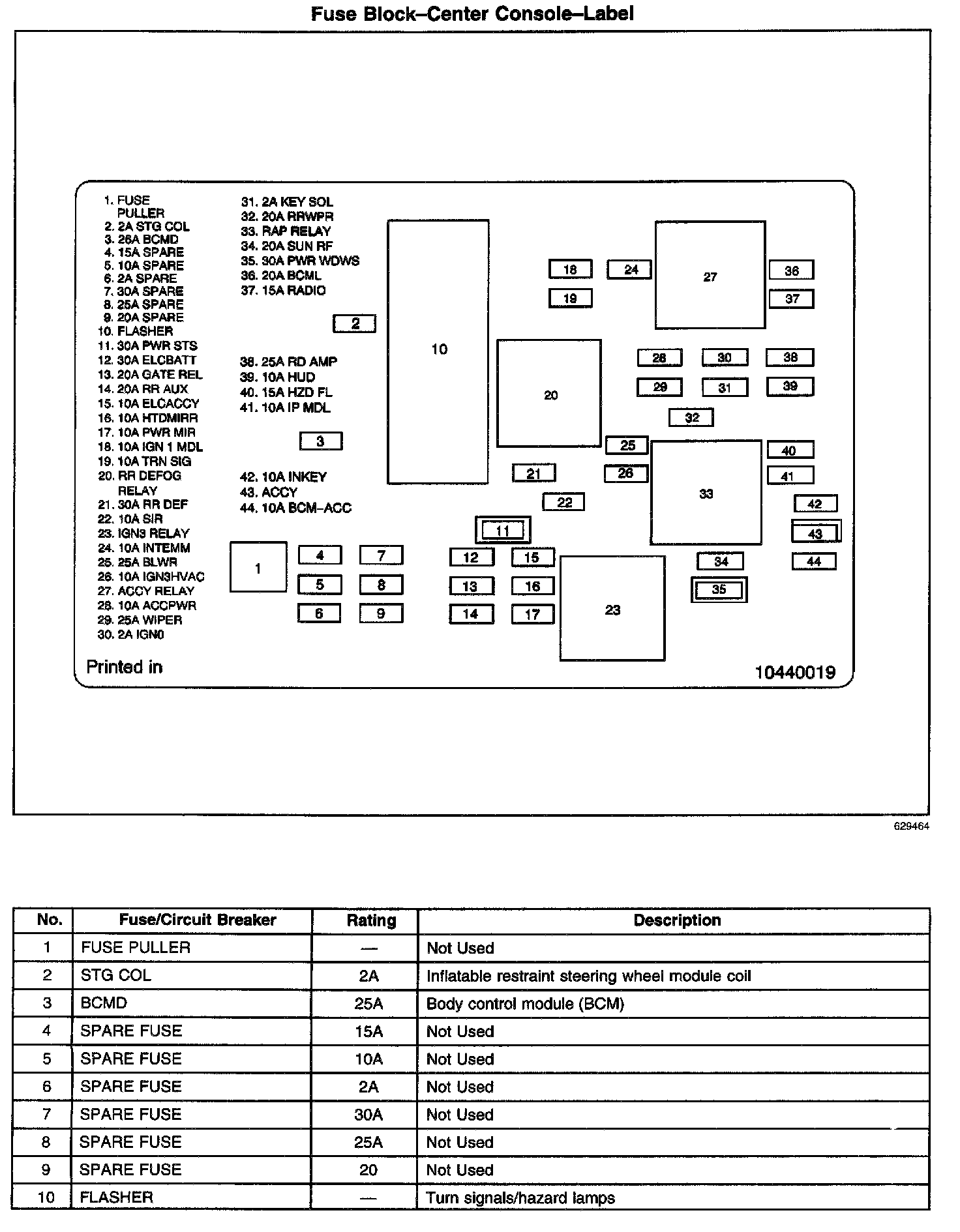

Fuse Block-Center Console-Label (Part 1 Of 3):

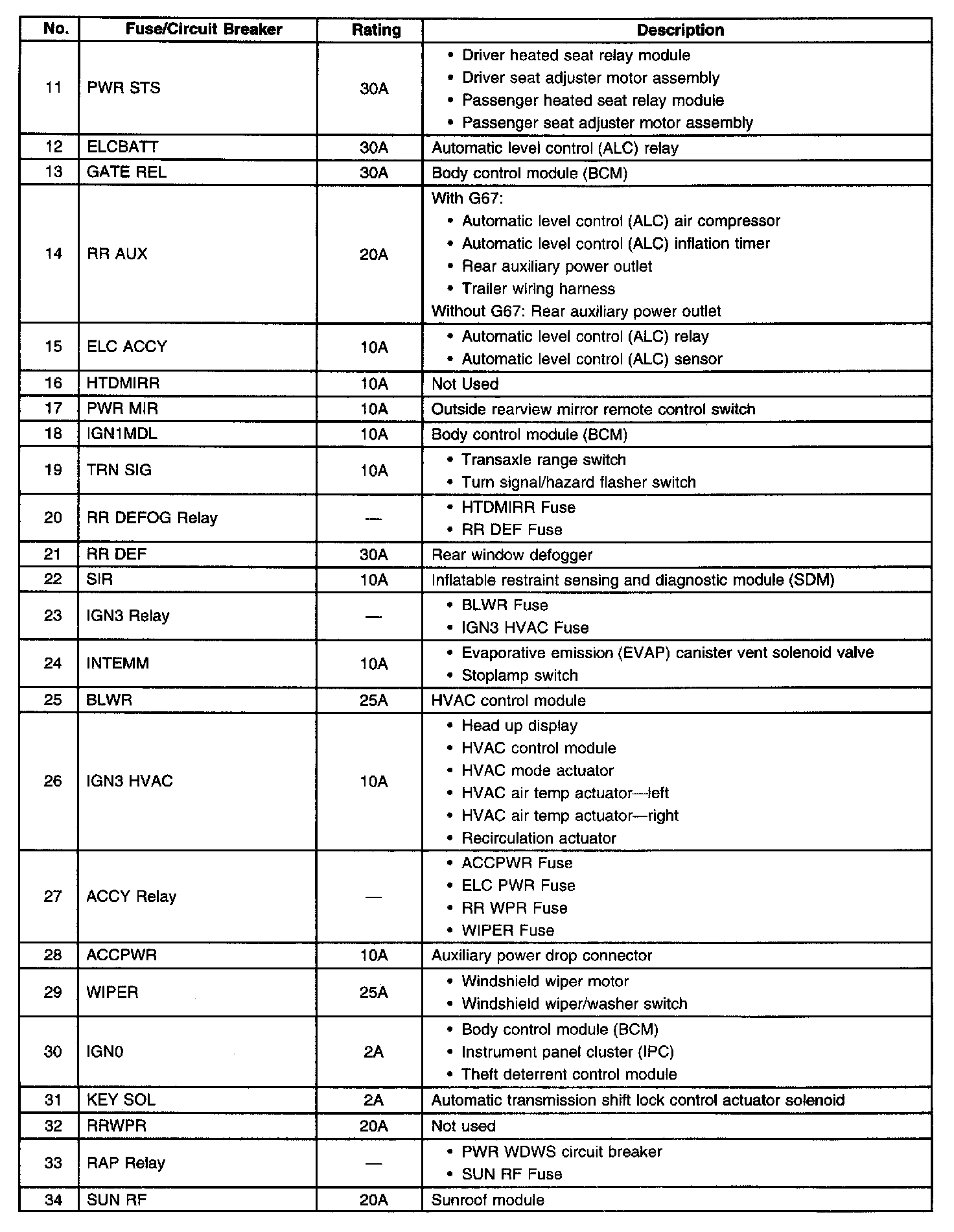

Fuse Block-Center Console-Label (Part 2 Of 3):

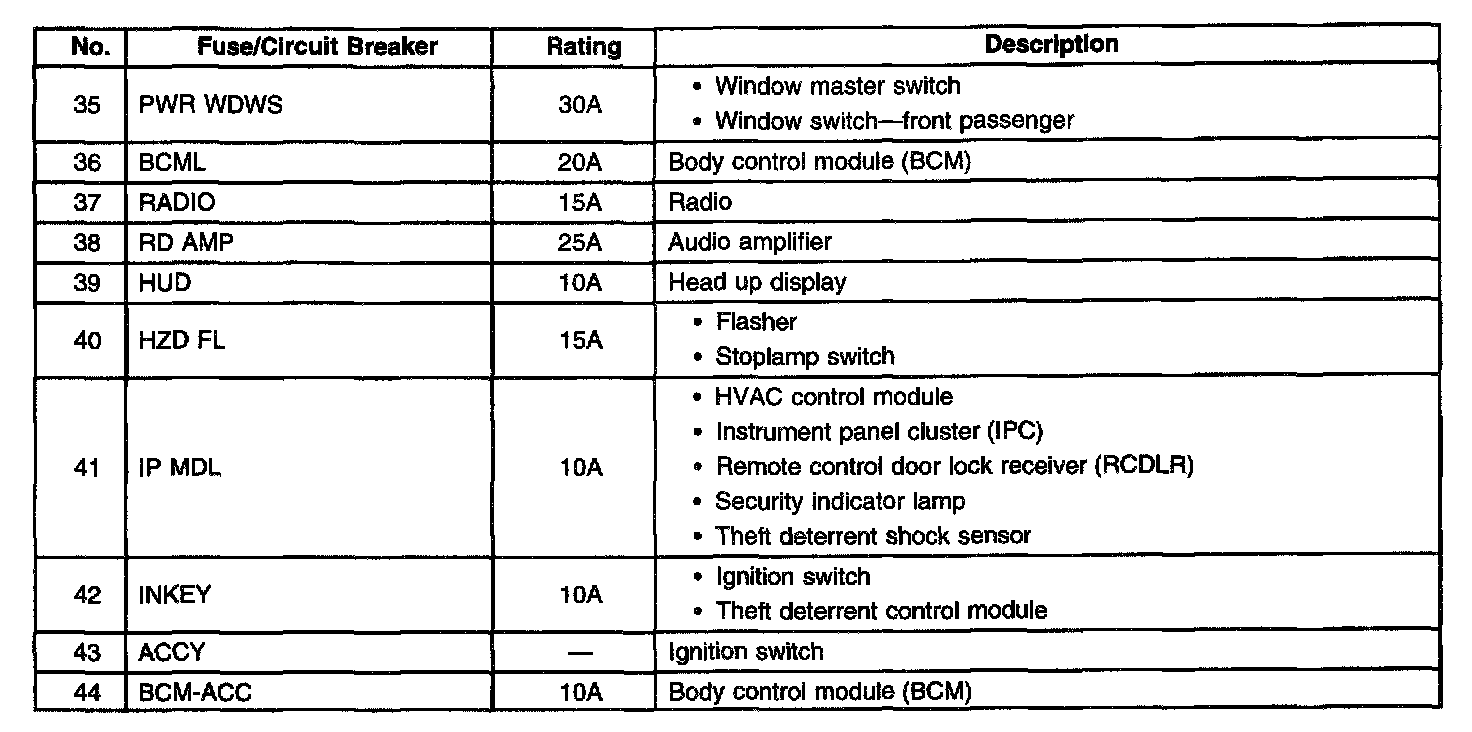

Fuse Block-Center Console-Label (Part 3 Of 3):
