Cellular Communication Connector End Views

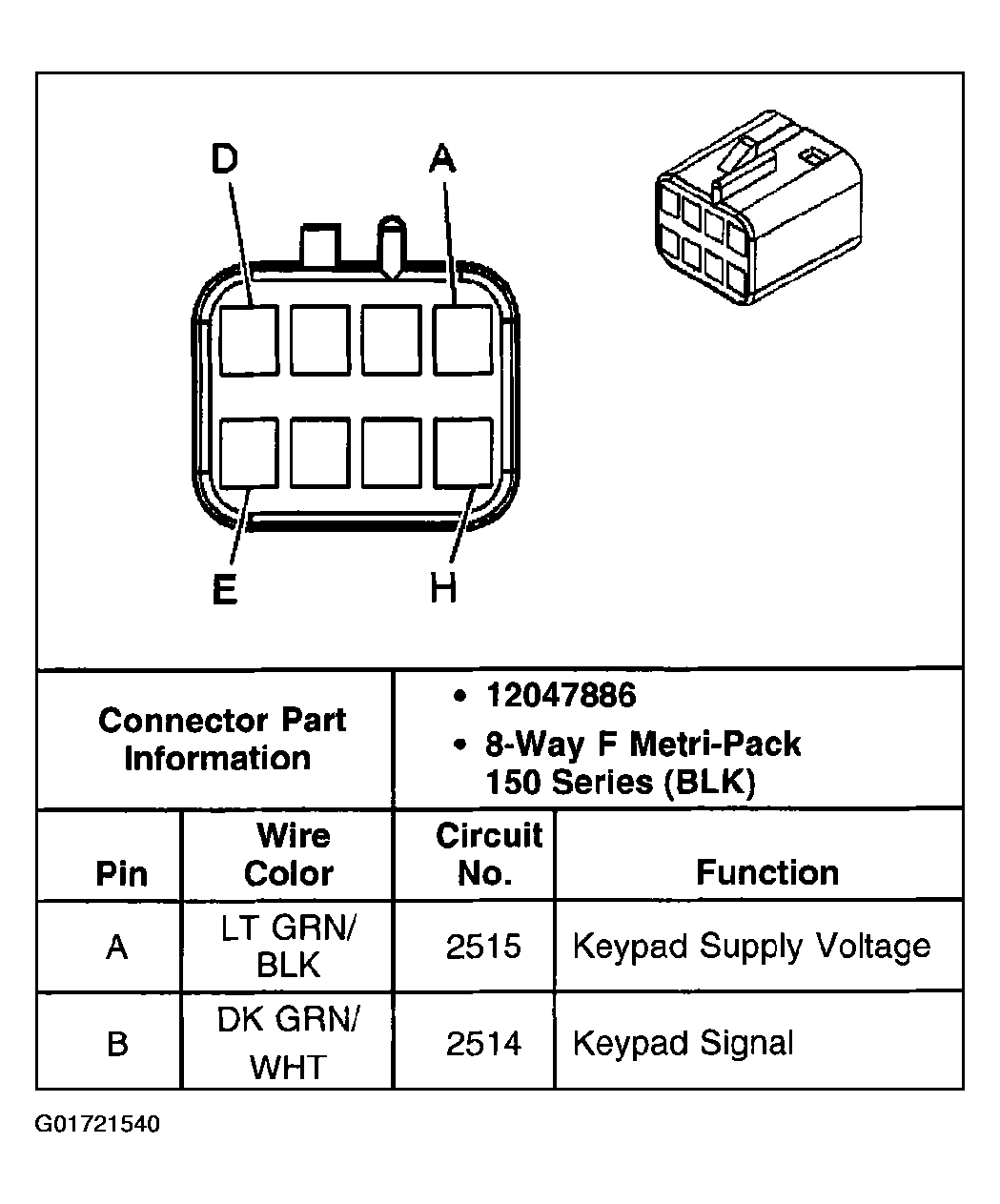

Fig 1: OnStar® Button Assembly Connector End Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

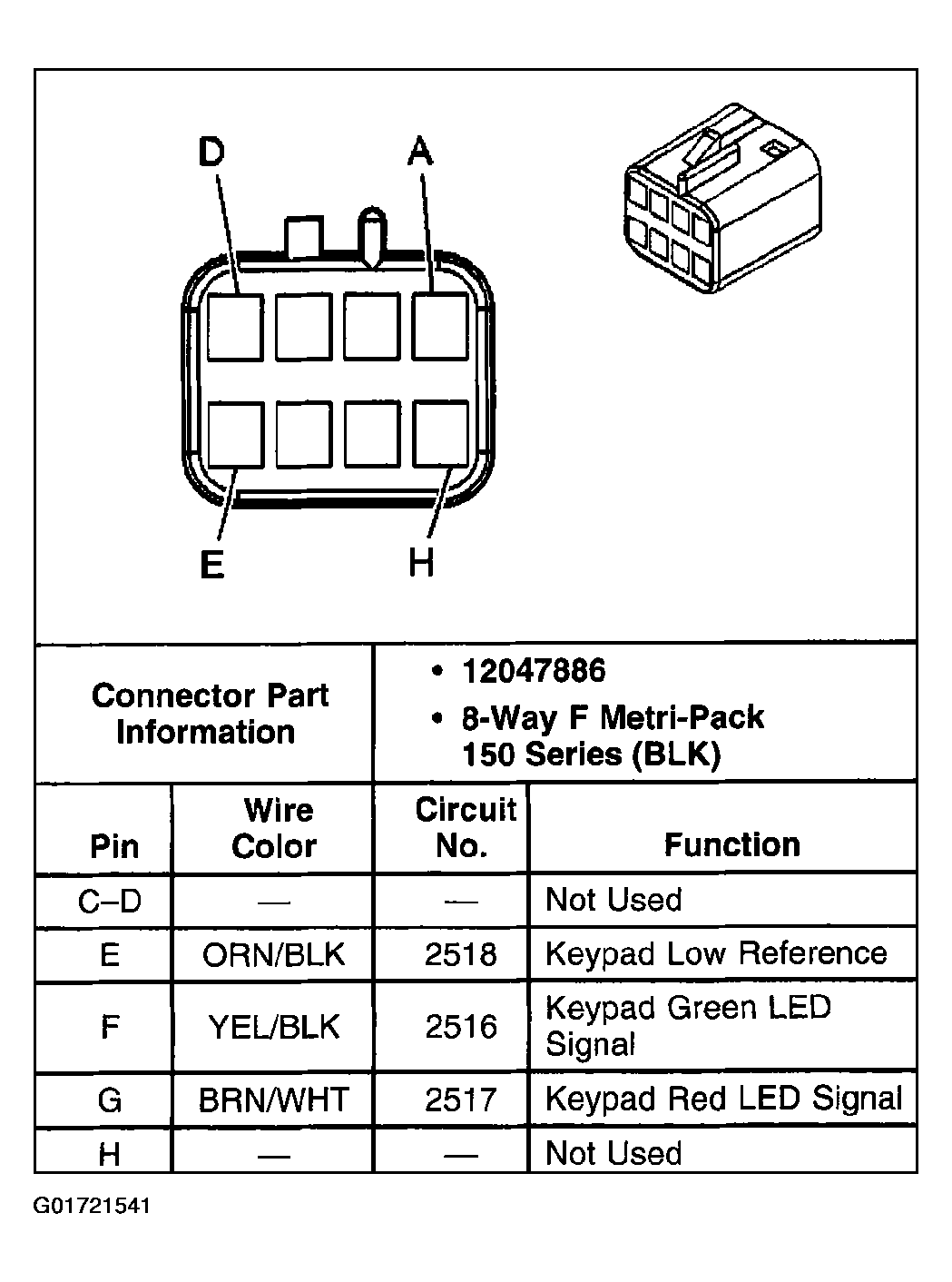

Fig 2: OnStar® Button Assembly Connector End Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

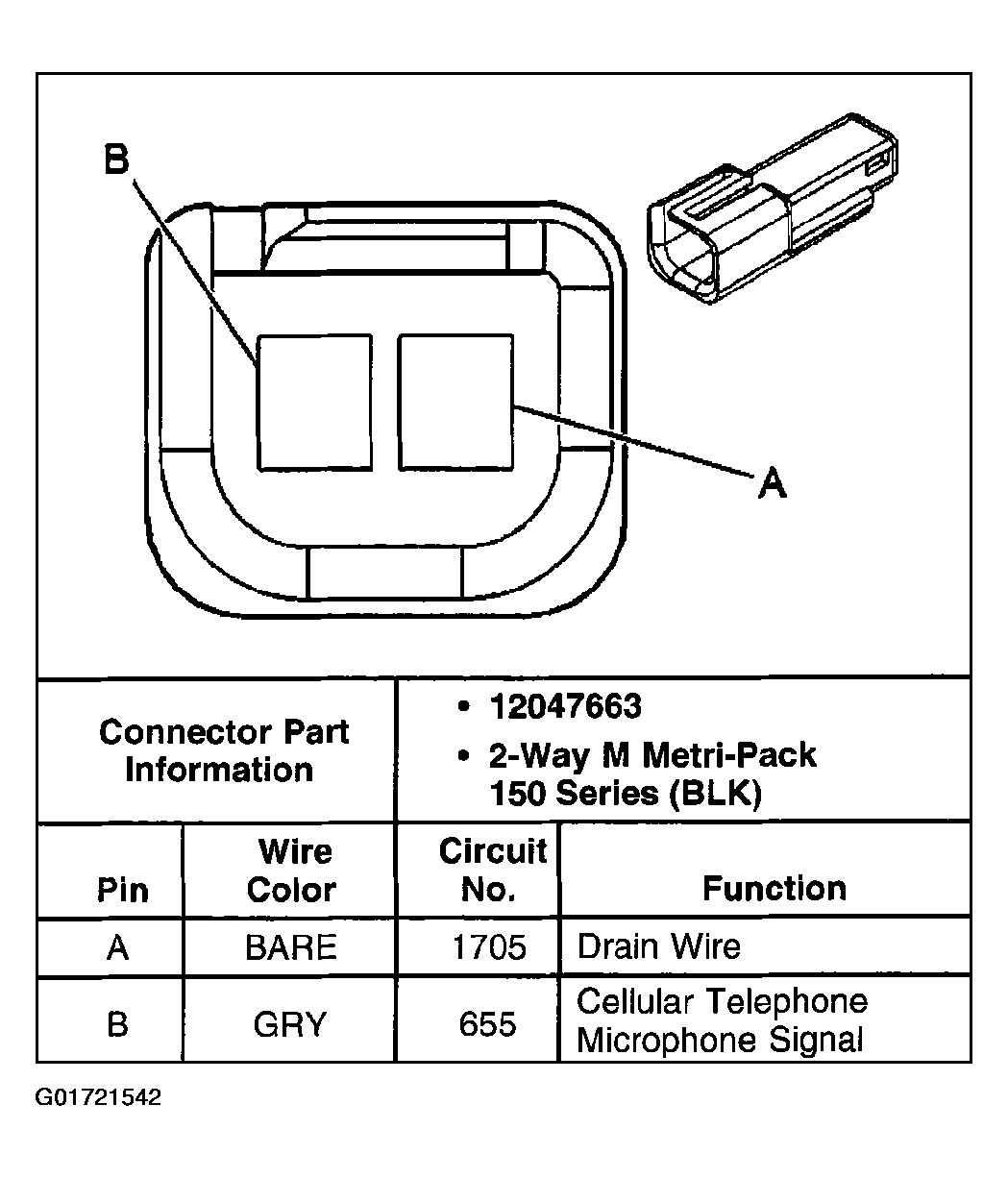

Fig 3: OnStar® Microphone Connector End Views

Courtesy of GENERAL MOTORS CORP.

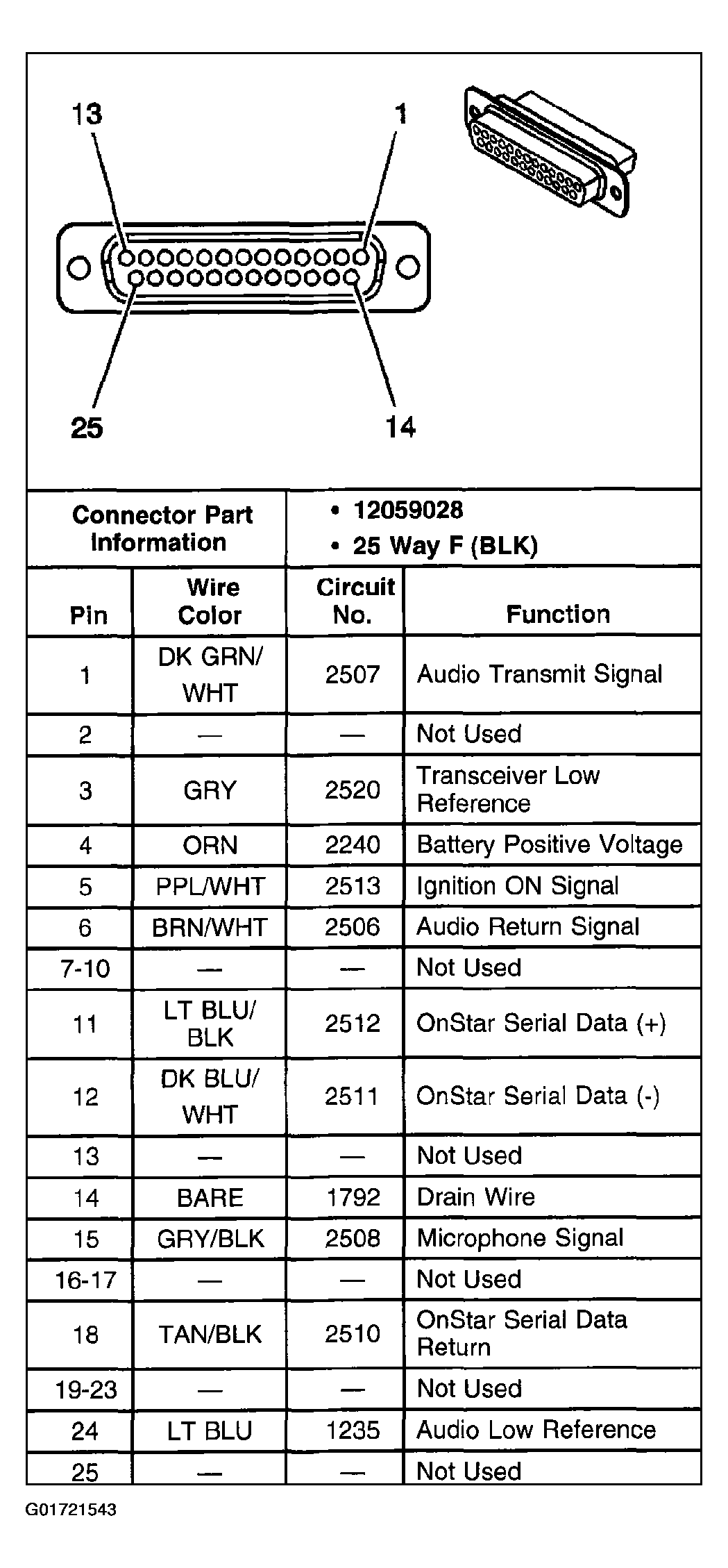

Fig 4: Vehicle Communication Unit (VCU) Connector End Views

Courtesy of GENERAL MOTORS CORP.

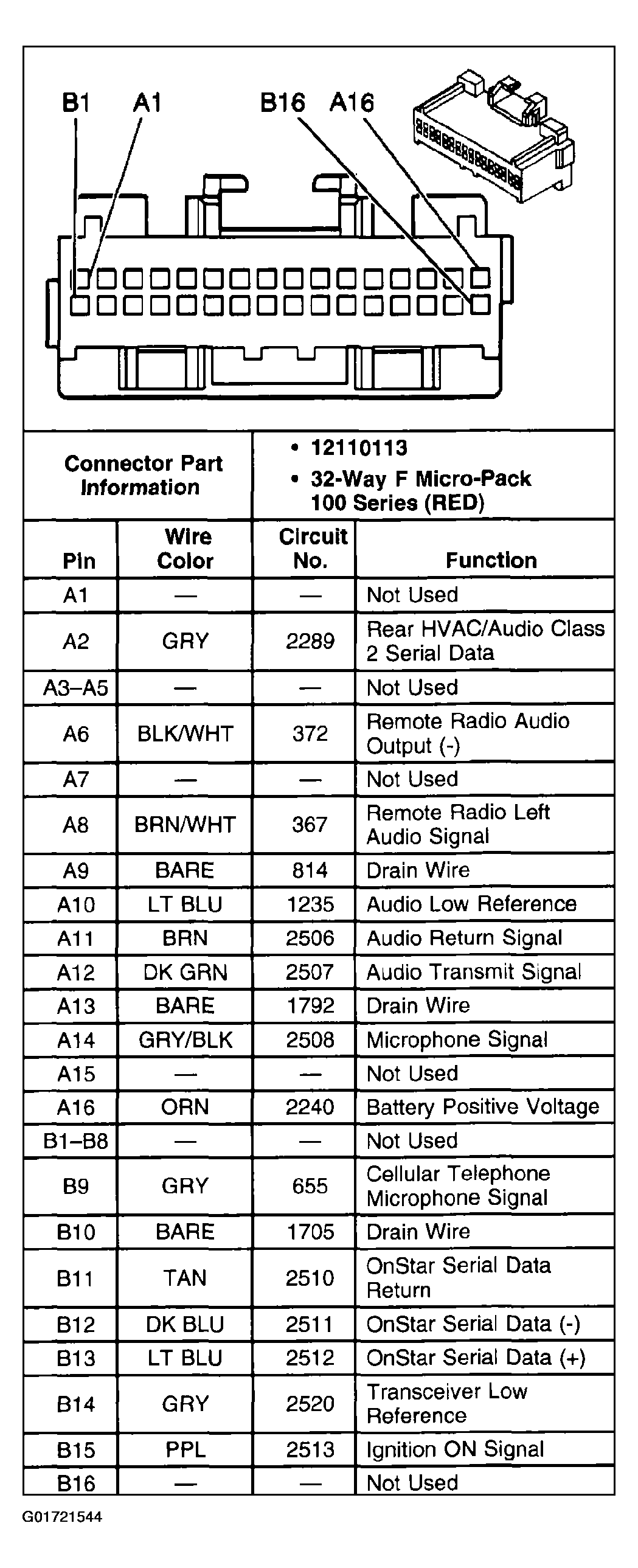

Fig 5: Vehicle Interface Unit (VIU) Connector End Views - C1

Courtesy of GENERAL MOTORS CORP.

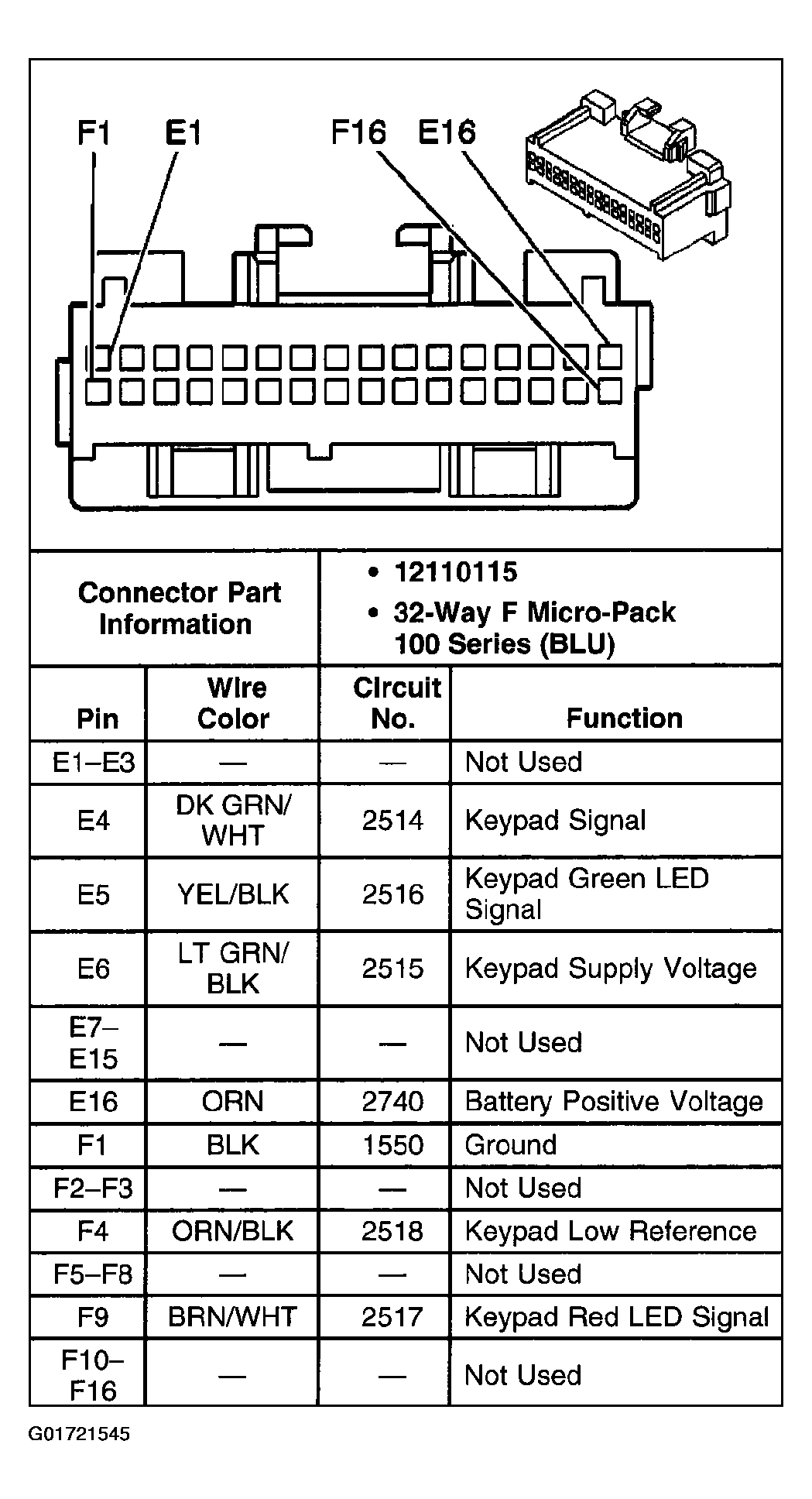

Fig 6: Vehicle Interface Unit (VIU) Connector End Views- C2

Courtesy of GENERAL MOTORS CORP.
