Installation Procedure

  1. Prepare the interior glass using isopropyl alcohol pad and a clean lint-free cloth.
    Fig 1: Cleaning Interior Glass
    G01721578Courtesy of GENERAL MOTORS CORP.
  2. Remove the backing on the metallic strip from the antenna housing.
    Fig 2: View Of Antenna Housing
    G01721579Courtesy of GENERAL MOTORS CORP.
  3. Install the GPS antenna to the windshield.
  4. Connect the GPS antenna electrical connector (3).

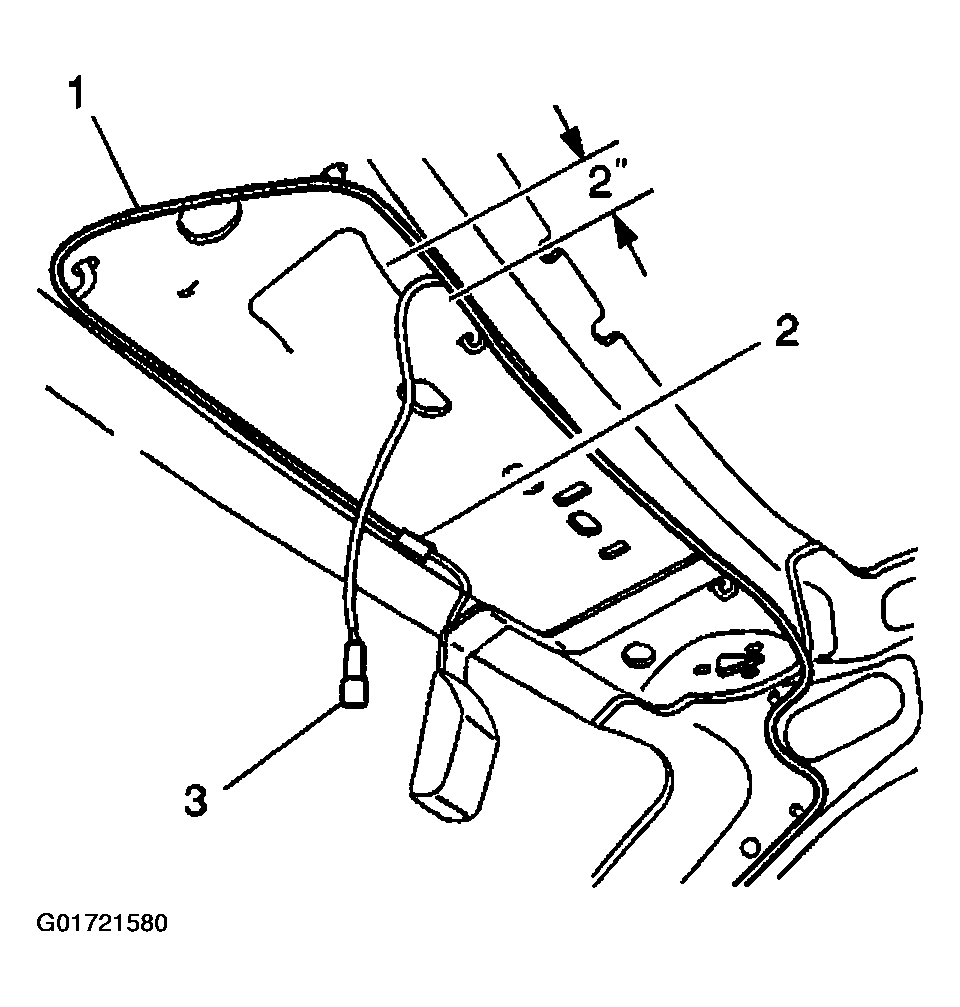

    Fig 3: Connecting GPS Antenna Electrical Connector
    G01721580Courtesy of GENERAL MOTORS CORP.
