Removal Procedure

  1. Remove the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK) and TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) in Instrument Panel, Gages, and Console.
  2. Remove the security indicator lamp (3) from the instrument panel upper trim:
    1. 2.1. Rotate the lamp counterclockwise to approximately 1/4 turn.
    2. 2.2. Pull the lamp out.
  3. Disconnect the security indicator lamp electrical connector from the security indicator lamp.

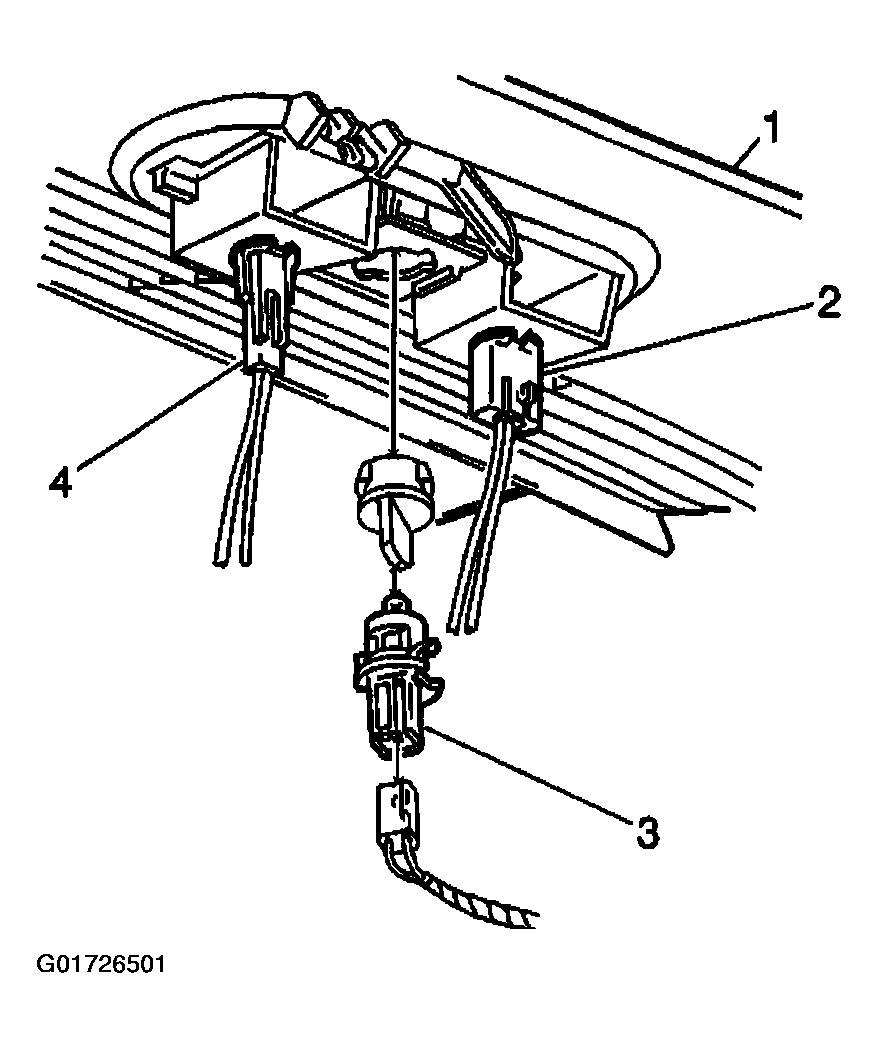

    Fig 1: View Of Security Indicator Lamp
    G01726501Courtesy of GENERAL MOTORS CORP.
