Removal Procedure

  1. Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar .
  2. Remove the bolts from the assist handle.

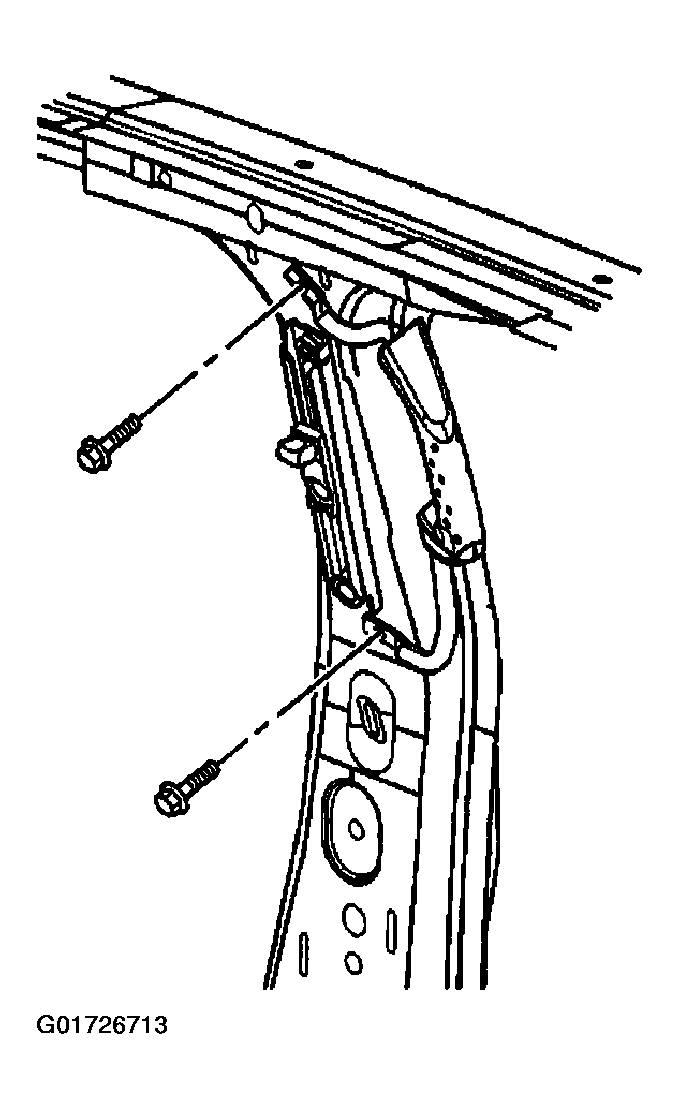

    Fig 1: Removing Assist Handle Bolts
    G01726713Courtesy of GENERAL MOTORS CORP.
  3. Remove the assist handle from the center pillar.

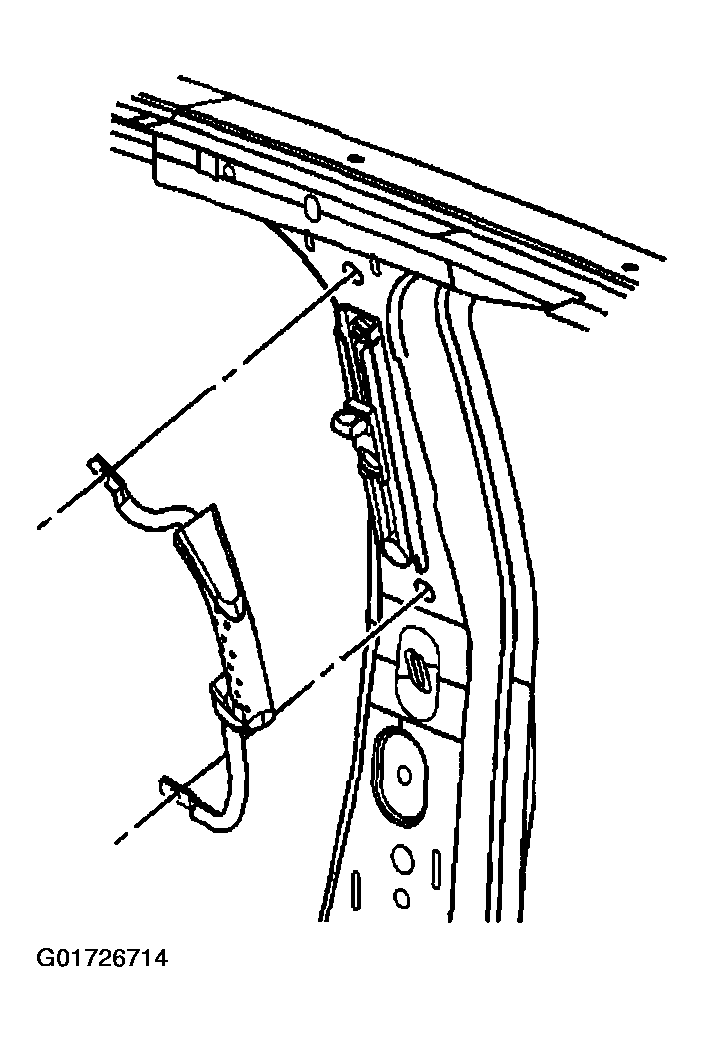

    Fig 2: Removing Assist Handle
    G01726714Courtesy of GENERAL MOTORS CORP.
