Installation Procedure

  1. Install the memory seat module (4) to the seat cushion frame.
  2. Install new rivets (3) to the memory seat module (4).

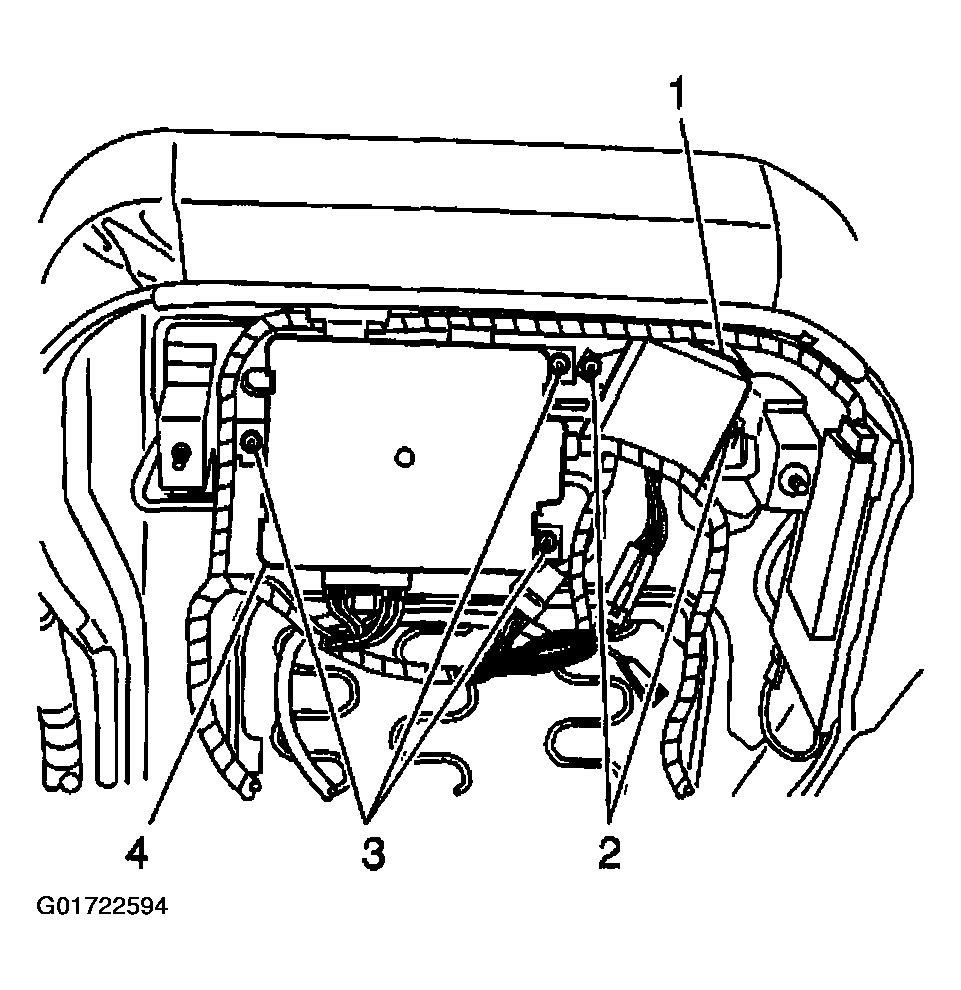

    Fig 1: View Of Memory Seat Module And Rivets
    G01722594Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the memory seat module.

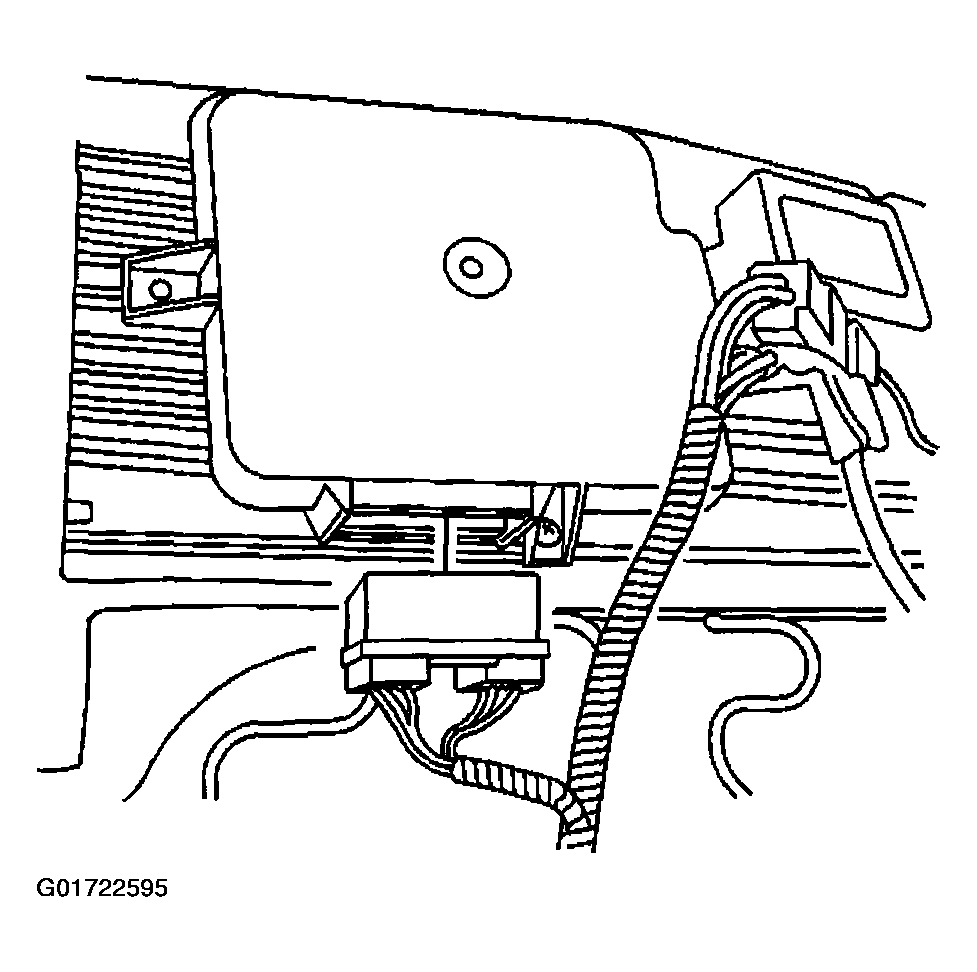

    Fig 2: Connecting Memory Seat Module Electrical Connector
    G01722595Courtesy of GENERAL MOTORS CORP.
  4. Remove the protective cover from the seat riser.
  5. Install the seat cushion assembly (1) to the seat riser.
  6. Install the fasteners (2) to the seat cushion assembly (1).

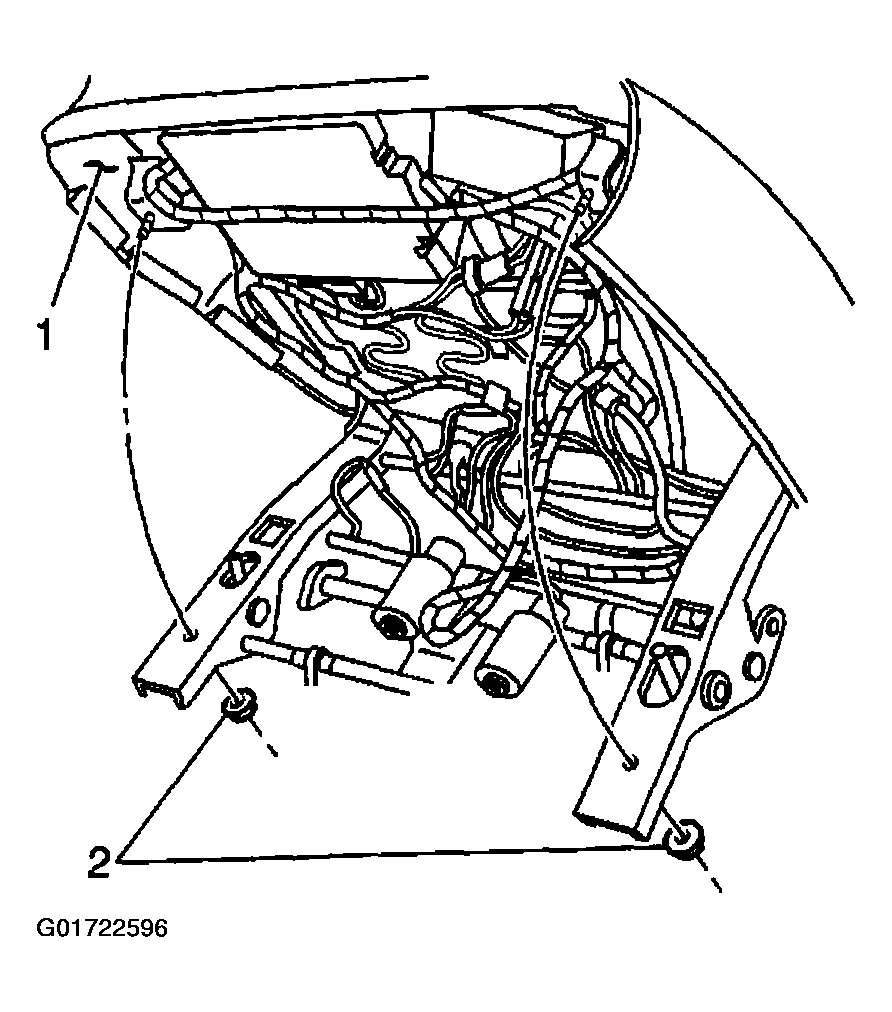

    Fig 3: Adjusting, Lifting And Positioning Seat Assembly
    G01722596Courtesy of GENERAL MOTORS CORP.
  7. Adjust the front seat assembly up and forward in order to access the fasteners (1).
    NOTE: Refer to FASTENER NOTICE .
  8. Install the fasteners (1) to the seat cushion assembly.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  9. Angle the front seat cushion up, in order to access the assembly fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  10. Enable the SIR. Refer to ACTIVATING SYSTEM .

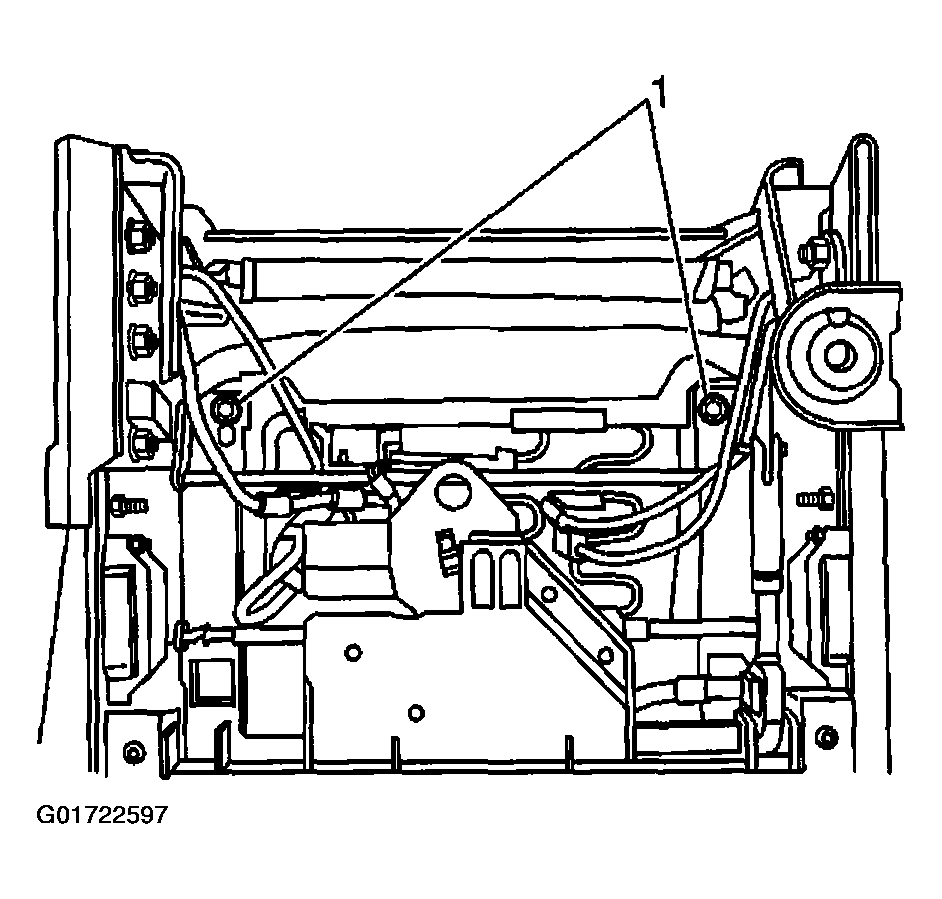

    Fig 4: Installing Rear Of Front Seat Cushion Assembly Fasteners
    G01722597Courtesy of GENERAL MOTORS CORP.
