Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR. Refer to DISABLING SYSTEM .
  2. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  3. Remove the fasteners.

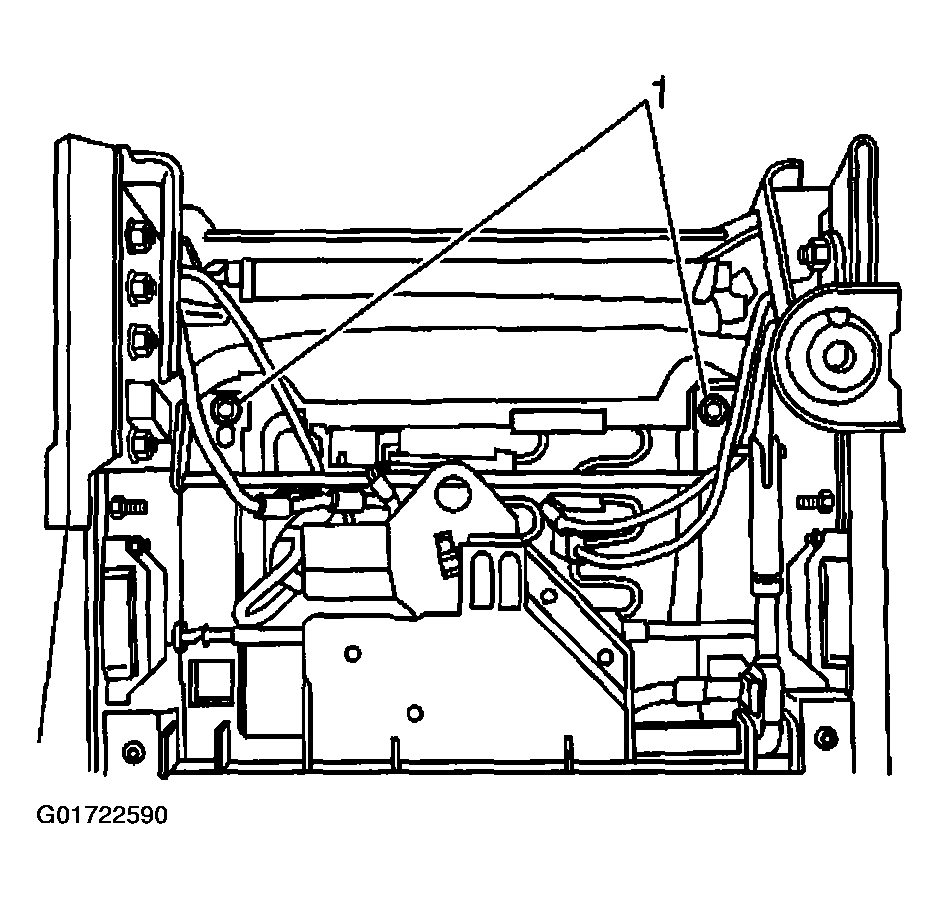

    Fig 1: Removing Rear Of Front Seat Cushion Assembly Fasteners
    G01722590Courtesy of GENERAL MOTORS CORP.
  4. Adjust the front seat assembly to the rear of the vehicle.
  5. Angle the front seat cushion (1) up, in order to access the assembly fasteners (2).
  6. Remove the fasteners.
  7. Lift the front seat cushion assembly (1) away from the seat riser.
  8. Position the assembly (1) against the seat back, in order to access the memory seat module rivets and the electrical connector.

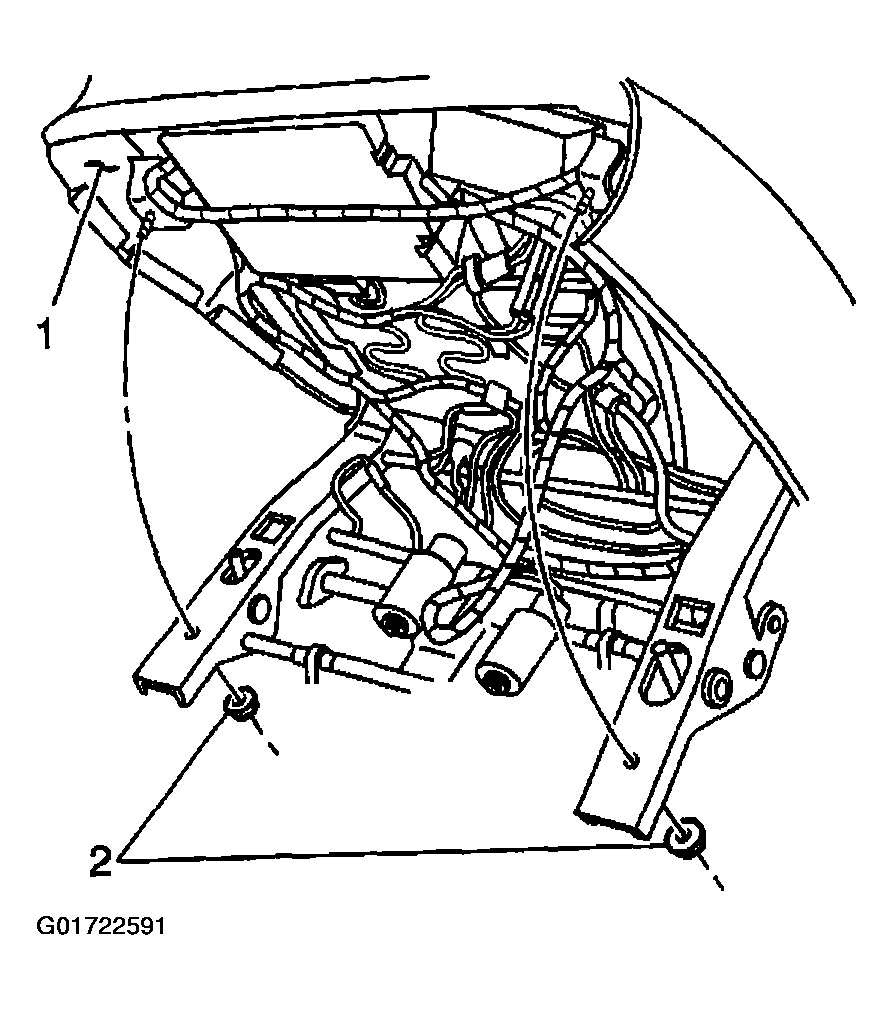

    Fig 2: Adjusting, Lifting And Positioning Seat Assembly
    G01722591Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the electrical connector.

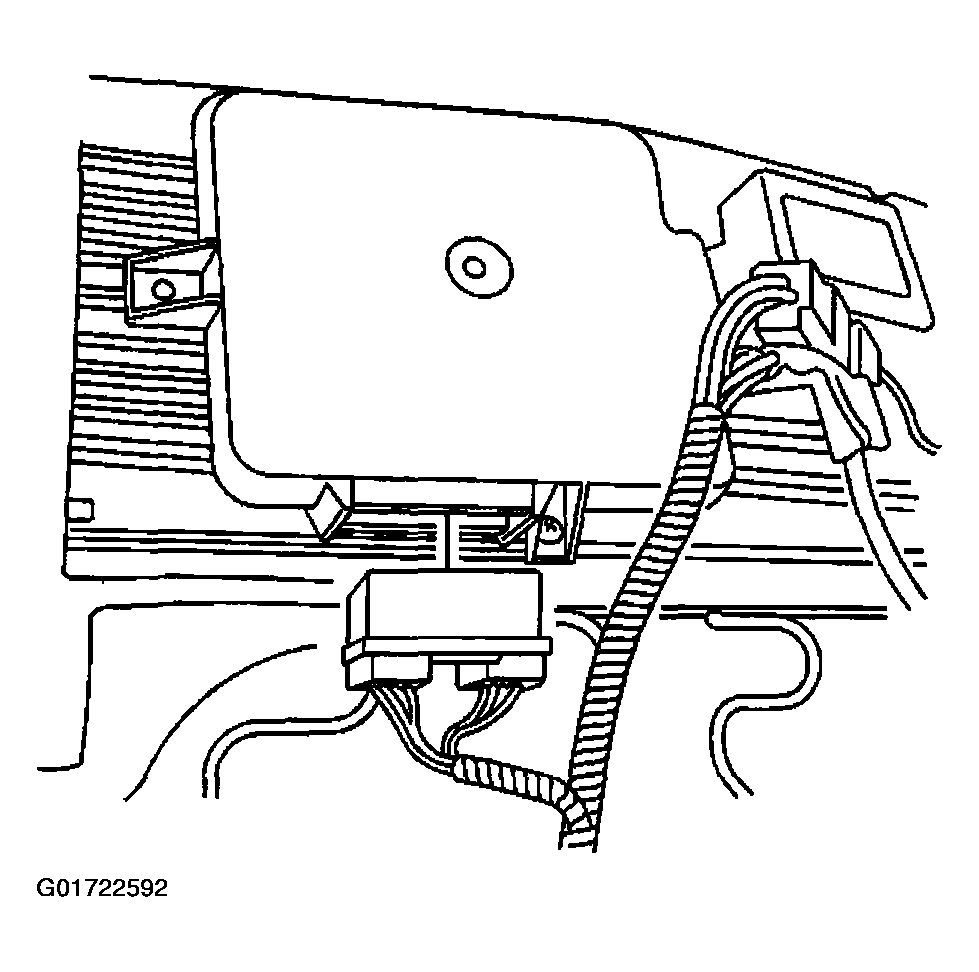

    Fig 3: Disconnecting Memory Seat Module Electrical Connector
    G01722592Courtesy of GENERAL MOTORS CORP.

    Important:  Cover the seat motors and cables in order to avoid metal shavings in the mechanism.

    CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
  10. Drill out the rivets (3) retaining the memory seat module (4) to the seat cushion frame.
  11. Remove the memory seat module (4).

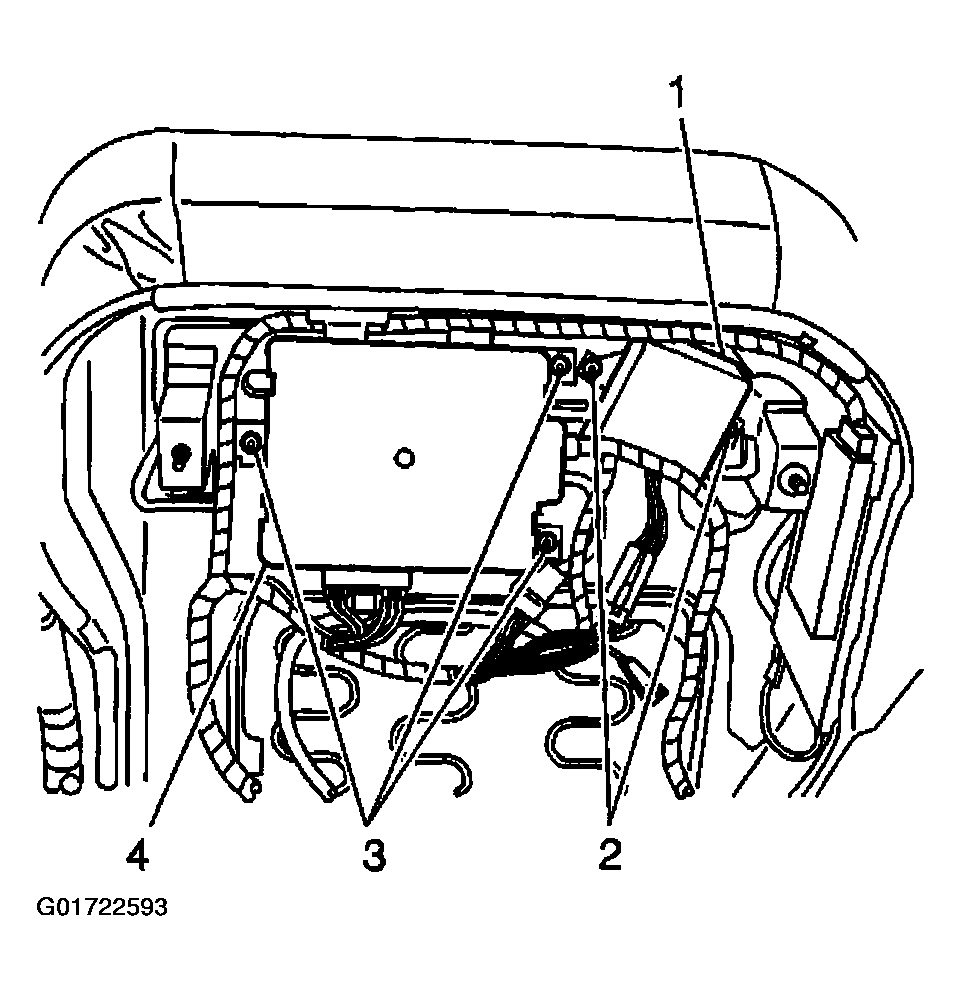

    Fig 4: View Of Memory Seat Module And Rivets
    G01722593Courtesy of GENERAL MOTORS CORP.
