Steering Wheel Controls Connector End View - Left

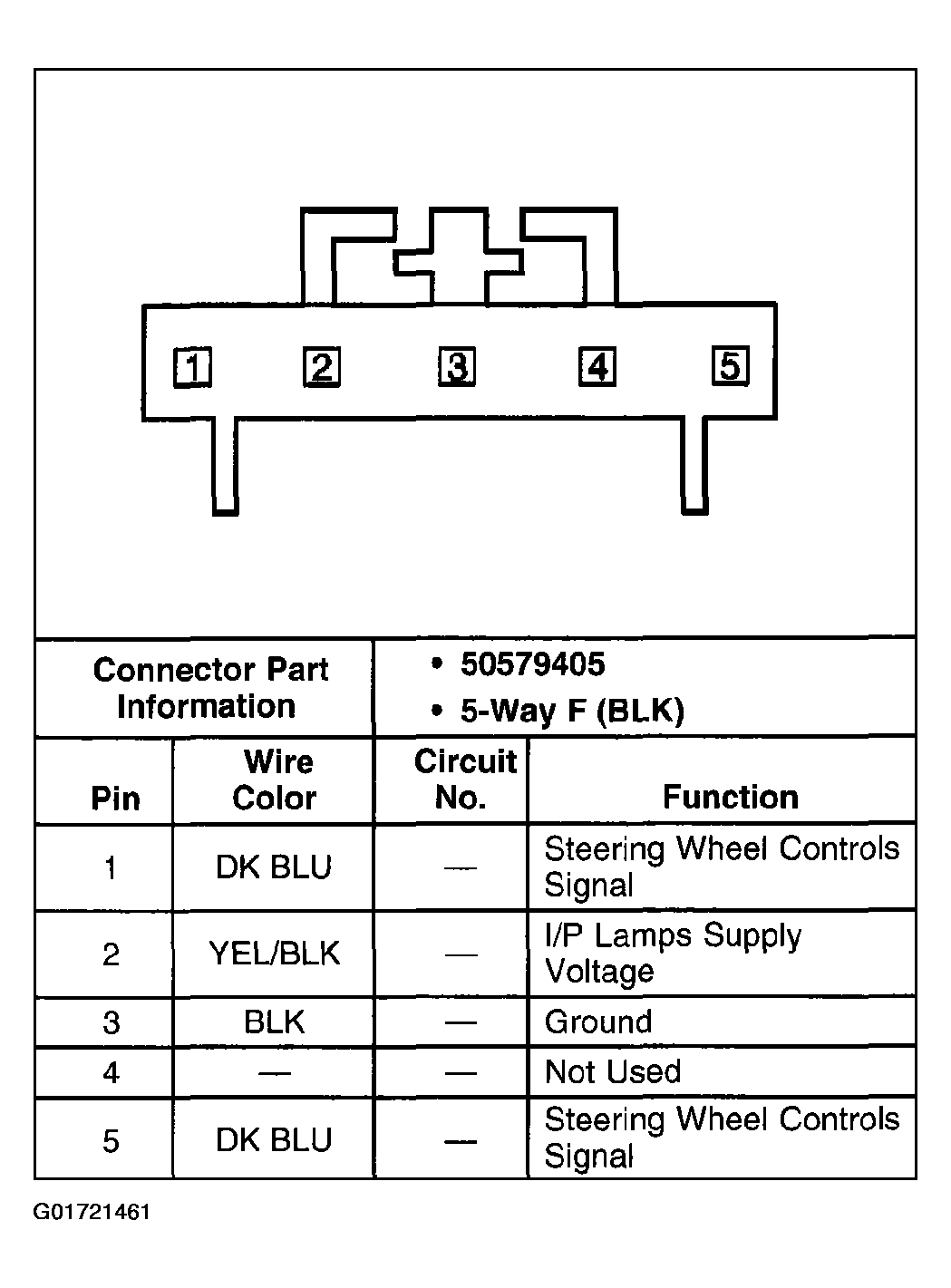

Fig 1: Steering Wheel Controls - Left

G01721461

Courtesy of GENERAL MOTORS CORP.
