Removal Procedure

  1. Remove the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Aztek) .

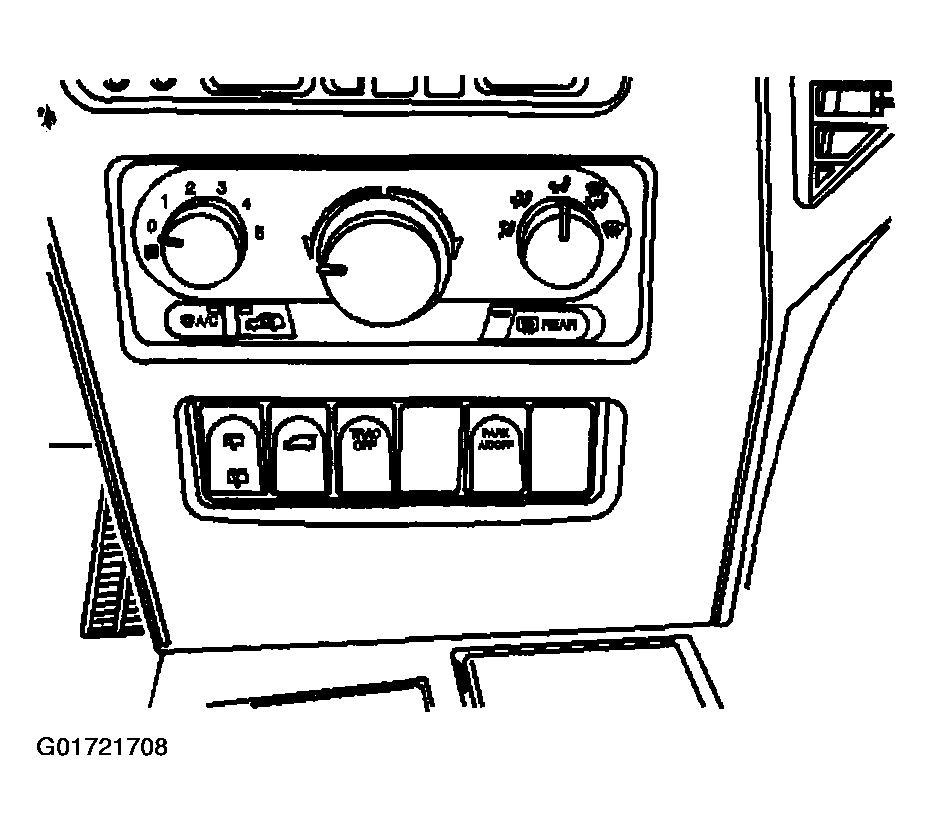

    Fig 1: View Of Instrument Panel (I/P)
    G01721708Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts from the switch assembly.
    Fig 2: View Of Switch Assembly
    G01721709Courtesy of GENERAL MOTORS CORP.
  3. Remove the electrical connectors from the switch assembly.
  4. Remove the switch assembly.

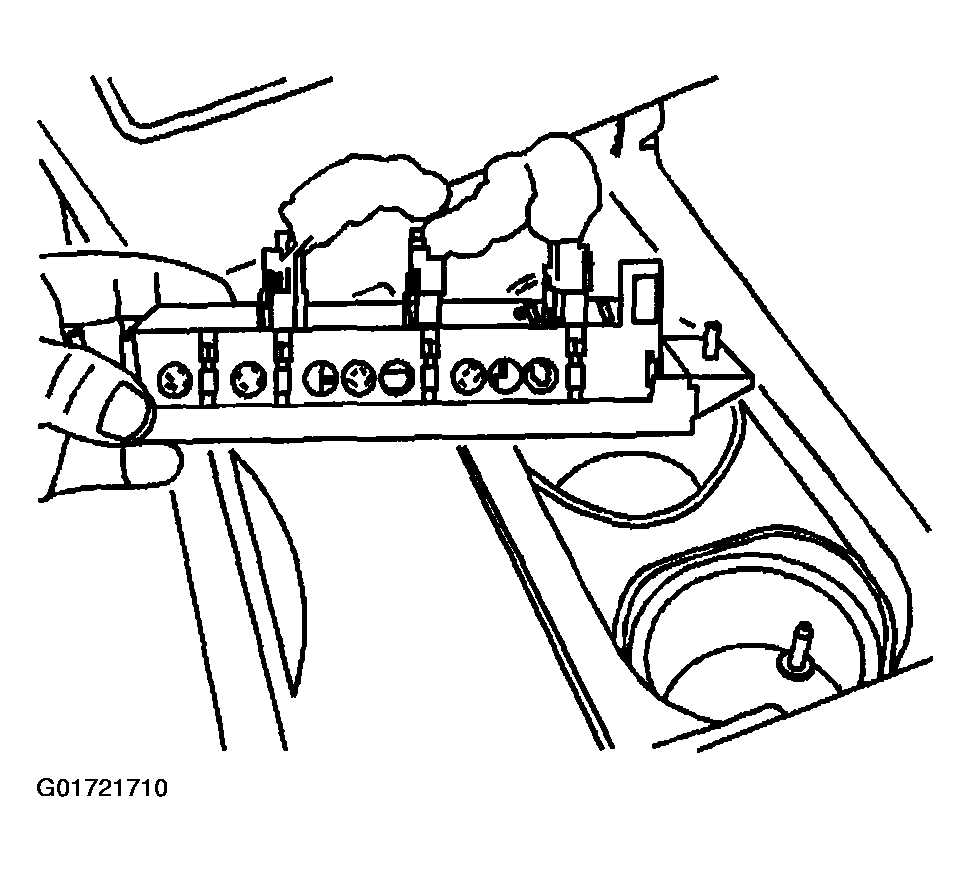

    Fig 3: Removing Switch Assembly
    G01721710Courtesy of GENERAL MOTORS CORP.
