Cooling System Connector End Views

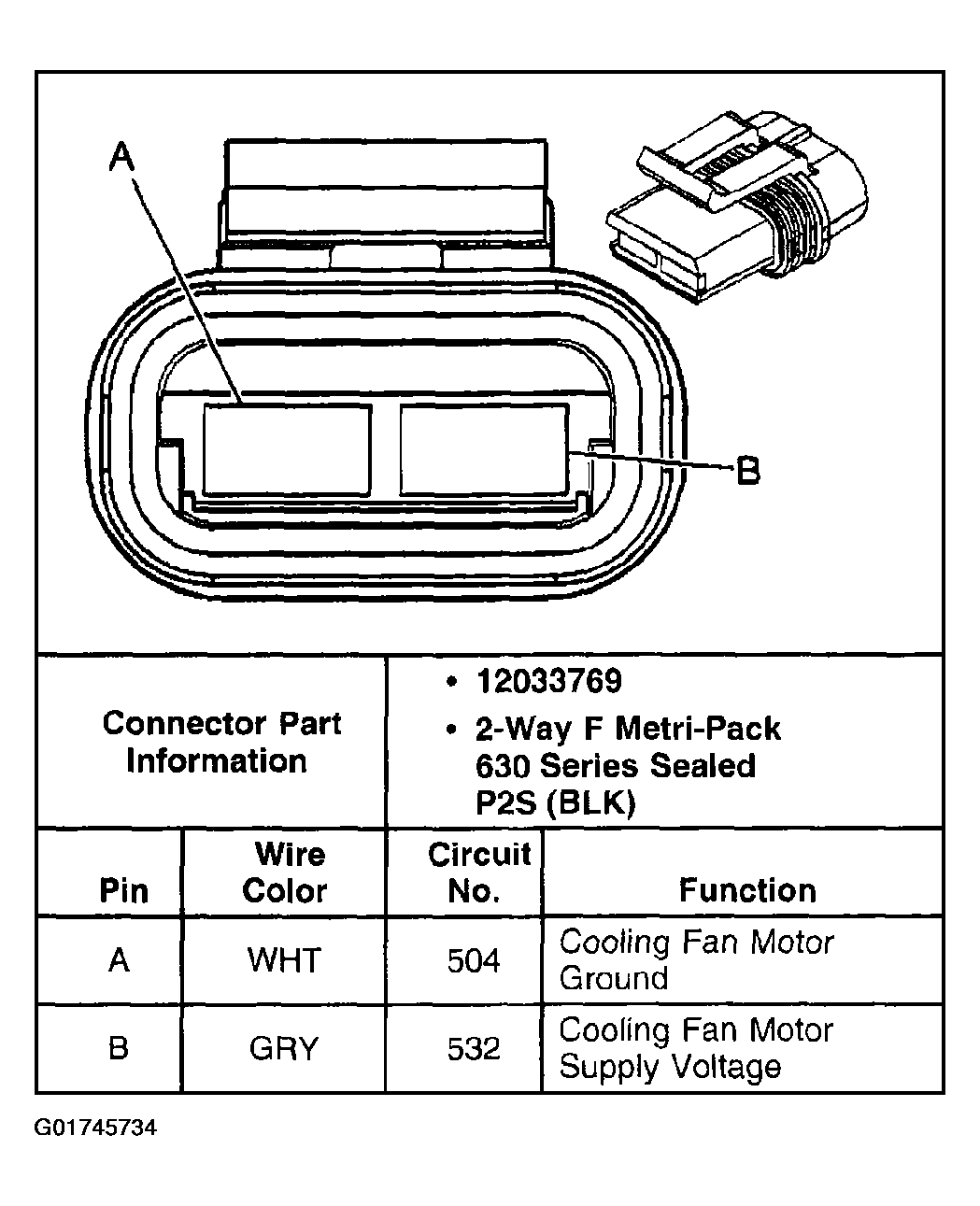

Fig 1: Cooling Fan - Left
G01745734Courtesy of GENERAL MOTORS CORP.

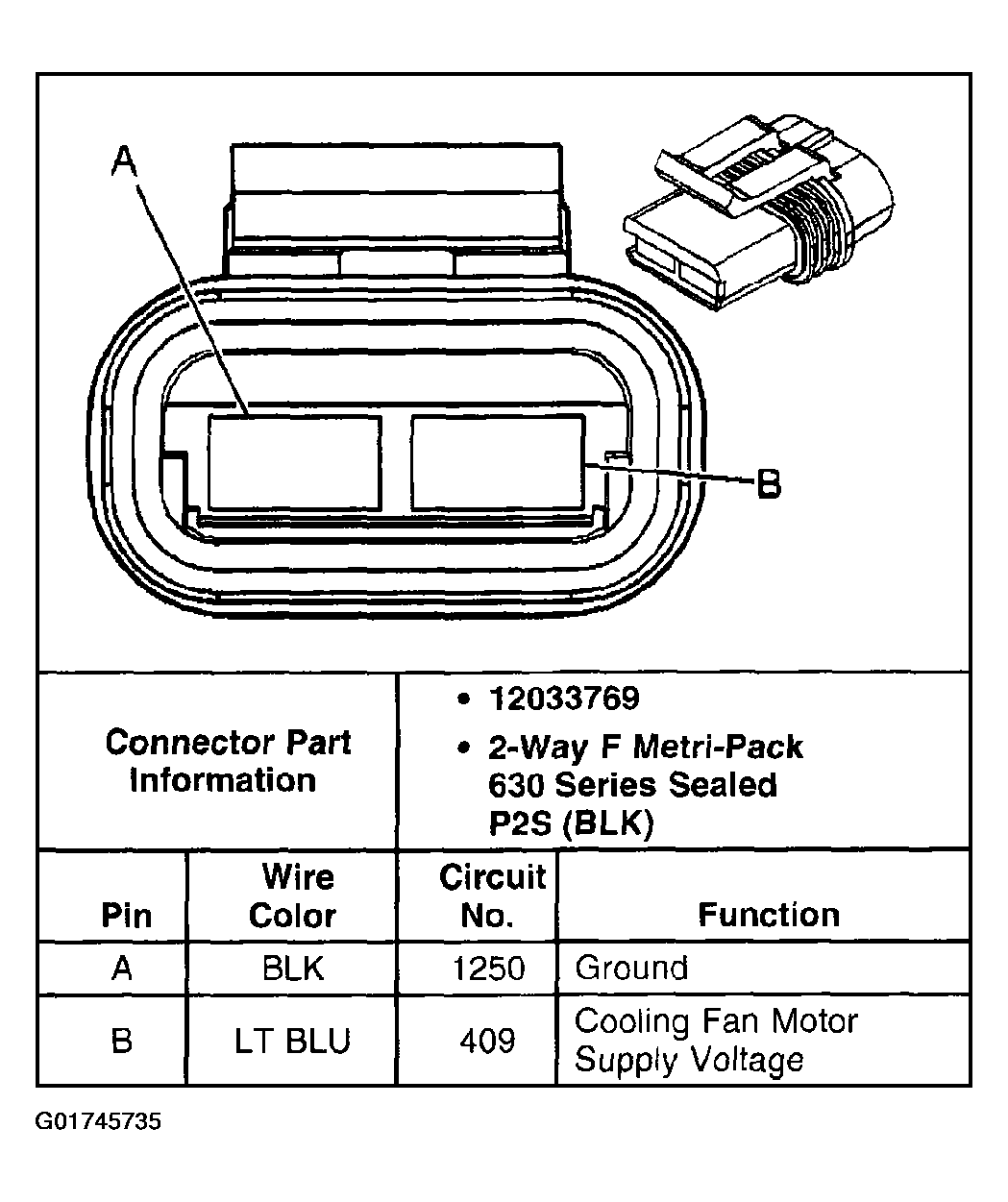

Fig 2: Cooling Fan - Right
G01745735Courtesy of GENERAL MOTORS CORP.
