Installation Procedure

  1. Install the oil level sensor to the oil pan with the retainer bolt.

    Tighten

    Tighten the bolt to 10 N.m (7 ft. lbs.).

  2. Connect the electrical connector to the oil level sensor.

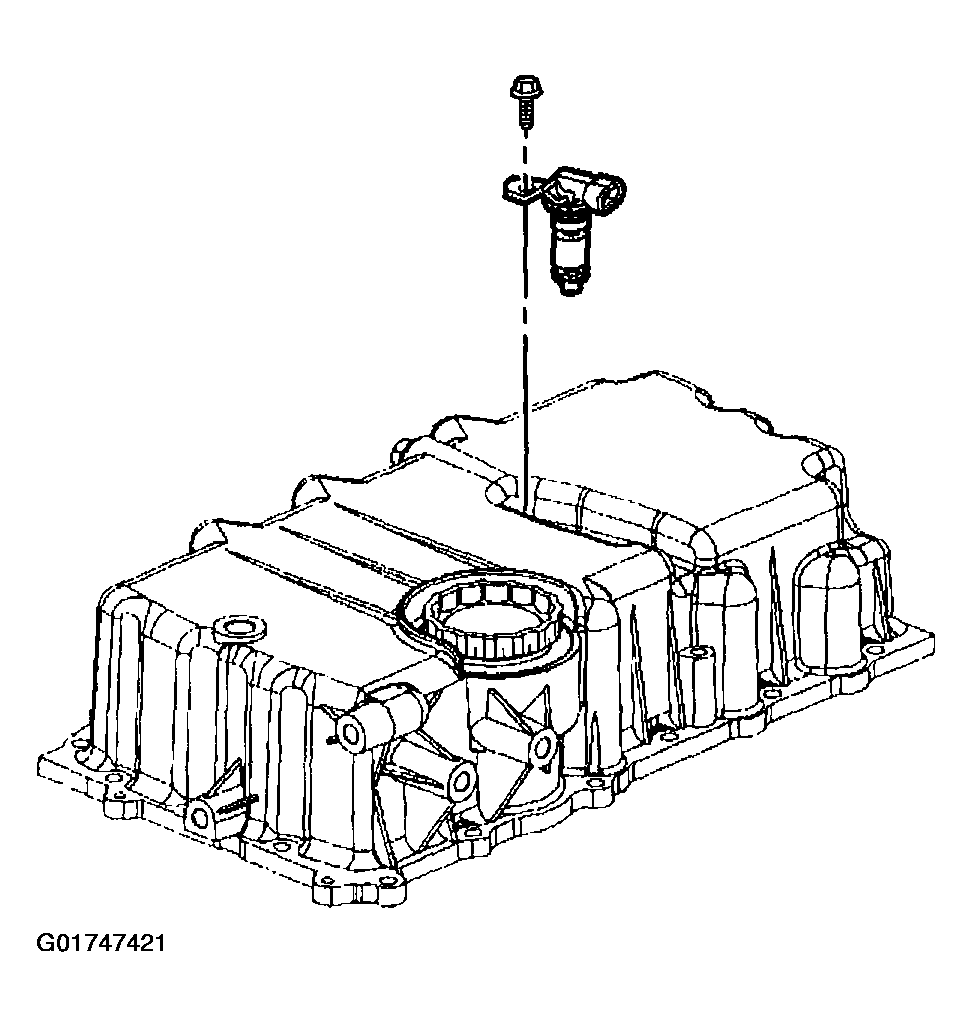

    Fig 1: Installing Oil Level Sensor
    G01747421Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Ensure that the engine oil is filled to the proper level.

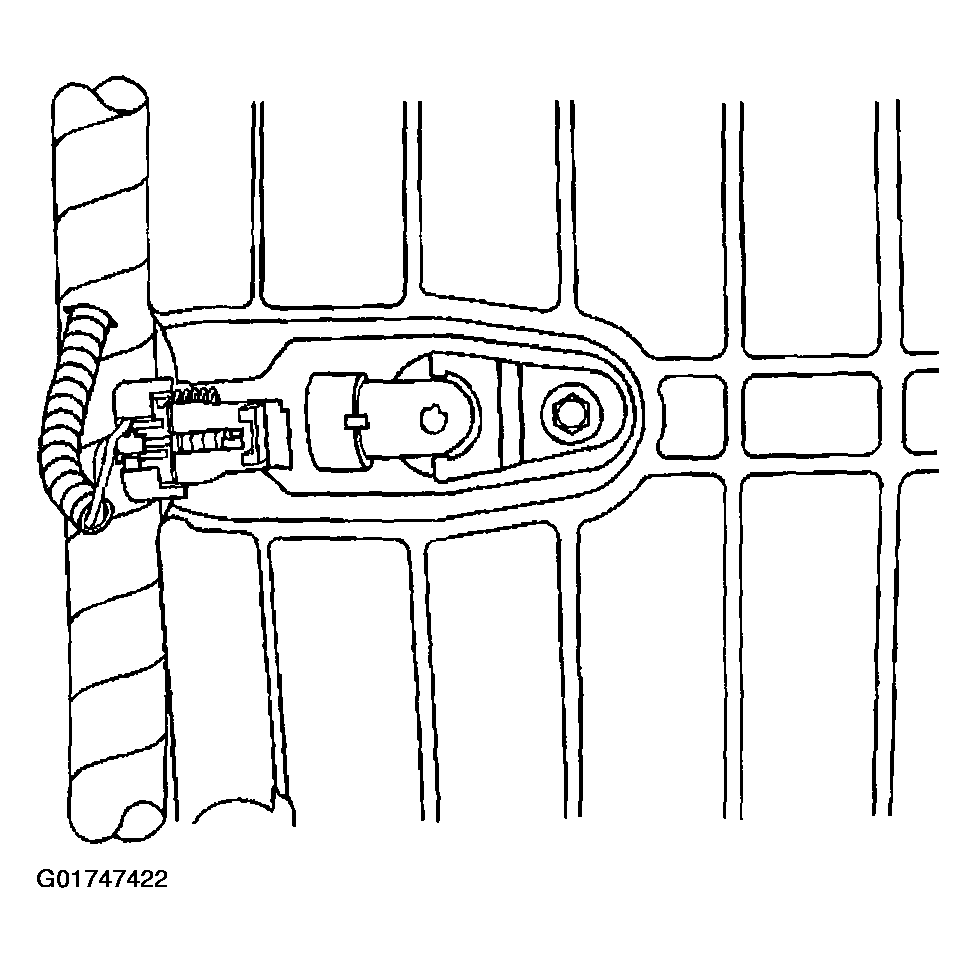

    Fig 2: Connecting Electrical Connector From Oil Level Sensor
    G01747422Courtesy of GENERAL MOTORS CORP.
