Removal Procedure

  1. Raise and support the vehicle.
  2. Drain the oil from the oil pan.
  3. Disconnect the electrical connector from the oil level sensor.

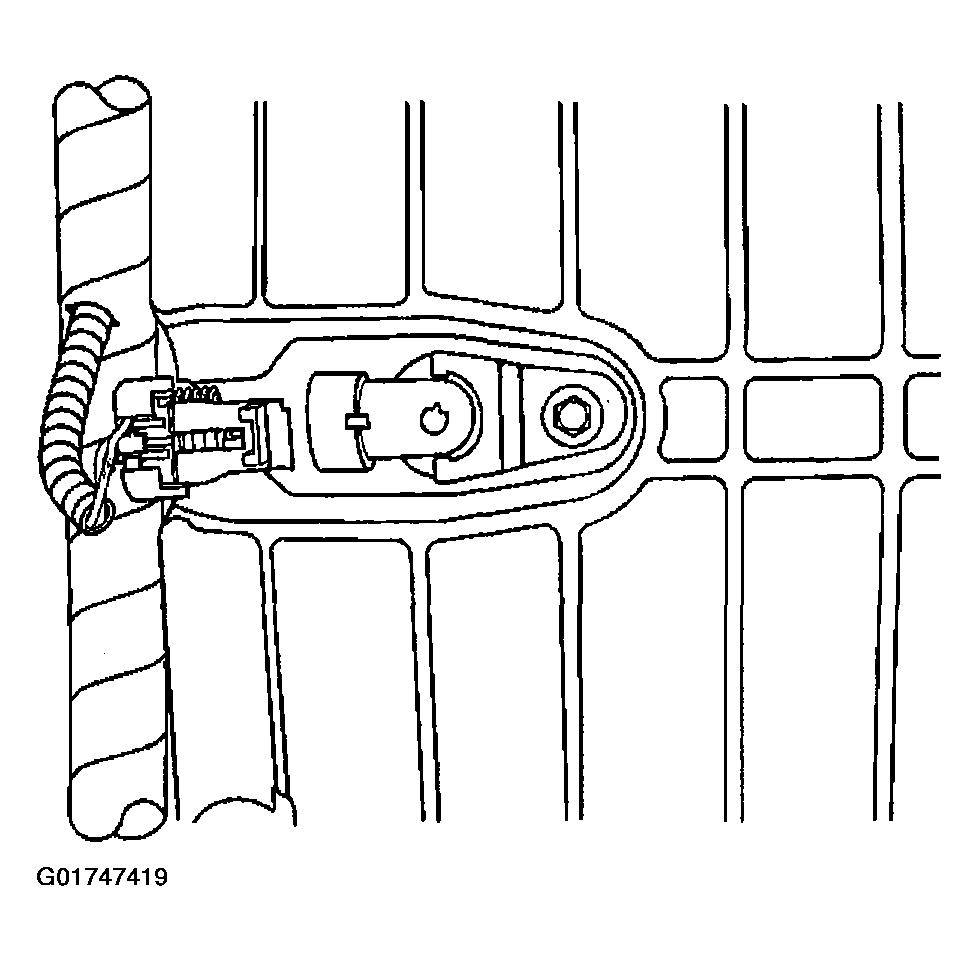

    Fig 1: Disconnecting Electrical Connector From Oil Level Sensor
    G01747419Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer bolt from the oil pan.

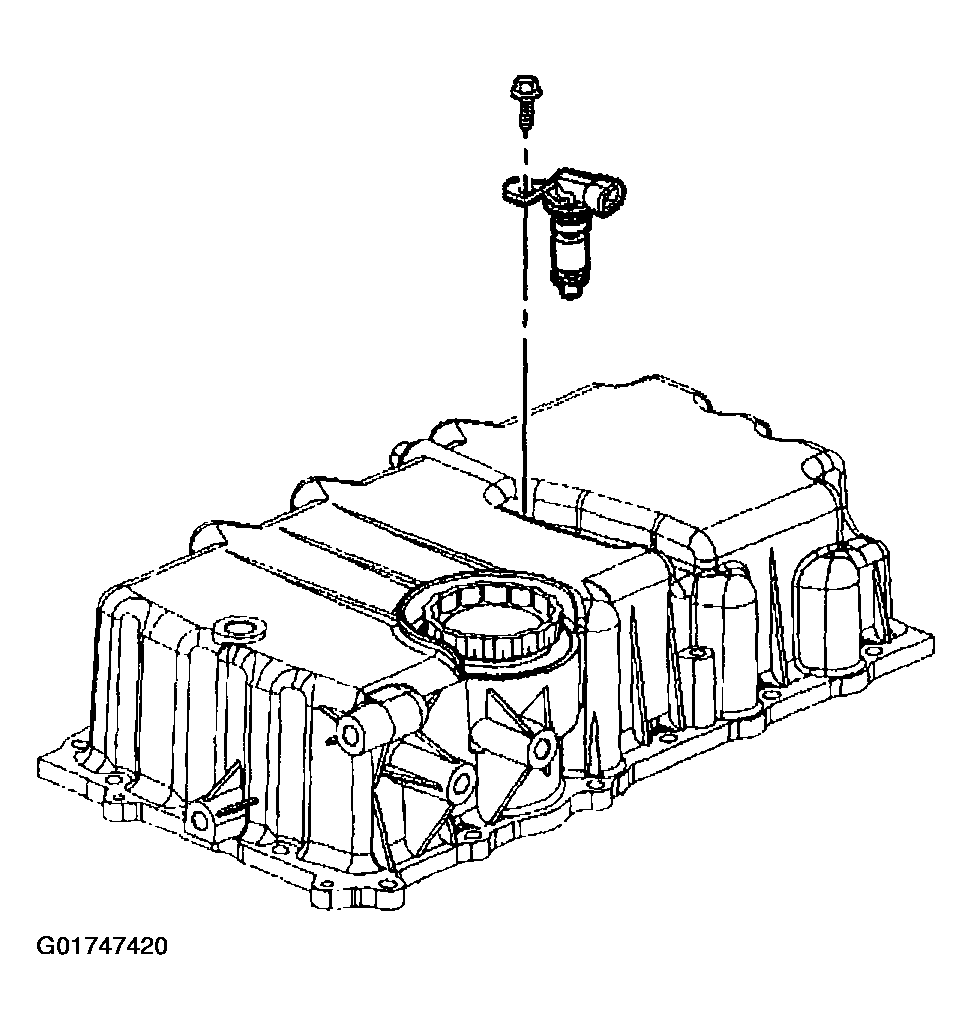

    Fig 2: Removing Oil Level Sensor
    G01747420Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil level sensor from the oil pan.
