Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Above Front Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector
2	Left Sunshade
3	Right Sunshade
4	Vanity Mirror Lamp - Right Connector
5	Vanity Mirror Lamp - Right
6	Inside Rearview Mirror
7	Vanity Mirror Lamp - Left

Fig 2: Behind Brake Pedal Bracket Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Release Switch Connector (LA1)
2	Stop Lamp Switch
3	Stop Lamp Switch Connector C2
4	Stop Lamp Switch Connector C1
5	Cruise Control Release Switch (LA1)

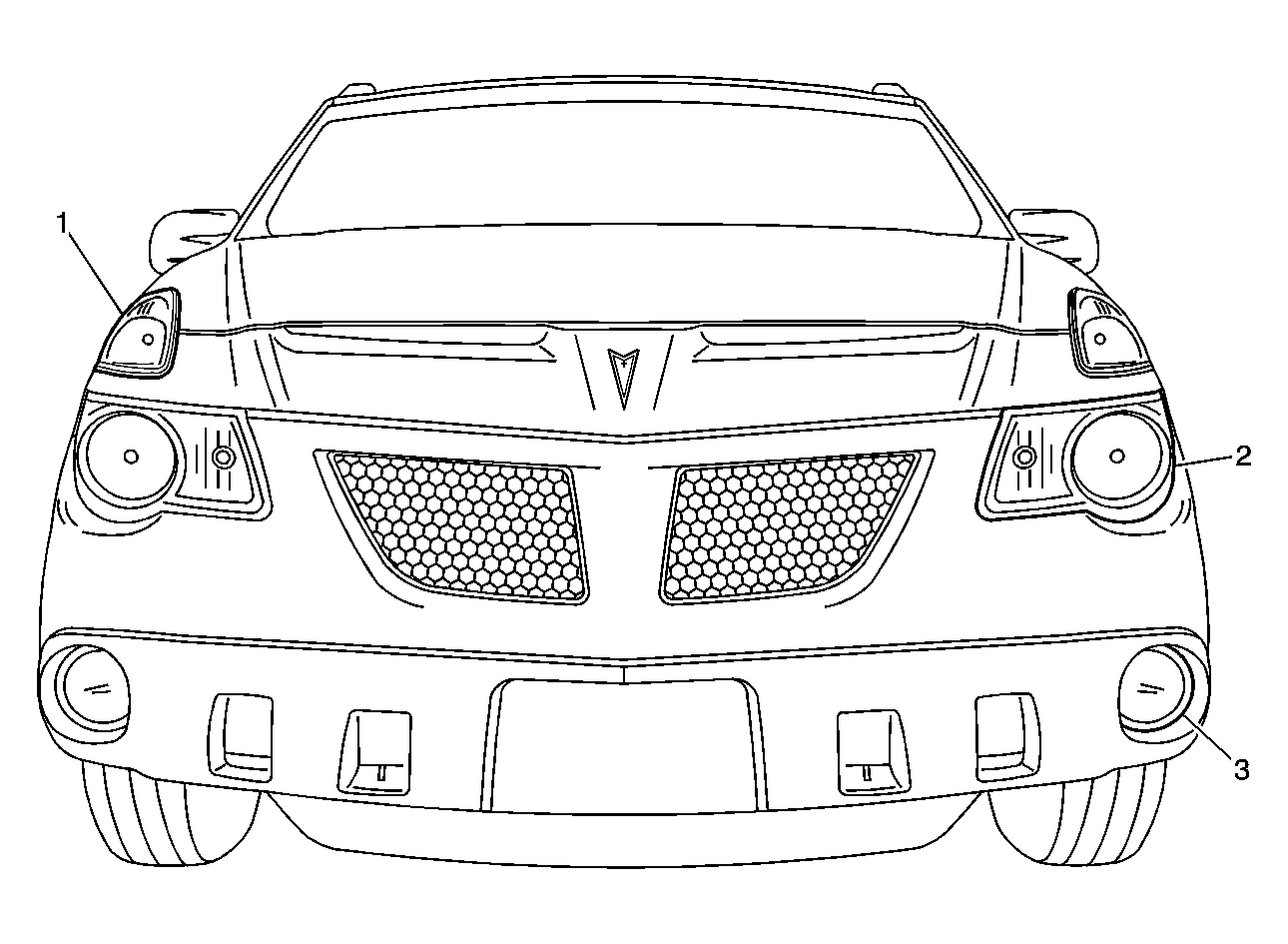

Fig 3: Front of Vehicle Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - RF (LF Similar)
2	Low Beam/High Beam Headlamp Assembly - LF (RF Similar)
3	Fog Lamp - LF (RF Similar)

Fig 4: Instrument Panel & Center Console Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Driver's Information/HUD Switches
3	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
4	Security Indicator Lamp
5	Inflatable Restraint I/P Module
6	HVAC Control Module
7	Fuse Block-Center Console
8	Cigar Lighter
9	Auxiliary Power Outlet-Center Console Lower (2002 and earlier)
10	Auxiliary Power Outlet-Center Console Upper
11	Radio
12	Ignition Switch
13	Turn Signal, Wiper, Washer, Cruise and High Beam Switch

Fig 5: Rear of Vehicle Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Window Defogger Grid
3	Outside Rear View Mirror-Passenger
4	Tail, Brake, and Signal Lamp Assembly-RR (LR Similar)
5	Back-Up Lamp
6	Cargo Lamp

Fig 6: Front of Vehicle - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - RF (LF Similar)
2	Cellular Antenna
3	Low Beam/High Beam Headlamp Assembly - LF (RF Similar)
4	Front Marker Lamp - LF (RF Similar)
5	Fog Lamp - LF (RF Similar)

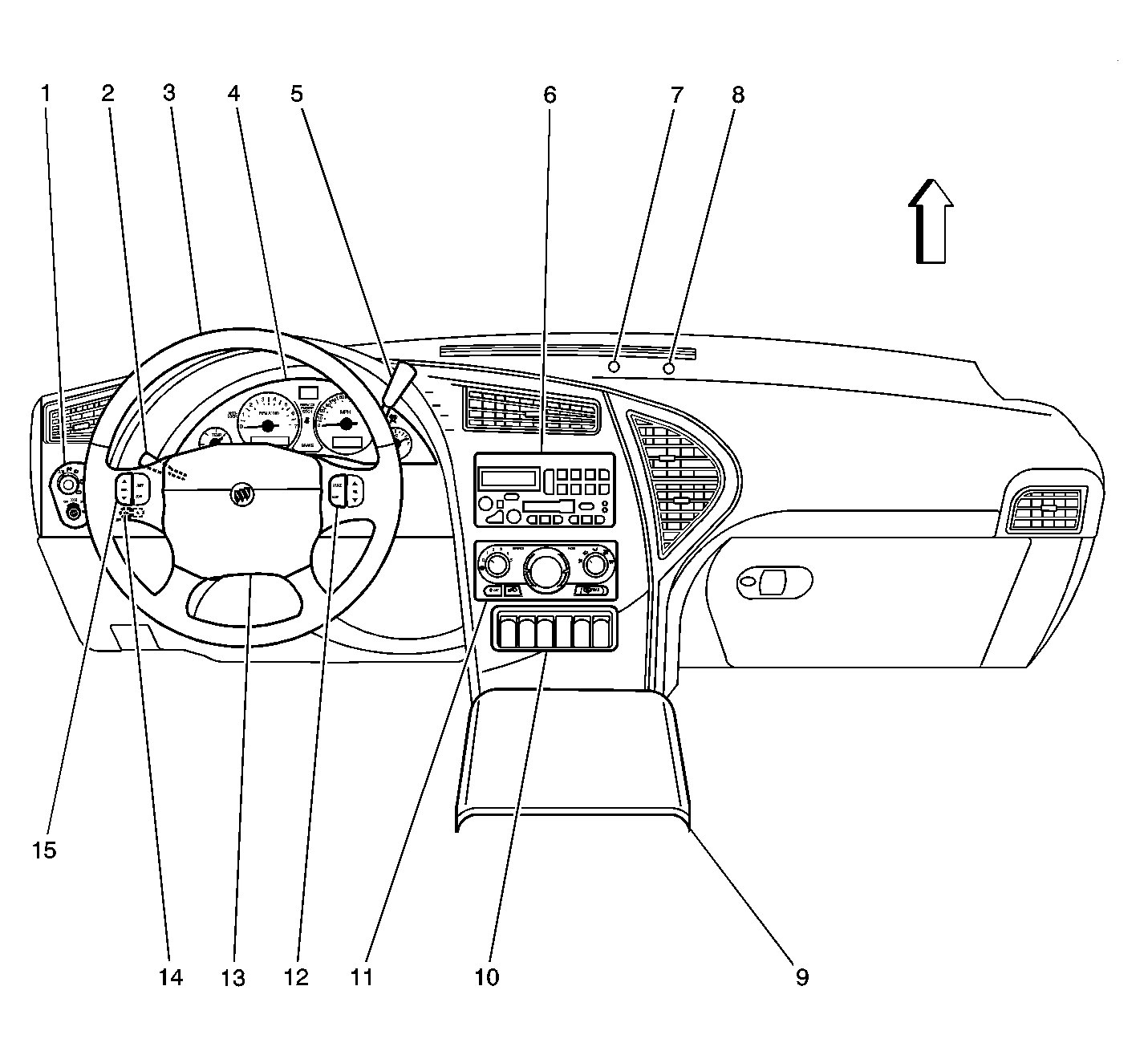

Fig 7: Instrument Panel Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Turn Signal Switch/Multifunction Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Automatic Transmission Shift Lever
6	Radio
7	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
8	Alarm LED
9	Fuse Block - Center Console
10	Center Console Switchbank
11	HVAC Control Module
12	Steering Wheel Controls - Right
13	Ignition Switch
14	Head Up Display (HUD) Switch and Driver Information Center (DIC) Switch
15	Steering Wheel Controls - Left

Fig 8: Rear of Vehicle Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Window Defogger Grid
3	Stop, Signal and Park Lamps-RR (LR Similar)
4	Rear Wiper Arm
5	Backup Lamps
6	Object Sensor RT Outer
7	Object Sensor RT Center
8	Object Sensor LT Center
9	Object Sensor LT Outer
10	End Gate Release Handle
11	Tail Lamp-Left (Right Similar)
12	License Lamp
13	Cargo Lamp

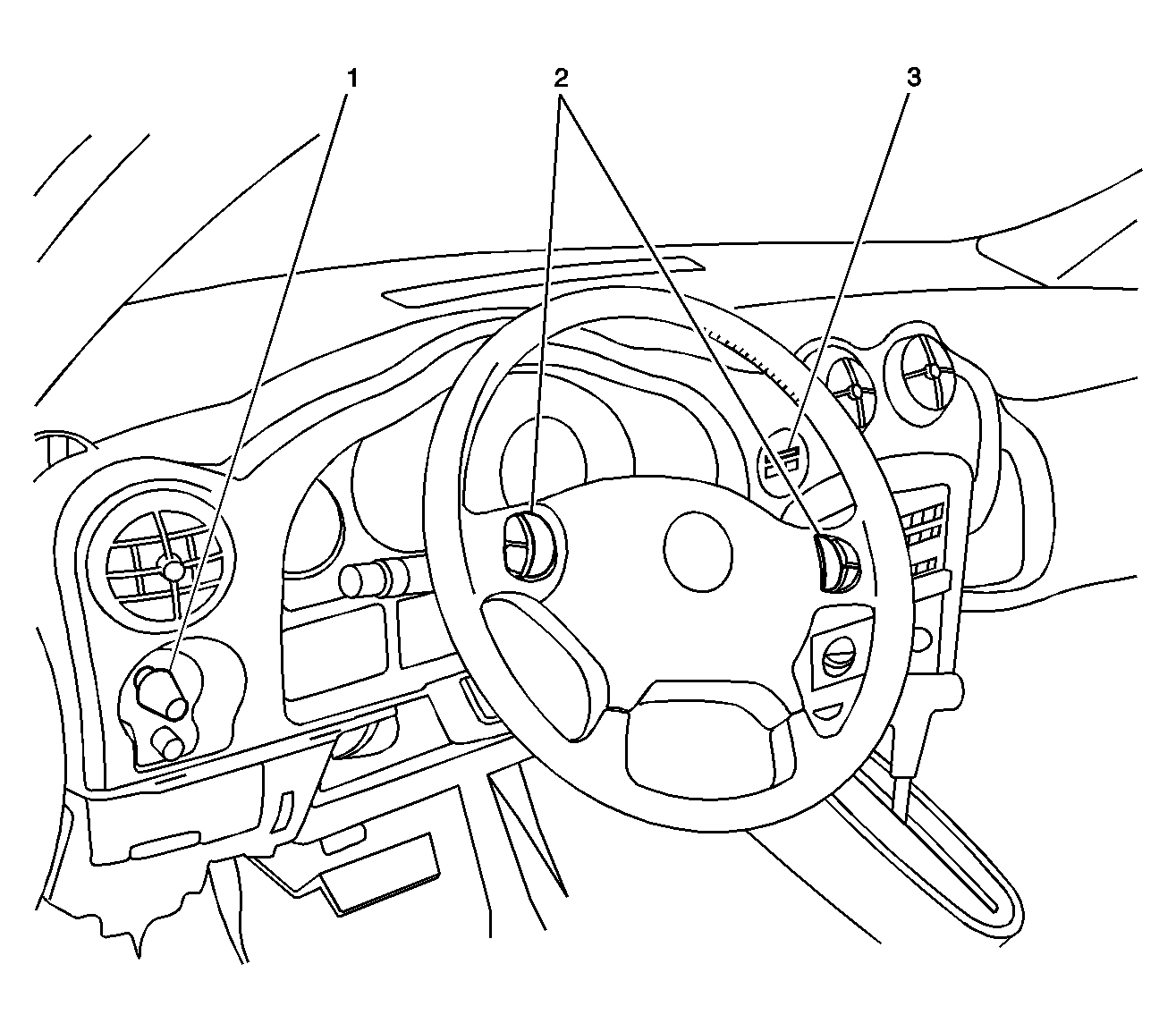

Fig 9: Driver Side Control Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Steering Wheel Controls
3	Driver Information Center
