Fuel Tank: Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

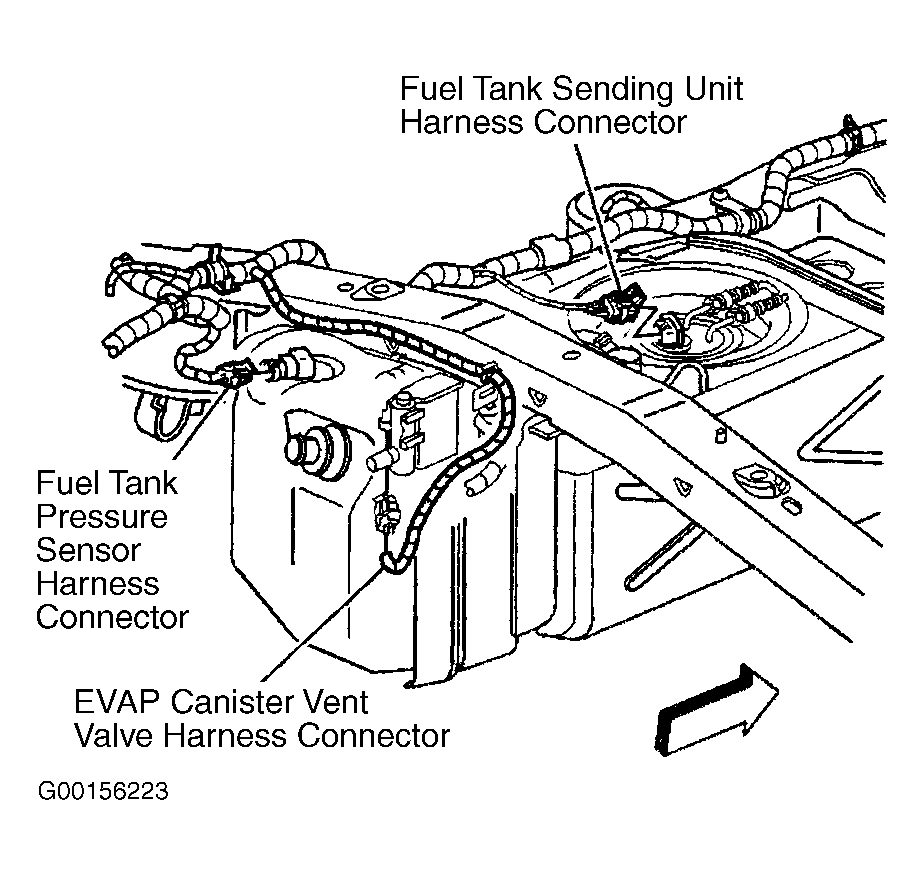

Position and support fuel tank. Reconnect fuel tank sending unit harness connector. Raise fuel tank and install fuel tank straps. Install fuel tank strap retaining bolts and tighten to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
