Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT in Steering Wheel and Column.
  3. Remove the lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT in Steering Wheel and Column.
  4. Disconnect the connector from the theft deterrent control module.
  5. If necessary, disconnect the connector from the ignition lock cylinder case (1).
  6. Remove the theft deterrent control module (2) from the ignition lock cylinder case assembly (1).

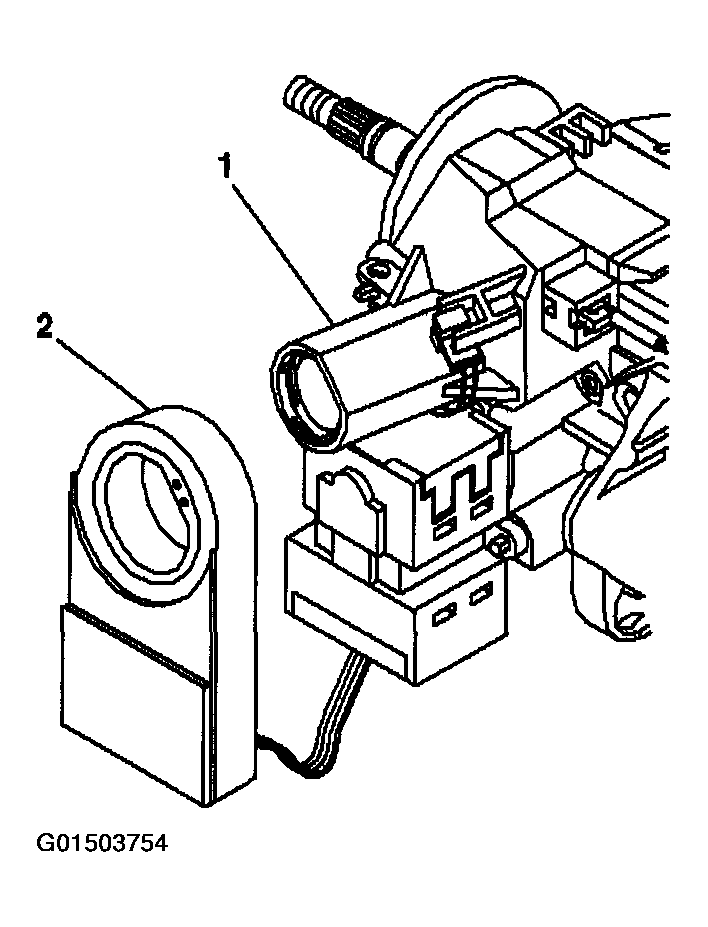

    Fig 1: Removing Theft Deterrent Control Module From Ignition Lock Cylinder Case Assembly
    G01503754Courtesy of GENERAL MOTORS CORP.
