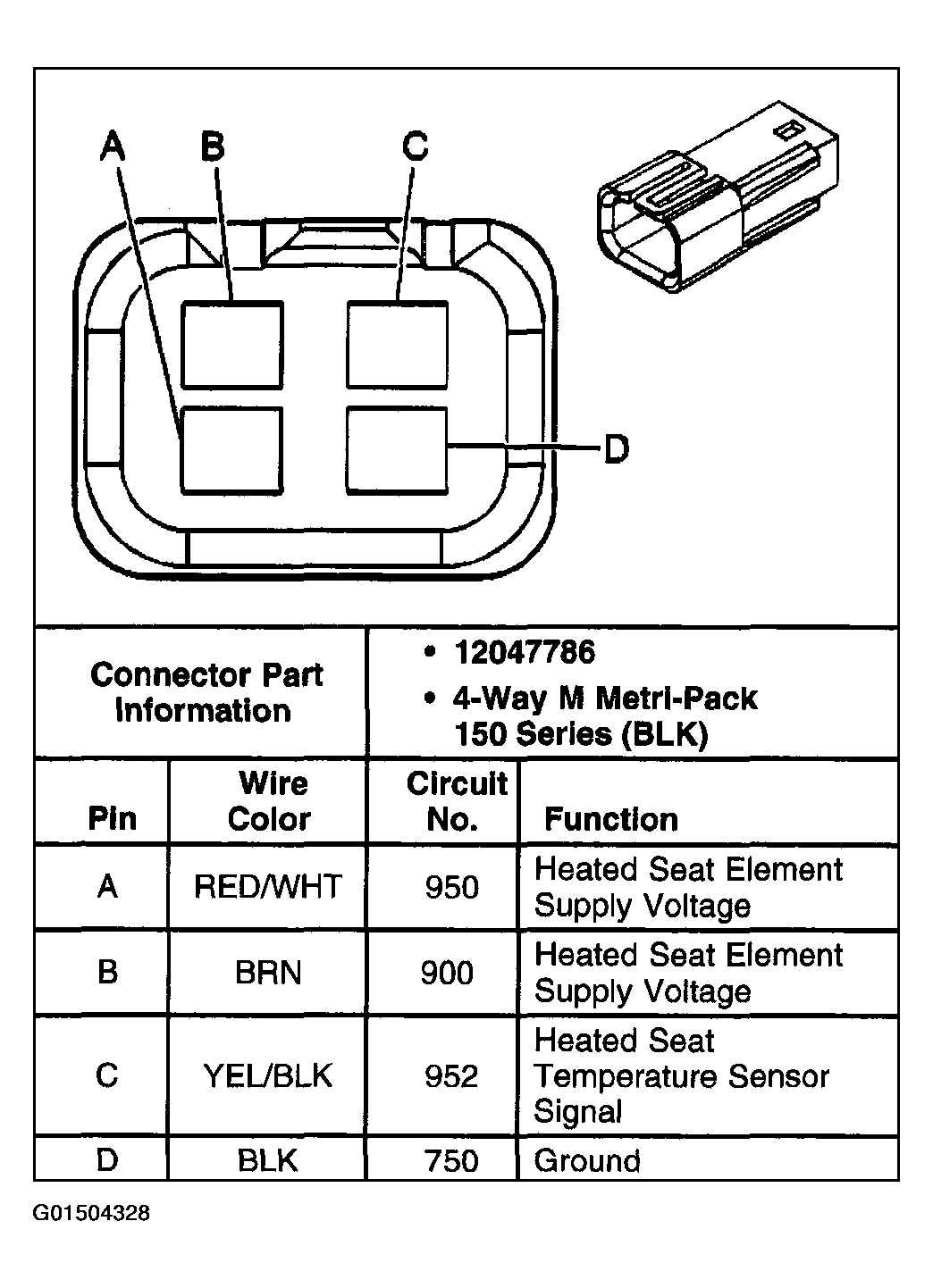

Fig 1: Heated Seat Element - Driver Back Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Heated Seat Control Module - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

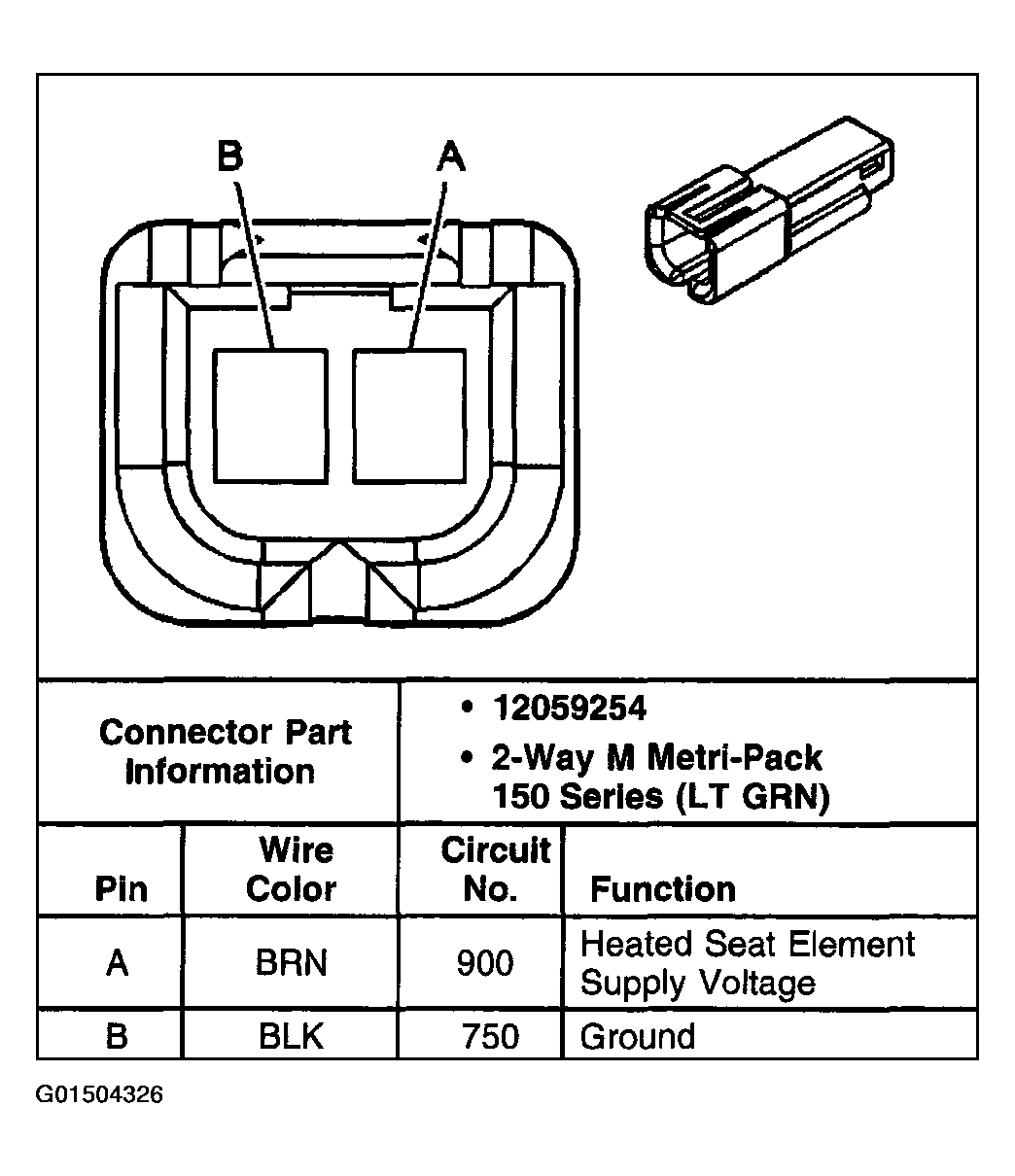

Fig 3: Heated Seat Element - Driver Cushion Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Heated Seat Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

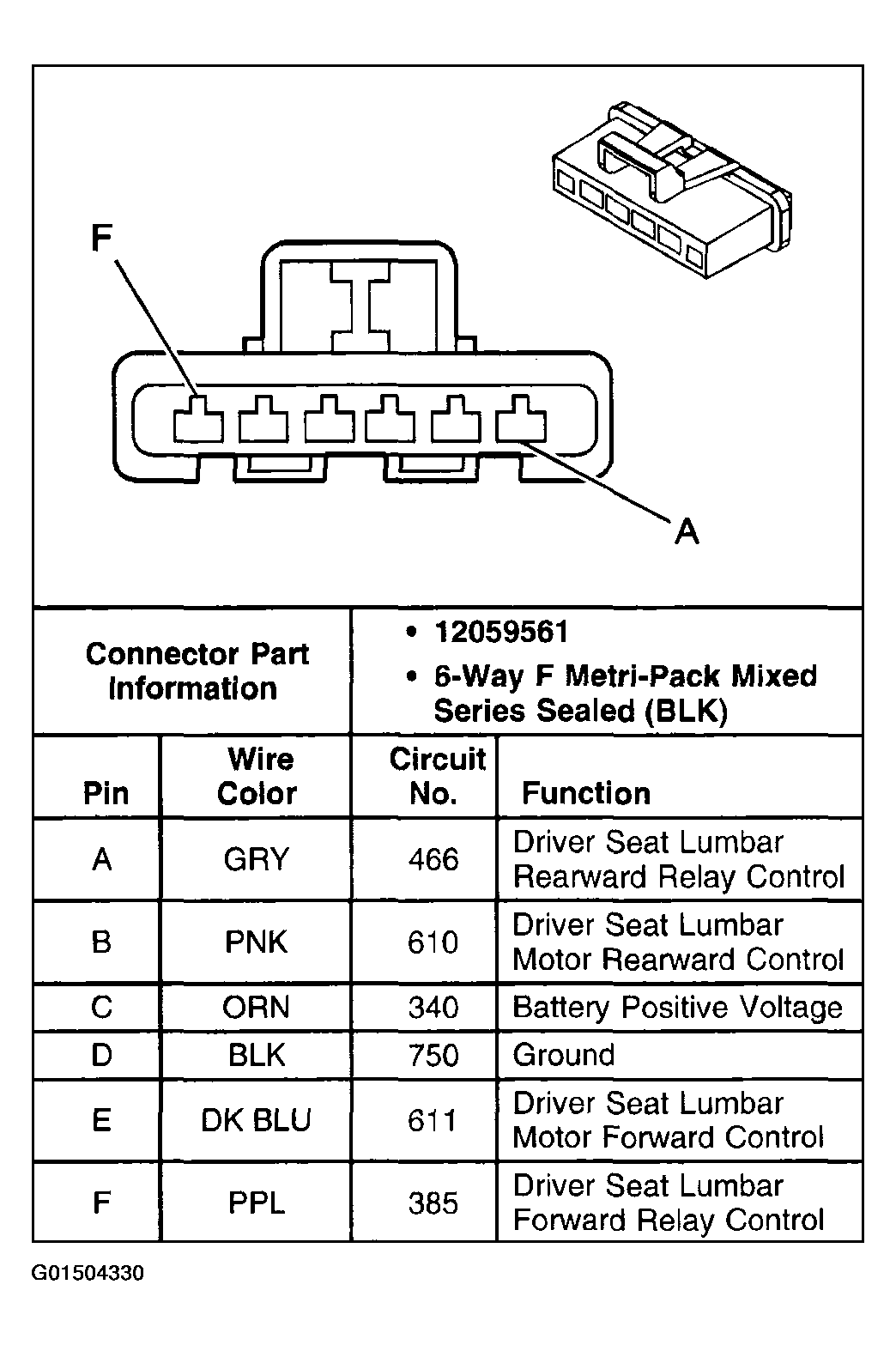

Fig 5: Lumbar Horizontal Adjuster Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

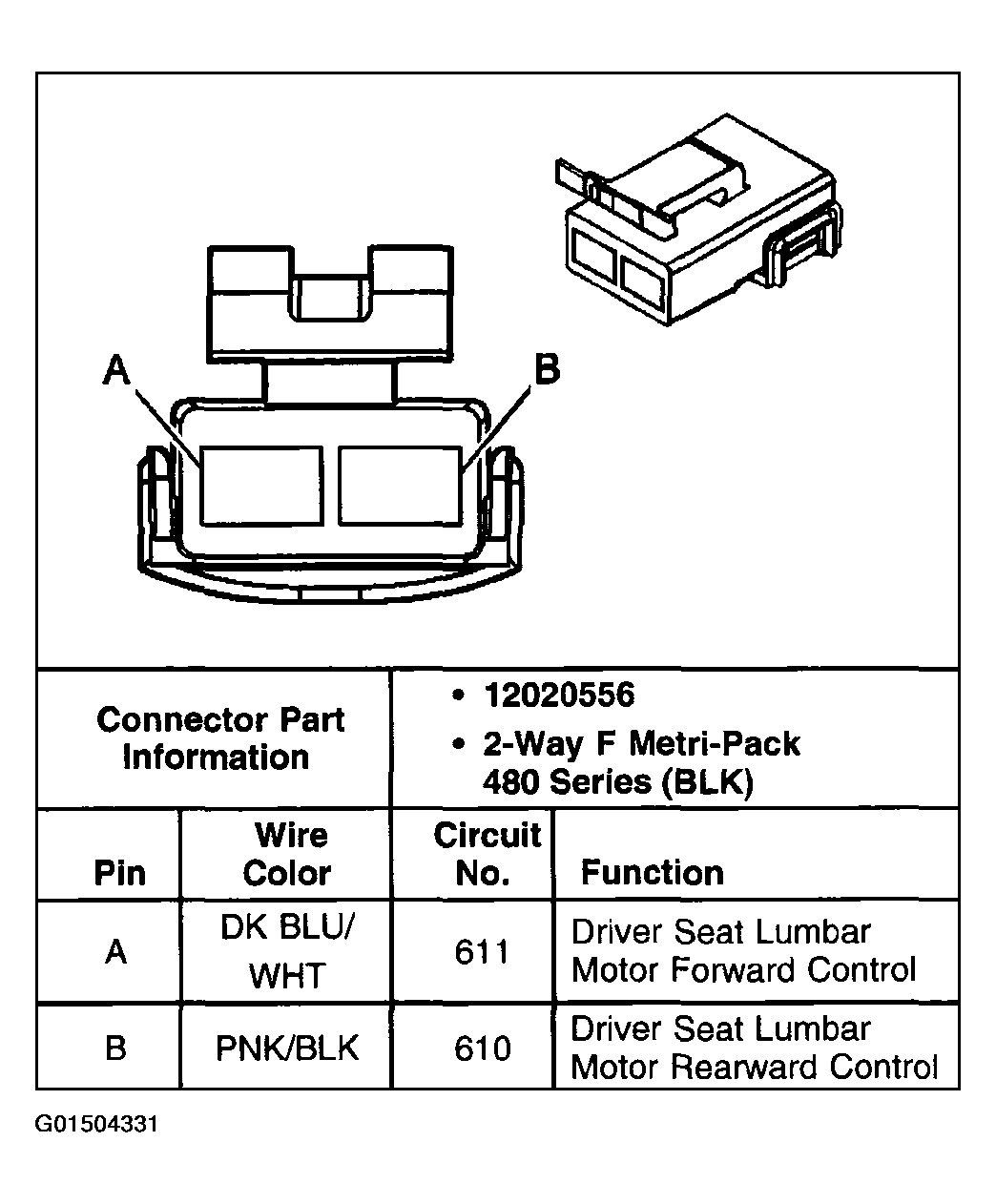

Fig 6: Lumbar Horizontal Motor - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

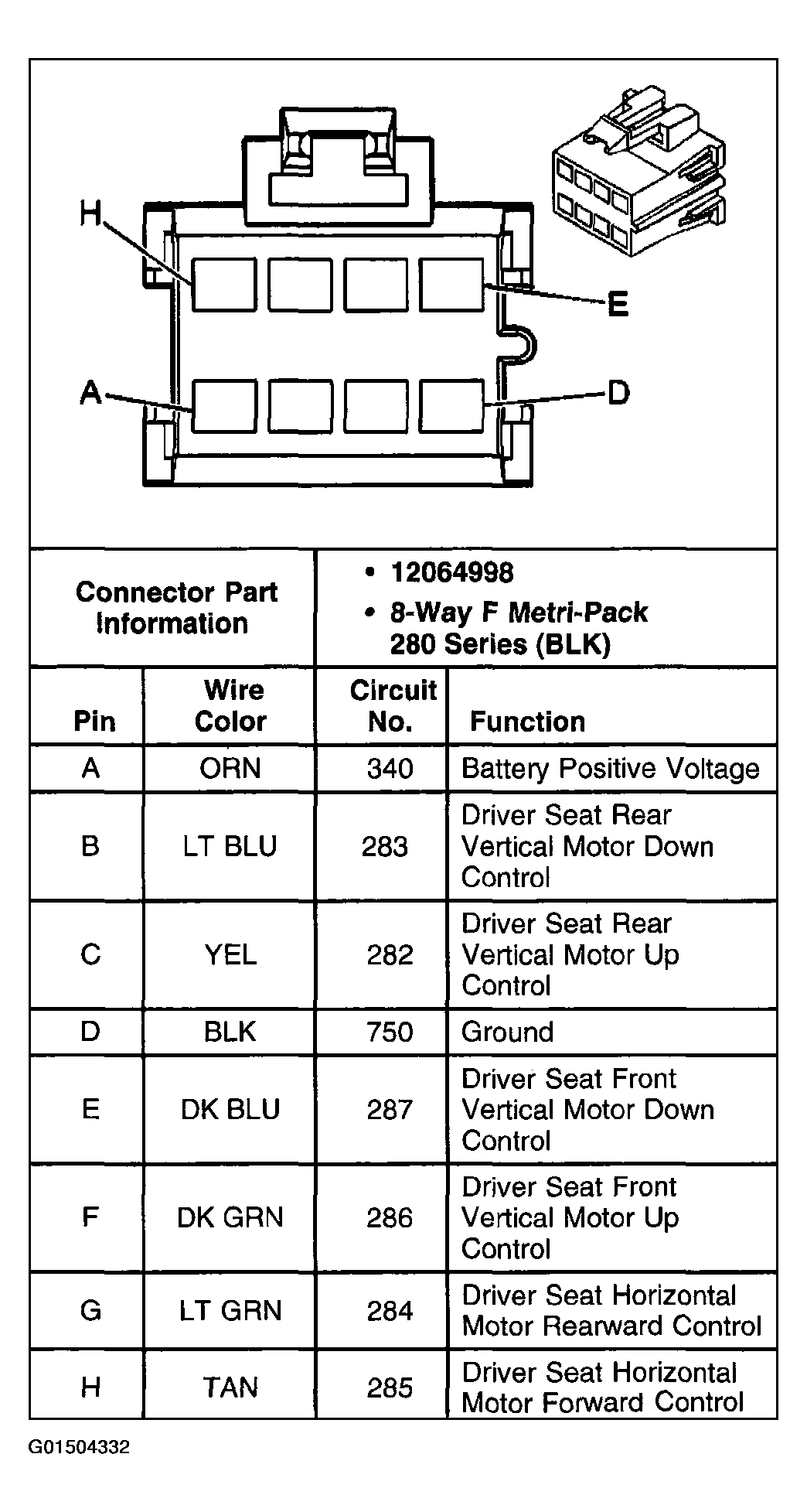

Fig 7: Seat Adjuster Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

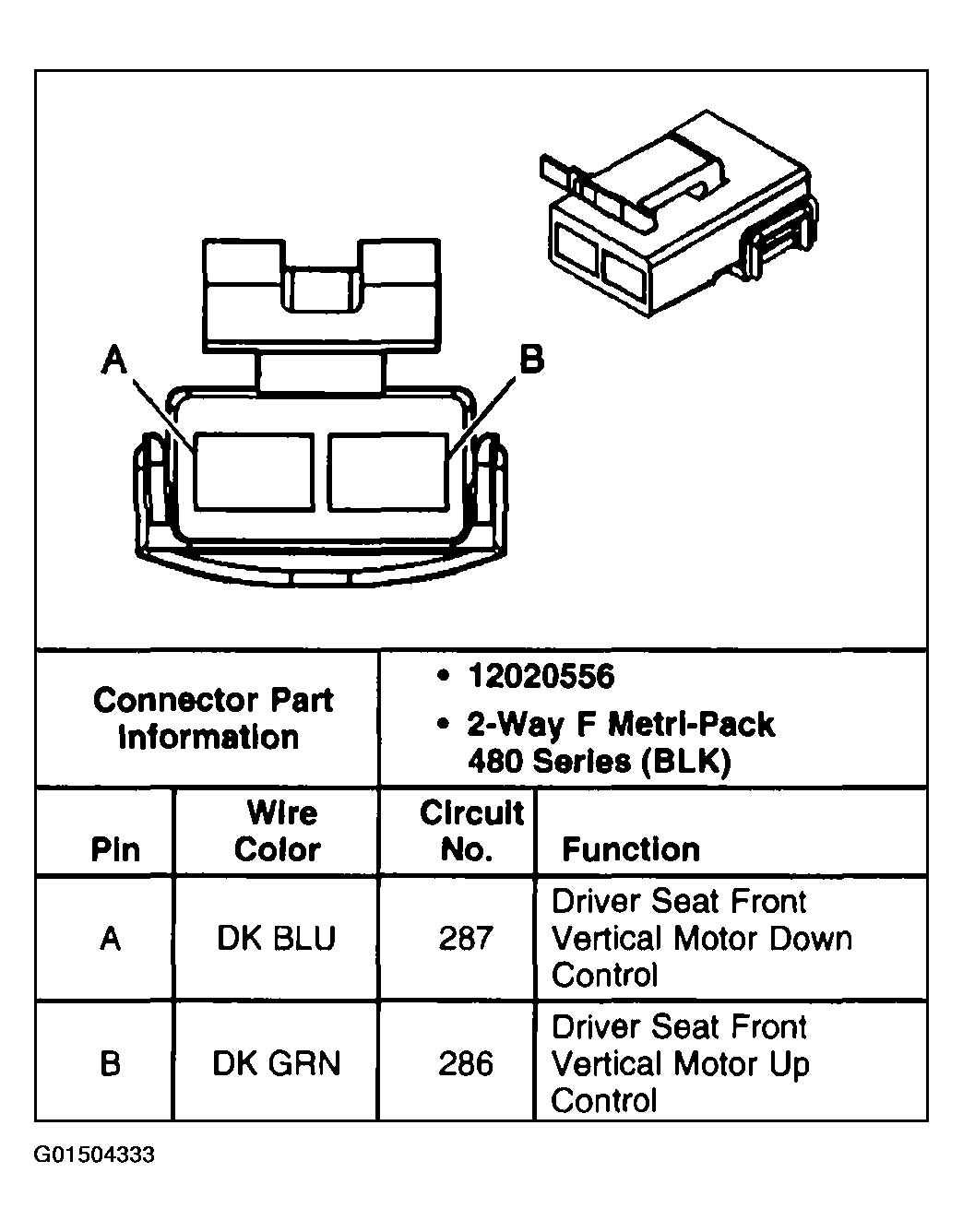

Fig 8: Seat Front Vertical Motor - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

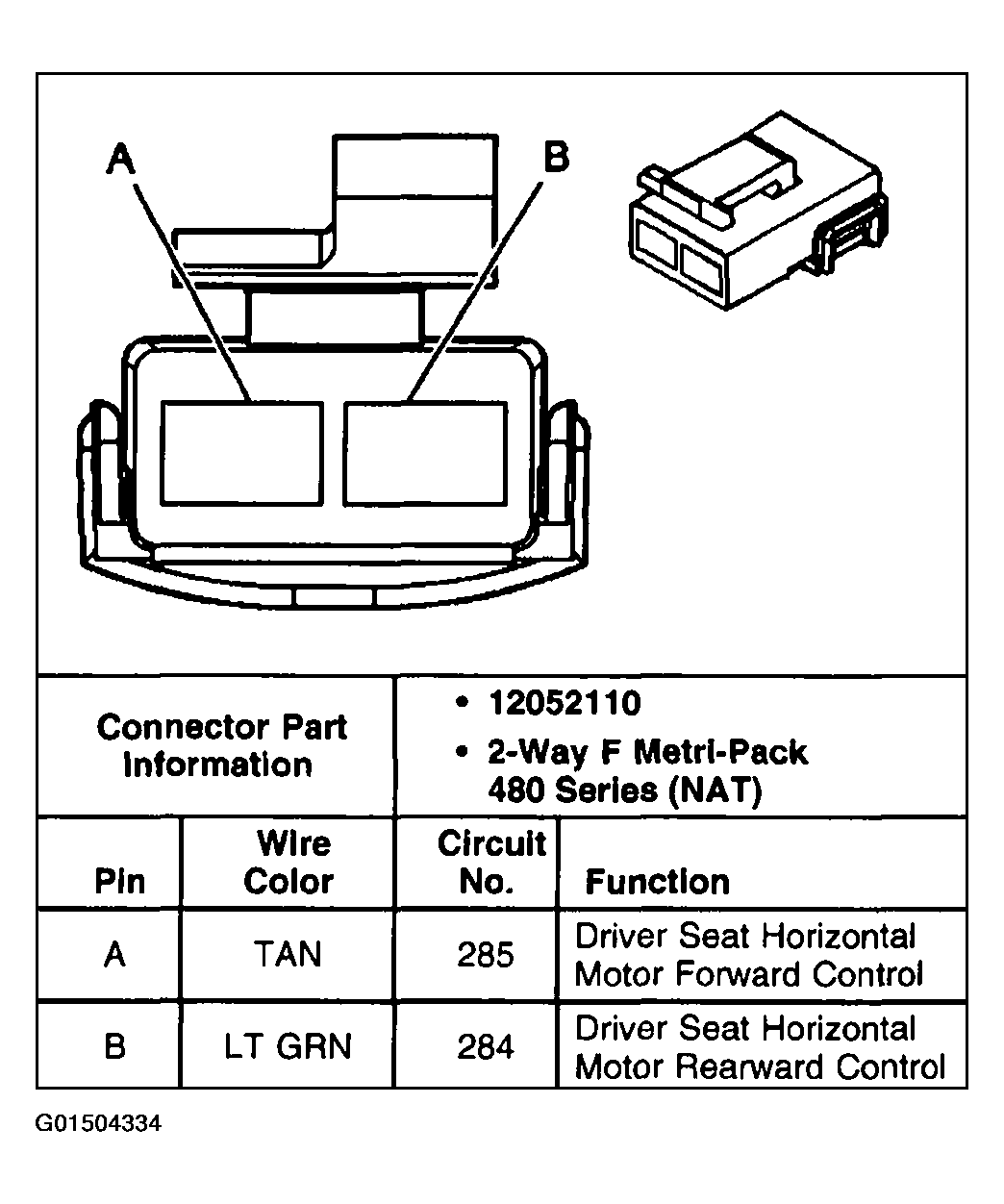

Fig 9: Seat Horizontal Motor - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 10: Seat Lumbar Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

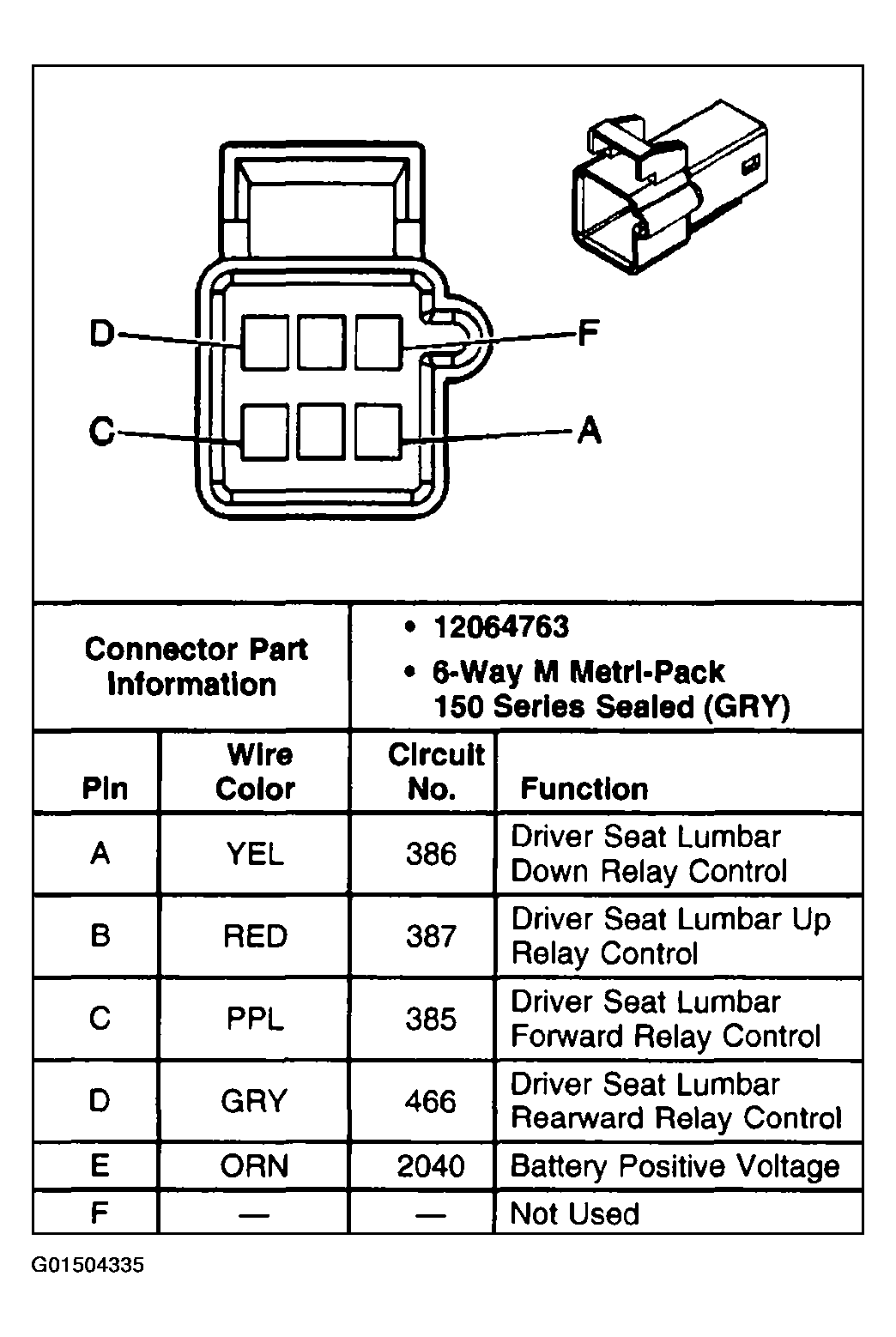

Fig 11: Seat Lumbar Vertical Adjuster Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

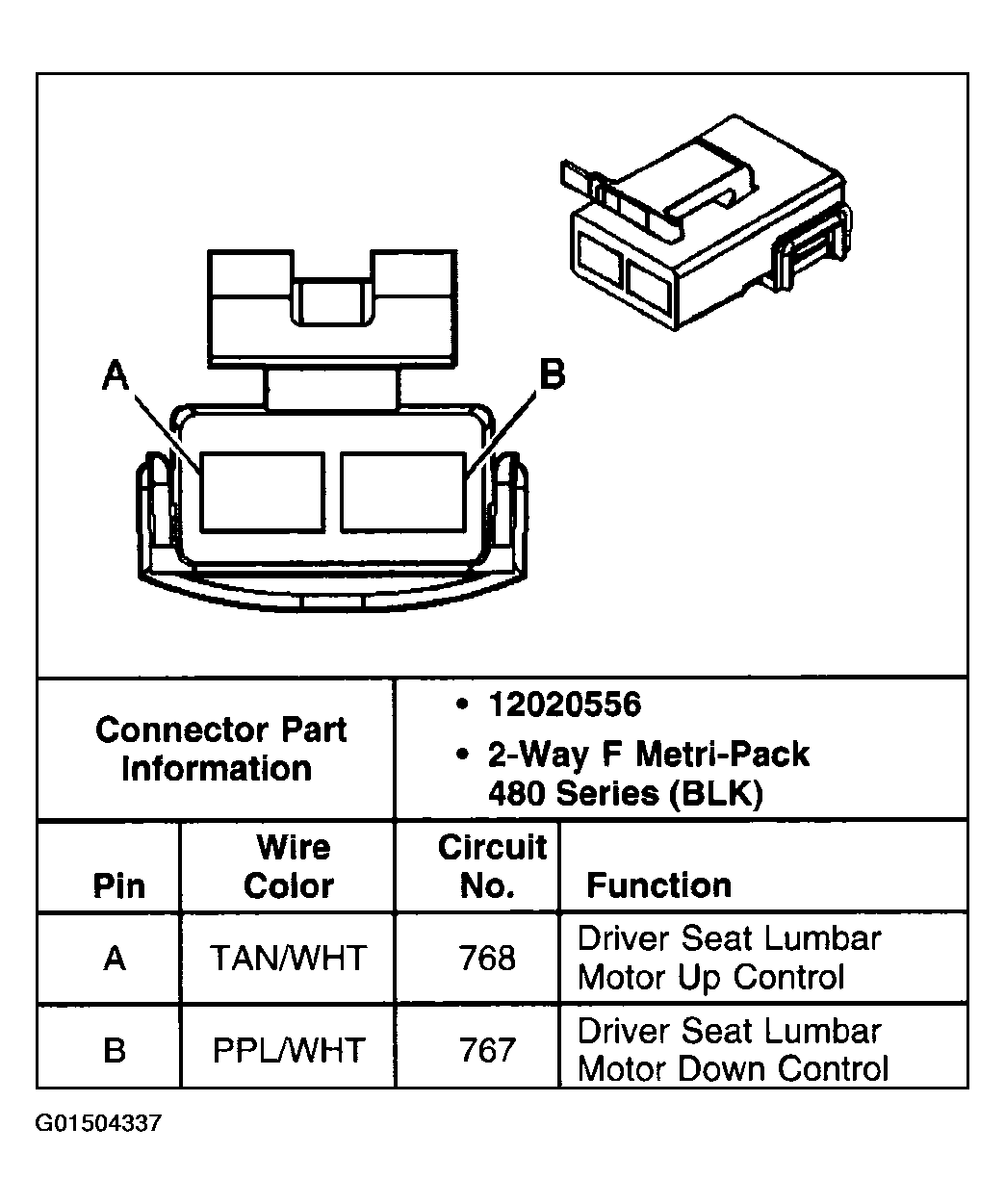

Fig 12: Seat Lumbar Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

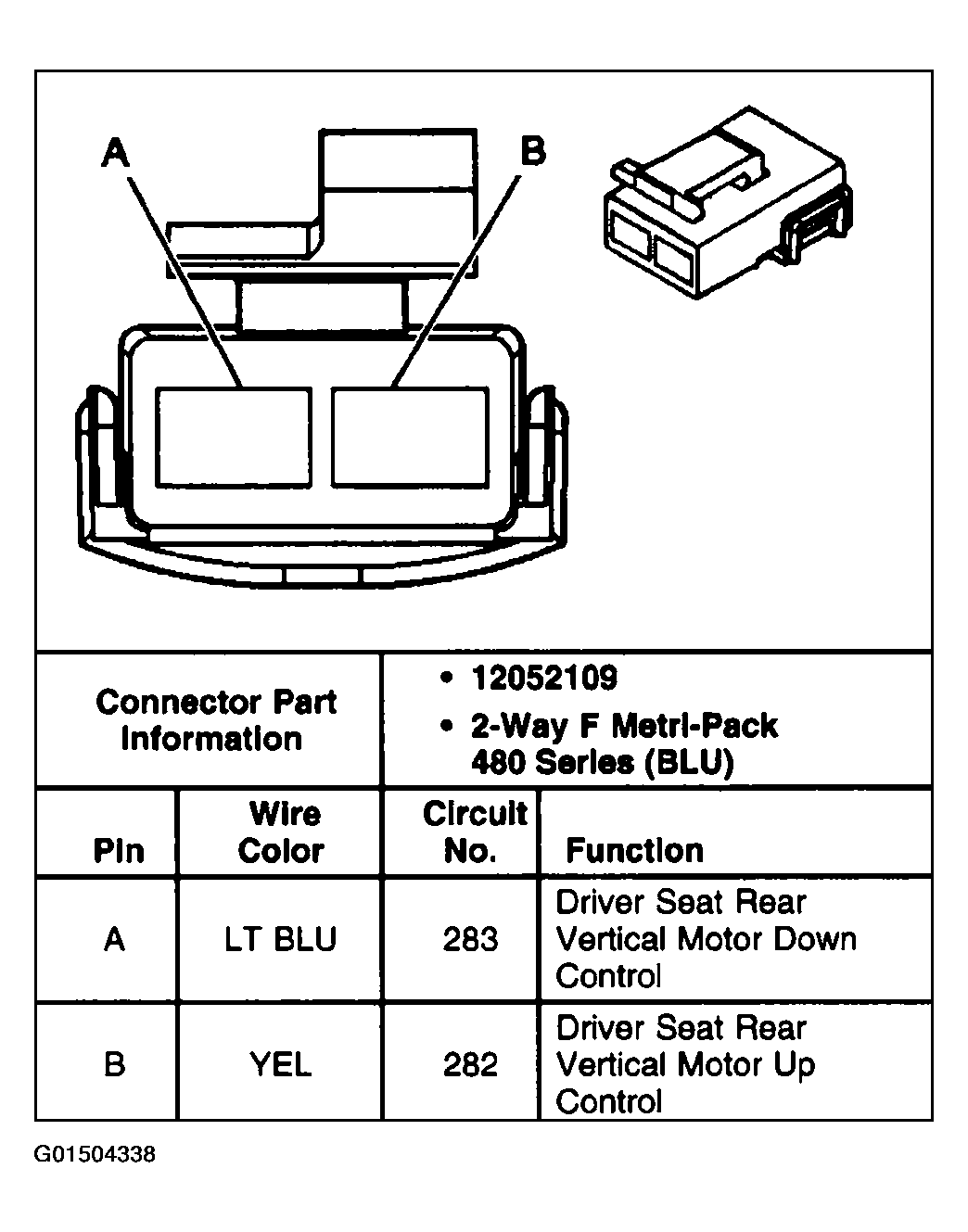

Fig 13: Seat Rear Vertical Motor - Driver Connector End View
