Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the pump motor connector (3) to the bottom of the EBCM.
  2. Install the EBCM (1) to the BPMV (4).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the six EBCM to BPMV retainers (2).

    Tighten

    Tighten the retainers to 2.9 N.m (26 lb in).

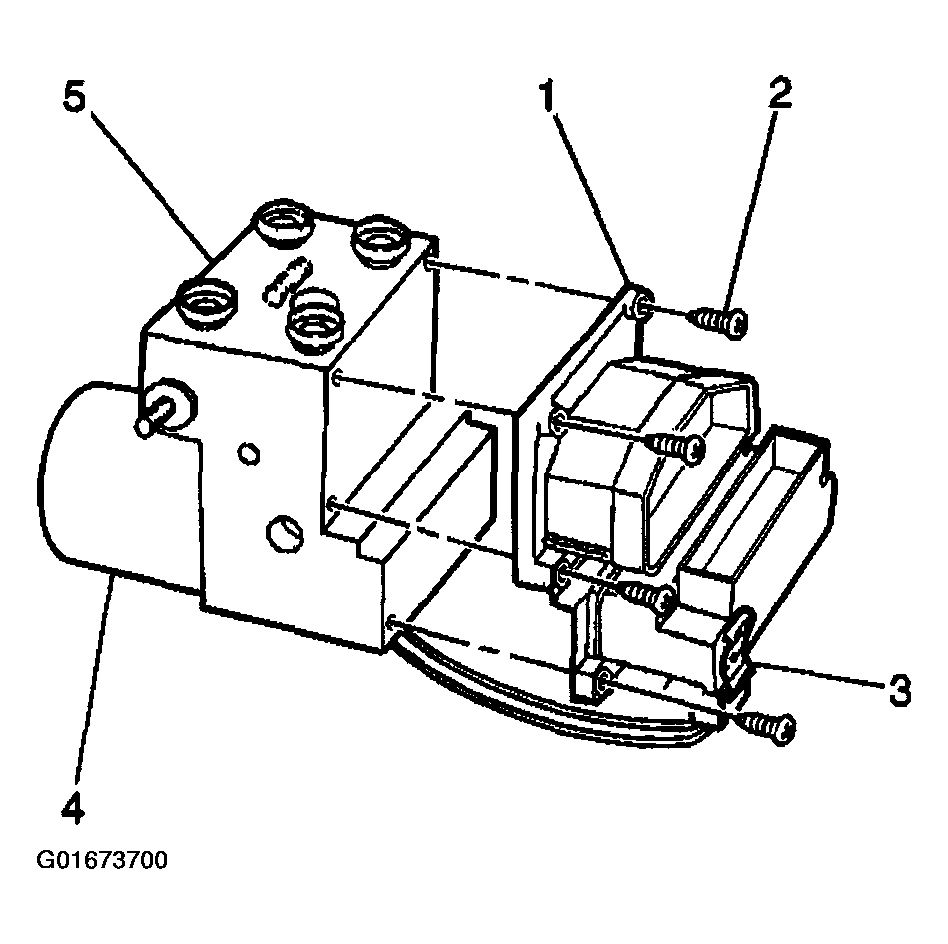

    Fig 1: Installing EBCM To BPMV
    G01673700Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector.
  5. Reengage the locking tab (1) to the EBCM harness connector.
  6. Install the air cleaner intake duct. Refer to AIR CLEANER INTAKE DUCT .
  7. Reposition the module and cables. Connect the cruise control module to the left strut tower. Refer to CRUISE CONTROL MODULE REPLACEMENT .
  8. Connect the accelerator and cruise control cable to the accelerator control cable bracket.
  9. Install the front fender upper diagonal brace.

    Refer to BRACE REPLACEMENT -- SHEET METAL DIAGONAL .

  10. Install the fuel injector sight shield, 3.8 L engine only. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .
  11. Turn the ignition switch to the RUN position, do not start engine.
  12. Perform the Diagnostic System Check - ABS .

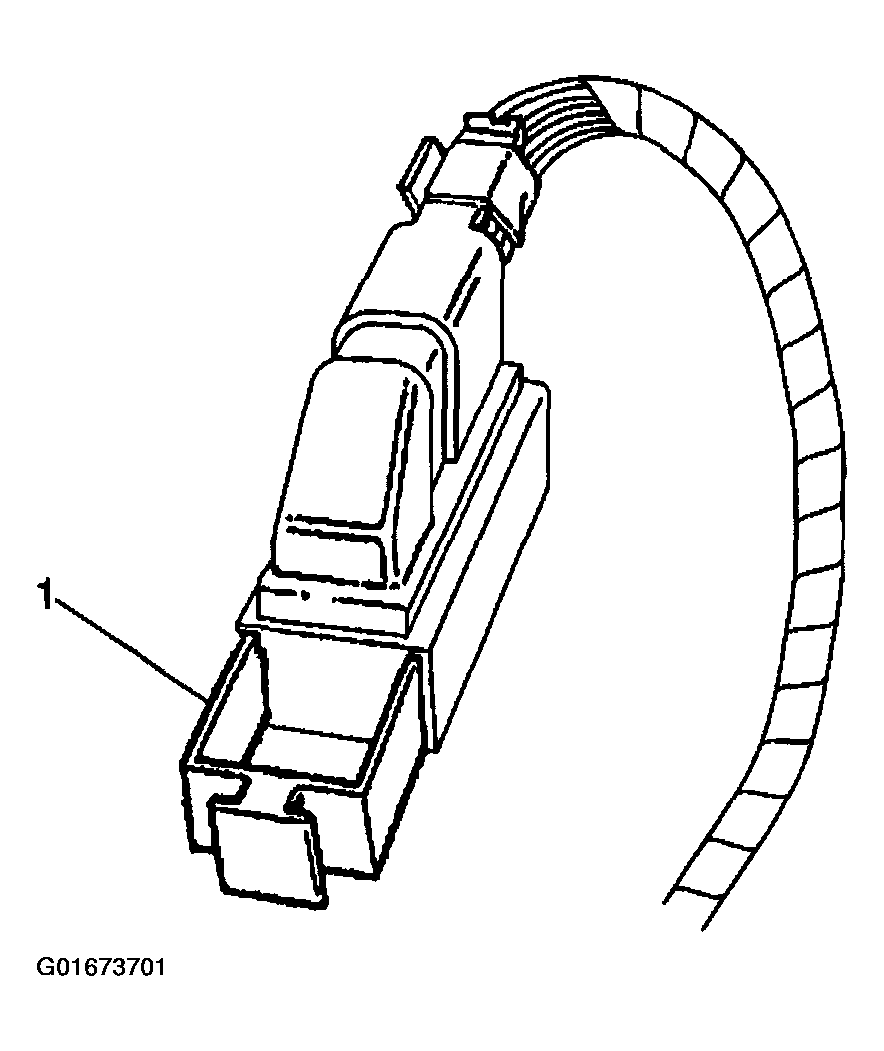

    Fig 2: EBCM Harness Connector & Locking Tab
    G01673701Courtesy of GENERAL MOTORS CORP.
