Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

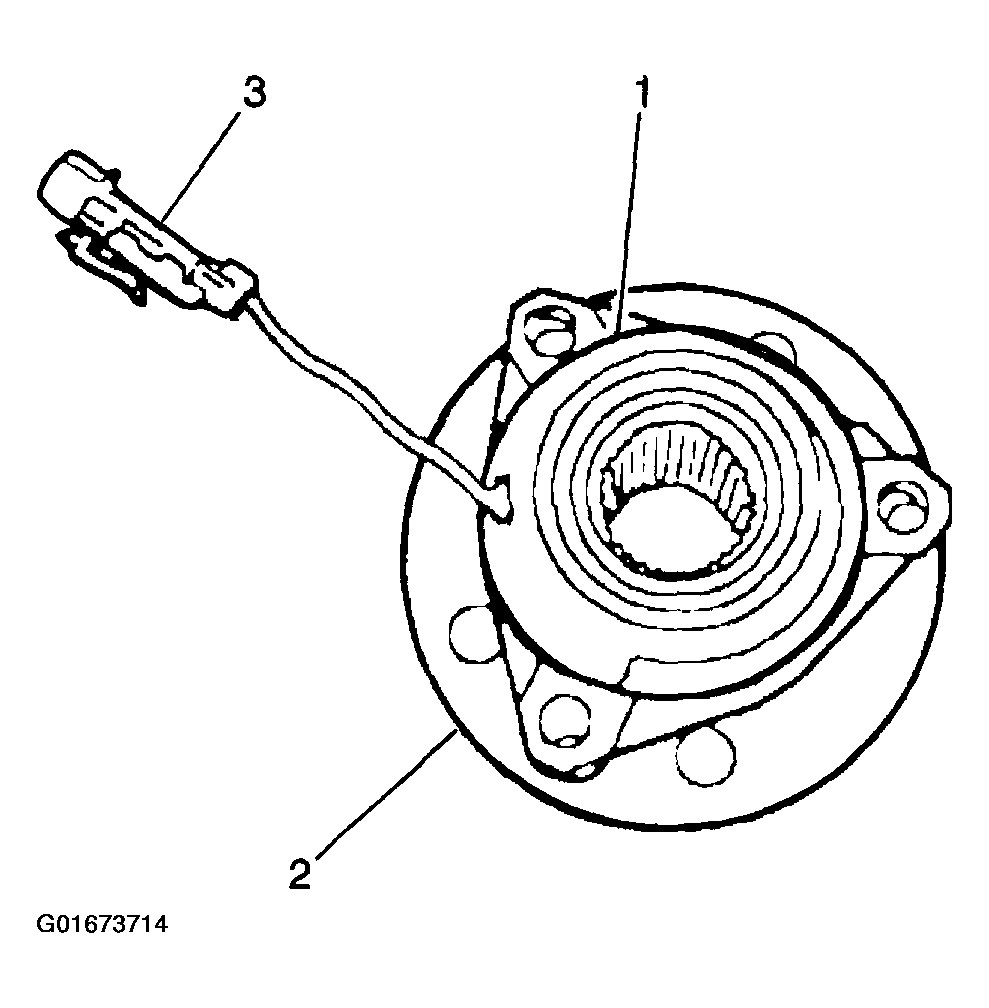

    Fig 1: Hub & Bearing Assembly
    G01673714Courtesy of GENERAL MOTORS CORP.
  2. Install the front wheel speed sensor jumper harness electrical connector (1).
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position with the engine off.
  6. Perform the Diagnostic System Check - ABS .
    Fig 2: Front Wheel Speed Sensor Jumper Harness Electrical Connector
    G01673715Courtesy of GENERAL MOTORS CORP.
